Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of ECU - Connector View:

Terminals Of ECU - Pinouts (Part 1):

Terminals Of ECU - Pinouts (Part 2):

1. RADIO AND PLAYER

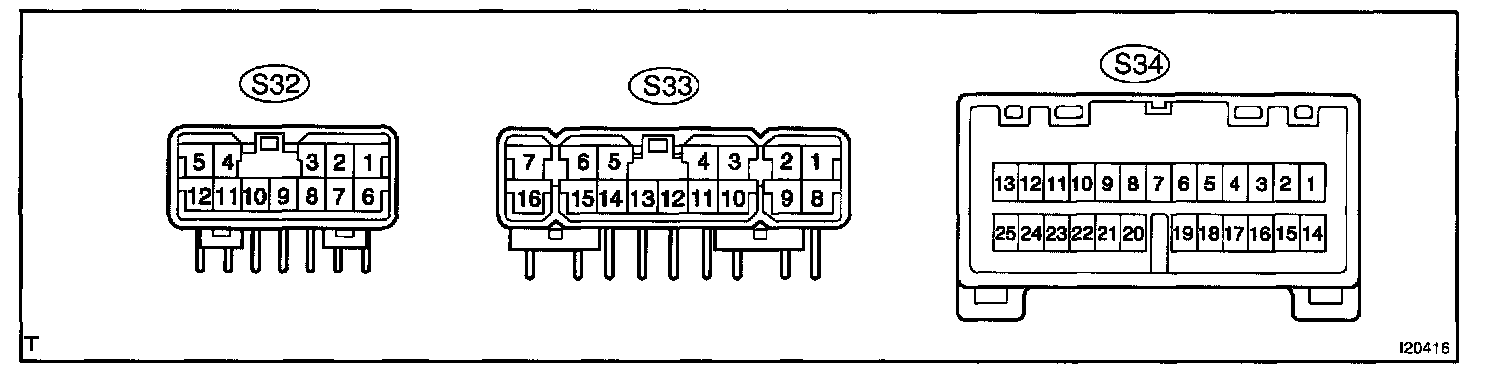

Terminals Of ECU - Connector View:

Part 1:

Part 2:

Part 3:

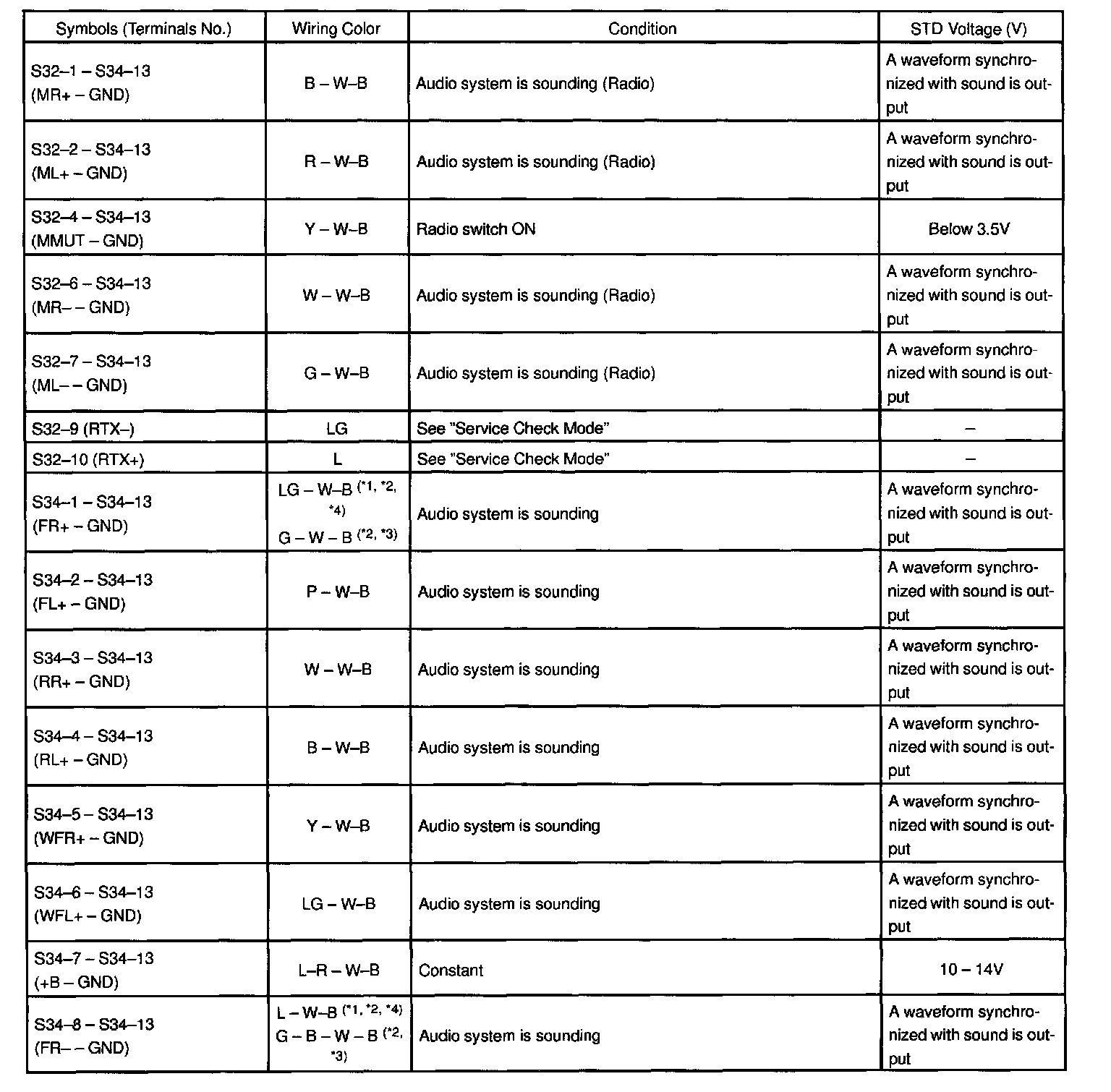

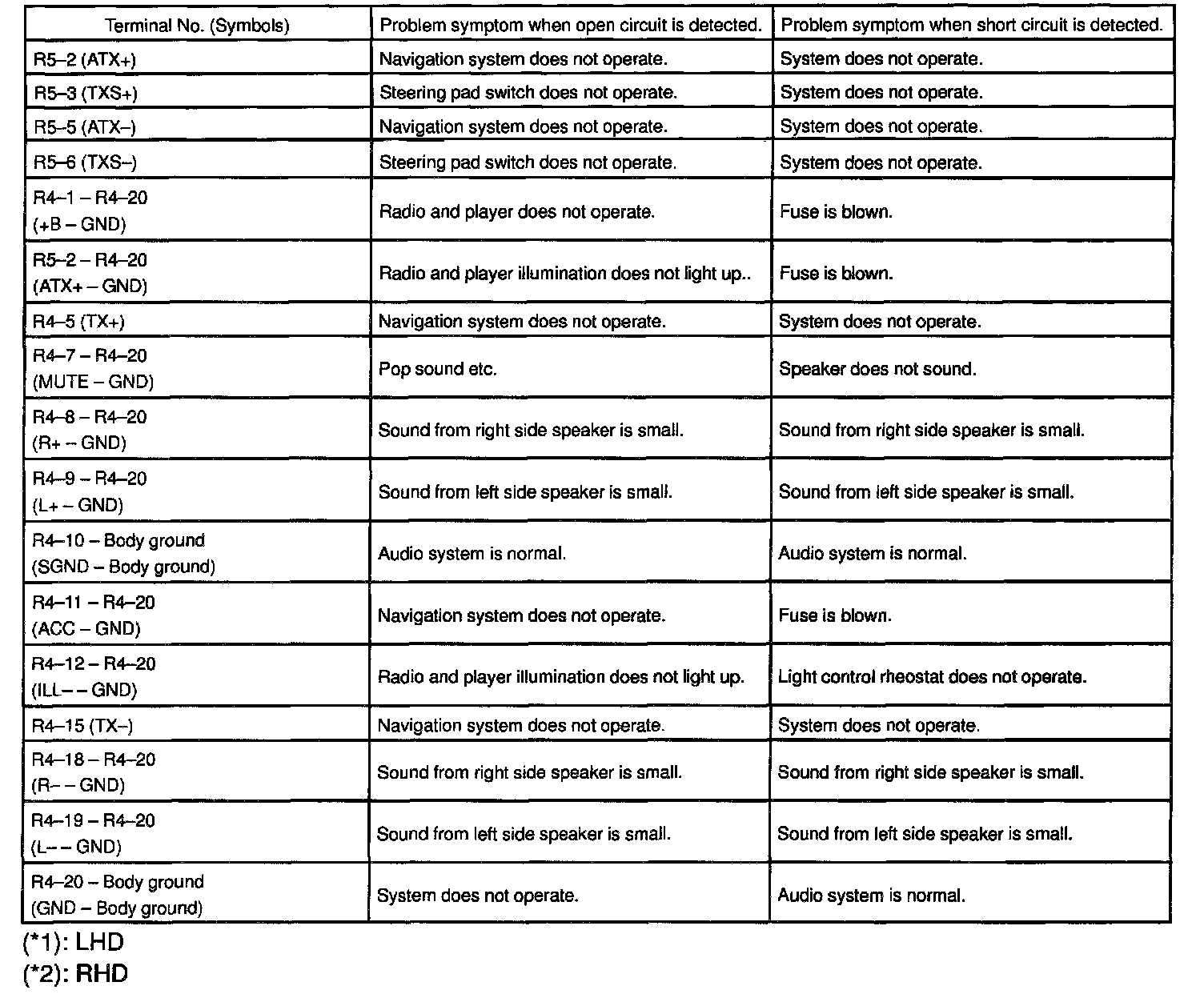

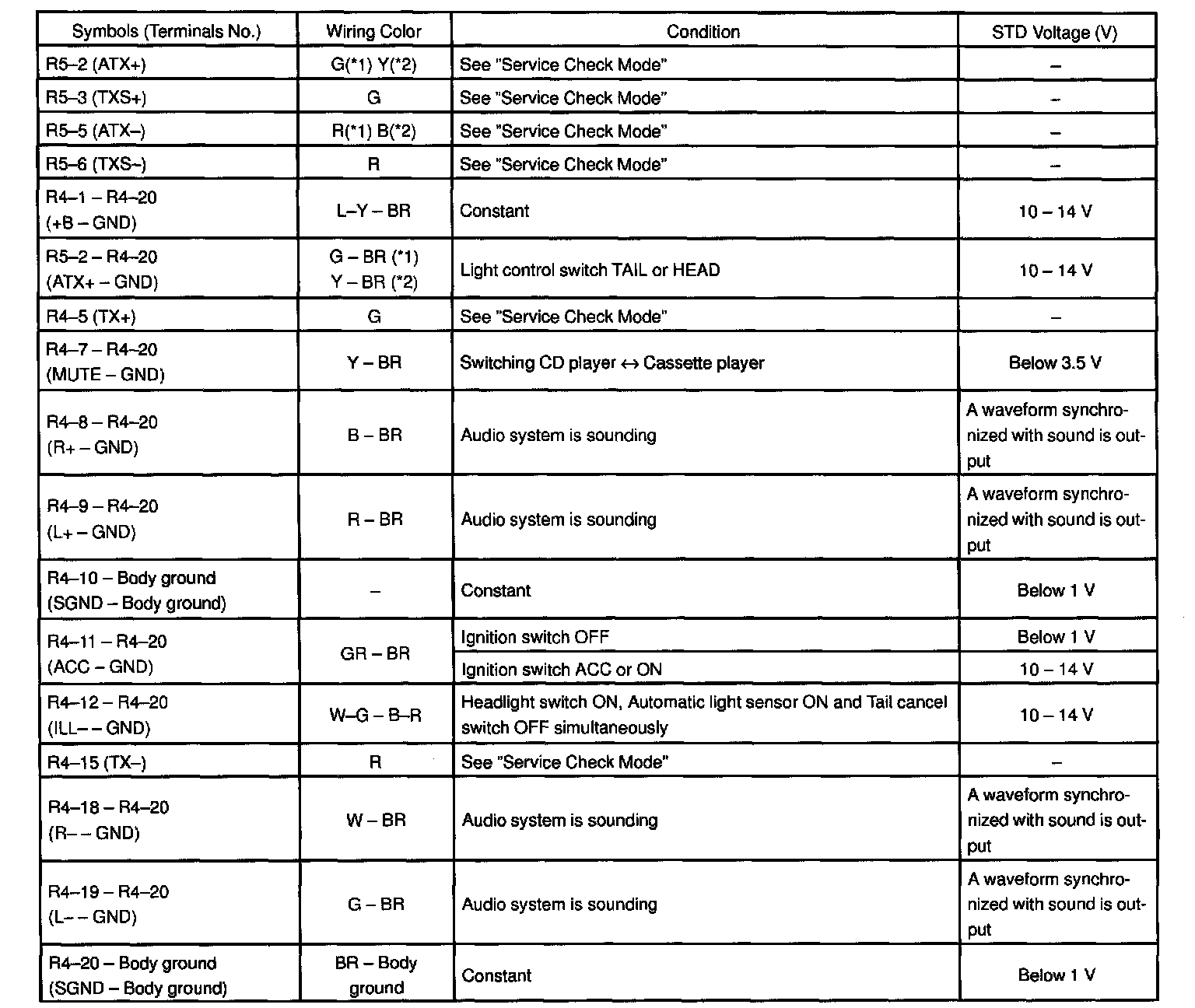

Terminals Of ECU - Pinouts (Part 1):

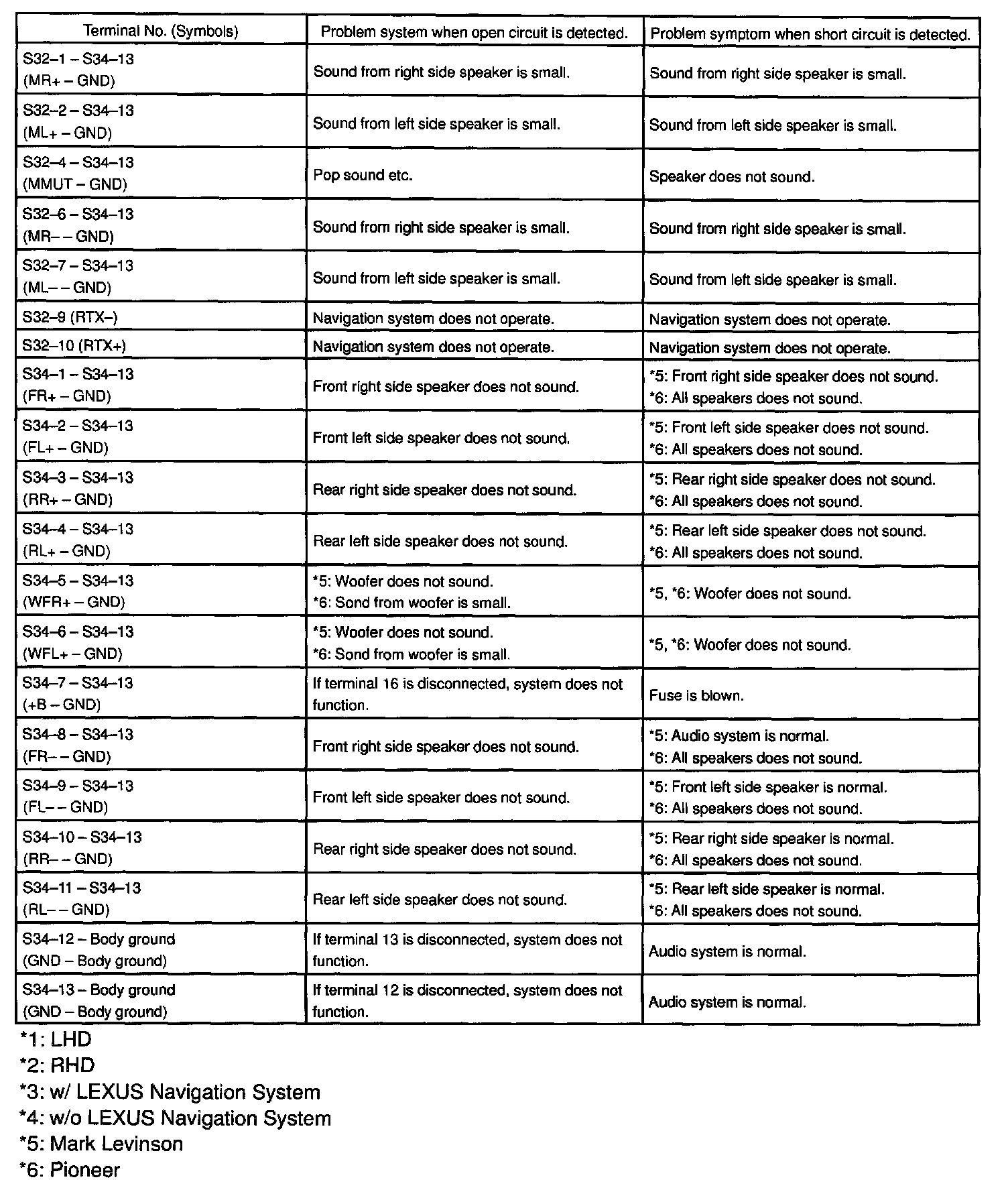

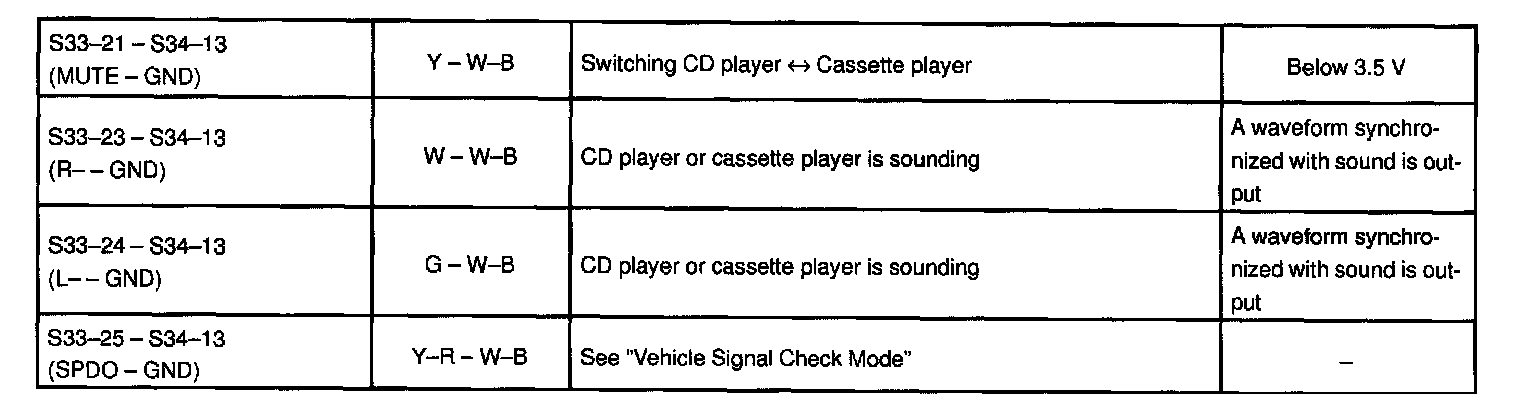

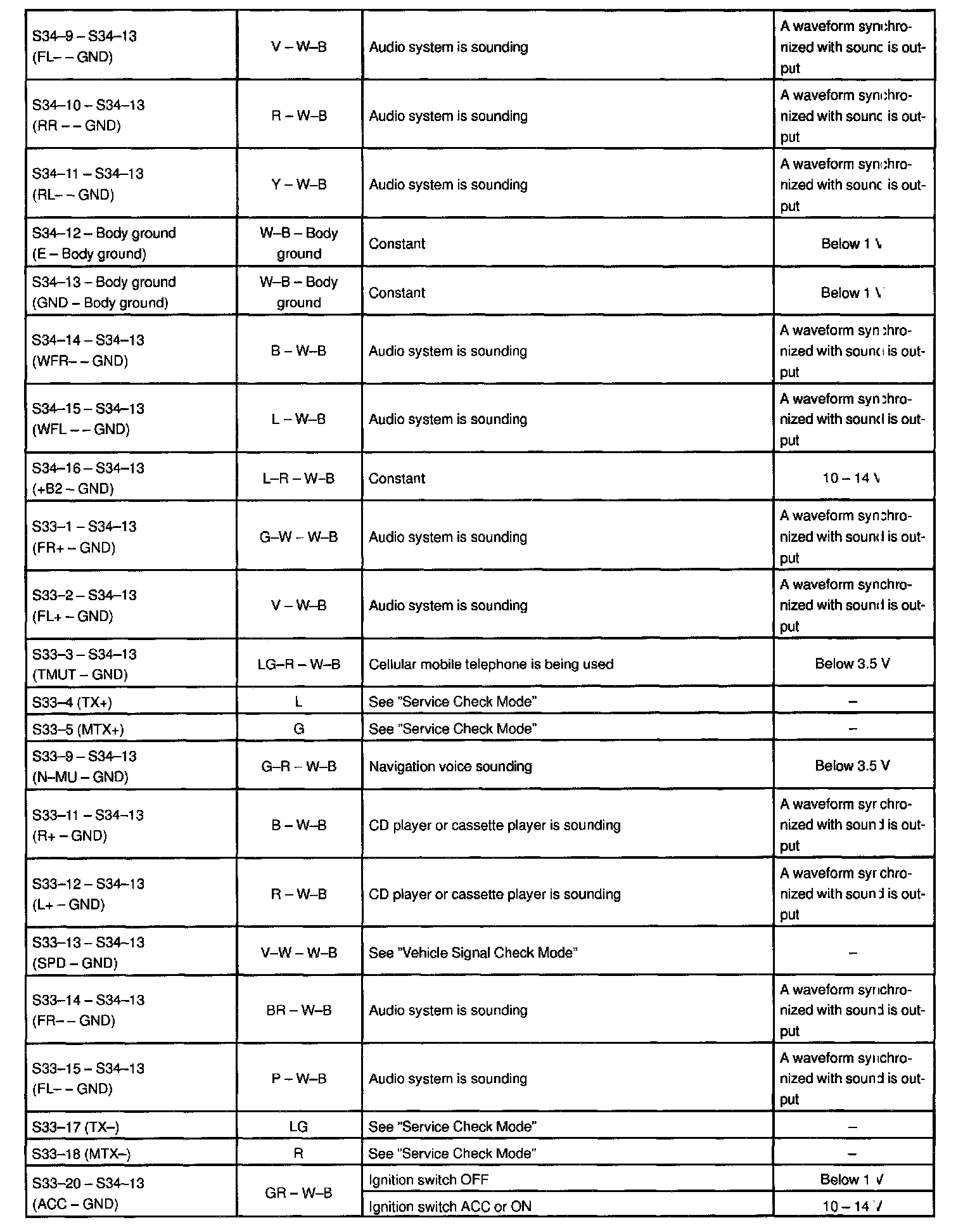

Terminals Of ECU - Pinouts (Part 2):

2. STEREO COMPONENT AMPLIFIER

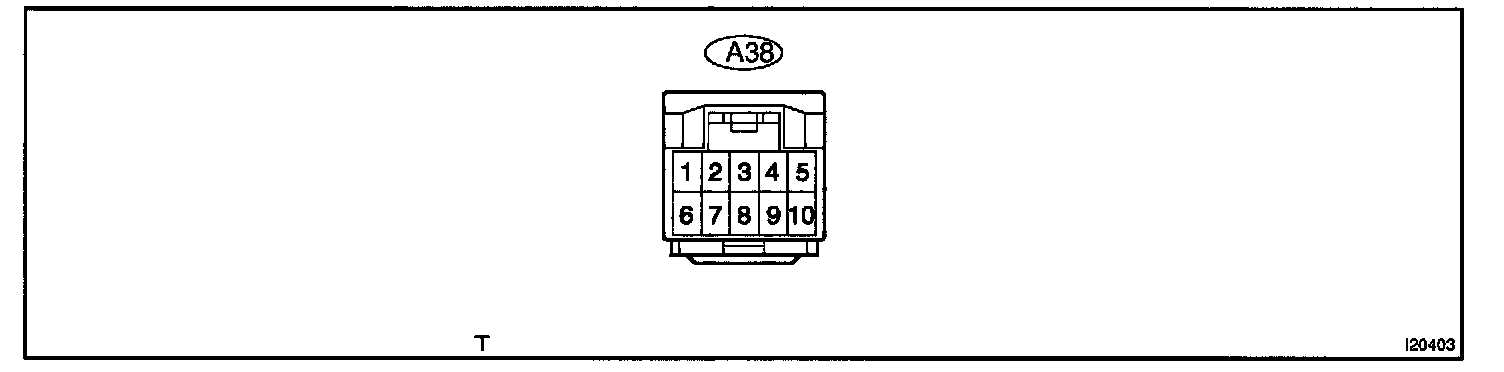

Terminals Of ECU - Connector View:

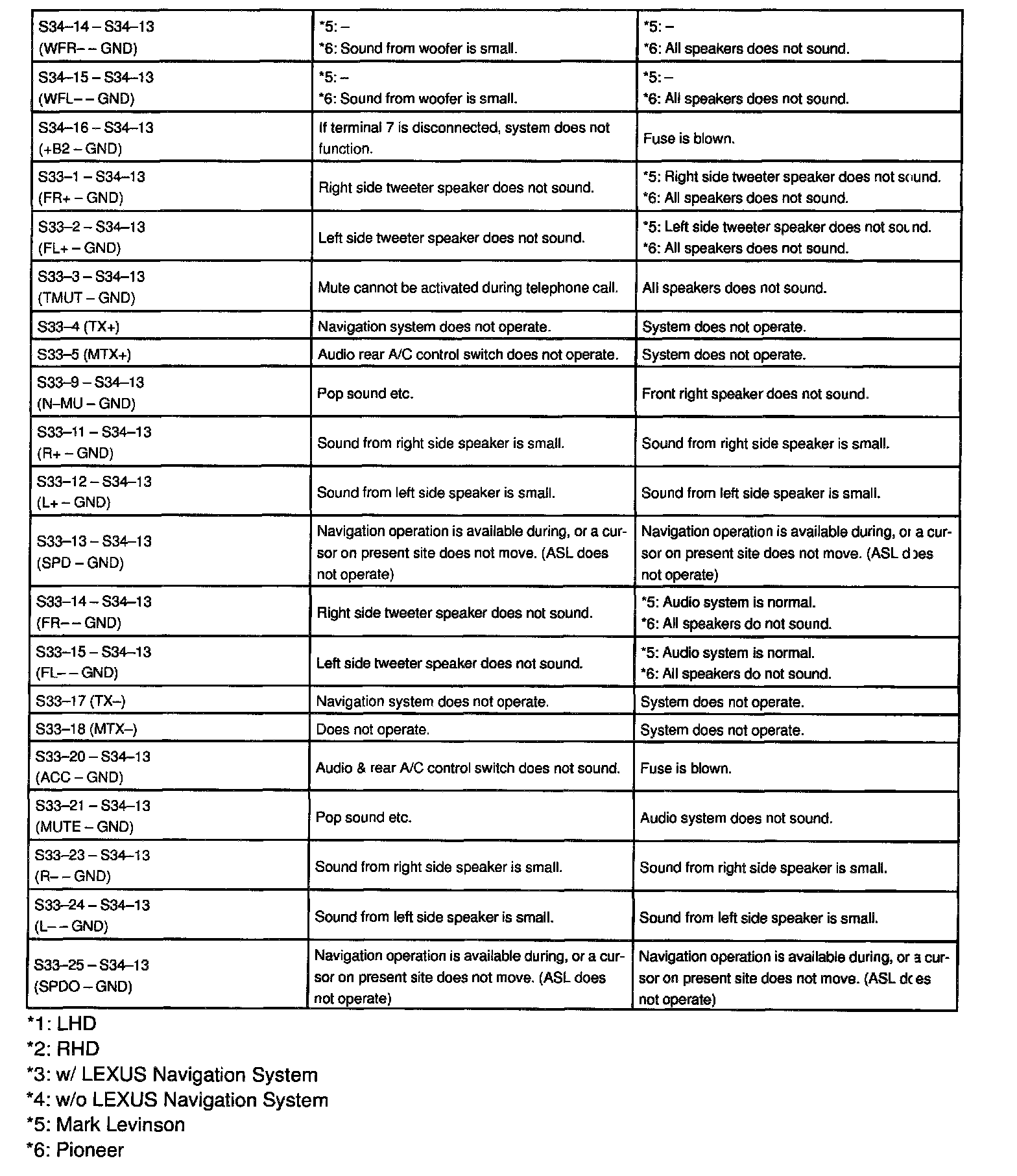

Terminals Of ECU - Pinouts:

3. STEREO COMPONENT TUNER

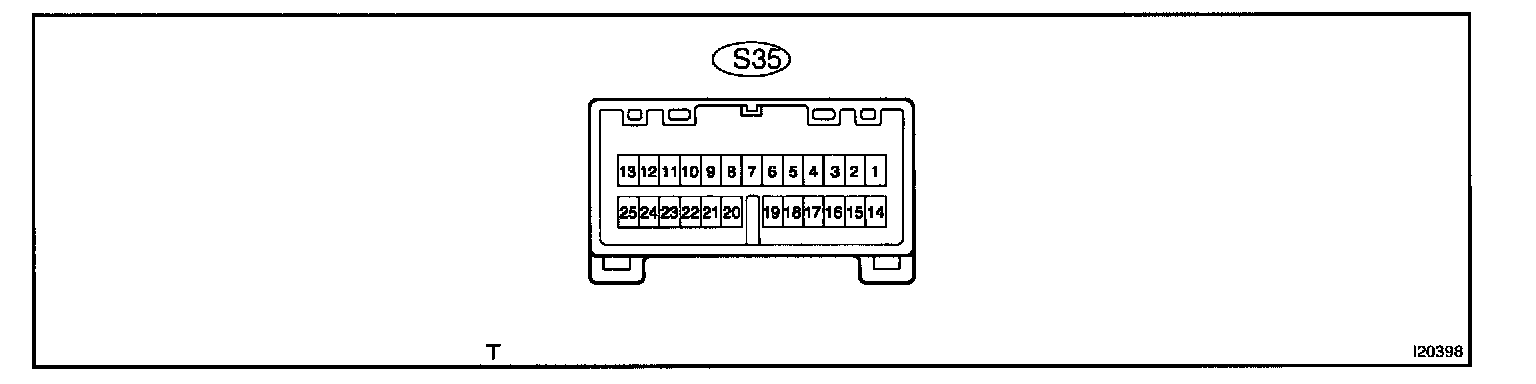

Terminals Of ECU - Connector View:

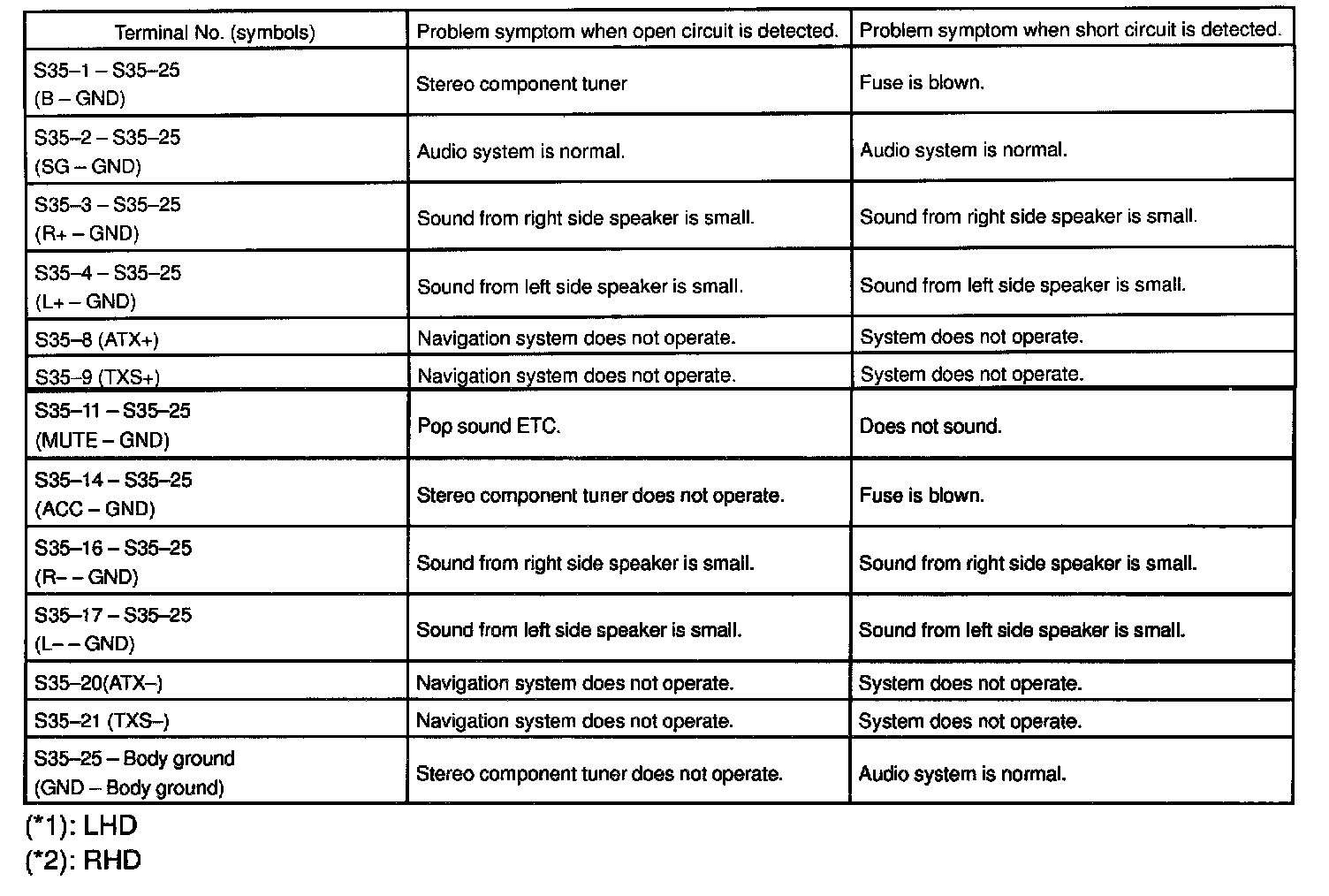

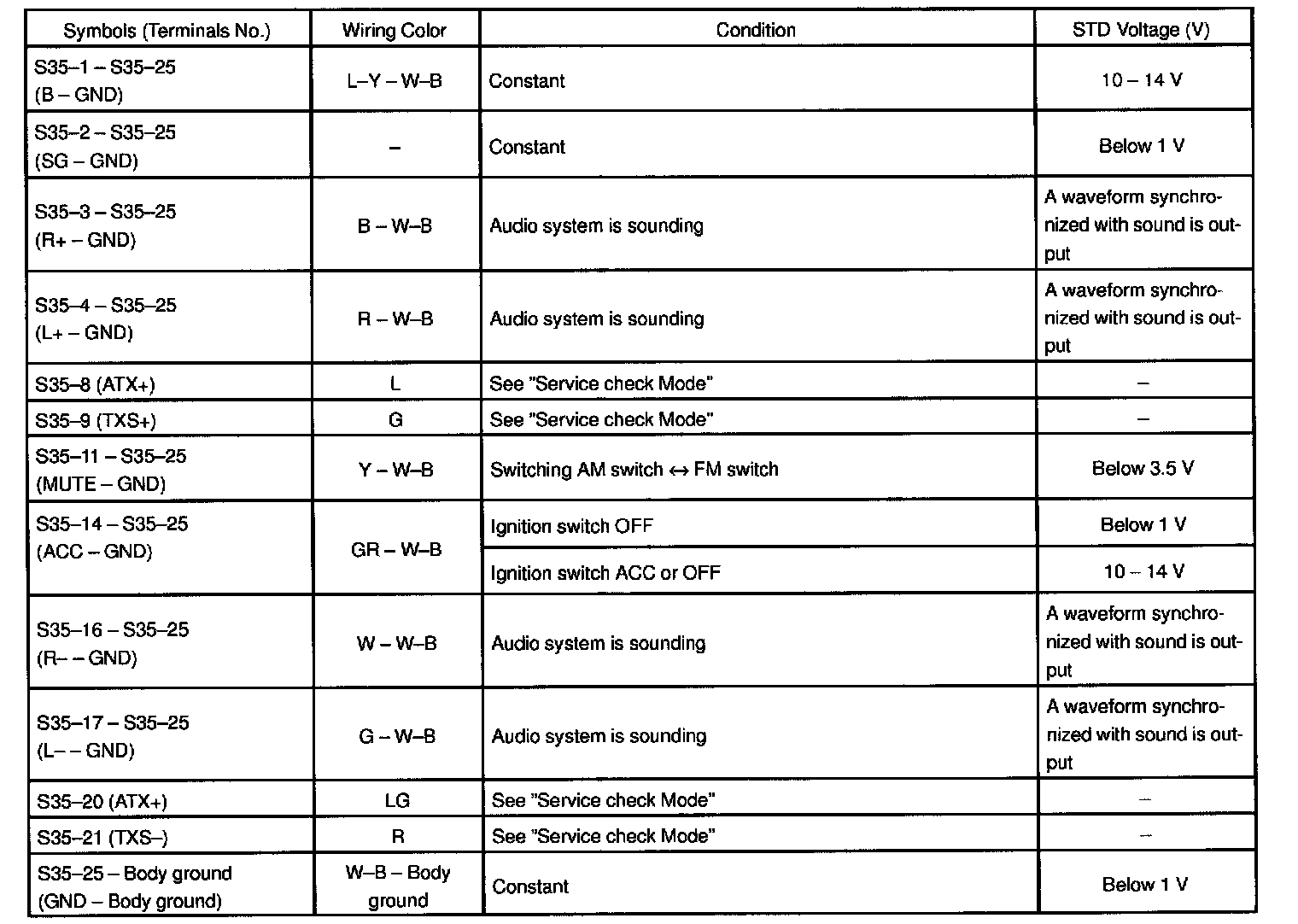

Terminals Of ECU - Pinouts:

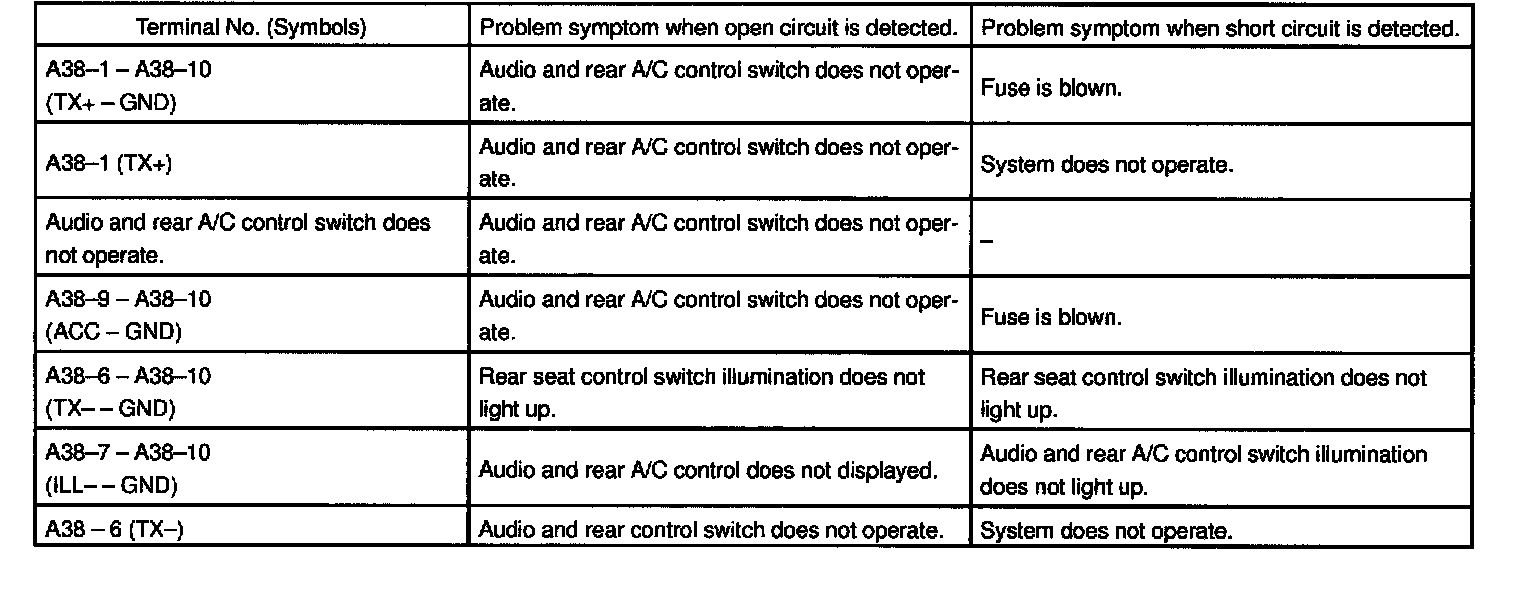

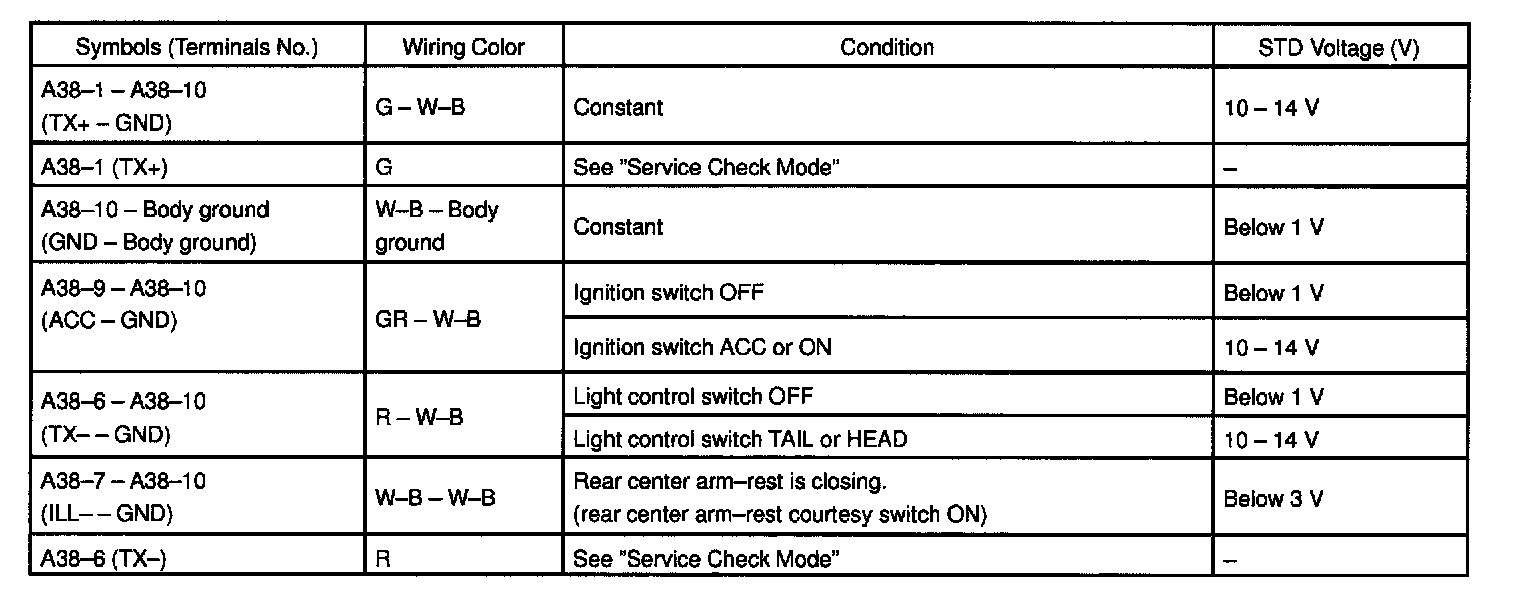

4. AUDIO AND REAR A/C CONTROL SWITCH
