Power Source Circuit
Power Source Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the clearance sonar ECU.

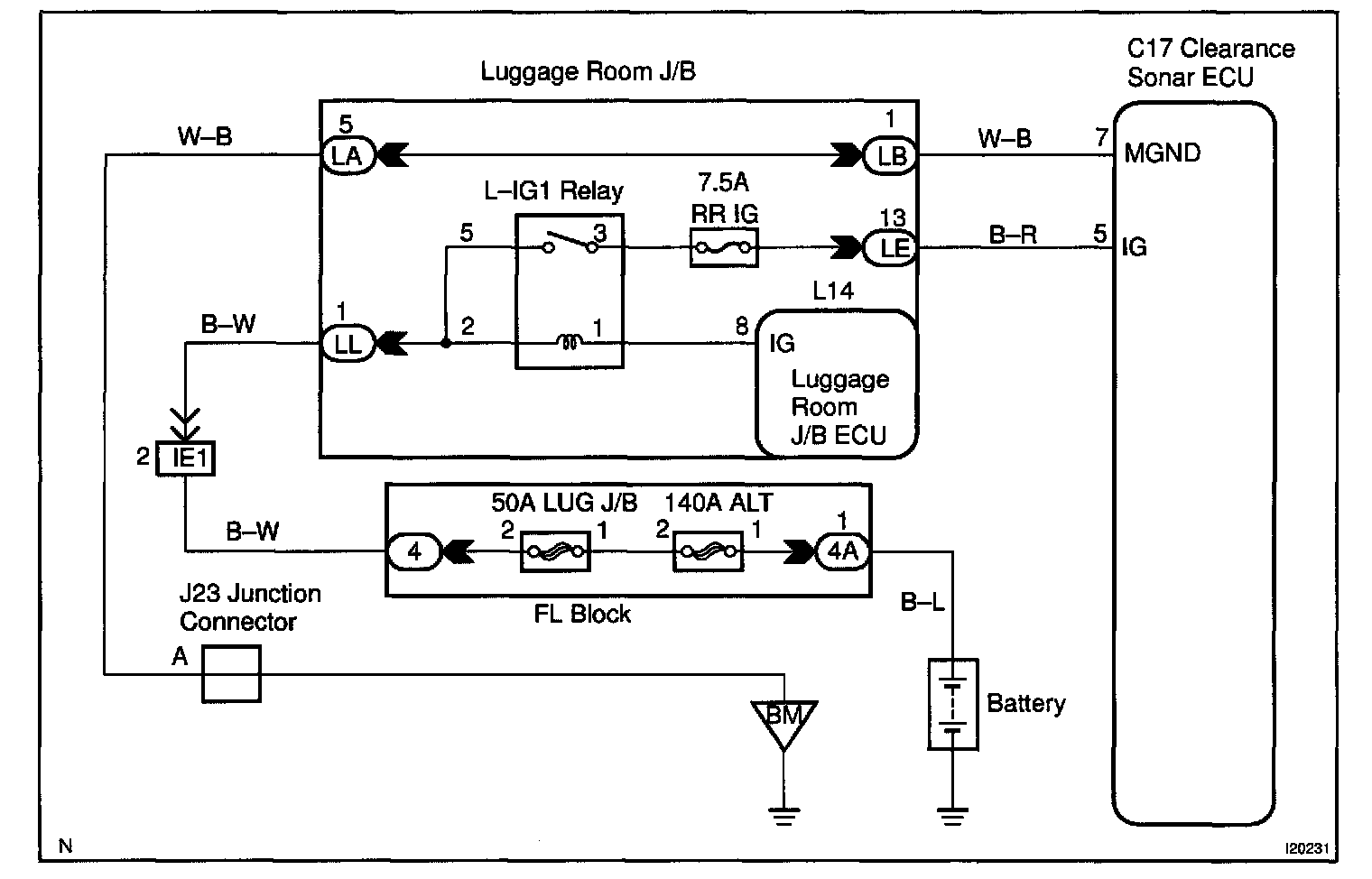

Wiring Diagram:

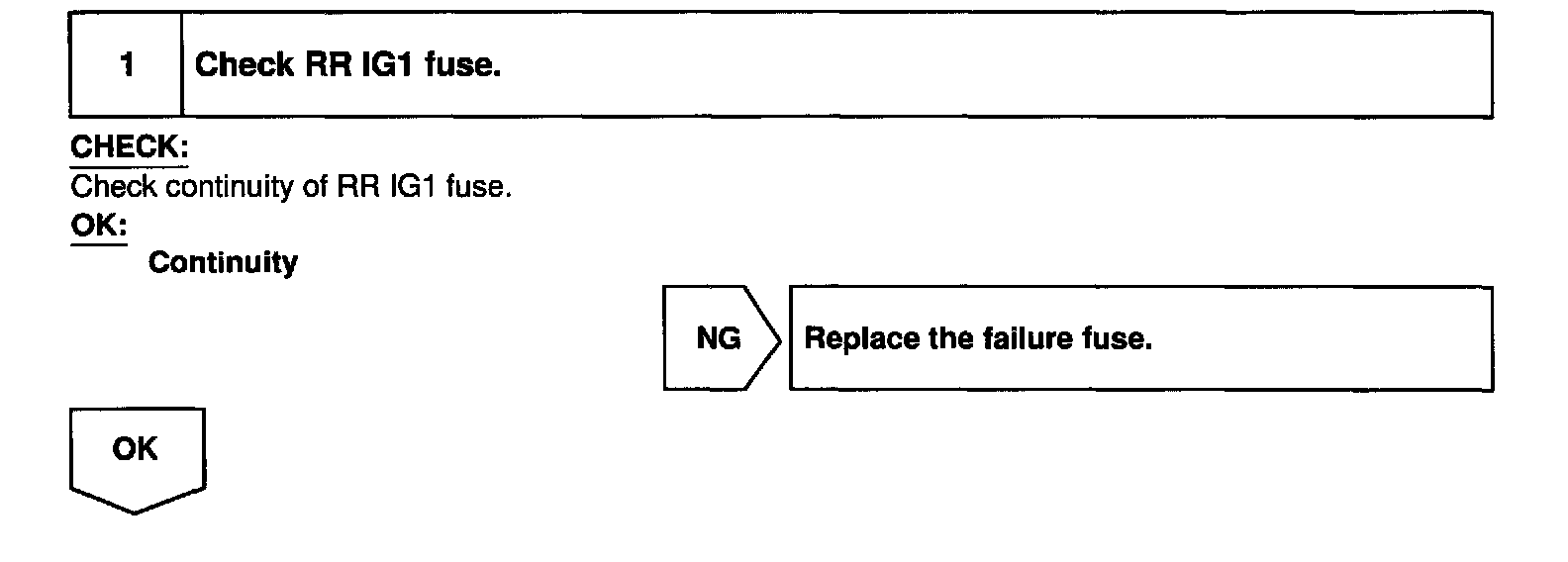

Step 1:

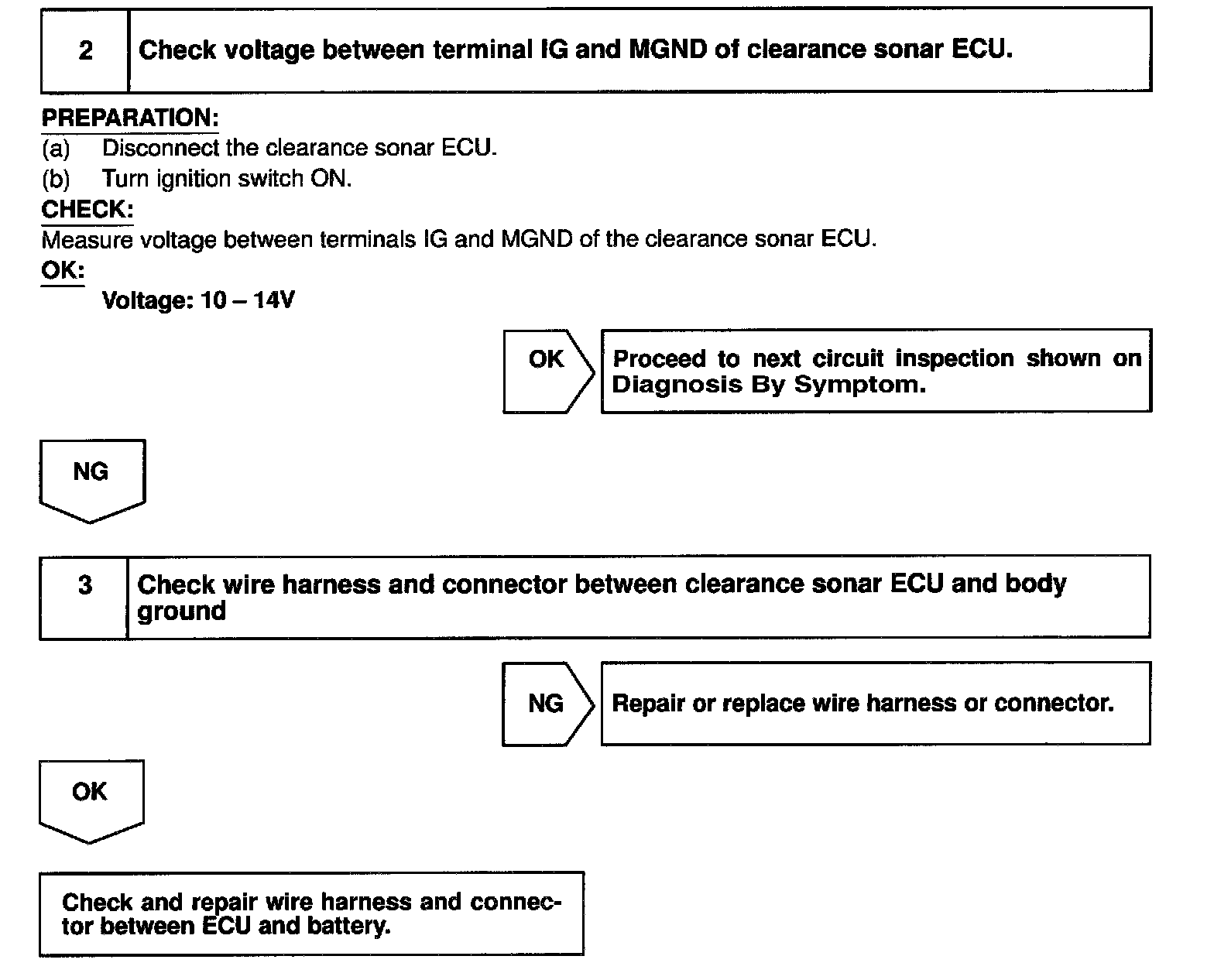

Steps 2 - 3:
INSPECTION PROCEDURE
