Engine Immobilizer System

CIRCUIT DESCRIPTION

This circuit provides power to operate the Transponder Key ECU.

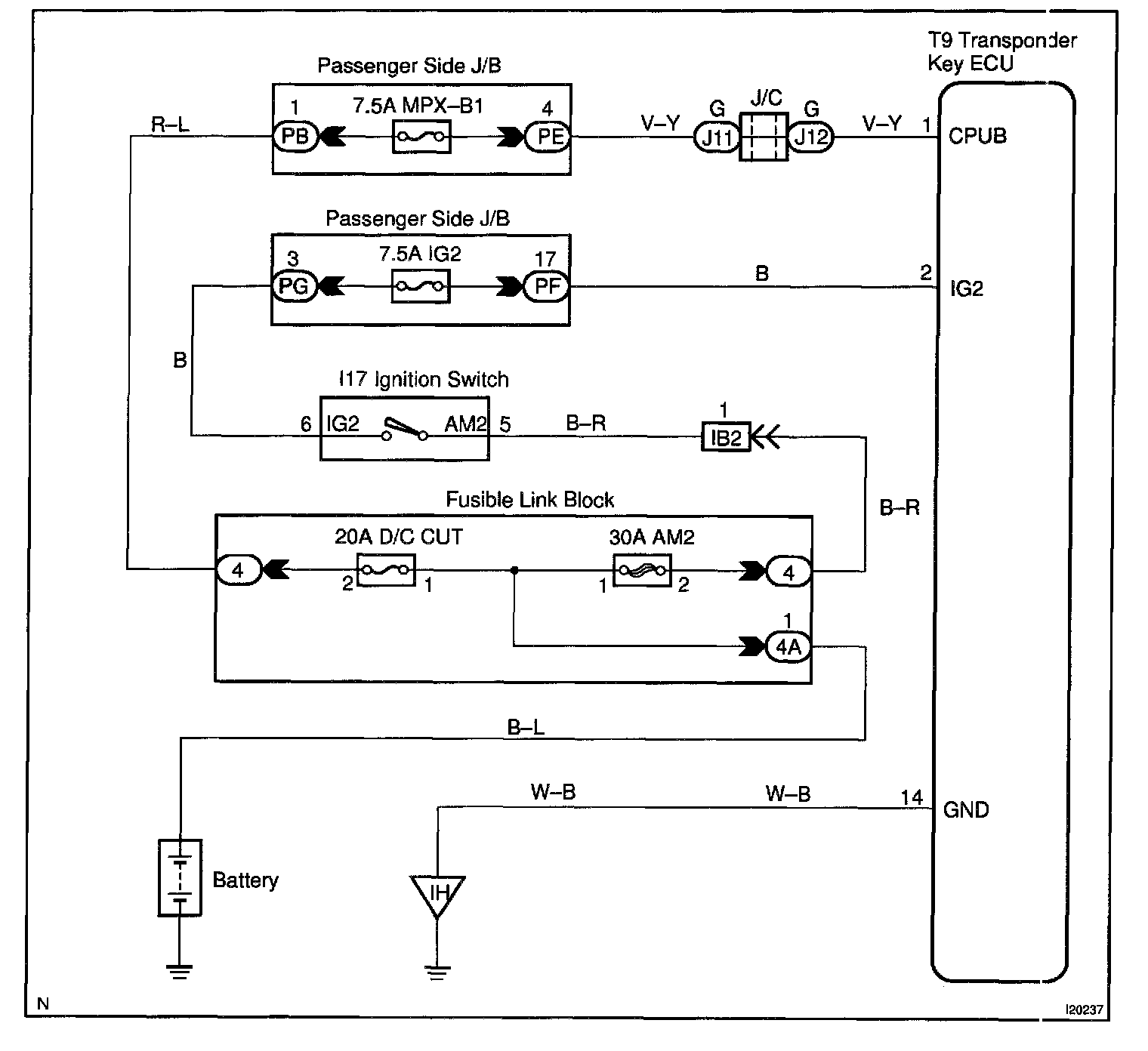

Wiring Diagram:

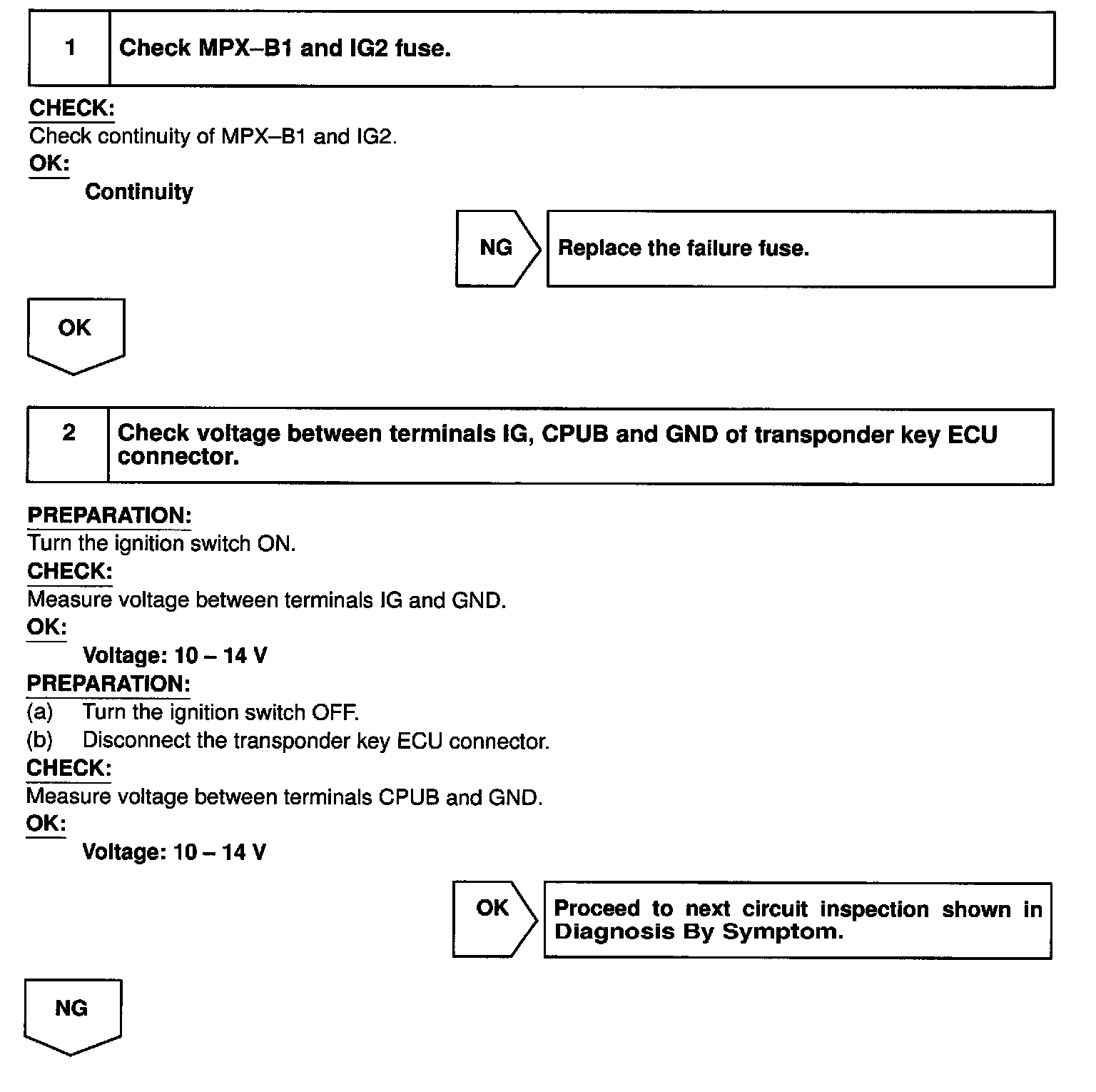

Steps 1 - 2:

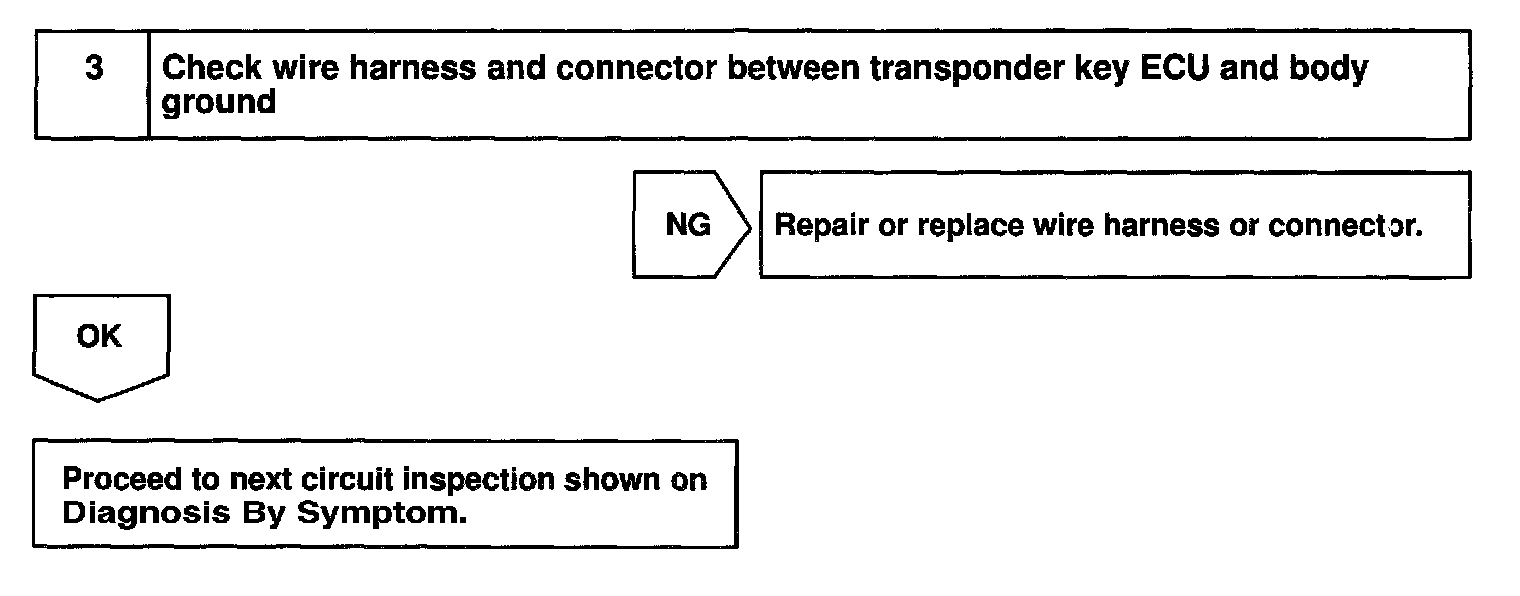

Step 3:

INSPECTION PROCEDURE
