DTC 38

CIRCUIT DESCRIPTION

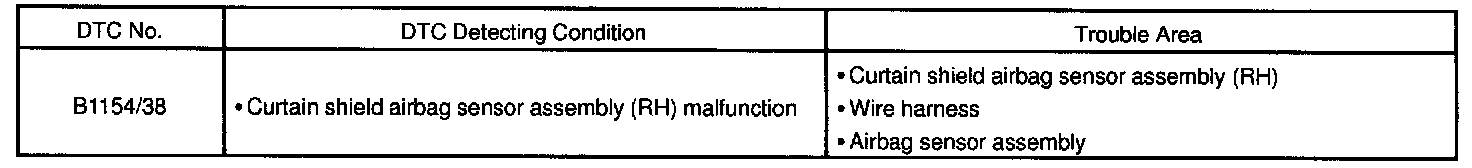

DTC Detecting Condition:

The curtain shield airbag sensor assembly (RH) consists of the FSR+ diagnosis circuit and lateral deceleration sensor, etc.

It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC B1154/38 is recorded when occurrence of a malfunction in the curtain shield airbag sensor assembly (RH) is detected.

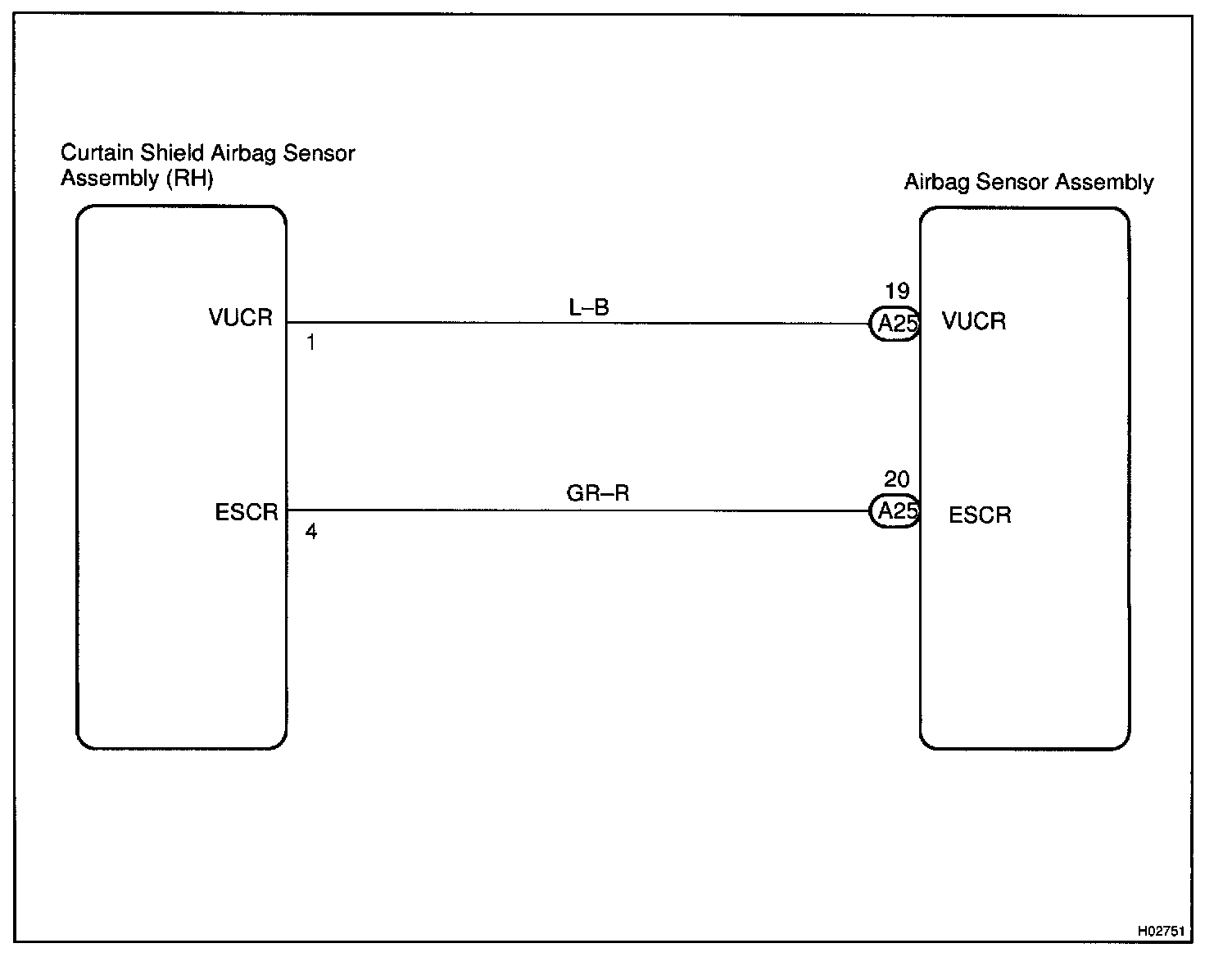

Wiring Diagram:

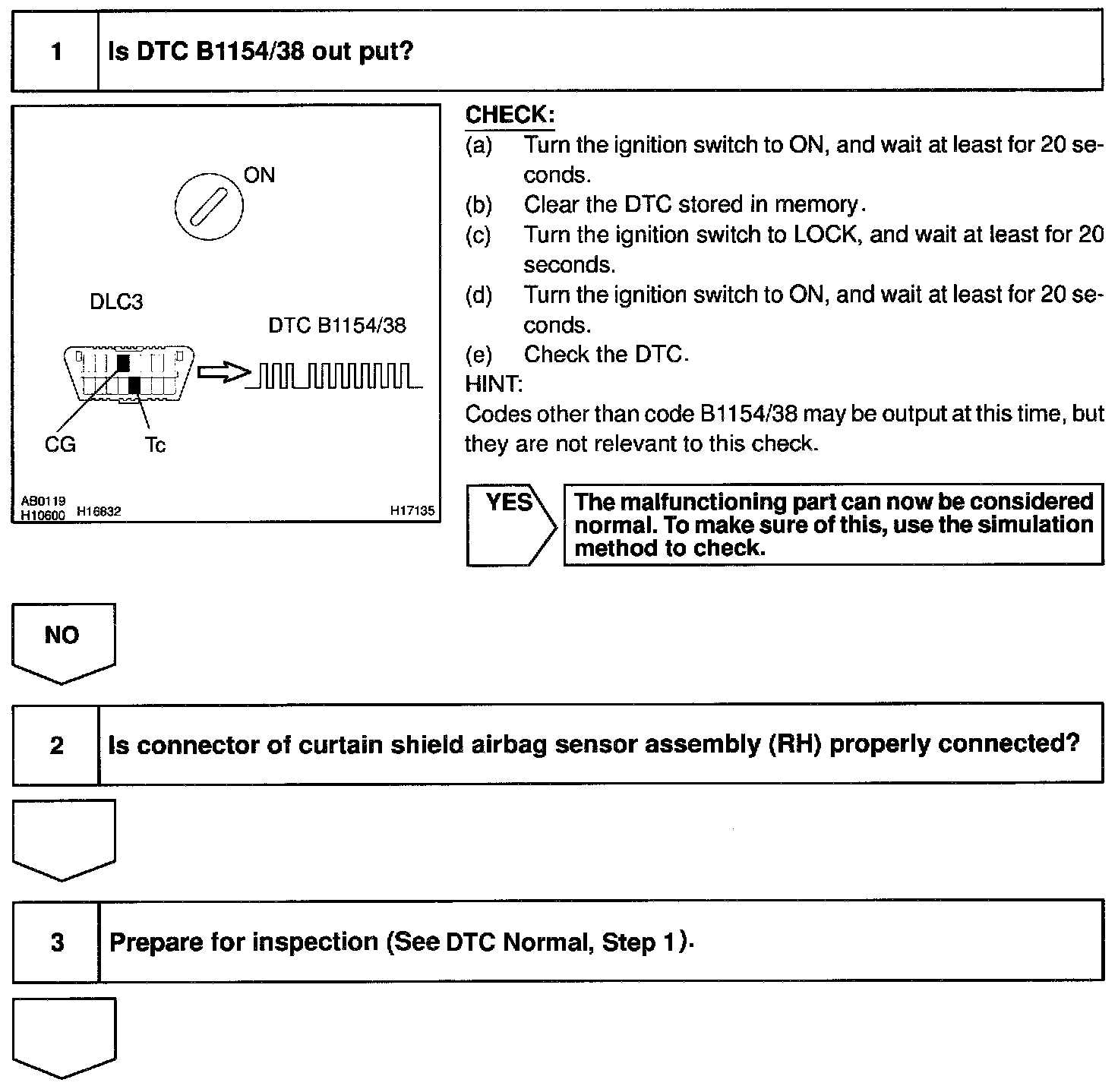

Steps 1 - 3:

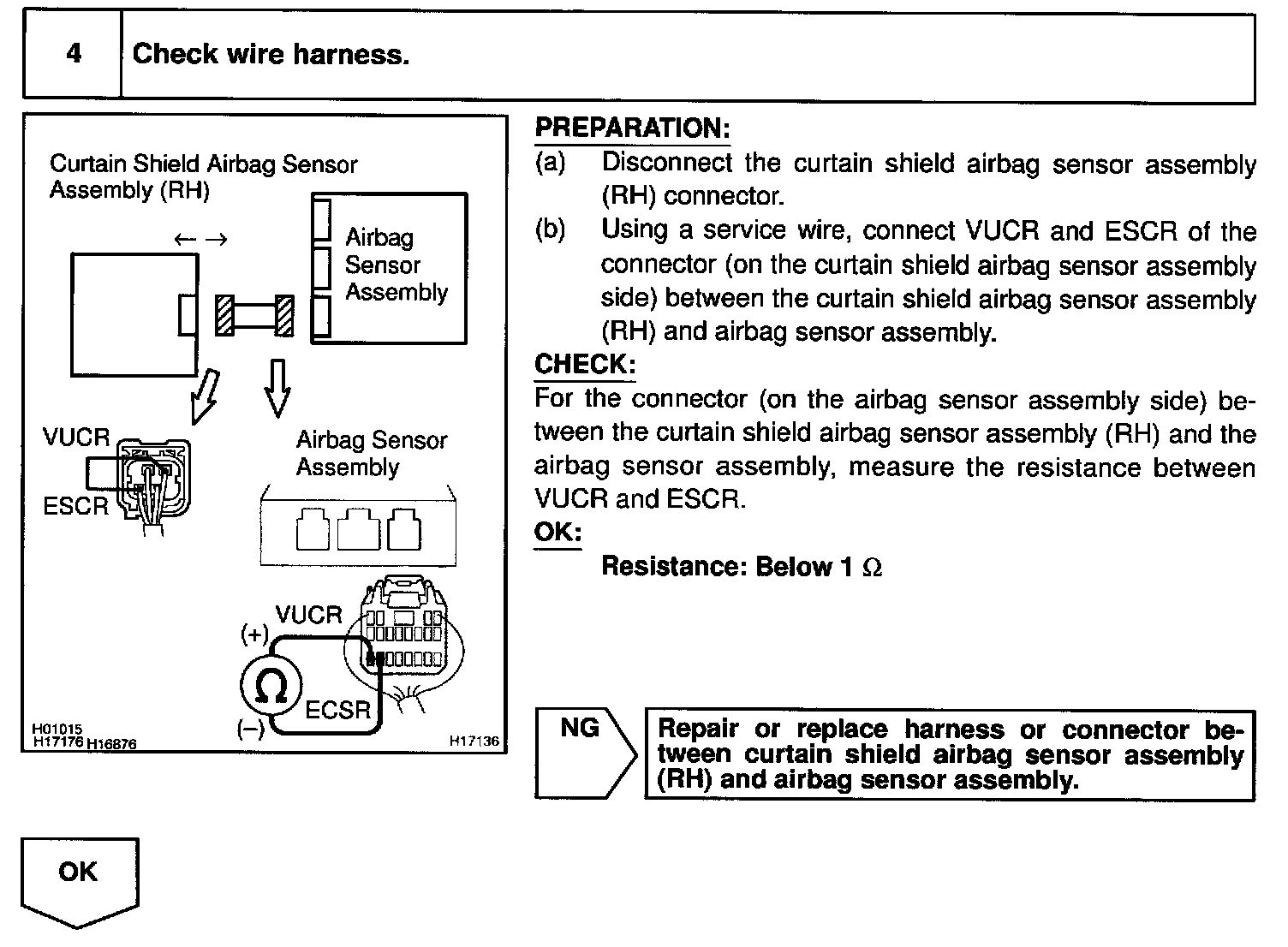

Step 4:

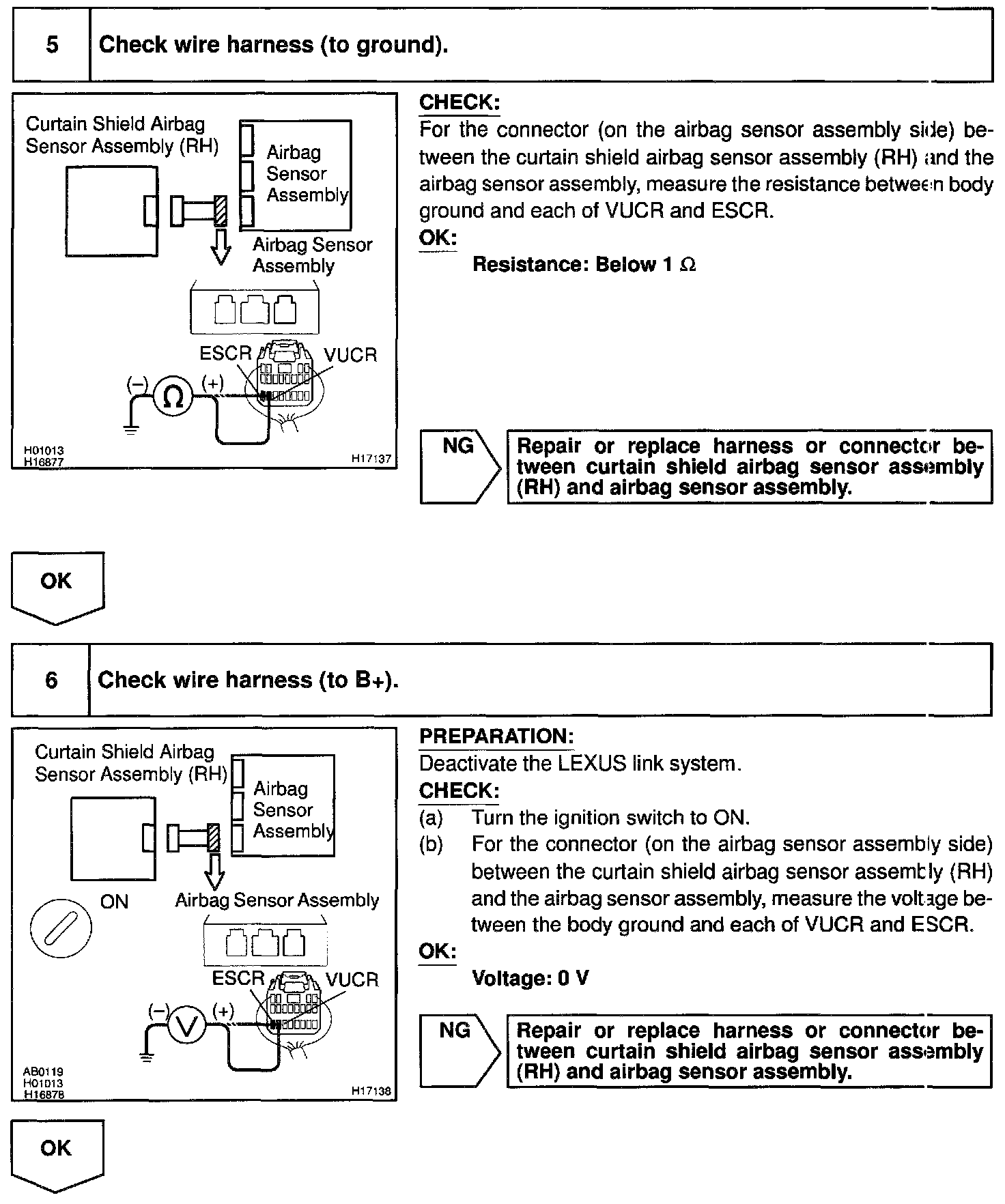

Steps 5 - 6:

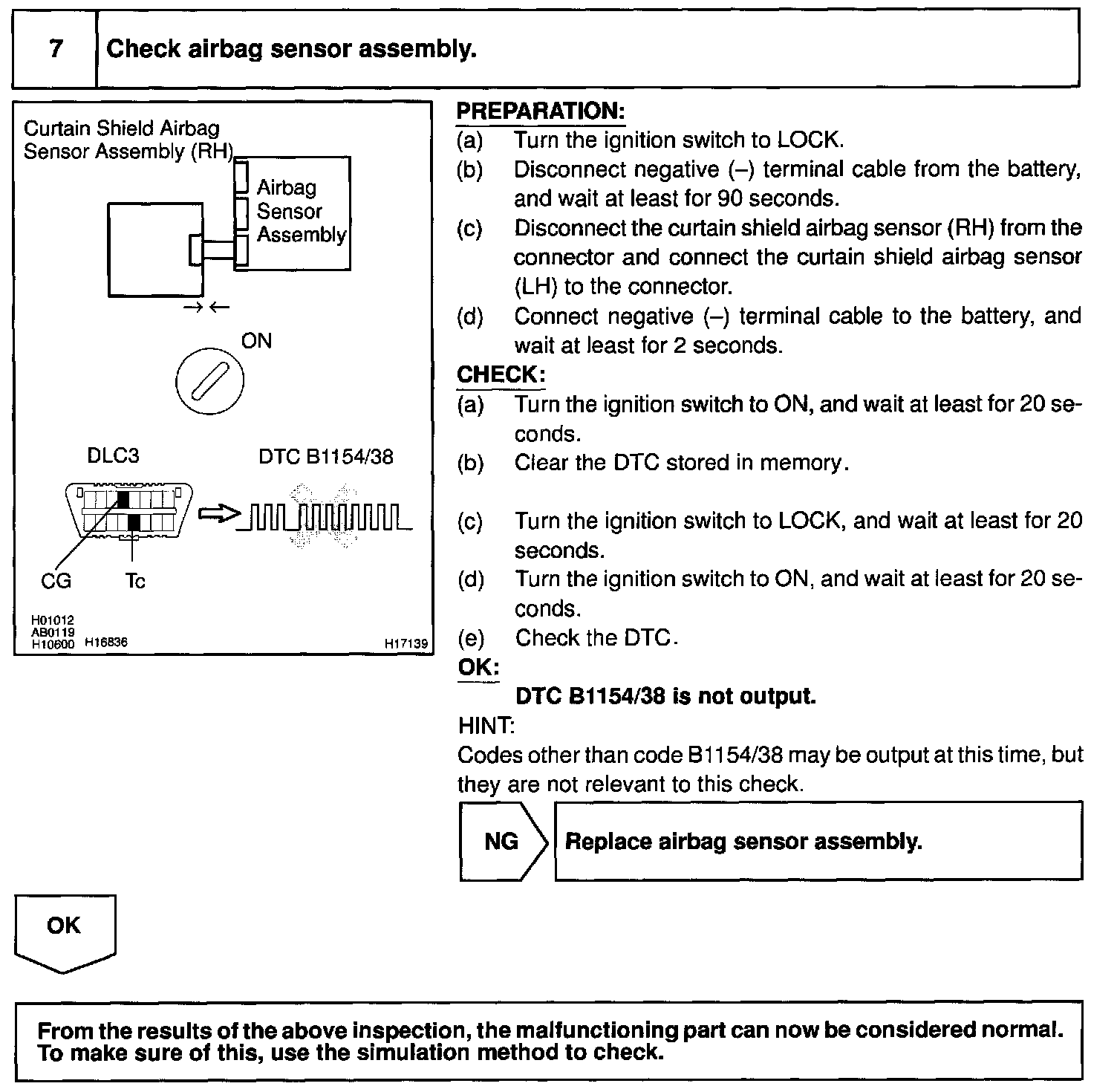

Step 7:

INSPECTION PROCEDURE
