C1752

CIRCUIT DESCRIPTION

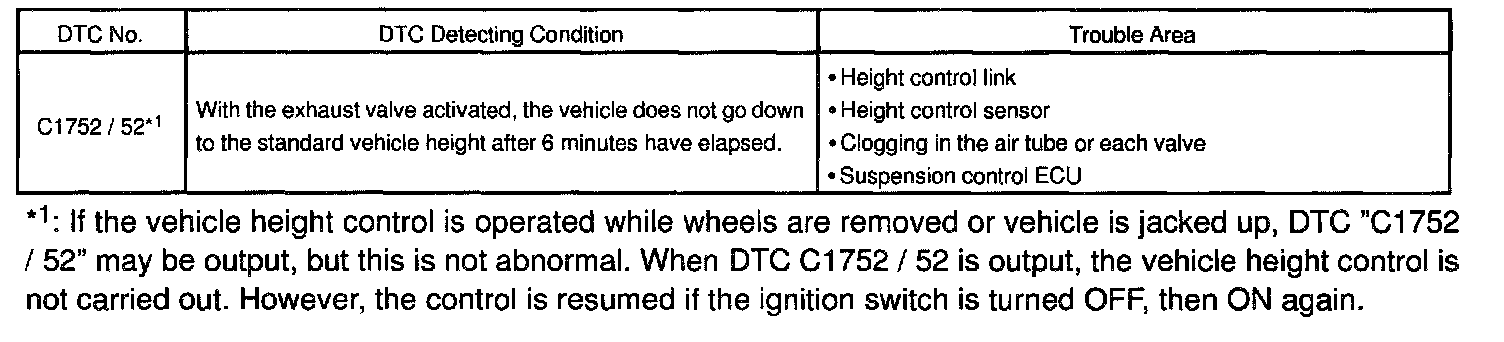

DTC Detecting Condition:

*1: If the vehicle height control is operated while wheels are removed or vehicle is jacked up, DTC "C1752/52" may be output, but this is not abnormal. When DTC C1752/52 is output, the vehicle height control is not carried out. However, the control is resumed if the ignition switch is turned OFF, then ON again.

Steps 1 - 2:

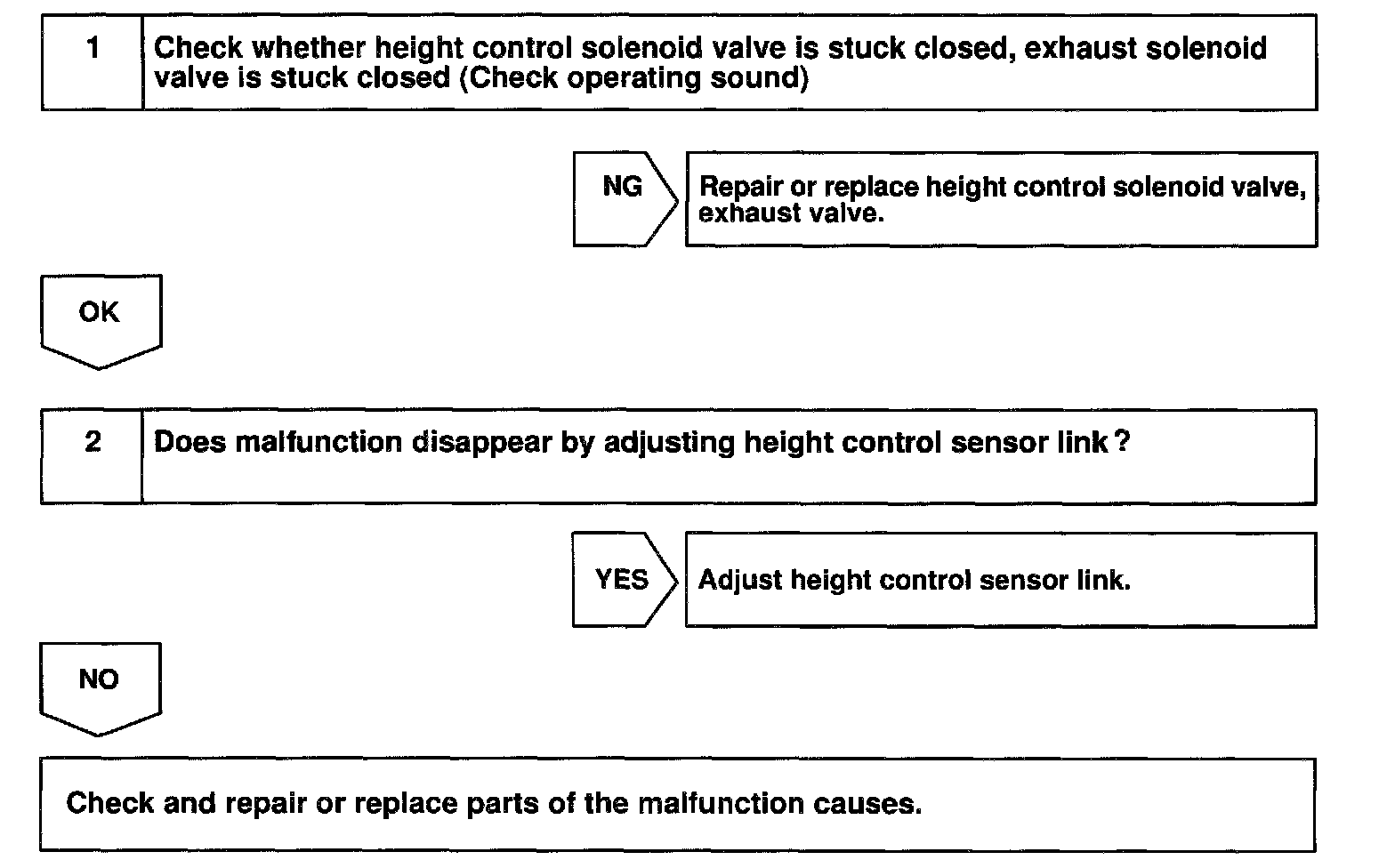

INSPECTION PROCEDURE
