C1244

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This sensor detects deceleration on the vehicle. The sensor signal is used in ABS & TRAC & VSC control.

If the sensor functions abnormally, the ABS warning light comes on.

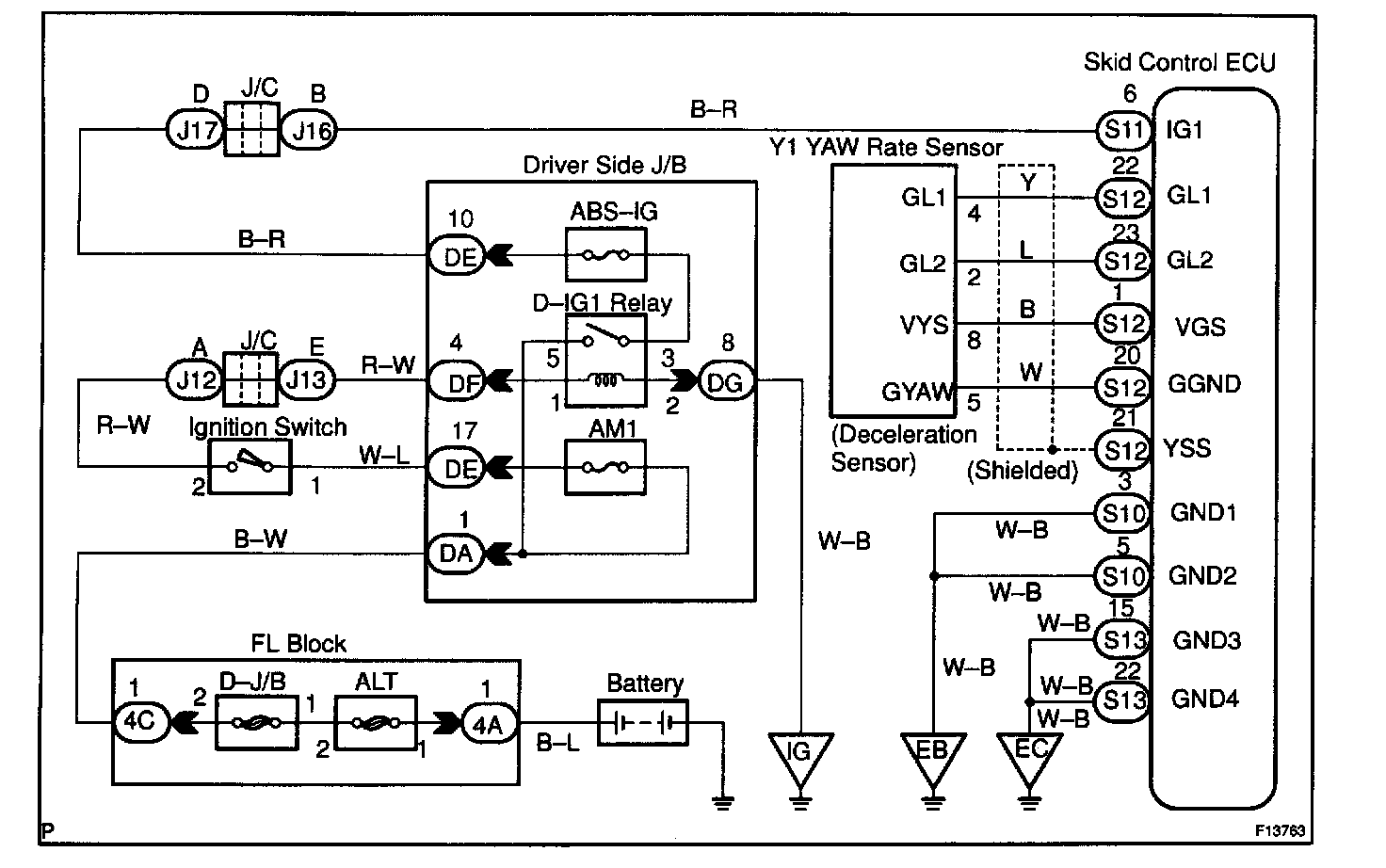

Wiring Diagram:

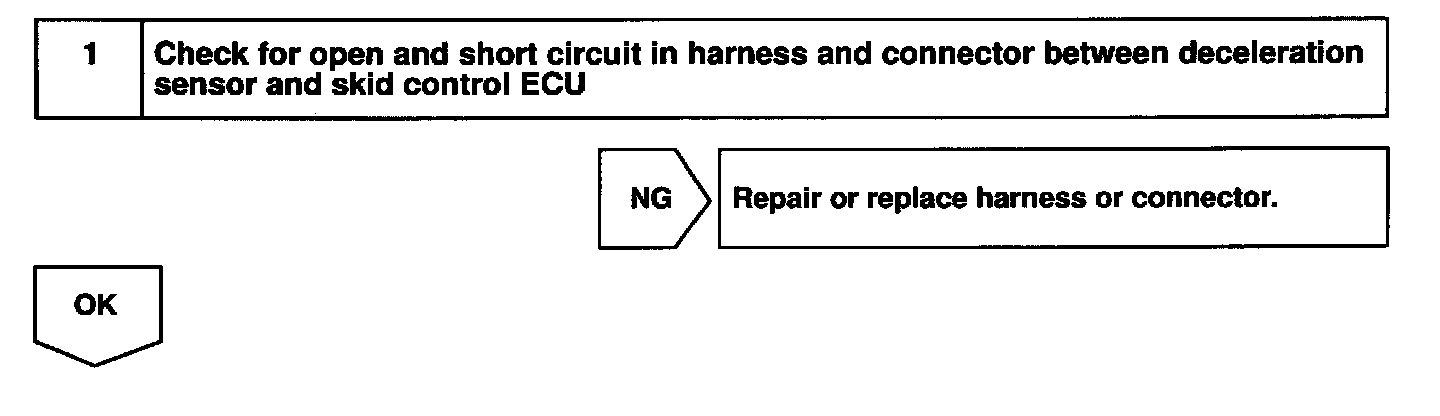

Step 1:

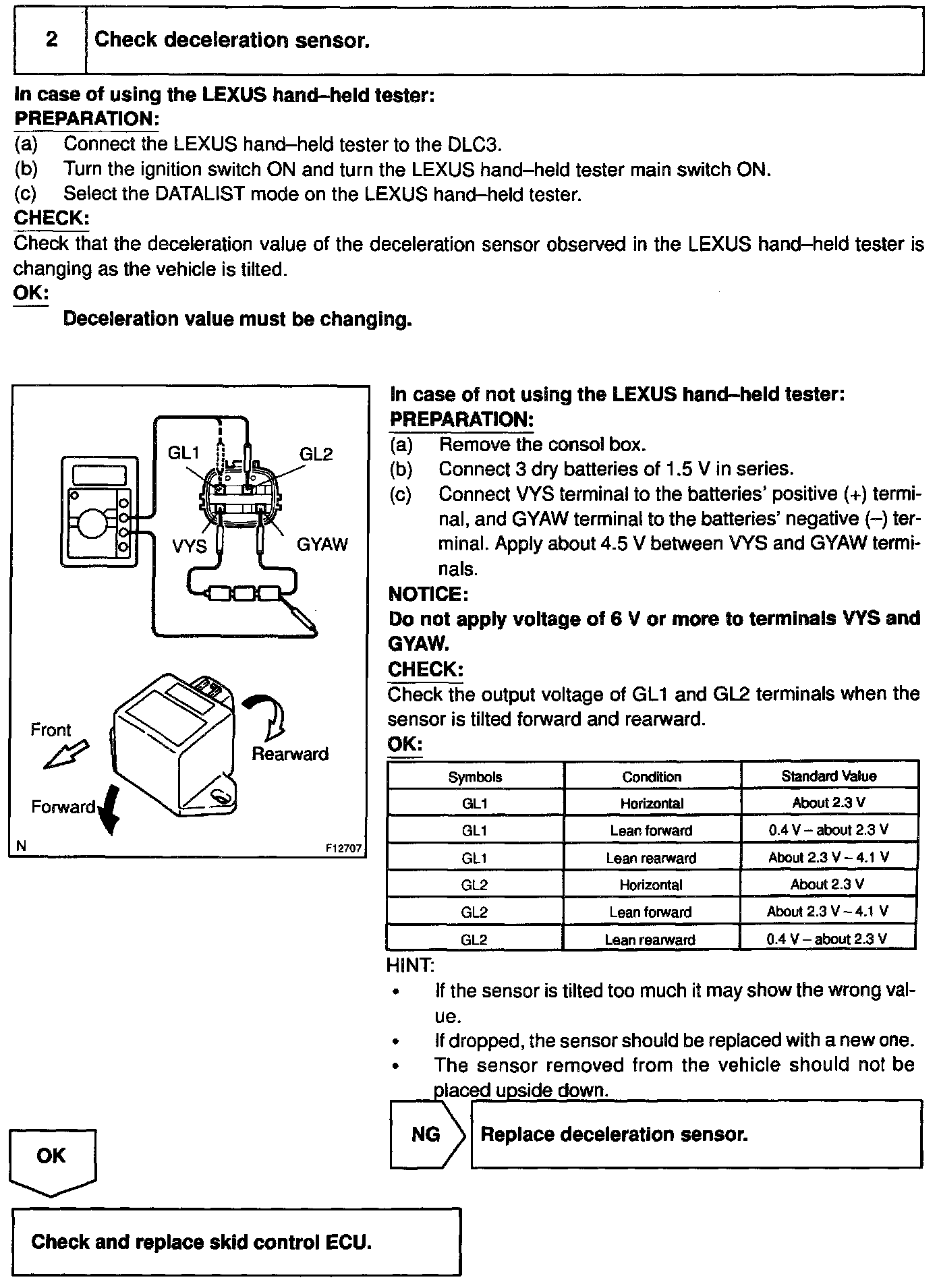

Step 2:

INSPECTION PROCEDURE
