C1233
C1233
CIRCUIT DESCRIPTION
DTC Detecting Condition:

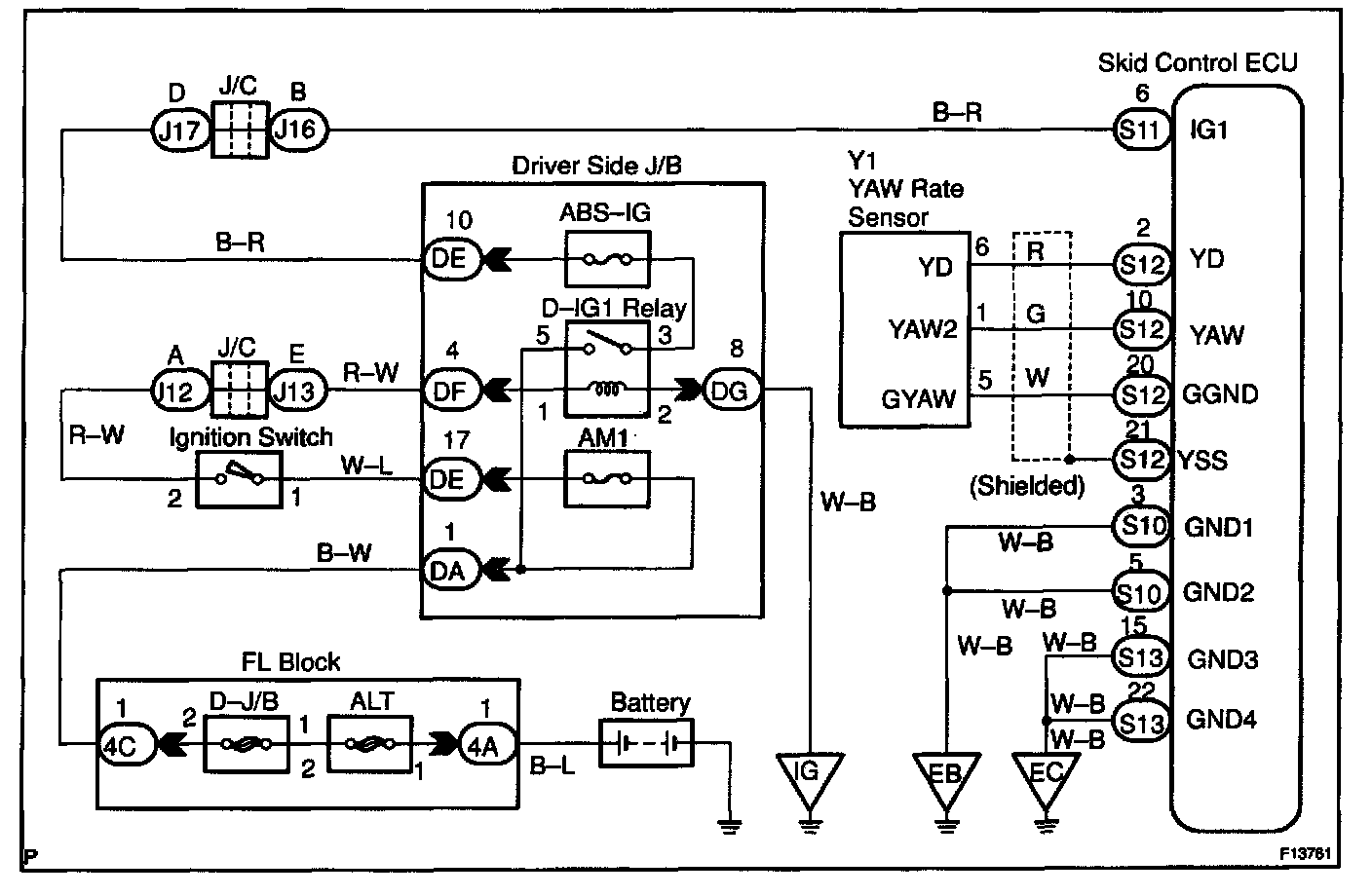

Wiring Diagram:

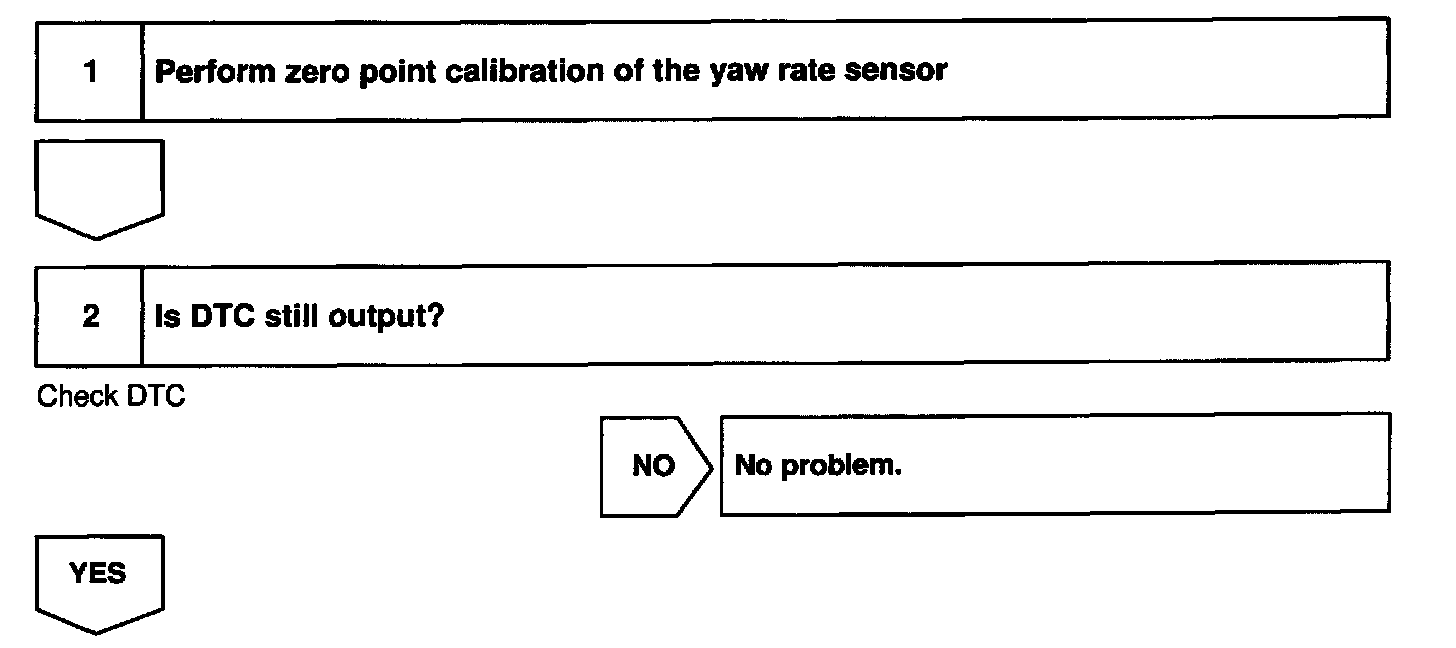

Steps 1 - 2:

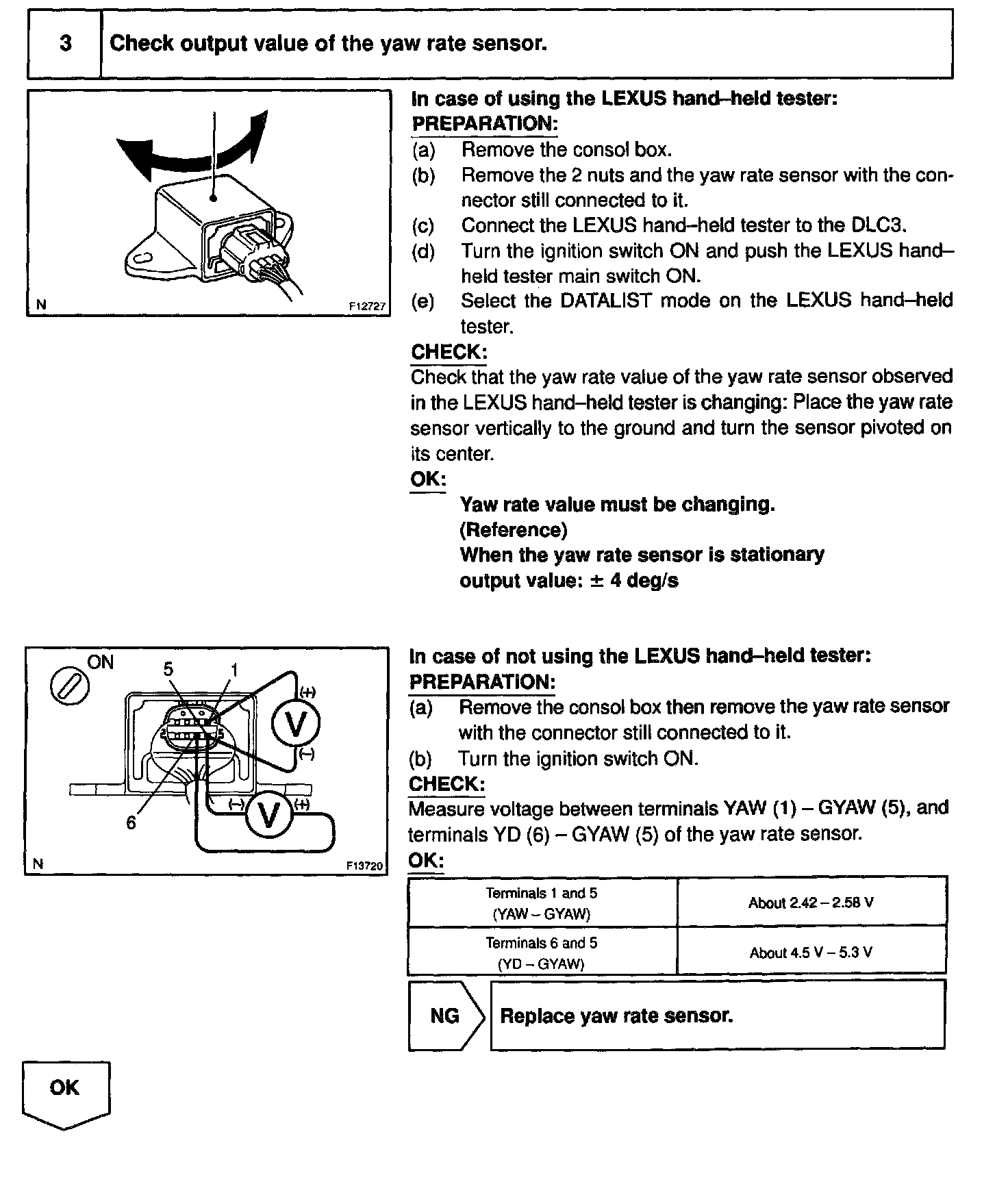

Step 3:

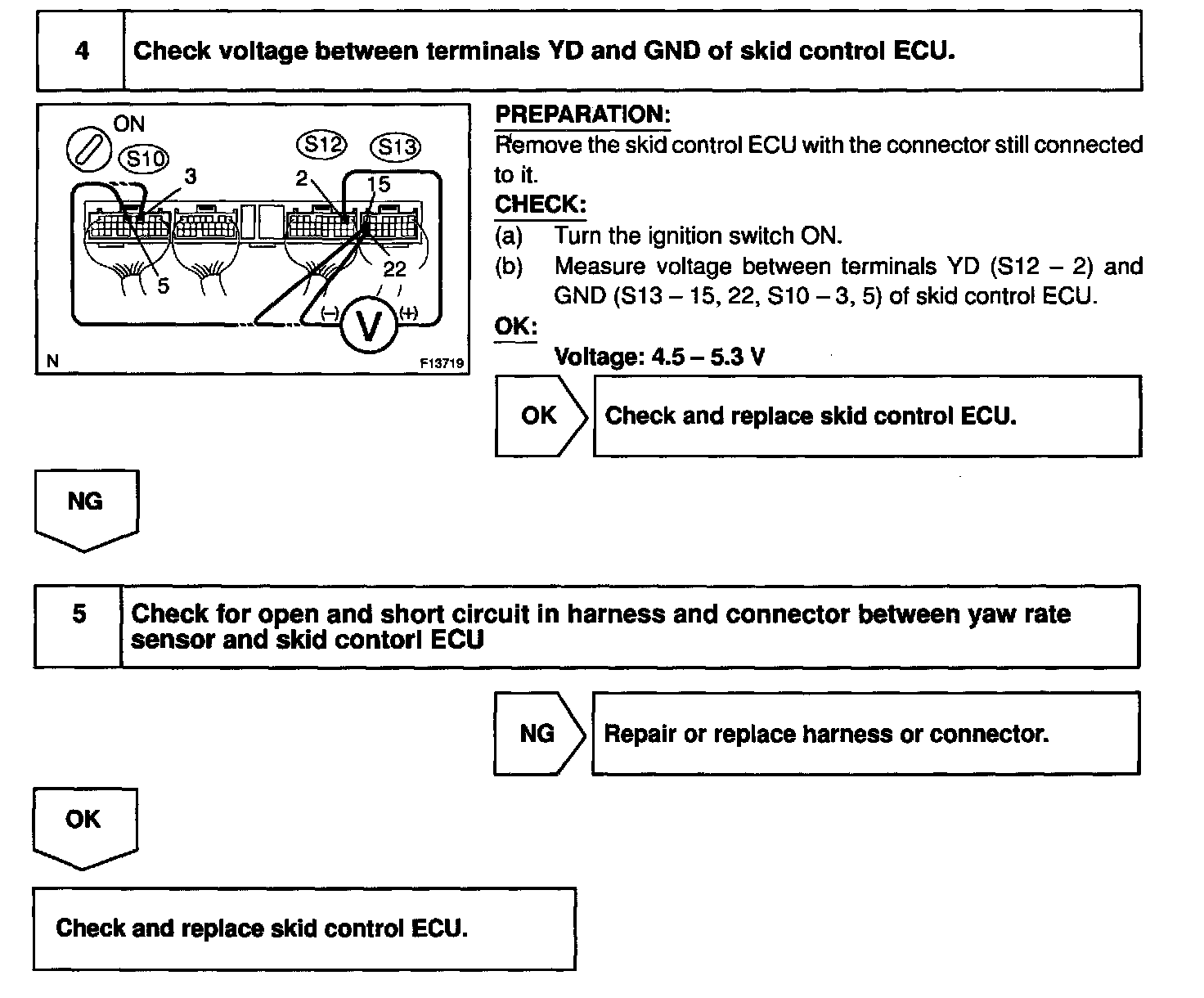

Steps 4 - 5:
INSPECTION PROCEDURE
