B1416

CIRCUIT DESCRIPTION

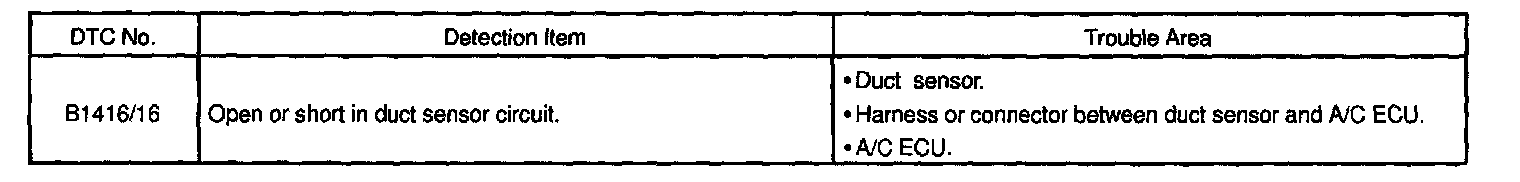

Detection Item:

This sensor detects the temperature inside and sends the appropriate signals to the A/C ECU.

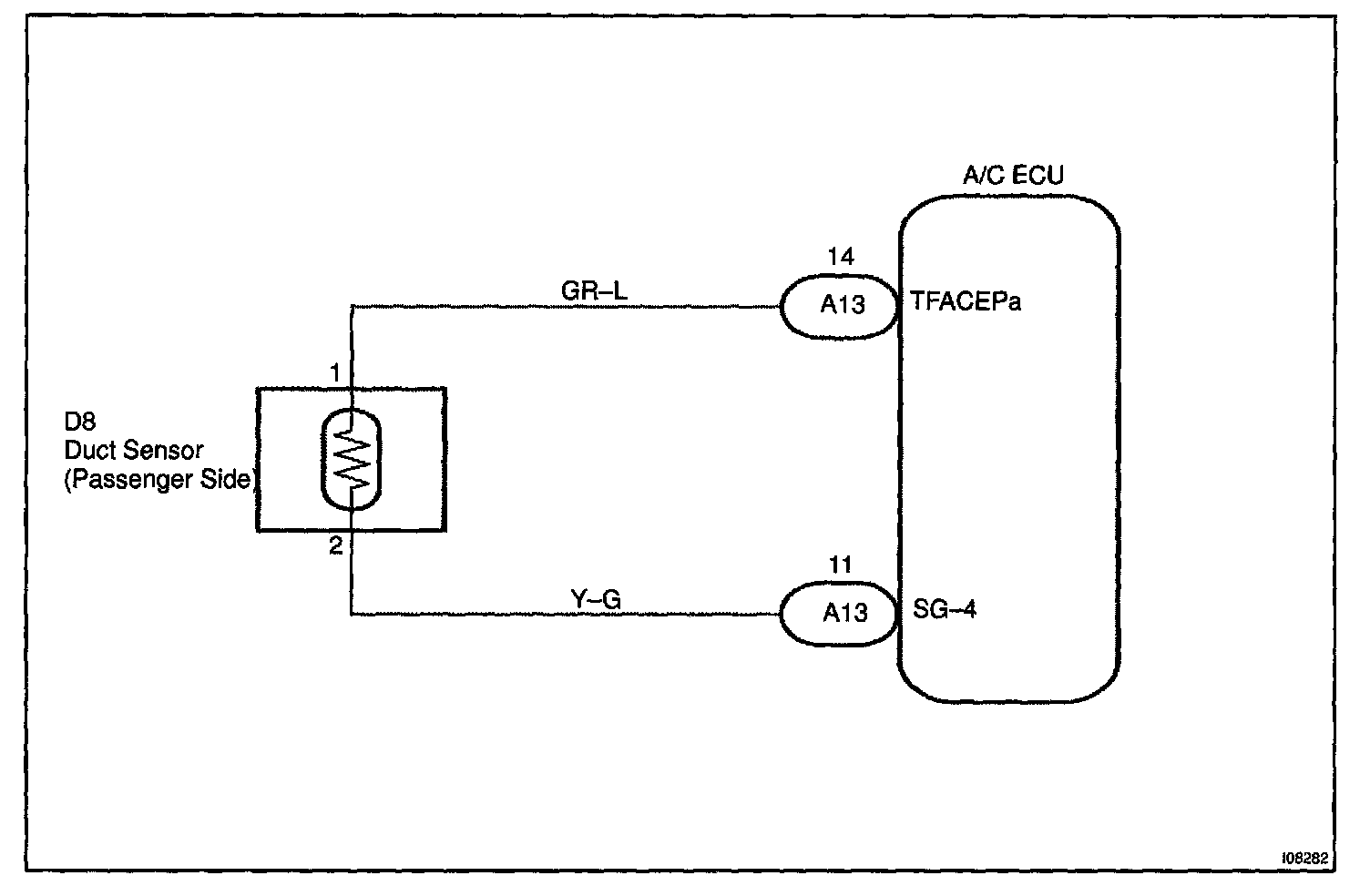

Wiring Diagram:

Steps 1 - 2:

Steps 3 - 4:

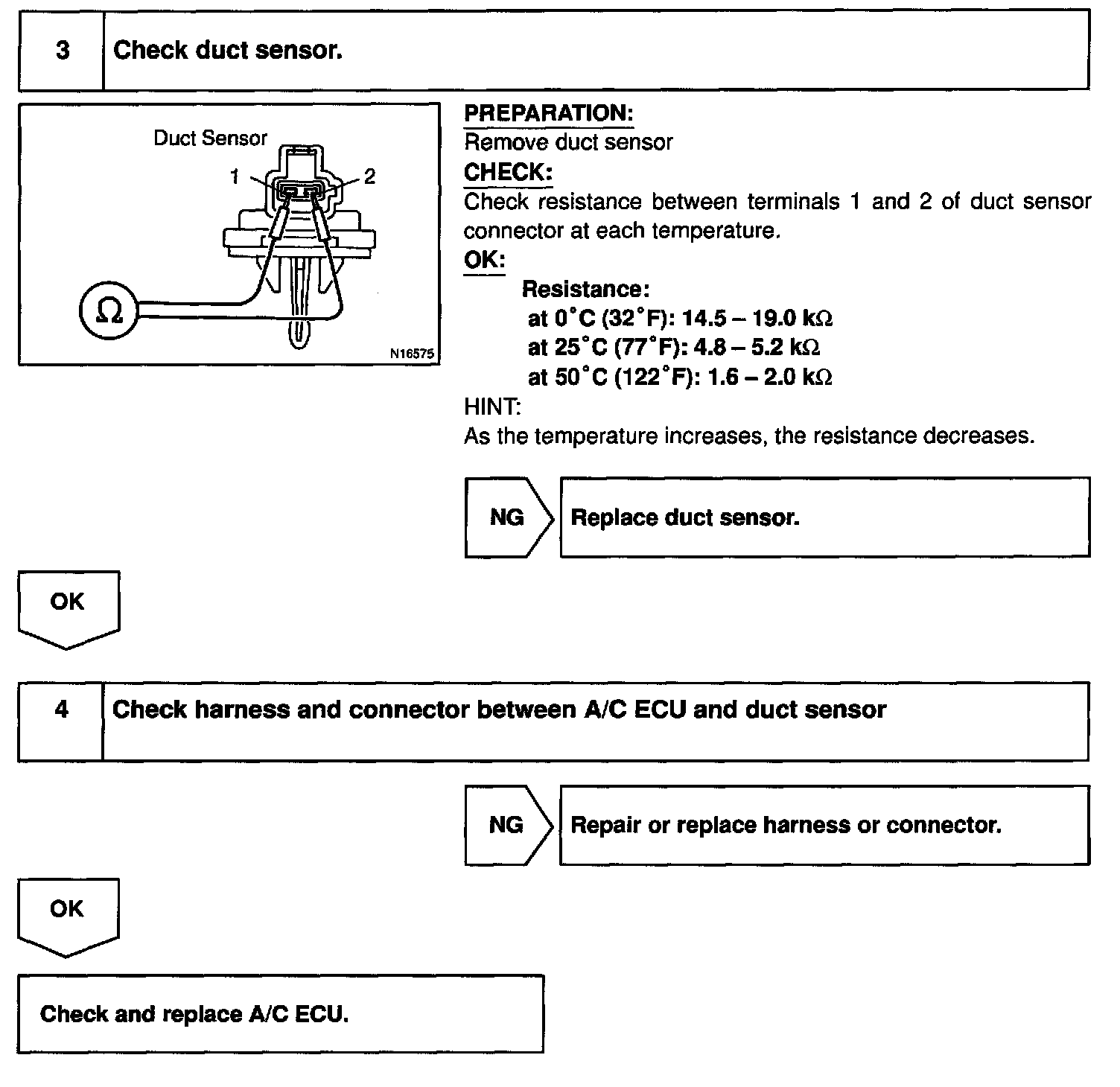

INSPECTION PROCEDURE

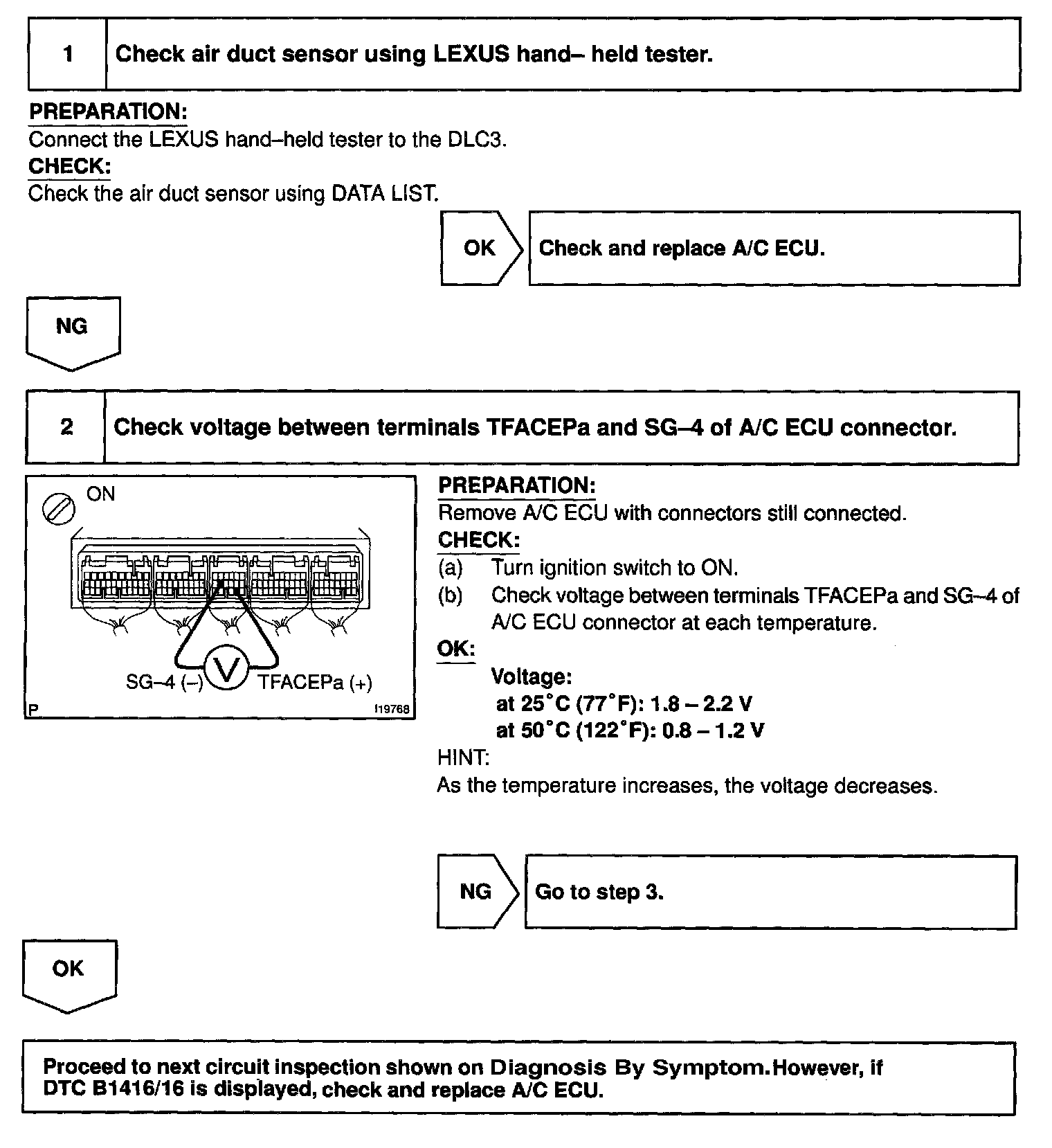

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
