B1291

CIRCUIT DESCRIPTION

This DTC is output when +B or GND short occurs on the rear lights control system communication bus.

Wiring Diagram:

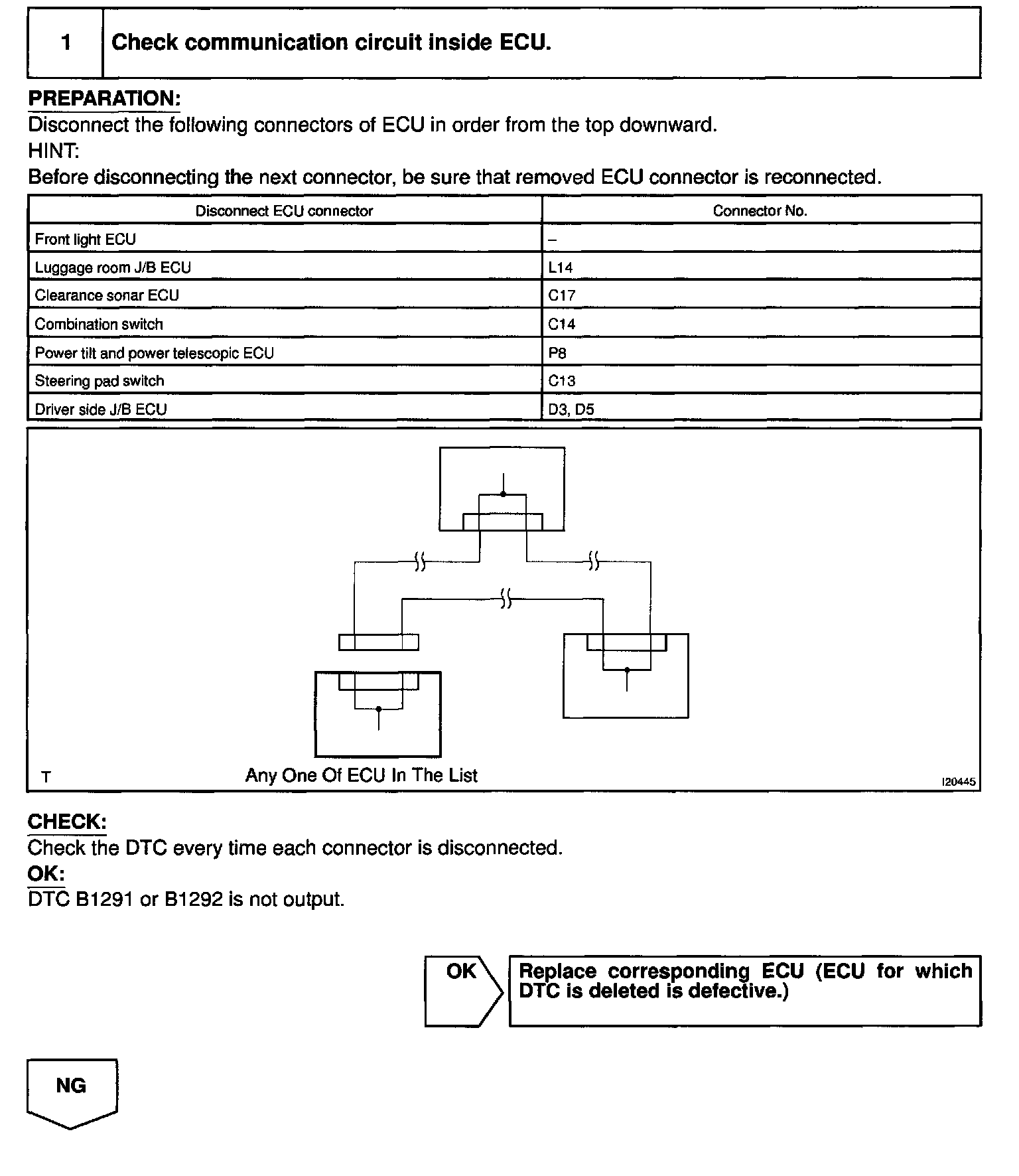

Step 1:

Step 2:

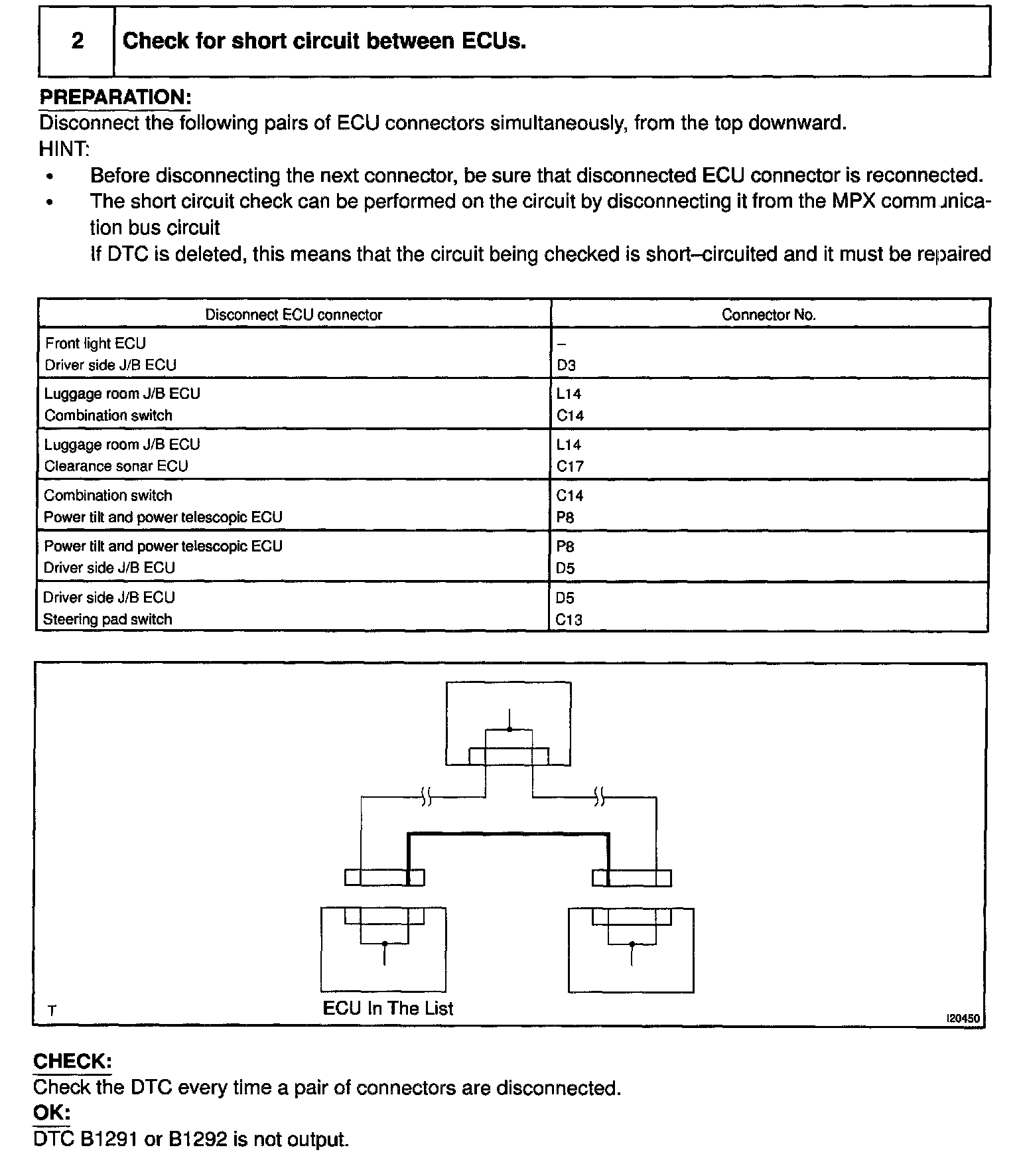

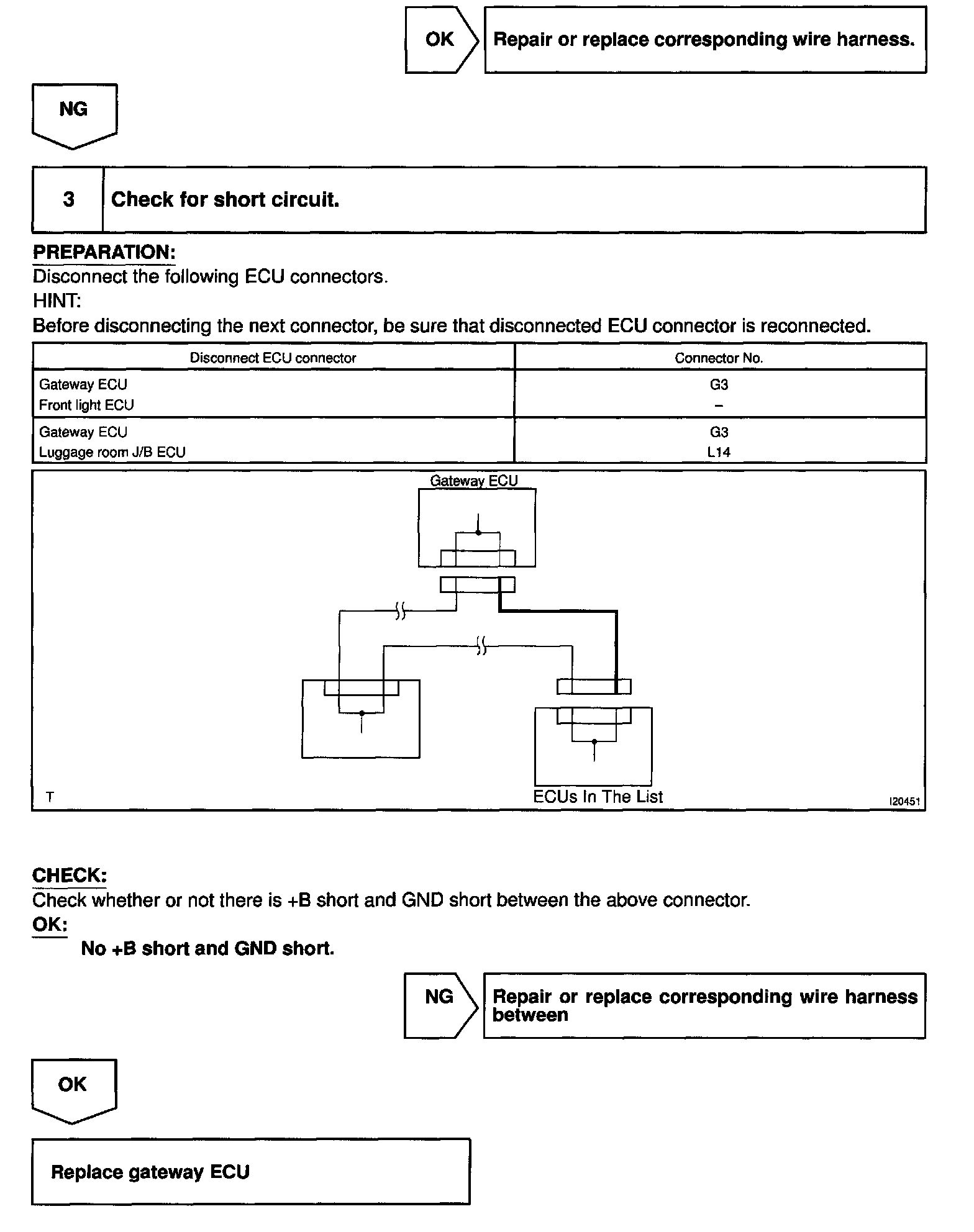

Steps 2 (Continued) - 3:

INSPECTION PROCEDURE
