B1263

CIRCUIT DESCRIPTION

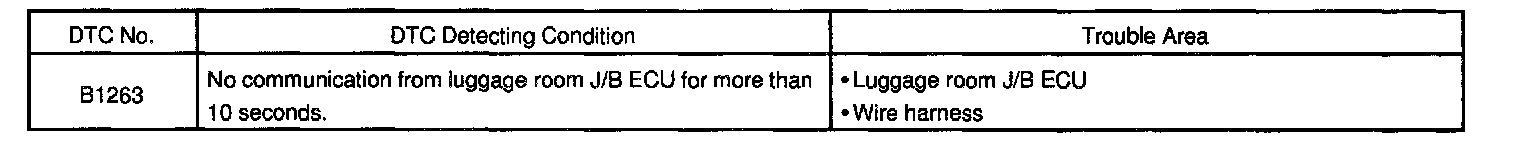

DTC Detecting Condition:

This DTC is output when communication stops between the luggage room J/B ECU and the gateway ECU.

Wiring Diagram:

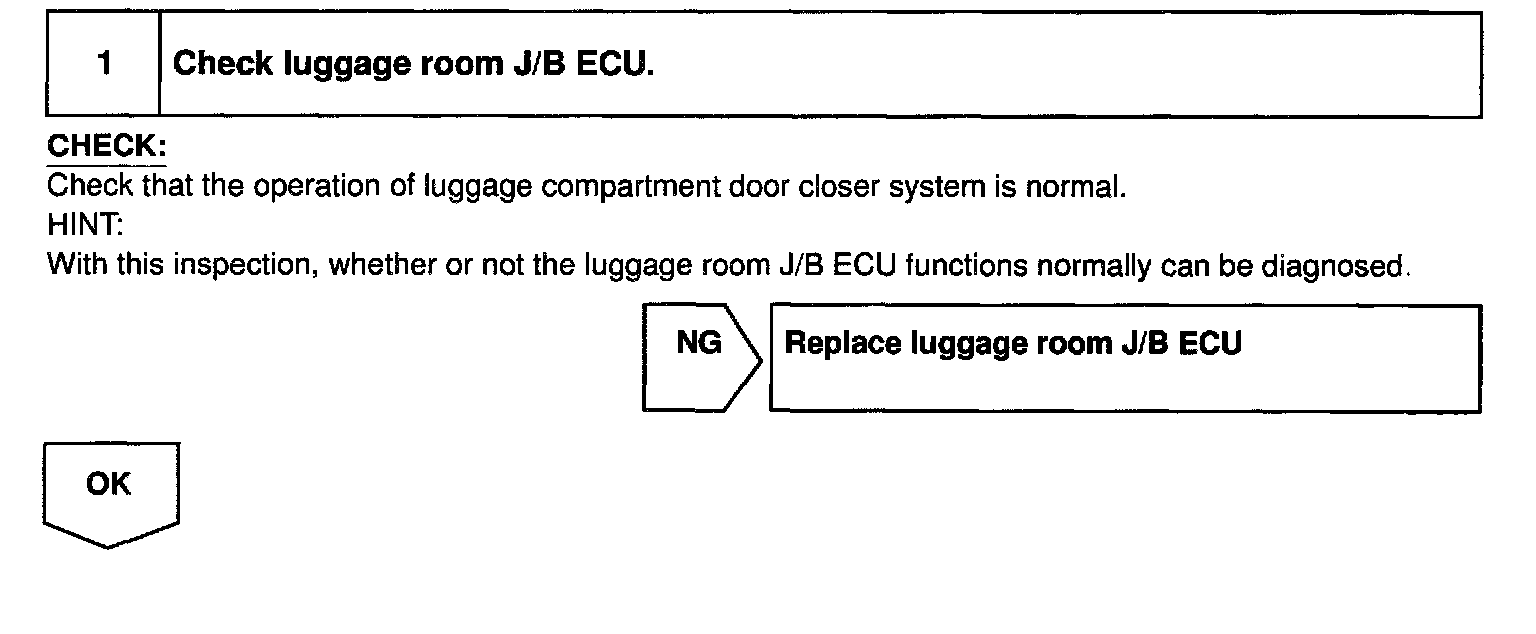

Step 1:

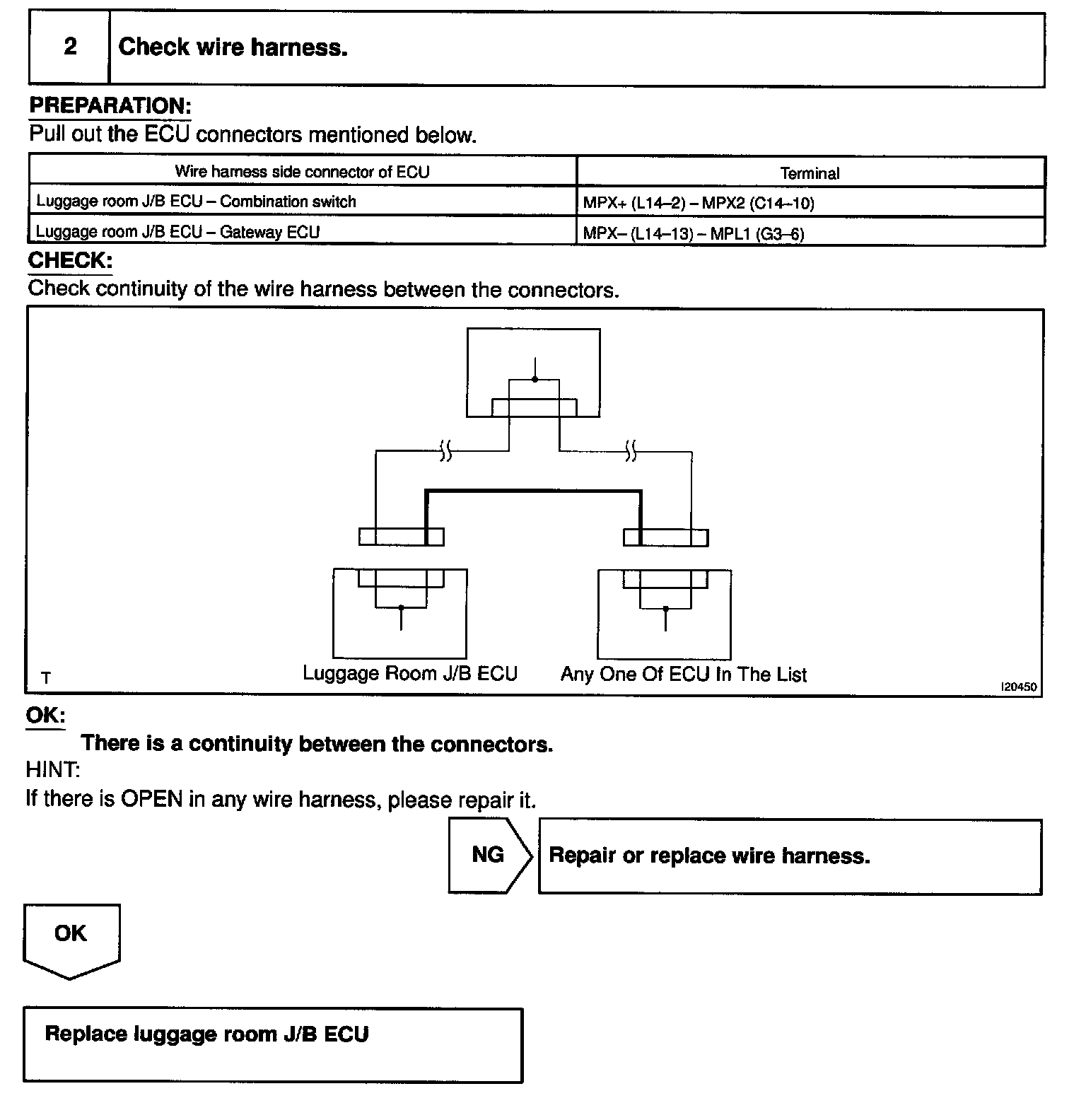

Step 2:

INSPECTION PROCEDURE
