Home >> Lexus >> 2001 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1248

B1248

CIRCUIT DESCRIPTION

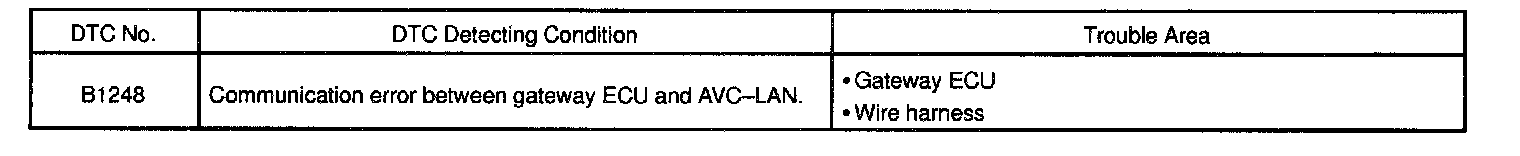

DTC Detecting Condition:




This DTC is output when communication stops between the gateway ECU and the AVC-LAN circuit.

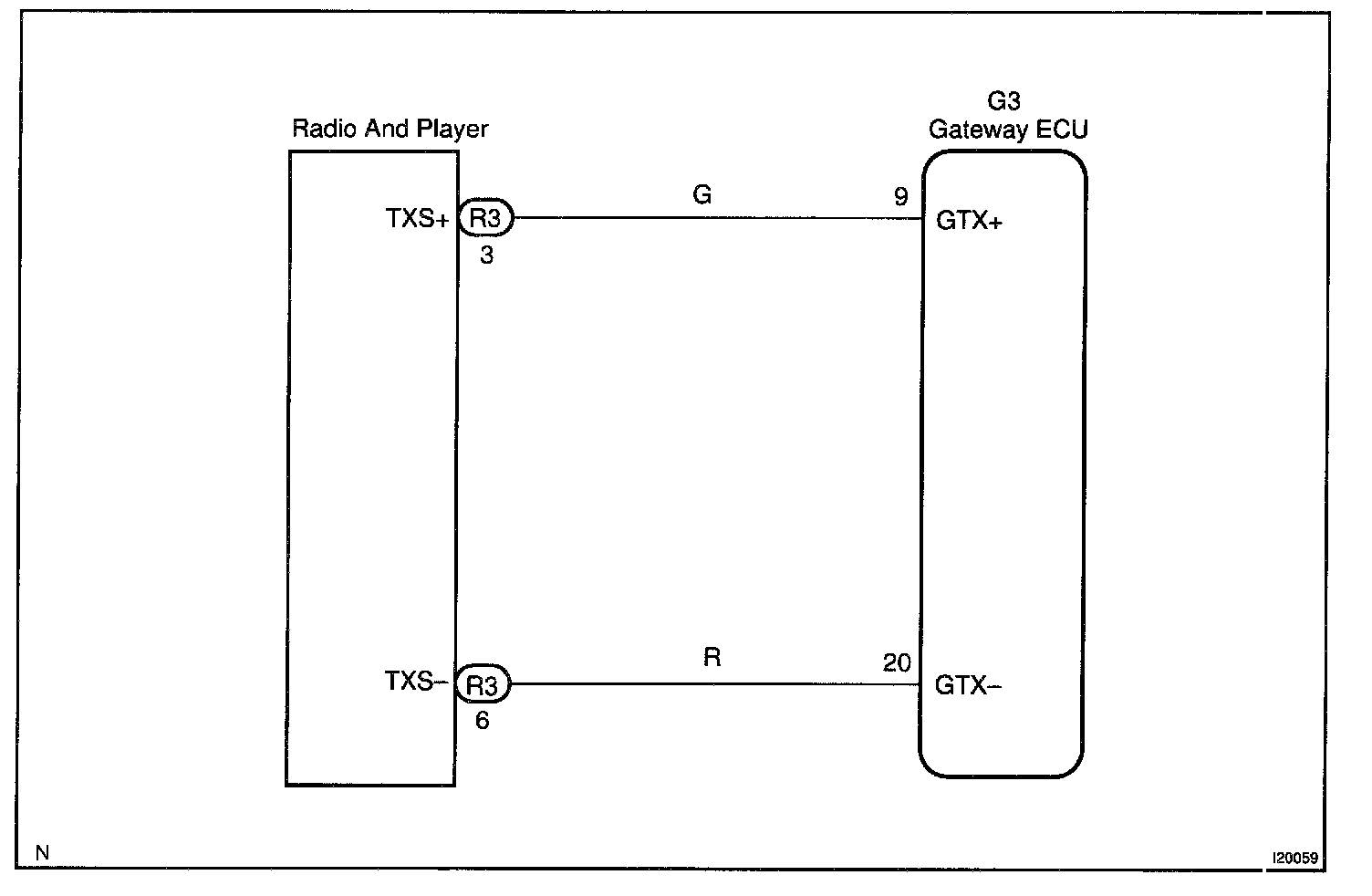

Wiring Diagram:

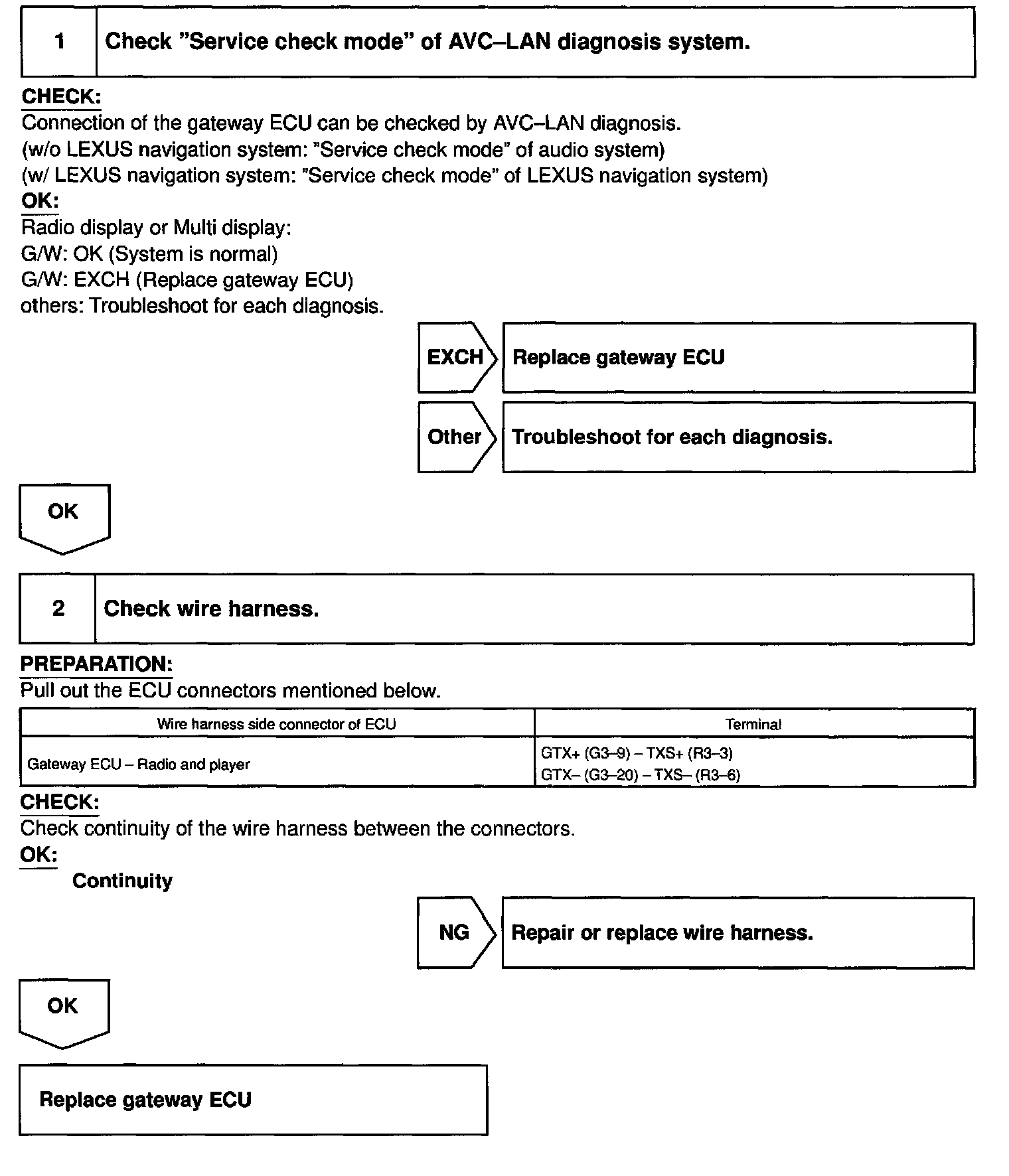

Steps 1 - 2:




INSPECTION PROCEDURE
