Canada - Glass - Rear Quarter Window Wind Noise

Bulletin
0403

Issue Date
2000-11-22

Market
Canada

Reference
BC-00-012

Model
IS300

Year Range
2001

Component
BC

Subject:
REAR QUARTER WINDOW WIND NOISE

A production change has been made to reduce the wind noise from the rear quarter window. The following repair procedure has been developed to address those vehicles that exhibit this condition.

APPLICABLE VEHICLES: 2001 model year IS 300 vehicles.

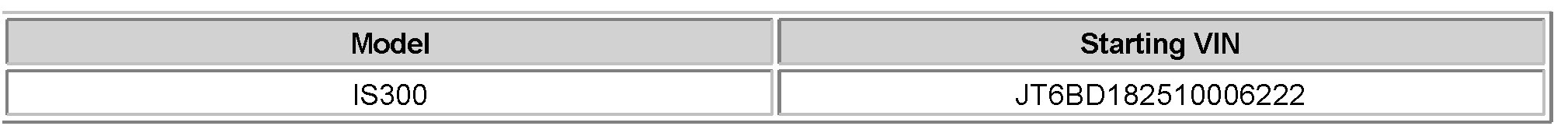

PRODUCTION CHANGE INFORMATION:

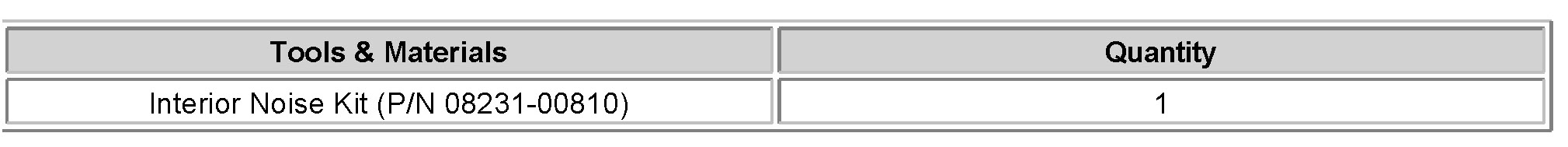

REQUIRED TOOLS & MATERIAL:

REPAIR PROCEDURE:

1. Remove the rear quarter glass. Refer to the 2001 model year IS 300 Repair Manual, Volume 2, steps 1-4 and 10-11 for details.

NOTE:
Steps 5 through 9 are not necessary to complete the procedure outlined in this TSB.

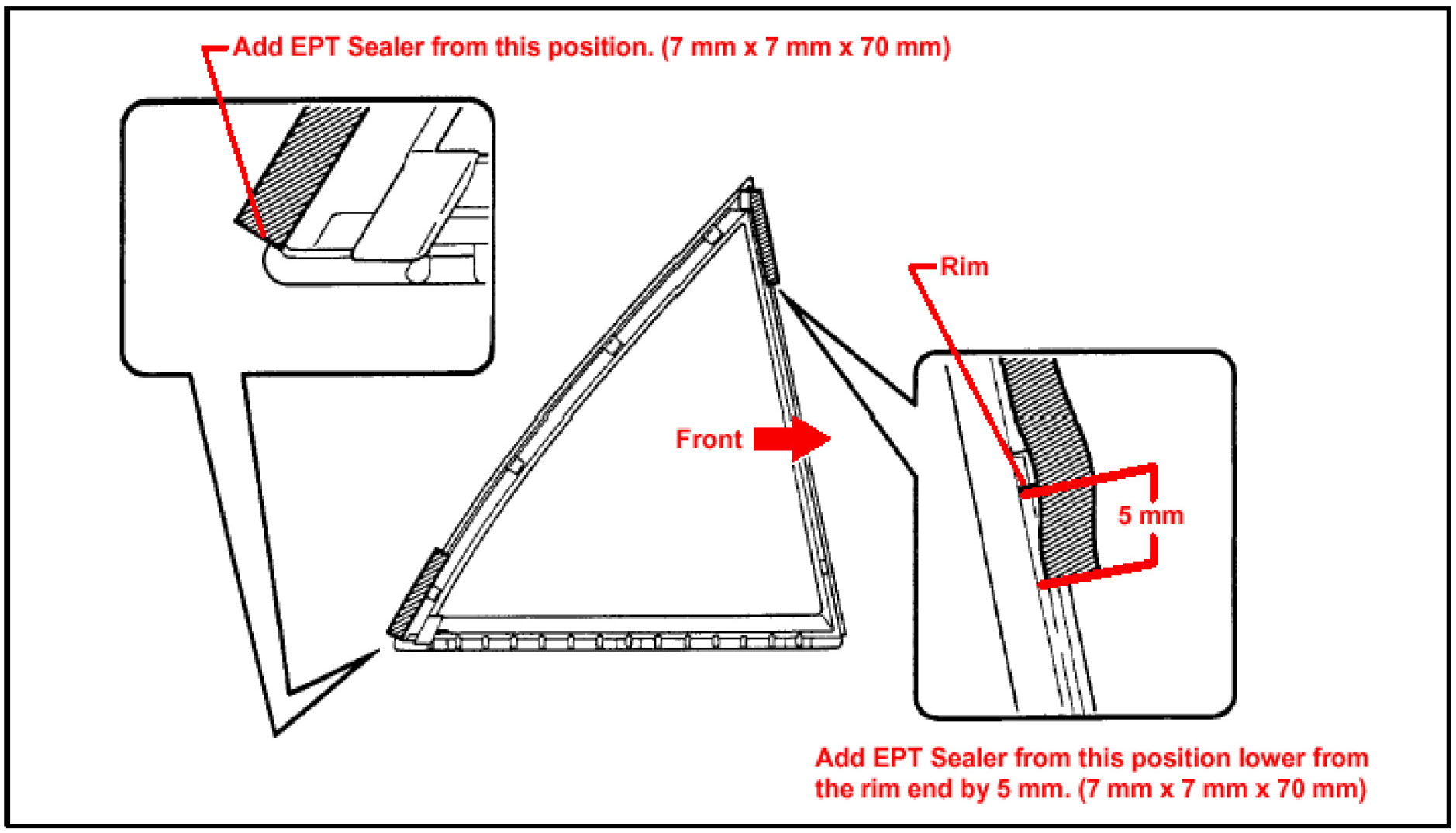

2. Add two pieces of EPT Sponge Sealer between the rear quarter glass weatherstrip and window frame as shown.

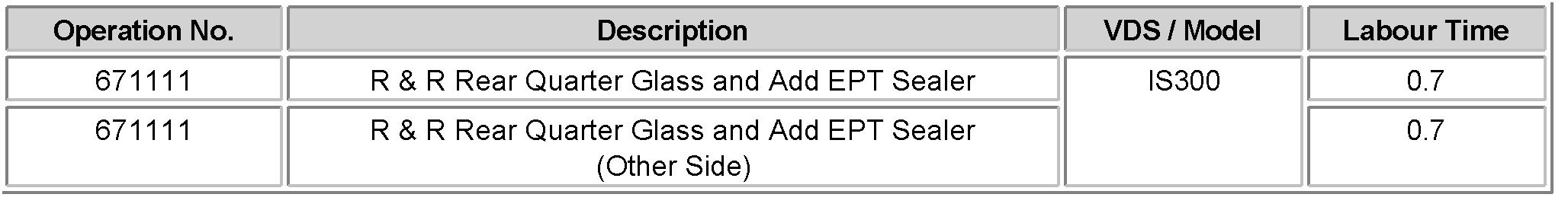

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
