IS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Engine Technical and Torque Data
Engine Technical and Torque Data
1 Of 3:
2 Of 3:
3 Of 3:

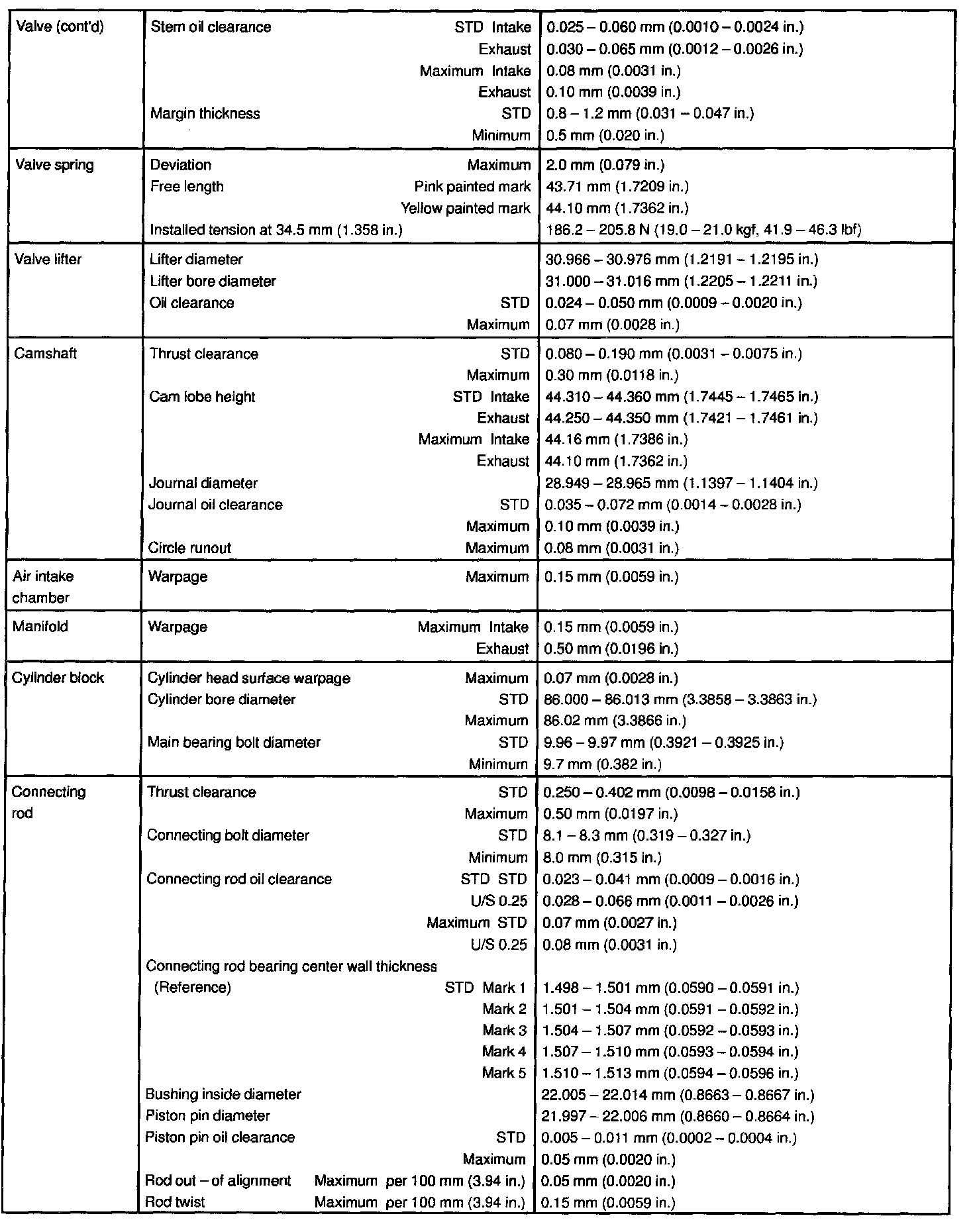

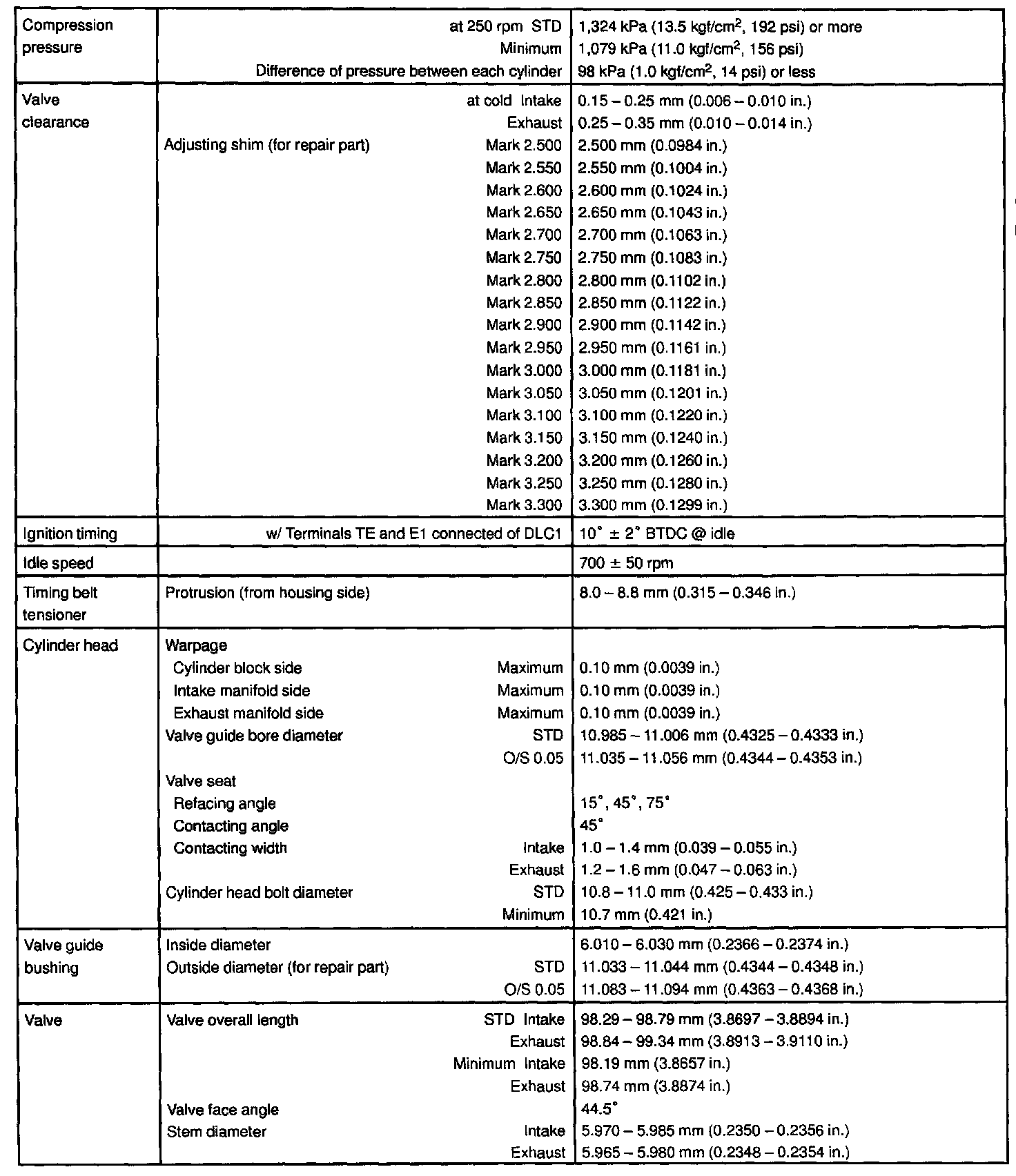

Service Specifications
1 Of 2:
2 Of 2:

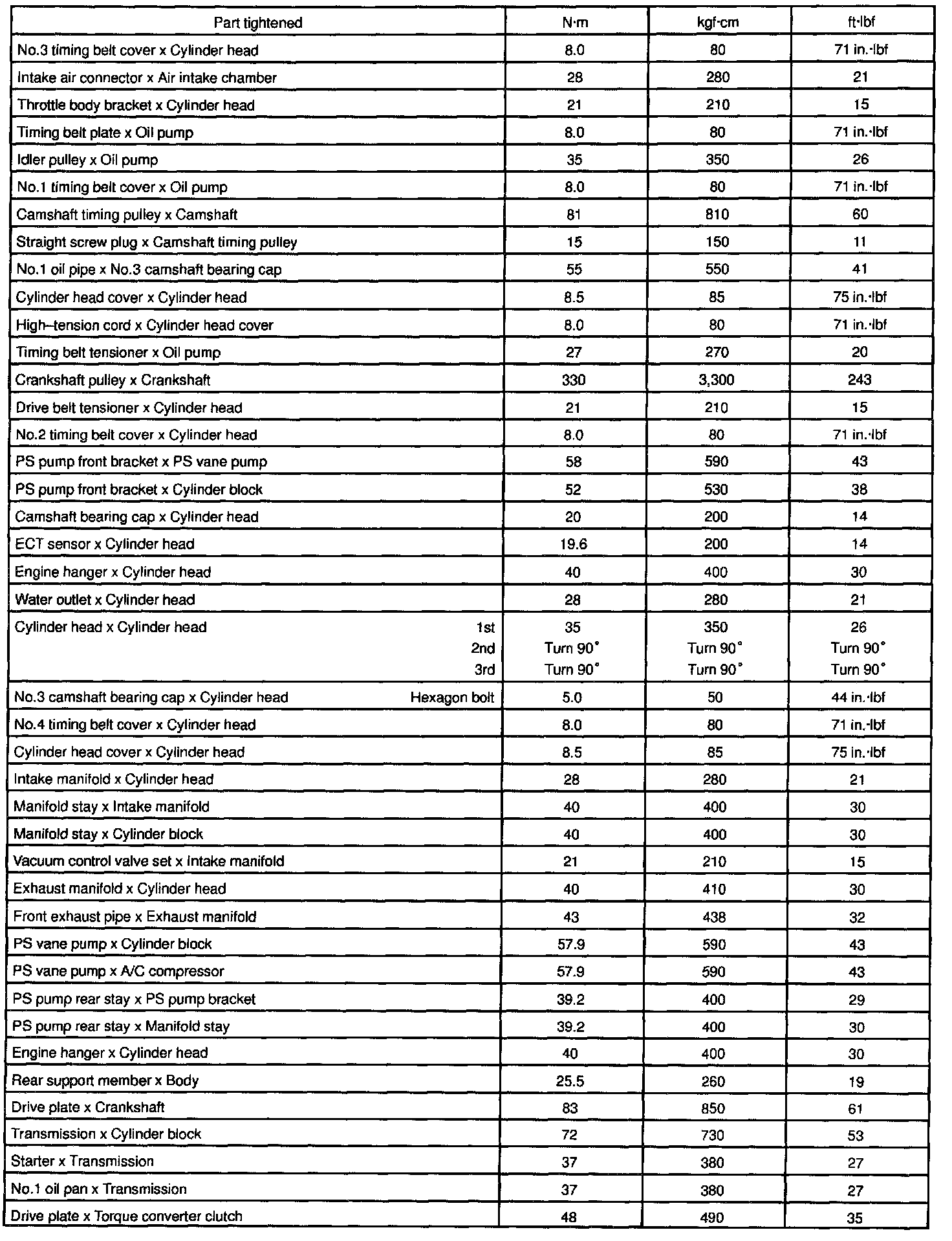

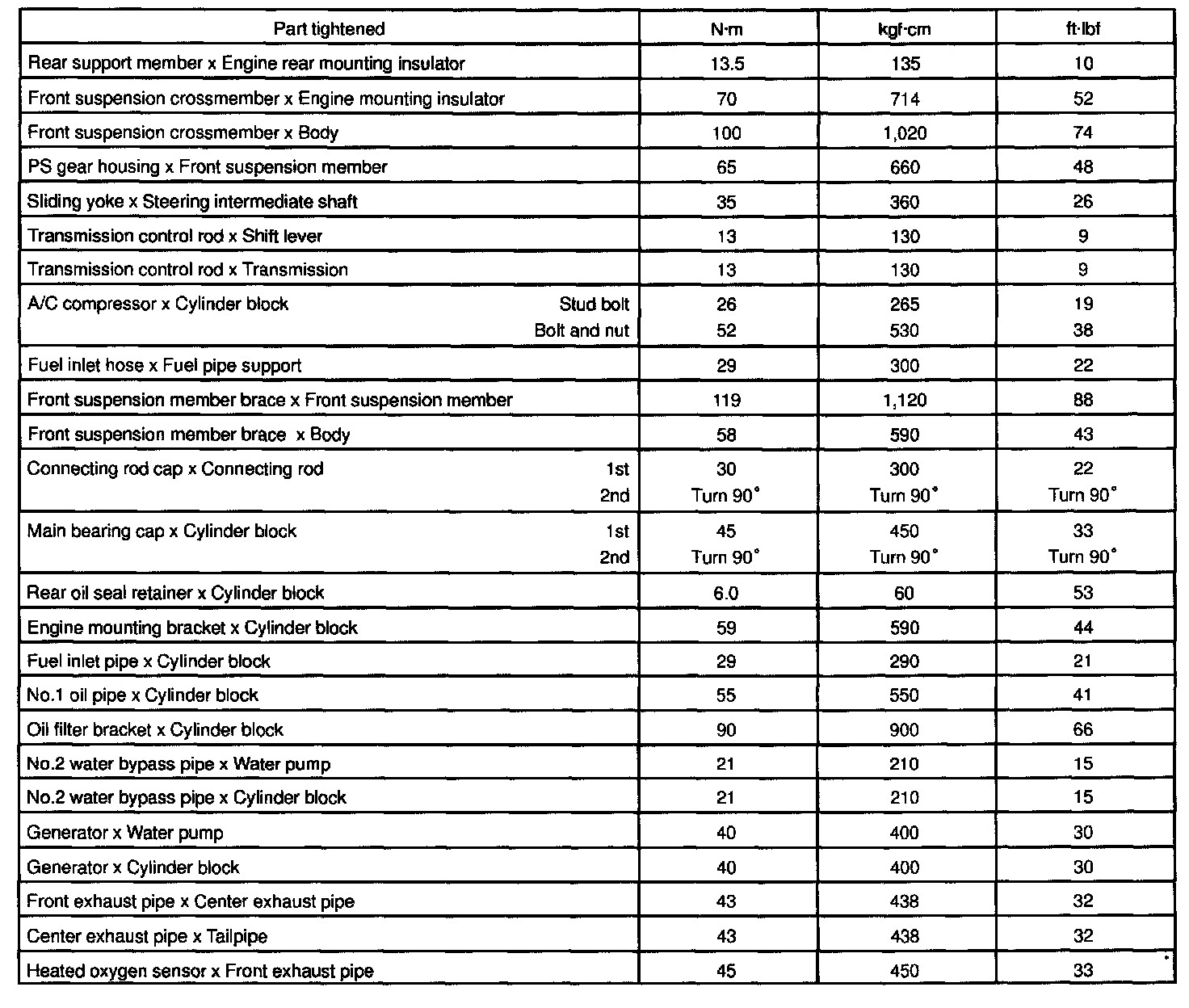

Tightening Specifications
