Vehicle Speed Sensor: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
2. REMOVE LH FRONT FLOOR CENTER COVER
3. REMOVE NO. 1 REAR FLOOR BOARD

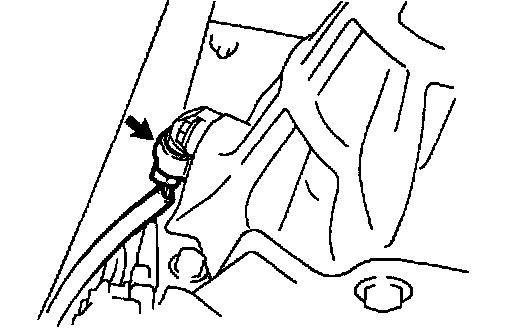

4. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR
5. REMOVE VEHICLE SPEED SENSOR
a. Remove the bolt and vehicle speed sensor.
b. Remove the O-ring from the vehicle speed sensor.
6. INSTALL VEHICLE SPEED SENSOR
a. Coat a new O-ring with ATF and install it to the vehicle speed sensor.
b. Install the vehicle speed sensor to the extension housing and torque the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
7. INSTALL NO. 1 REAR FLOOR BOARD
8. INSTALL LH FRONT FLOOR CENTER COVER
9. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
