TC Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals Tc and CG of the DLC3 the airbag sensor assembly is set in the DTC output mode.

The DTCs are displayed by blinking the SRS warning light.

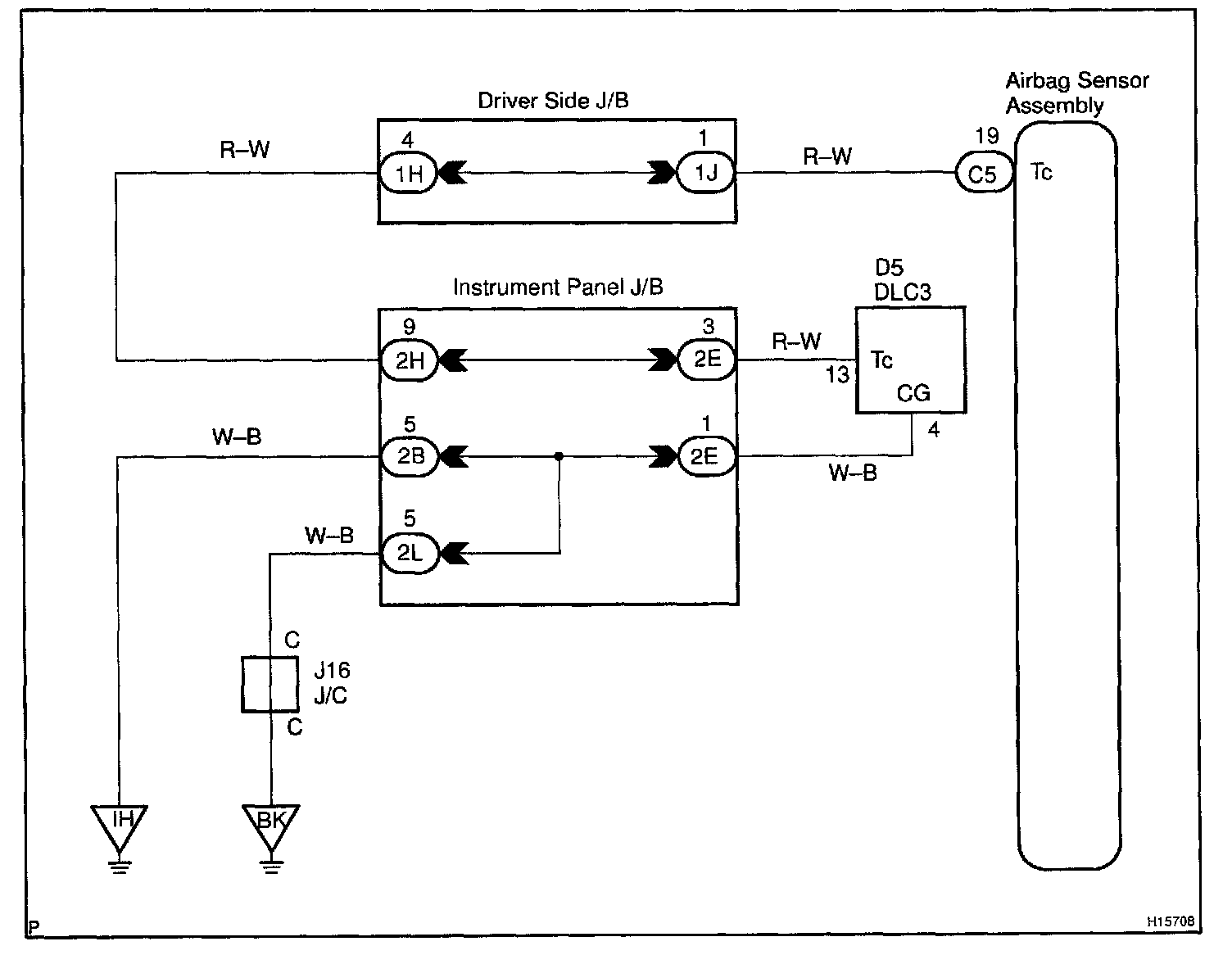

Wiring Diagram:

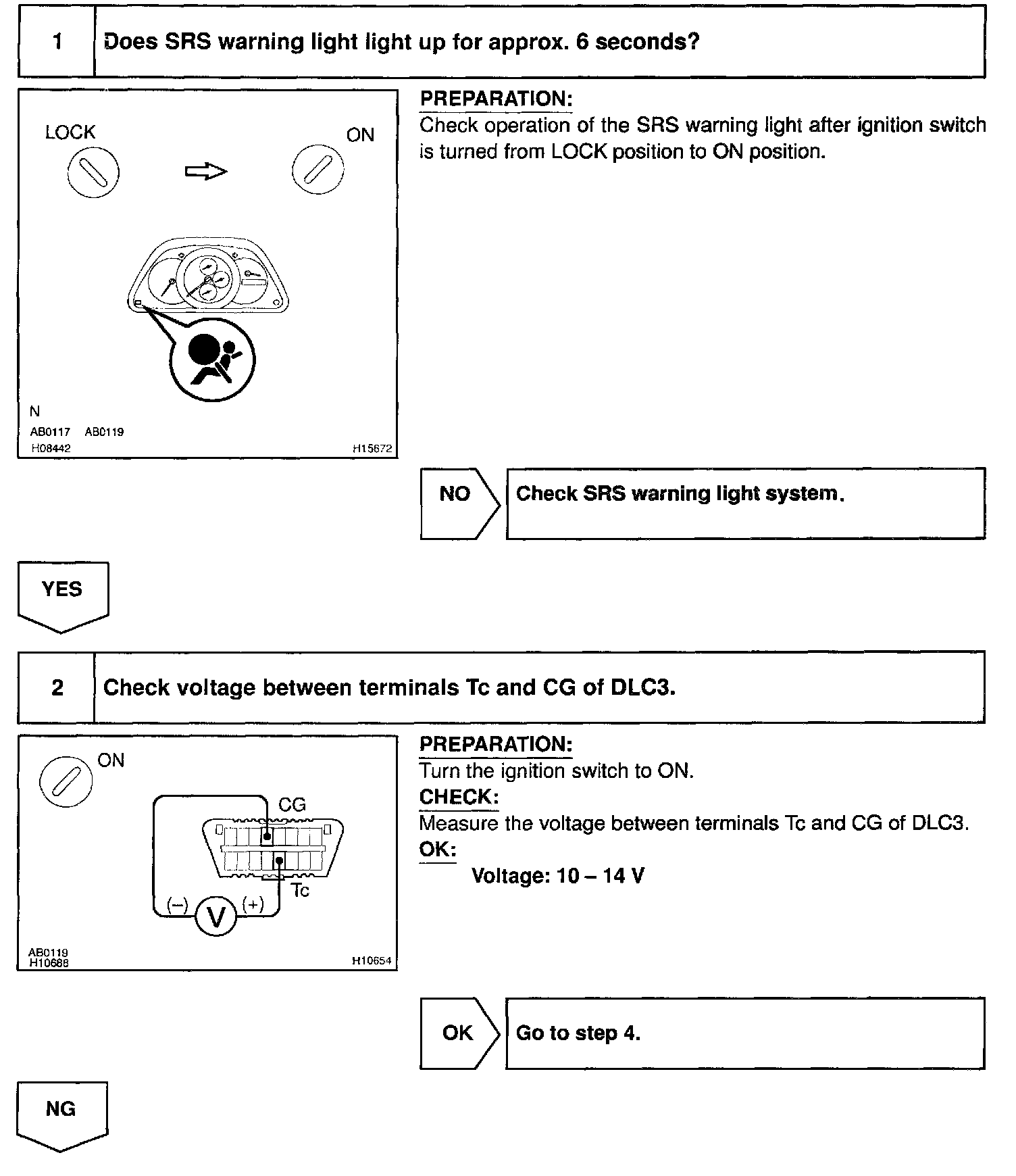

Steps 1 - 2:

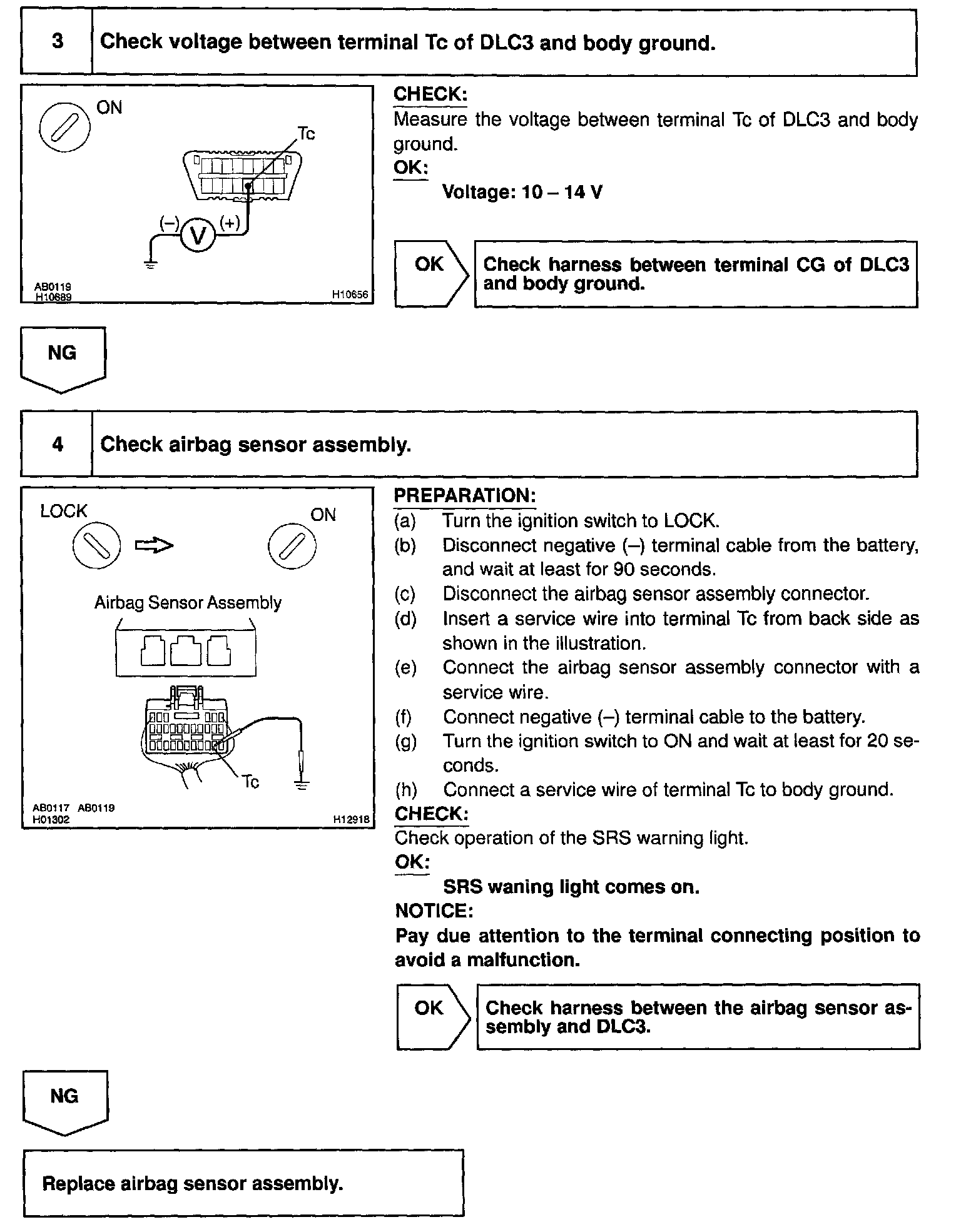

Steps 3 - 4:

INSPECTION PROCEDURE
If the DTC is not displayed, do the following troubleshooting.

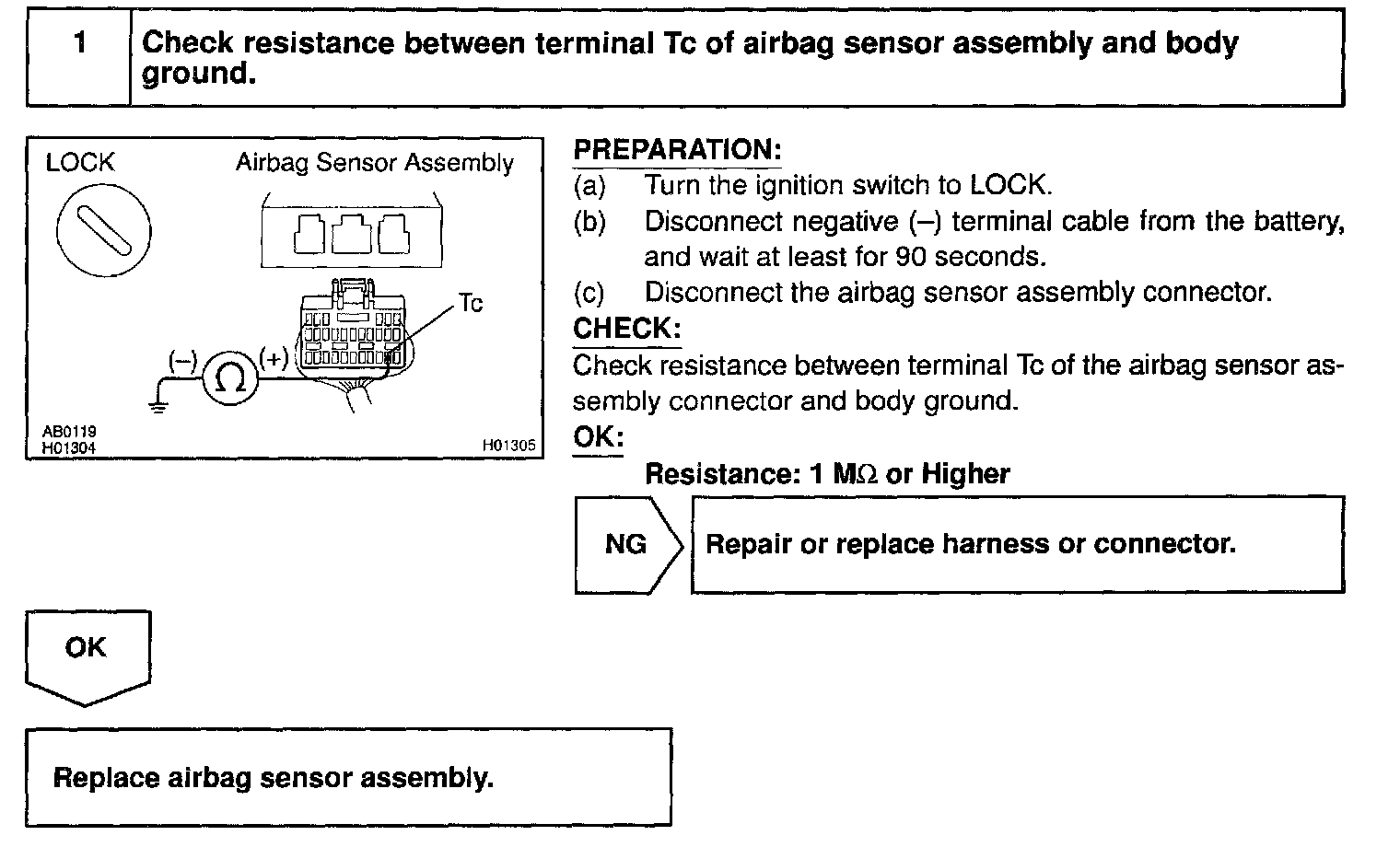

Step 1:

If the DTC is displayed without a DTC check procedure, perform the following troubleshooting.
