Fuel Pump Ballast Resistor: Testing and Inspection

FUEL PUMP RESISTOR




INSPECTION

INSPECT FUEL PUMP RESISTOR

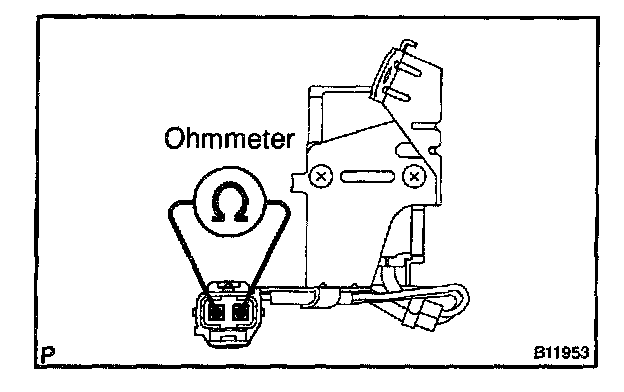

Using an ohmmeter, measure the resistance between the terminals.

Resistance:
0.30 - 0.35 ohm at 20 °C (68 °F)

If the resistance is not as specified, replace the resistor.
