Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table - Combination Meter:

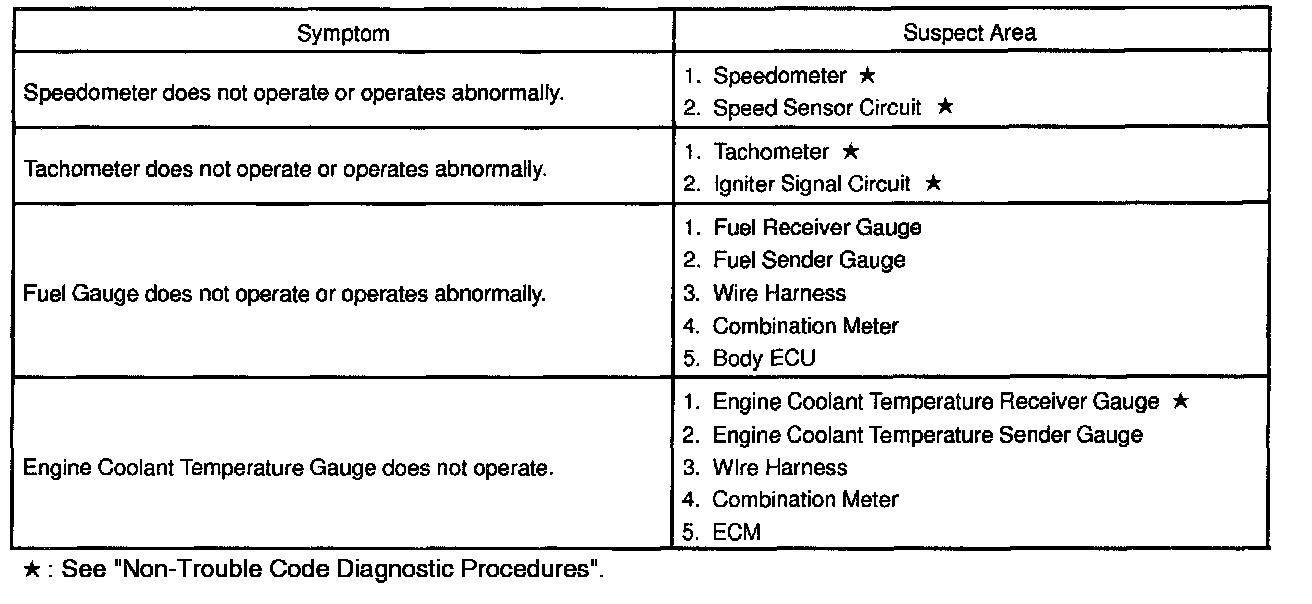

Gauge:

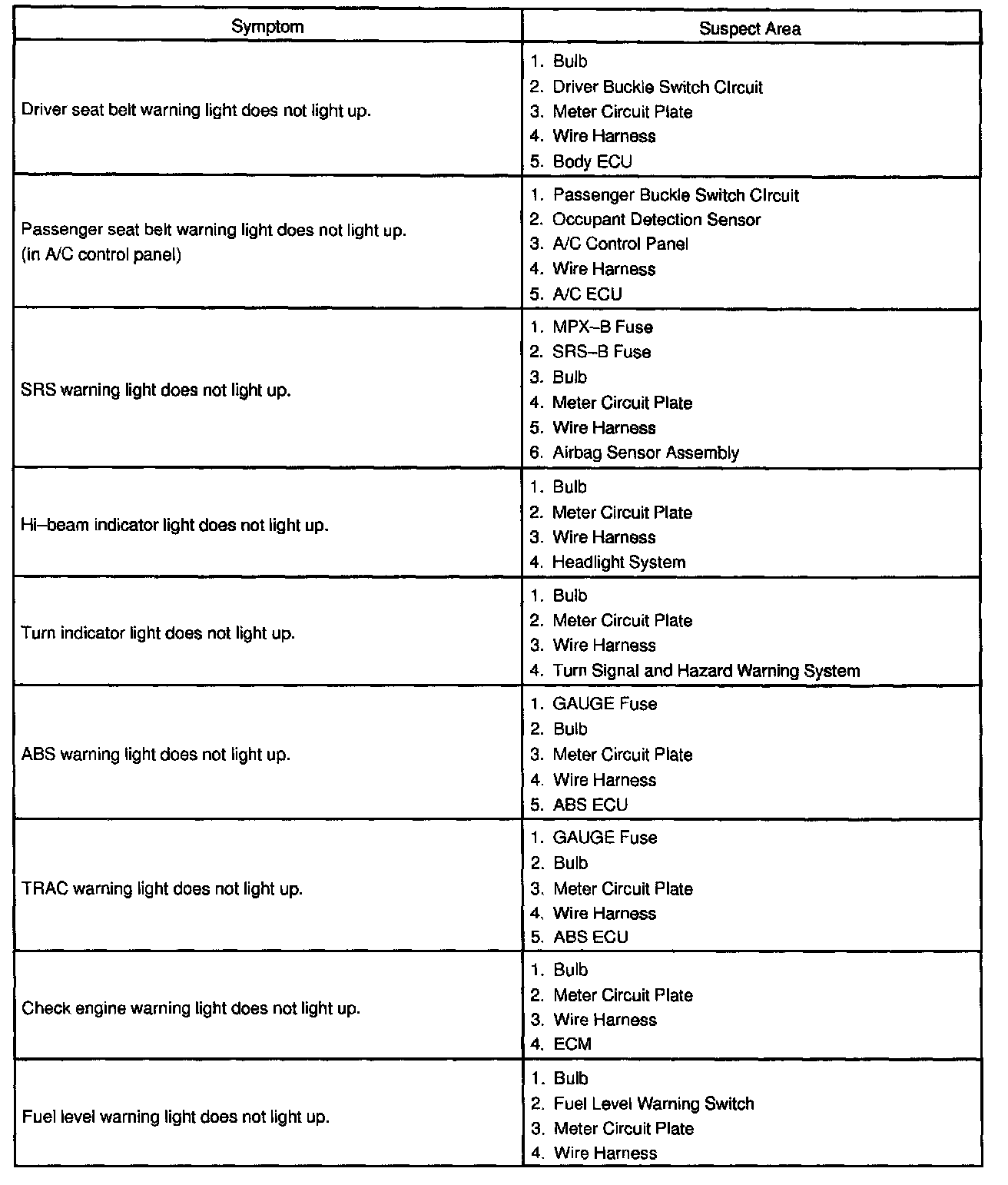

Indicator Light And Warning Light:

- This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
- Refer to Warning Light Indicator for warning light or indicator light not described in the table.
