Troubleshooting

TROUBLESHOOTING

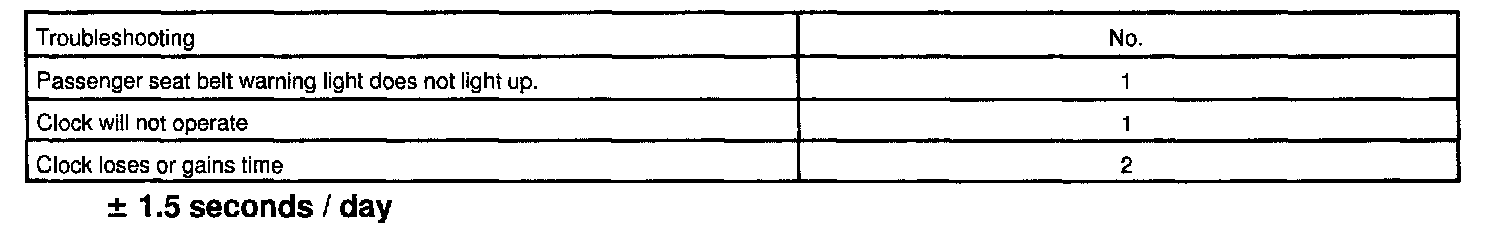

HINT: Troubleshoot the clock according to the table.

1. INSPECT CLOCK CIRCUIT

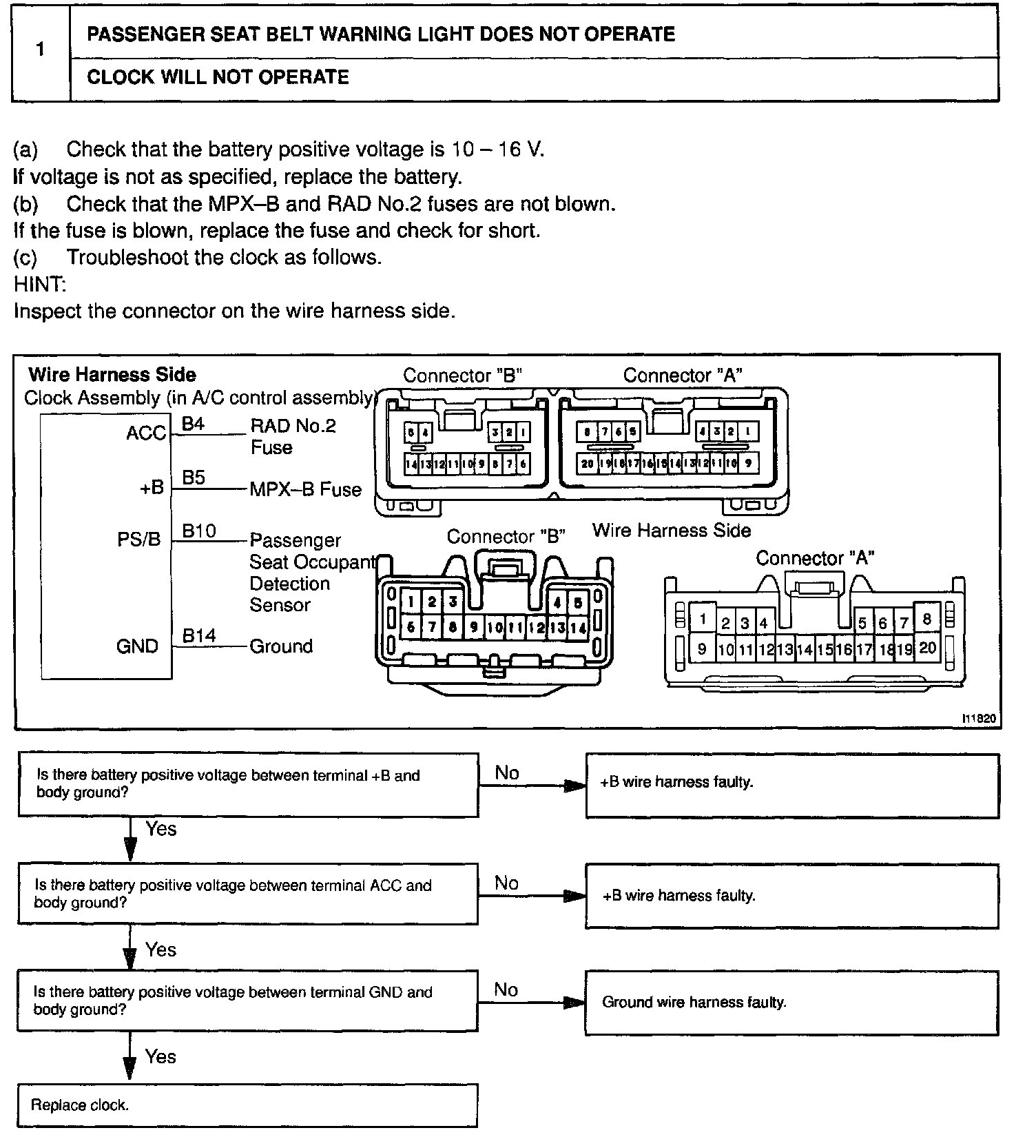

2. TROUBLESHOOTING NO.1

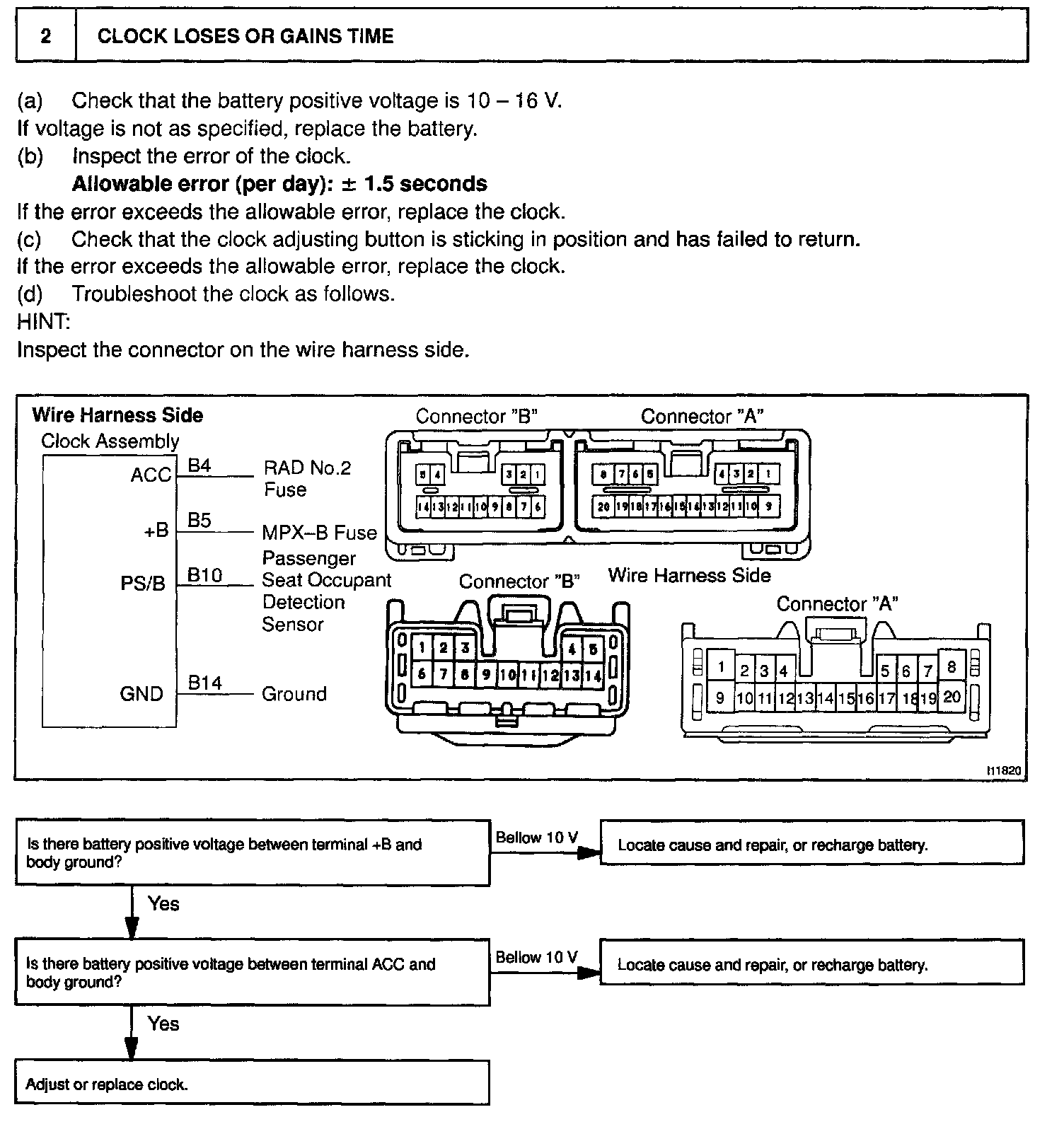

3. TROUBLESHOOTING NO.2
