Air Mix Damper Control Servomotor Circuit
CIRCUIT DESCRIPTIONThe air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

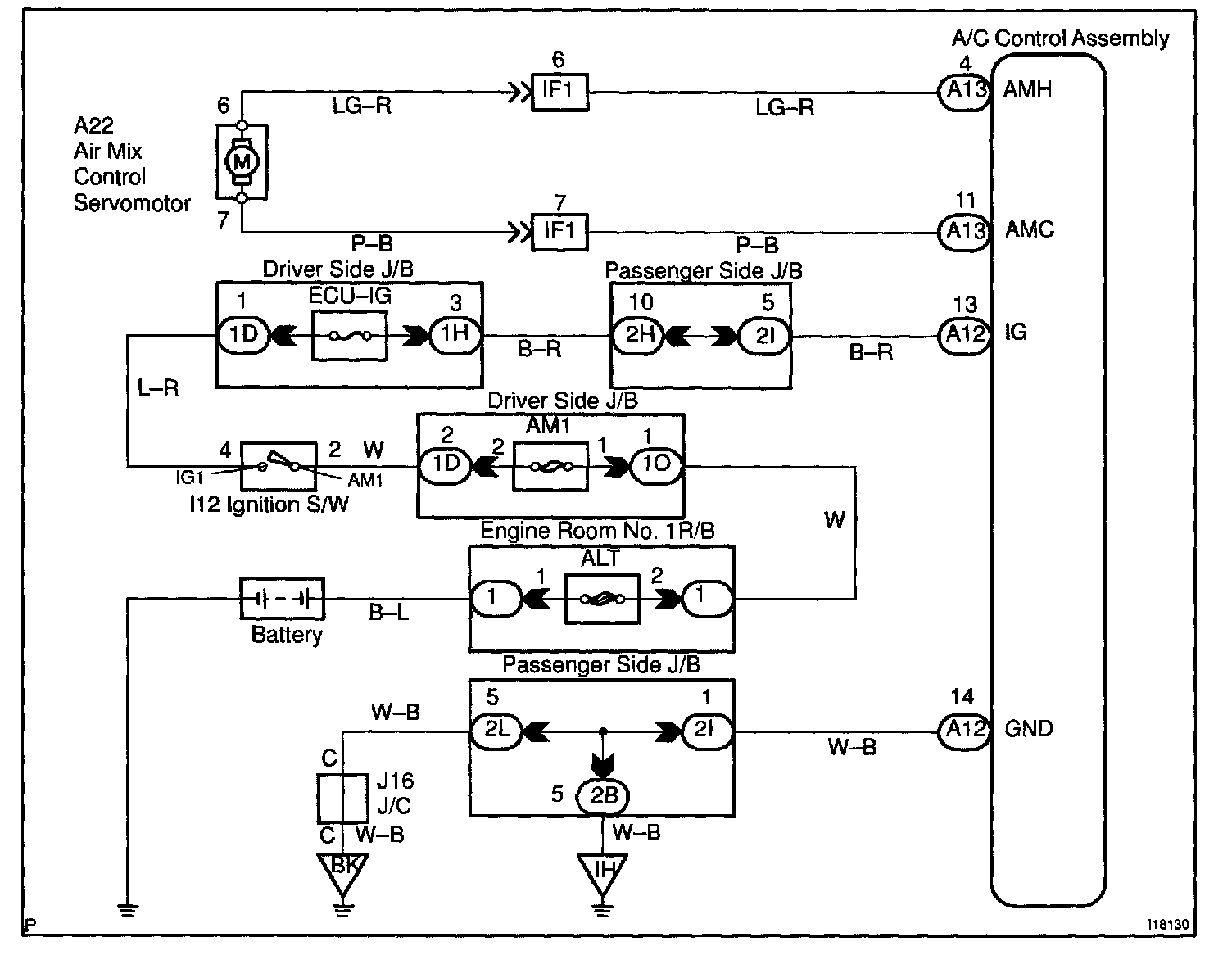

Wiring Diagram:

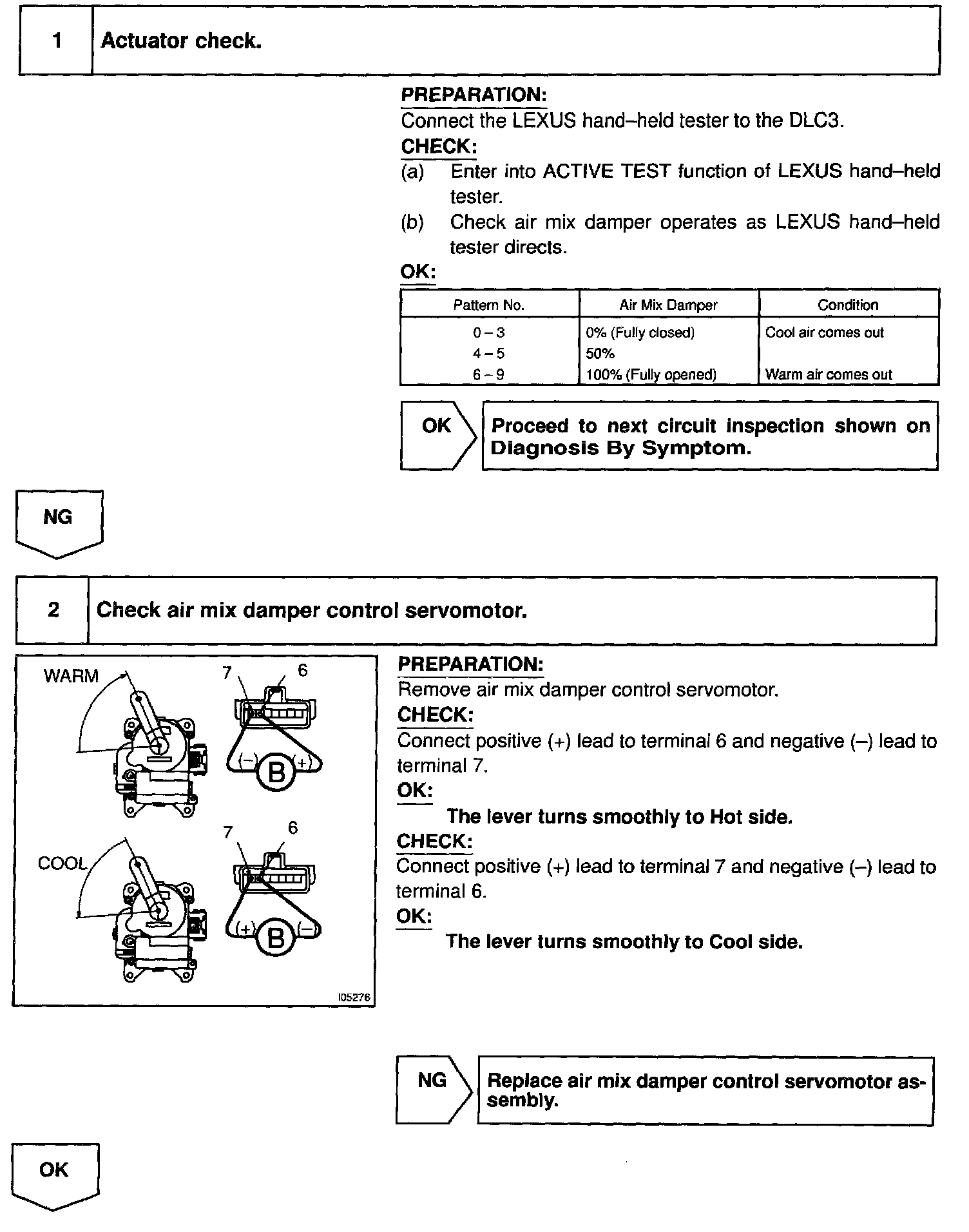

Steps 1 - 2:

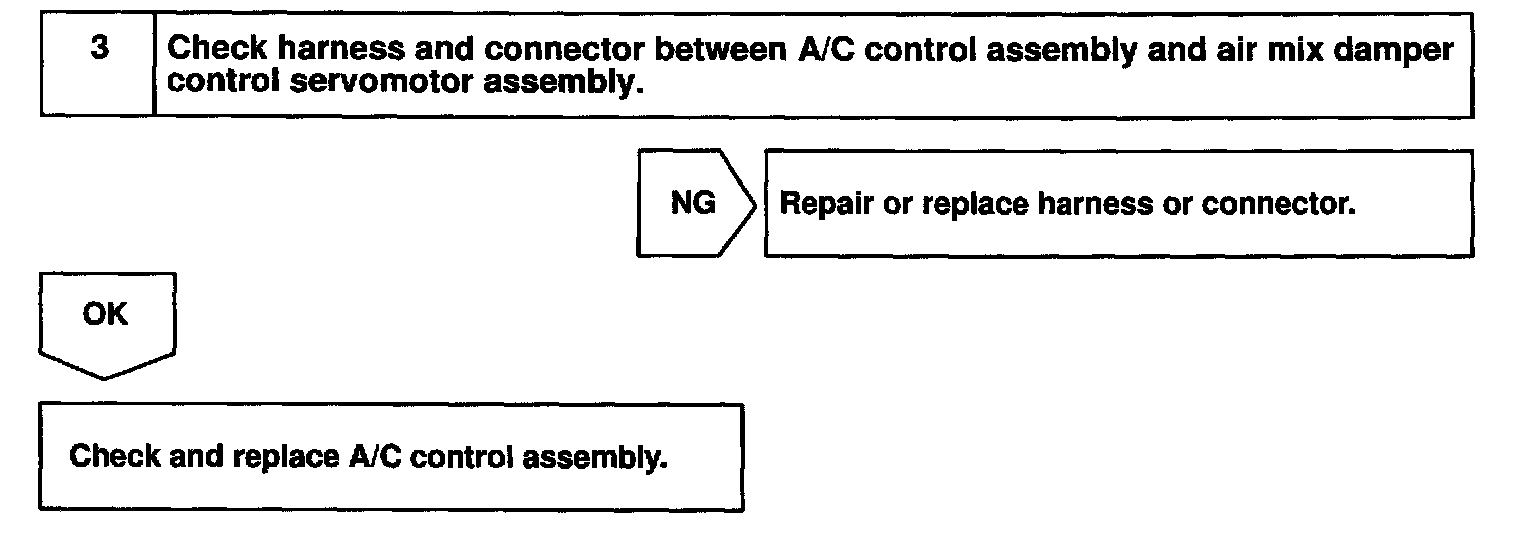

Step 3:
INSPECTION PROCEDURE
