Air Inlet Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
The air inlet damper control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

Wiring Diagram:

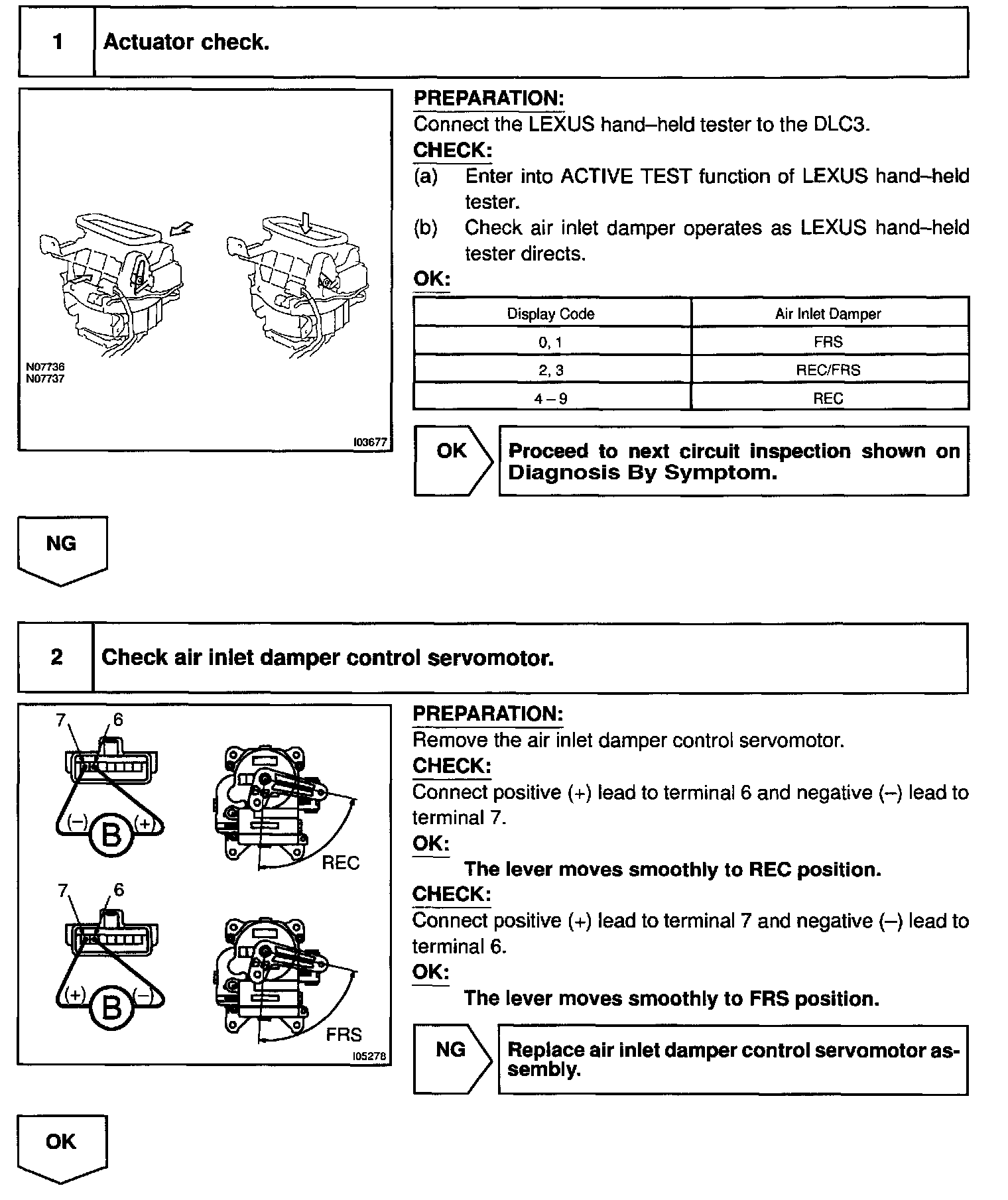

Steps 1 - 2:

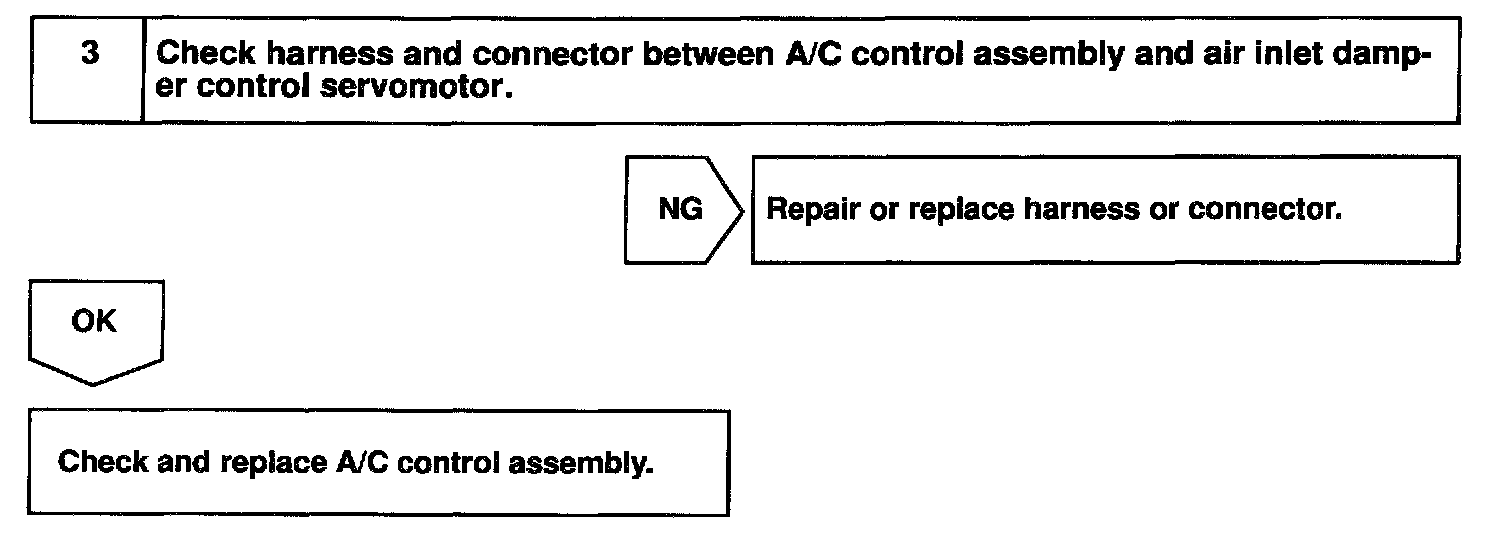

Step 3:




INSPECTION PROCEDURE
