Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECU.

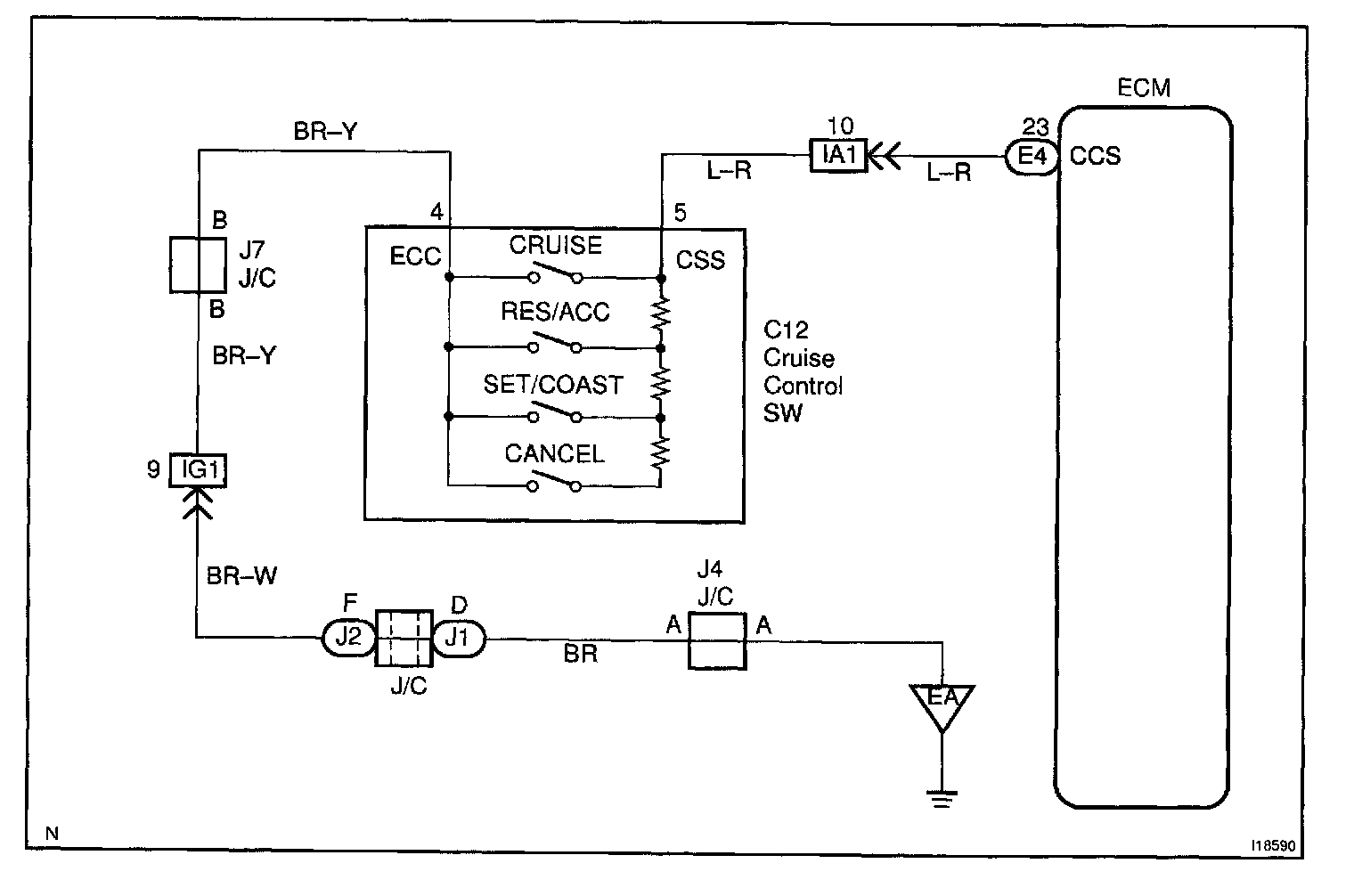

Wiring Diagram:

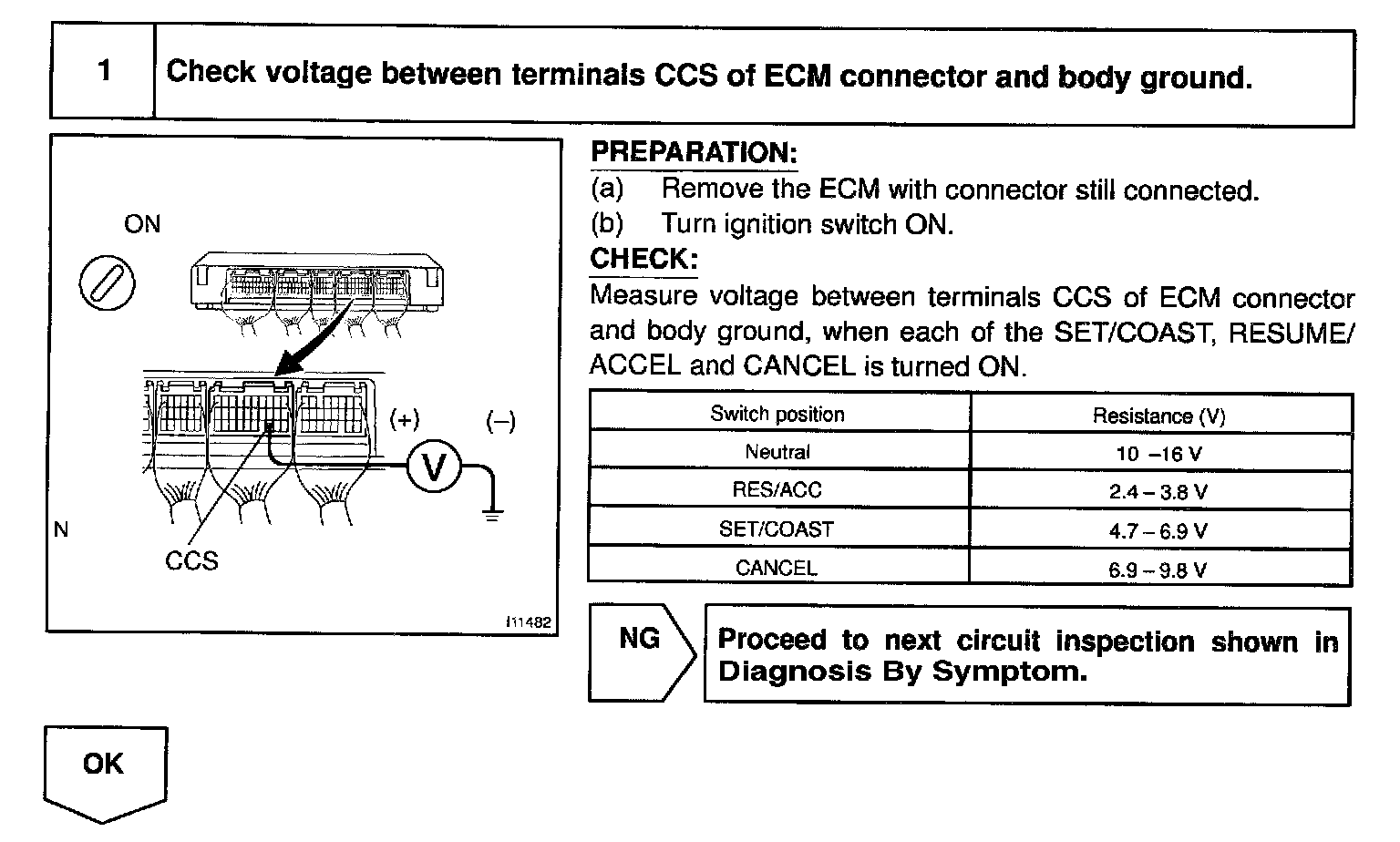

Step 1:

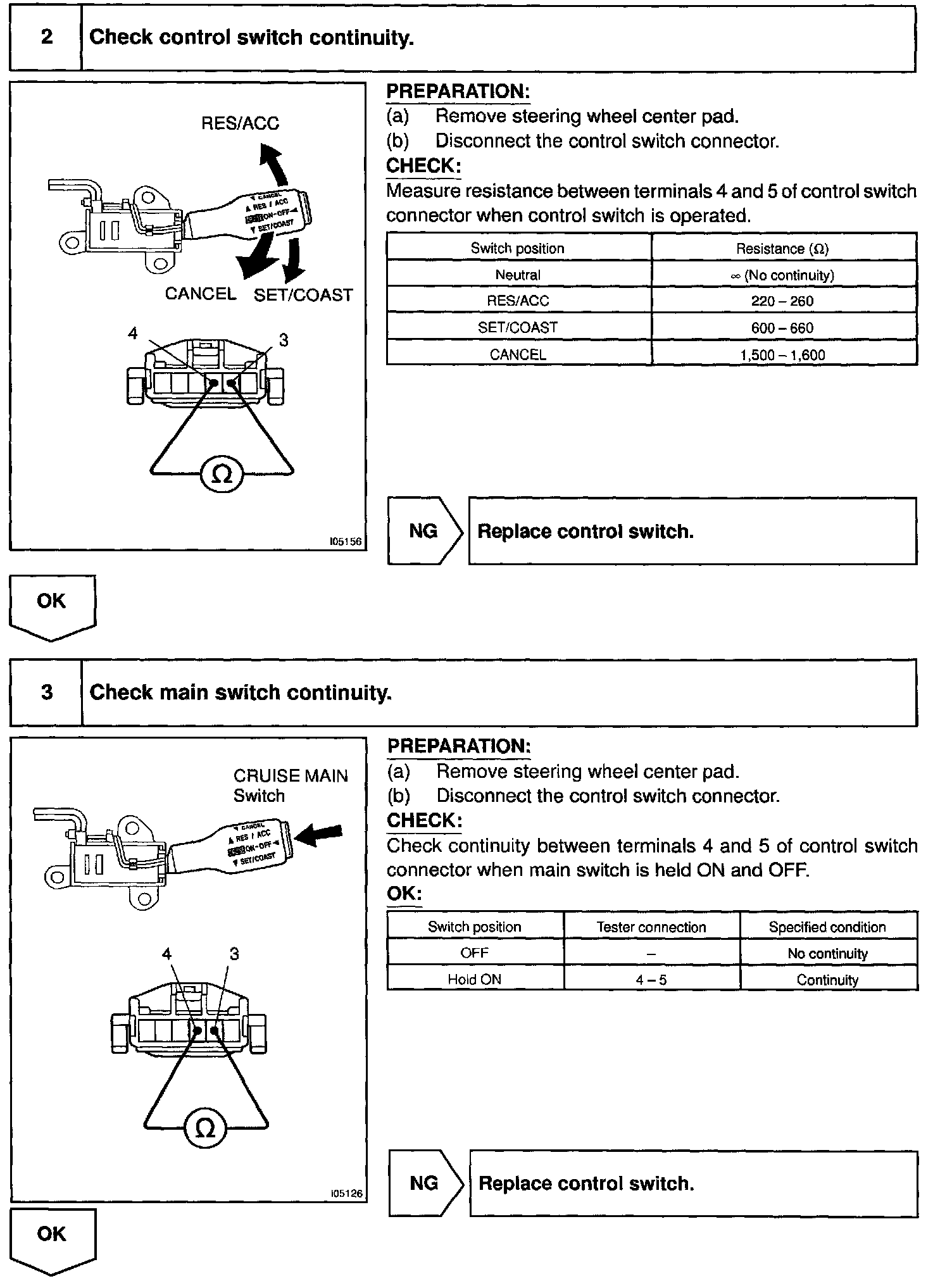

Steps 2 - 3:

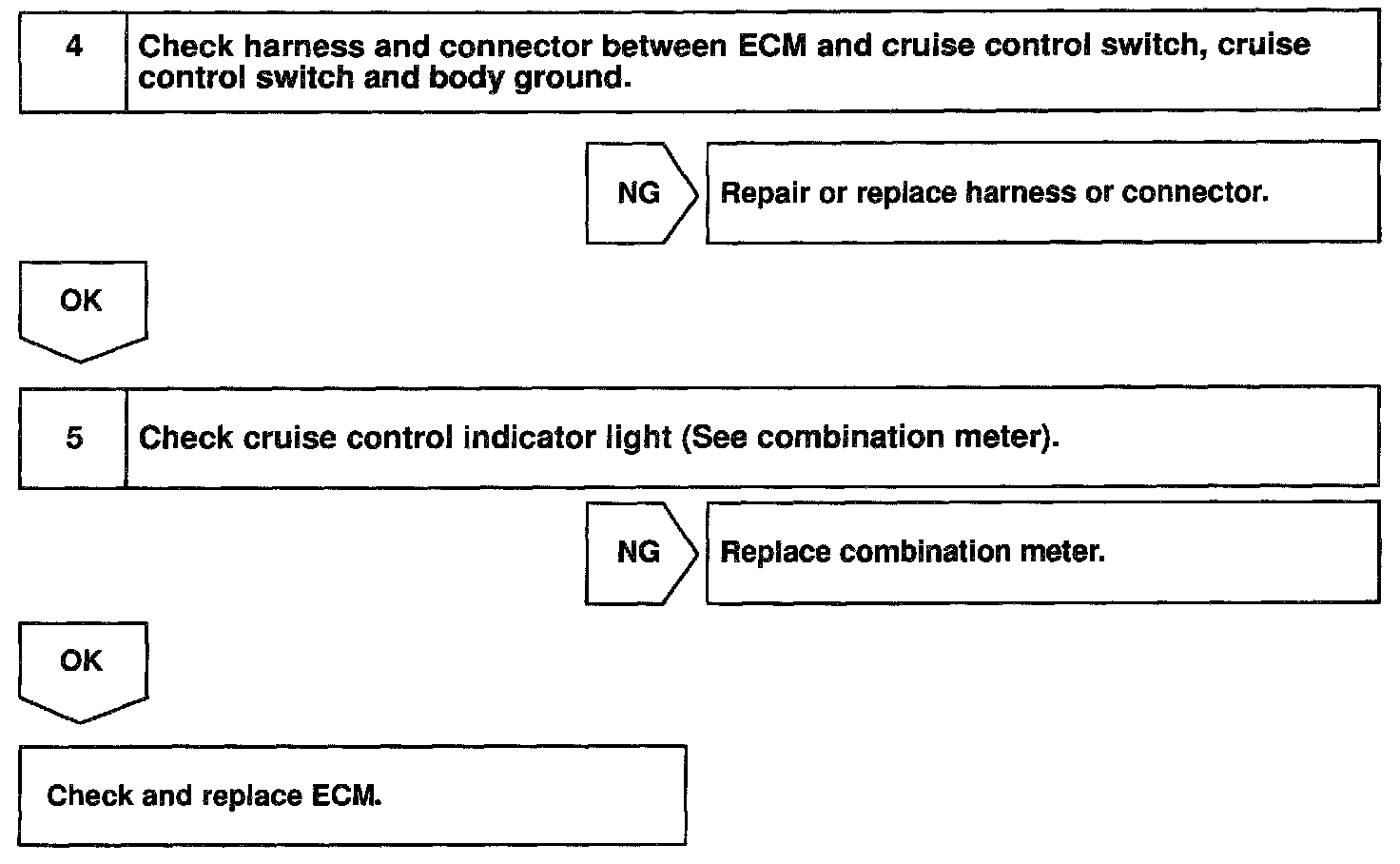

Steps 4 - 5:

INSPECTION PROCEDURE
