Related Tests, Information and Procedures

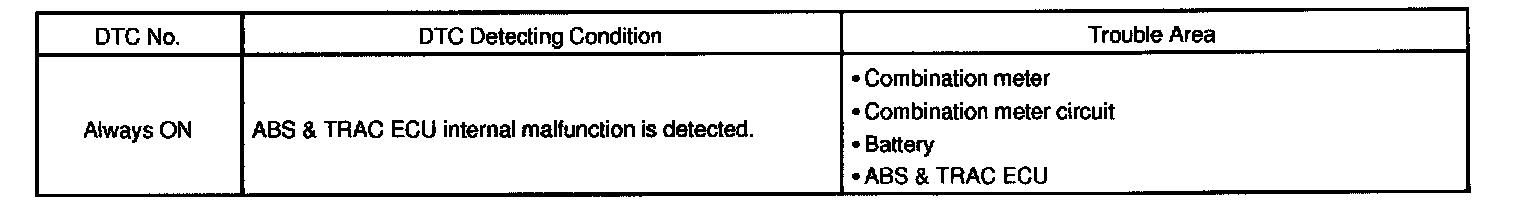

DTC Detecting Condition:

CIRCUIT DESCRIPTION
If the ECU detects a trouble, it lights the ABS warning light while at the same time prohibiting ABS control.
At this time, the ECU records a DTC in memory.
Connect terminals Tc and E1 of the DLC1 or DLC3 to make the ABS warning light blink and output the DTC.

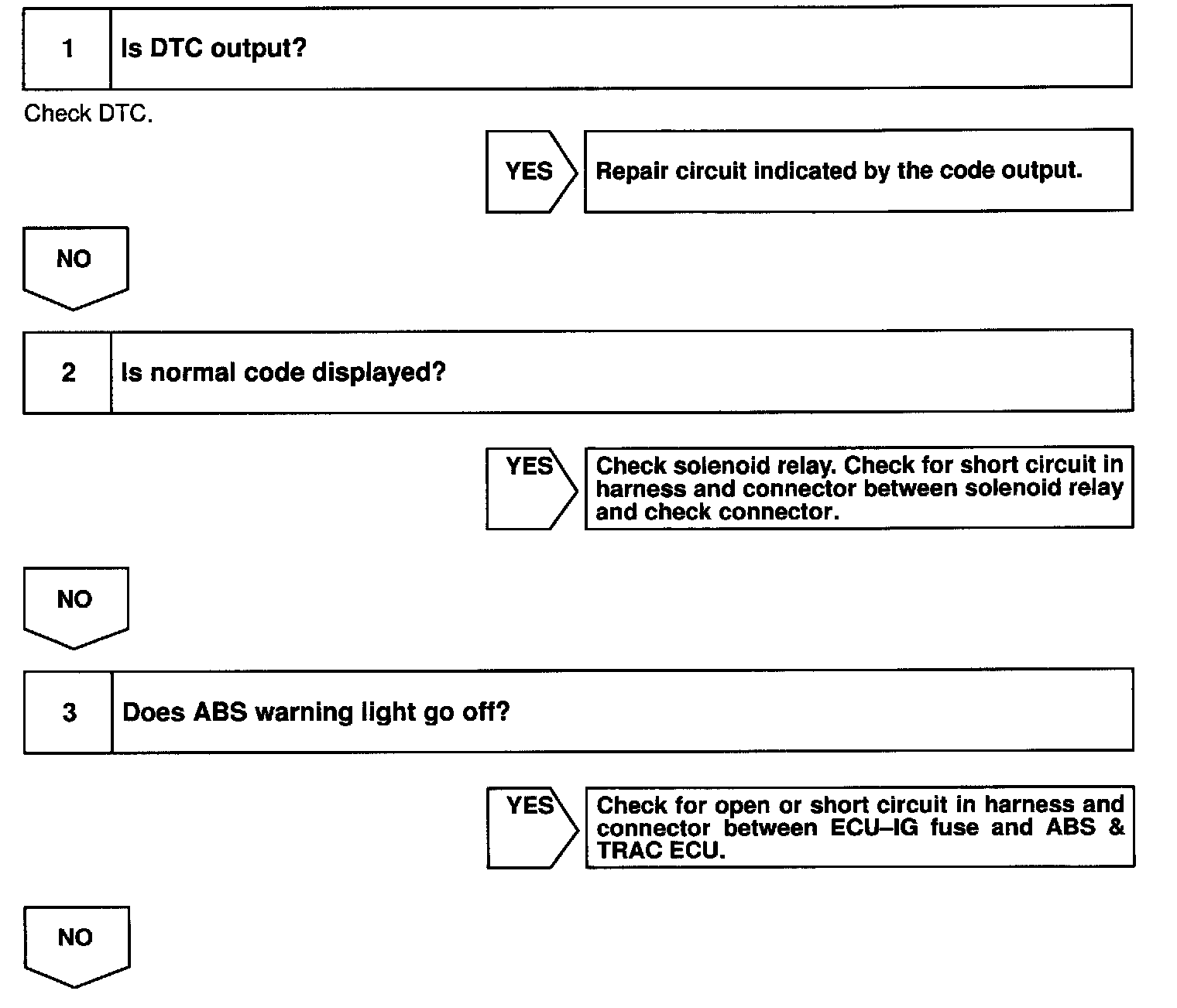

Steps 1 - 3:

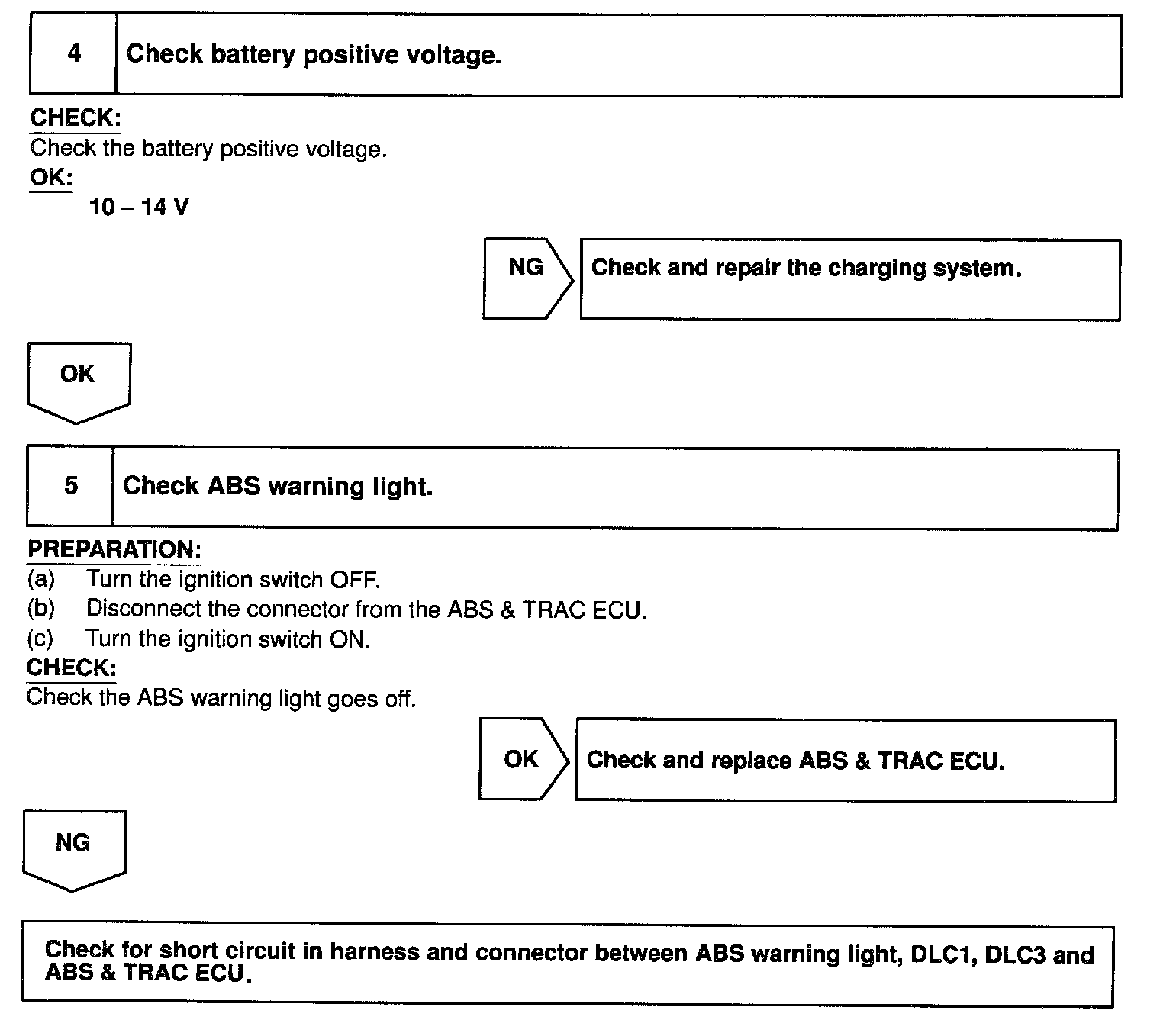

Steps 4 - 5:

INSPECTION PROCEDURE
