Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting between terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3 causes the ECU to display the DTC by blinking the ABS warning light and TRAC OFF indicator light.

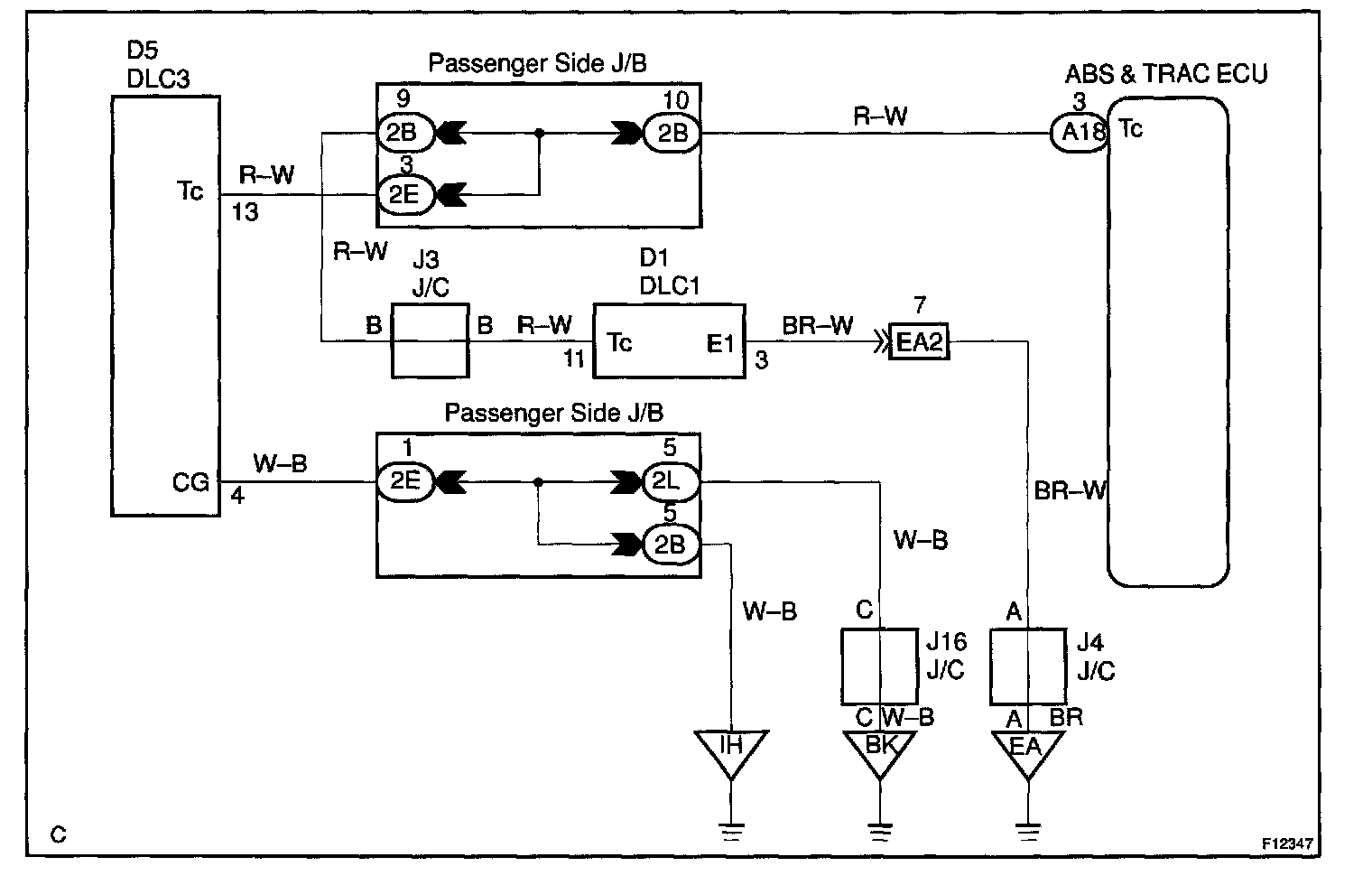

Wiring Diagram:

Steps 1 - 2:

INSPECTION PROCEDURE
