Slip Indicator Lamp Circuit

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.

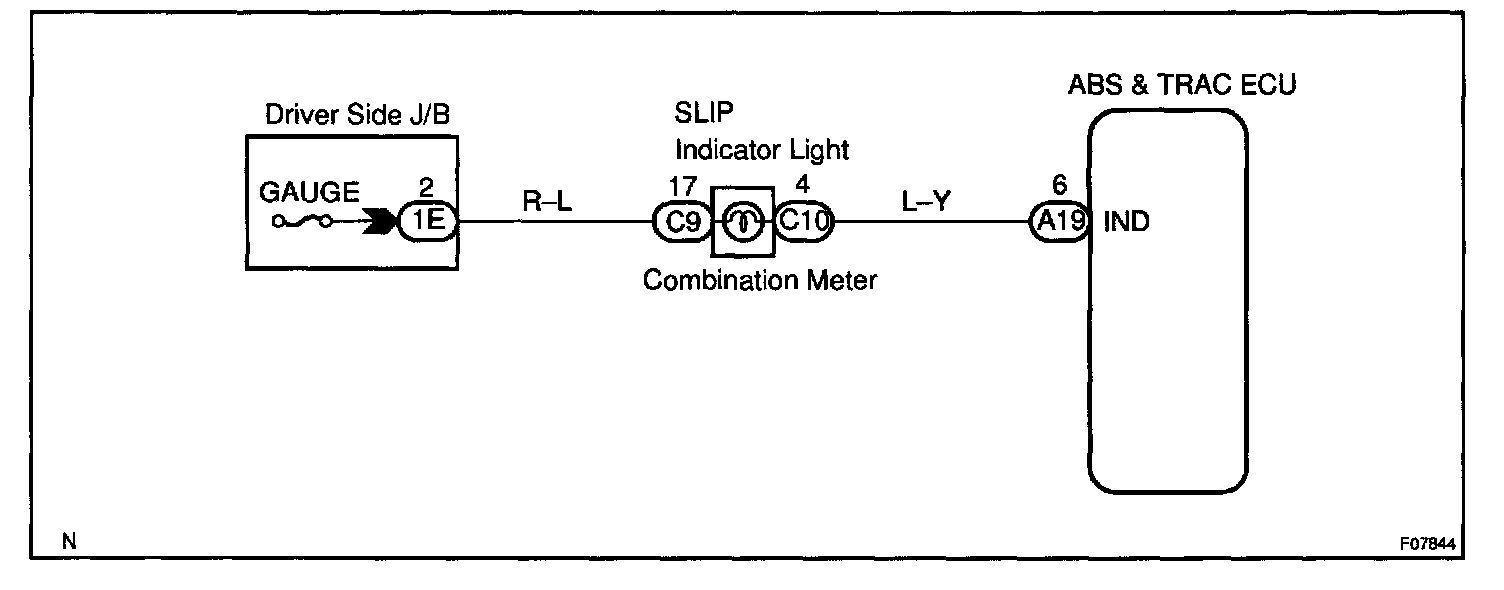

Wiring Diagram:

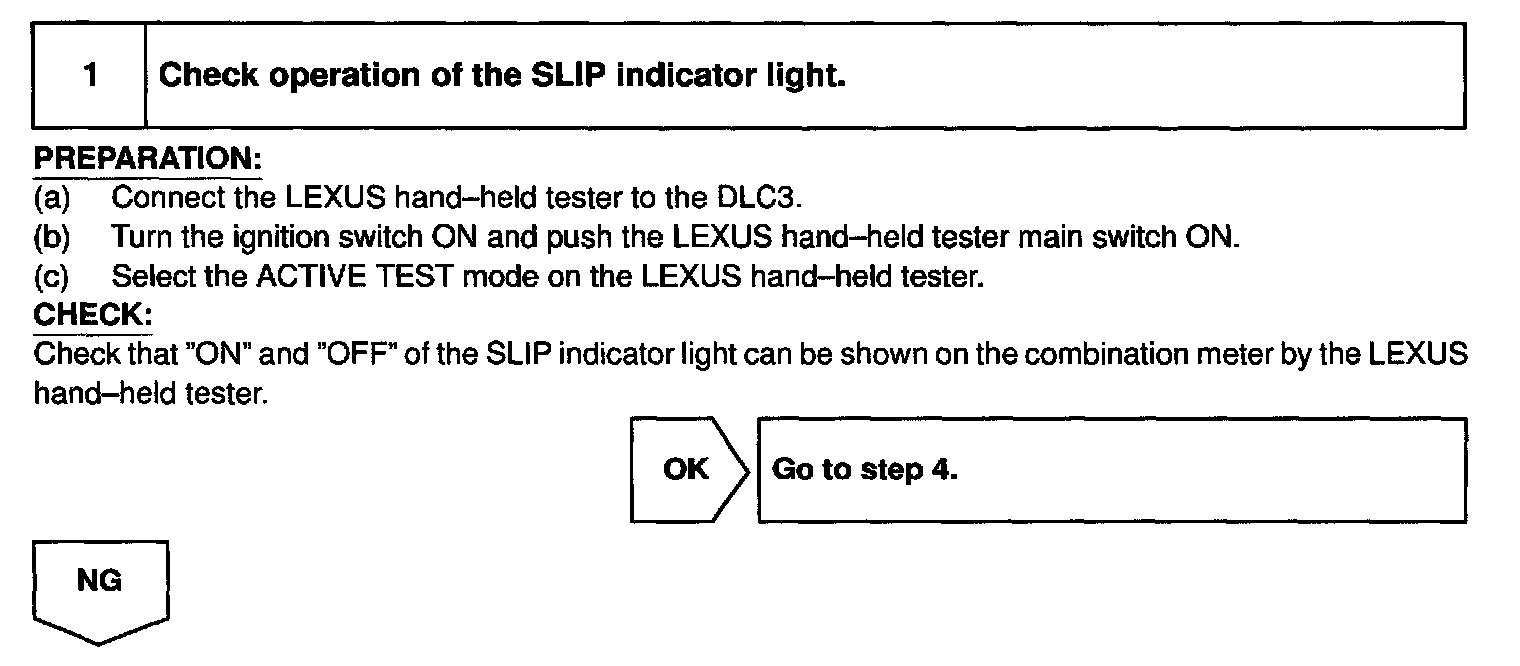

Step 1:

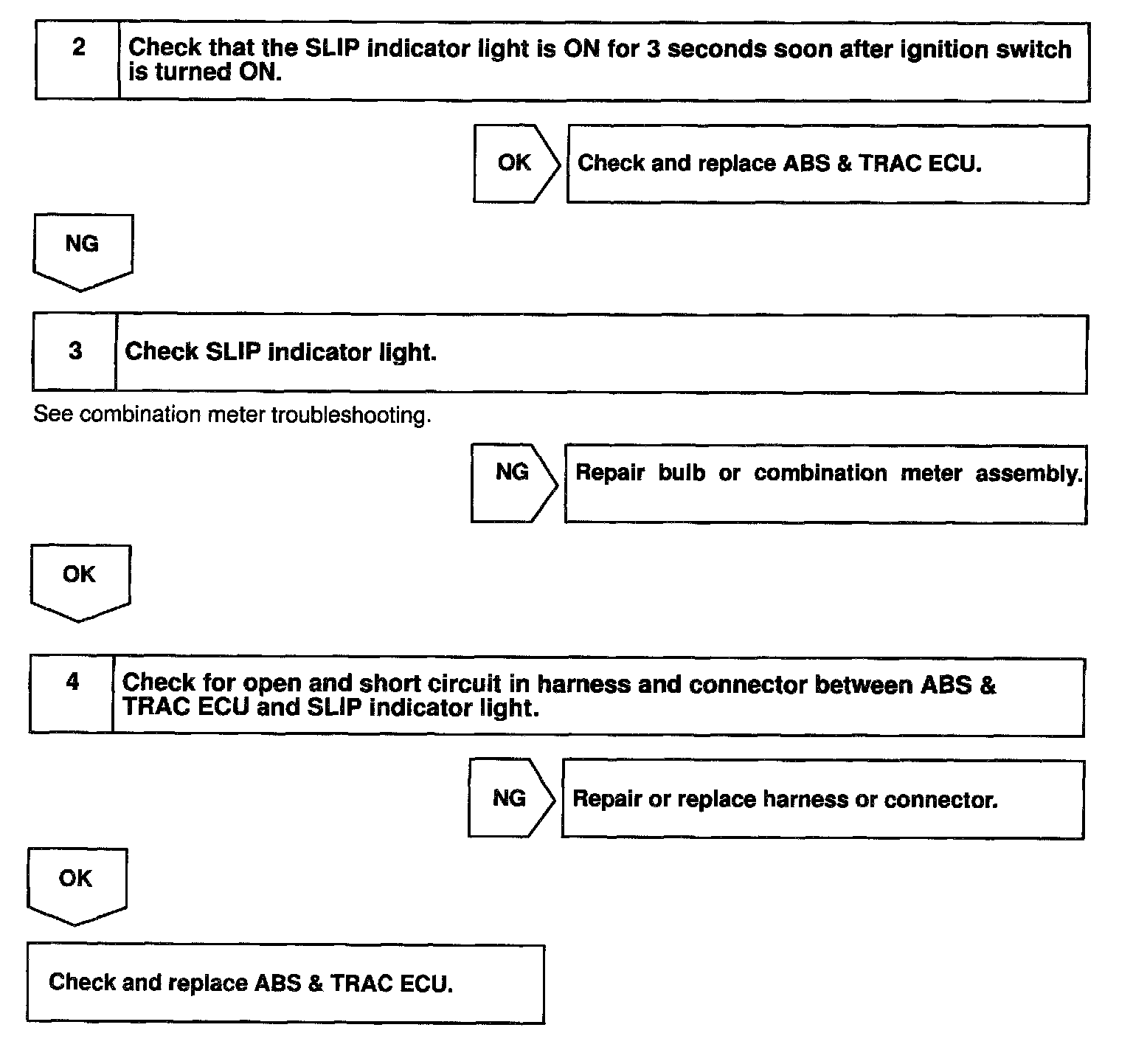

Steps 2 - 4:




INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
