Theft Deterrent System

PROBLEM SYMPTOMS TABLE

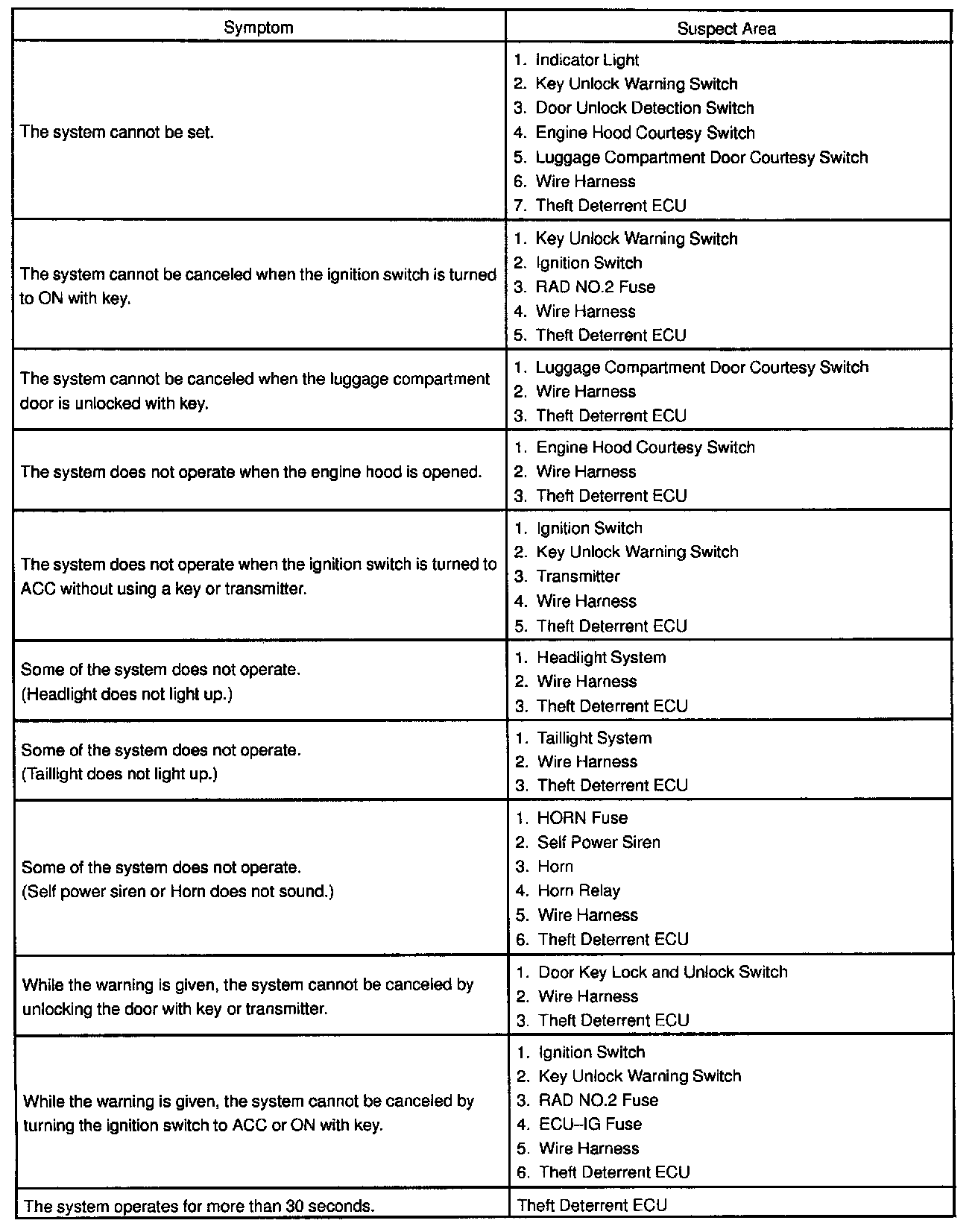

Problem Symptoms Table - Theft Deterrent System:

Problem Symptoms Table:

Proceed to the reference shown in the matrix chart for each malfunction symptom and troubleshoot for each circuit

- This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

- Refer to Warning Light Indicator for warning light or indicator light not described in the table.

HINT: Troubleshooting of the theft deterrent system is based on the premise that the door lock control system is operating normally. Accordingly before troubleshooting the theft deterrent system, first make certain that the door lock control system is operating normally.
