Light Control Switch Circuit

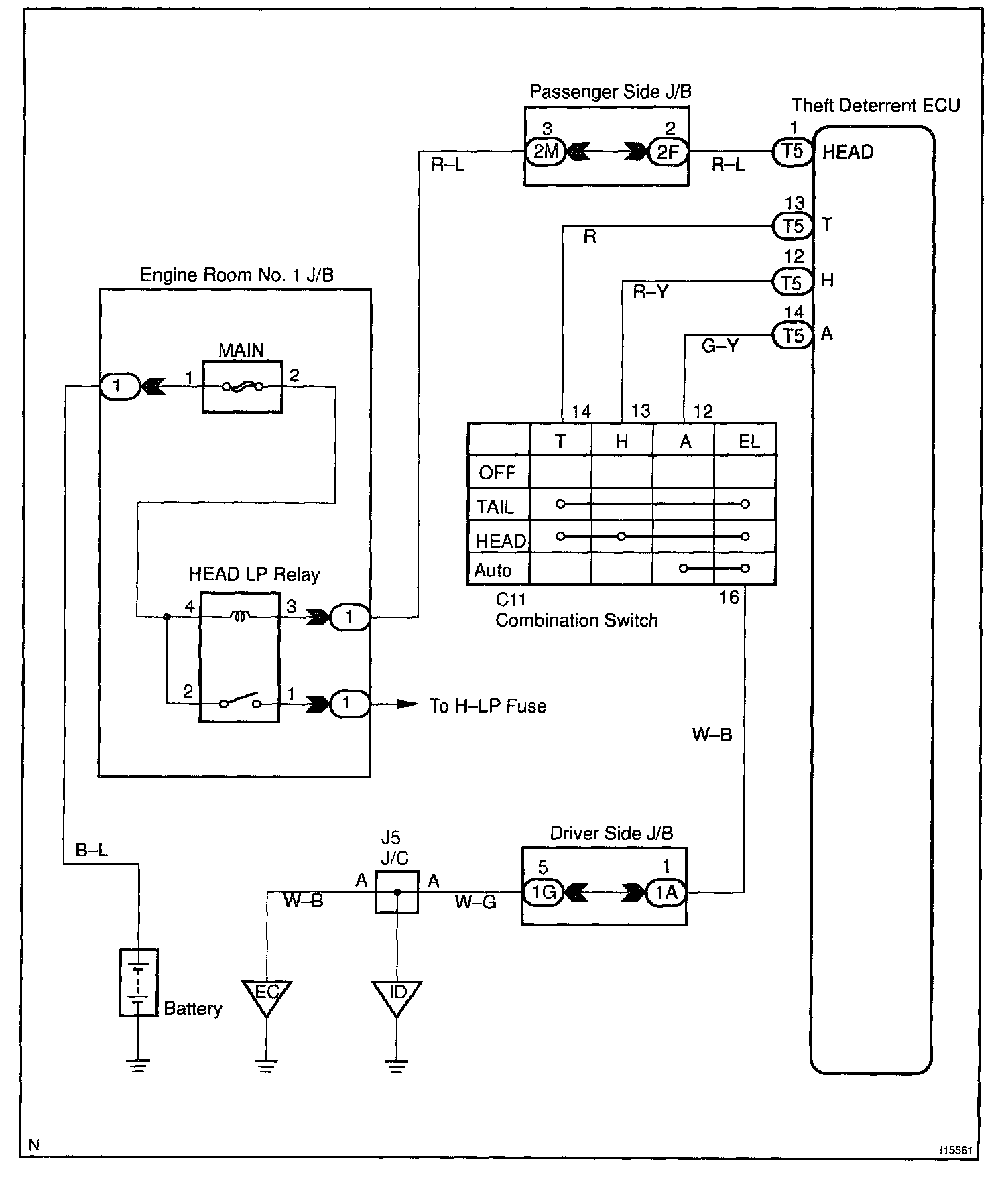

Wiring Diagram:






Steps 1 - 2:




Step 3:

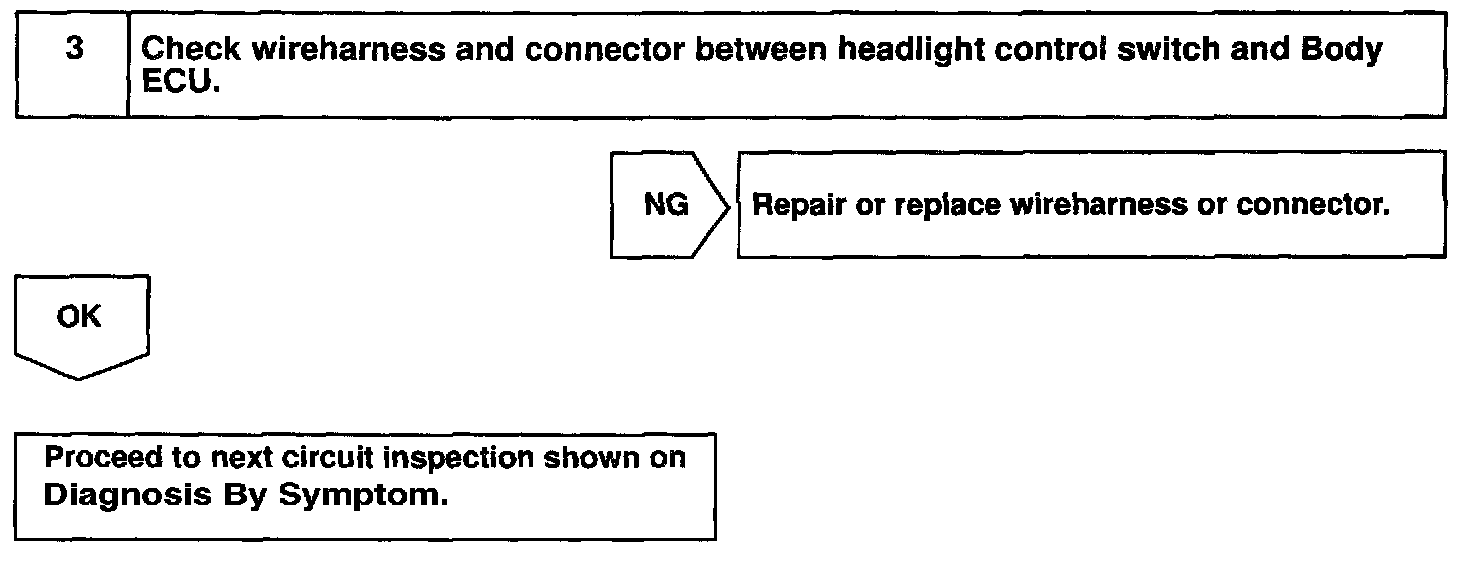

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
