Transponder Key Coil Circuit

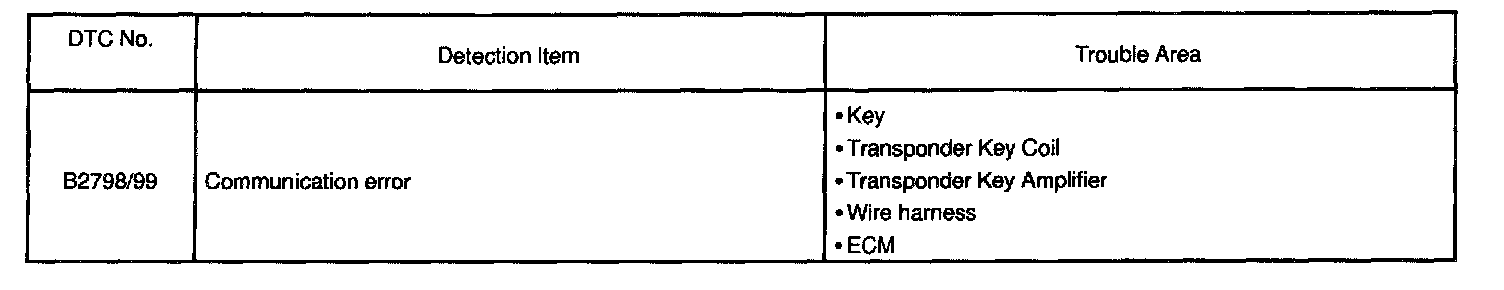

Detection Item:
CIRCUIT DESCRIPTION

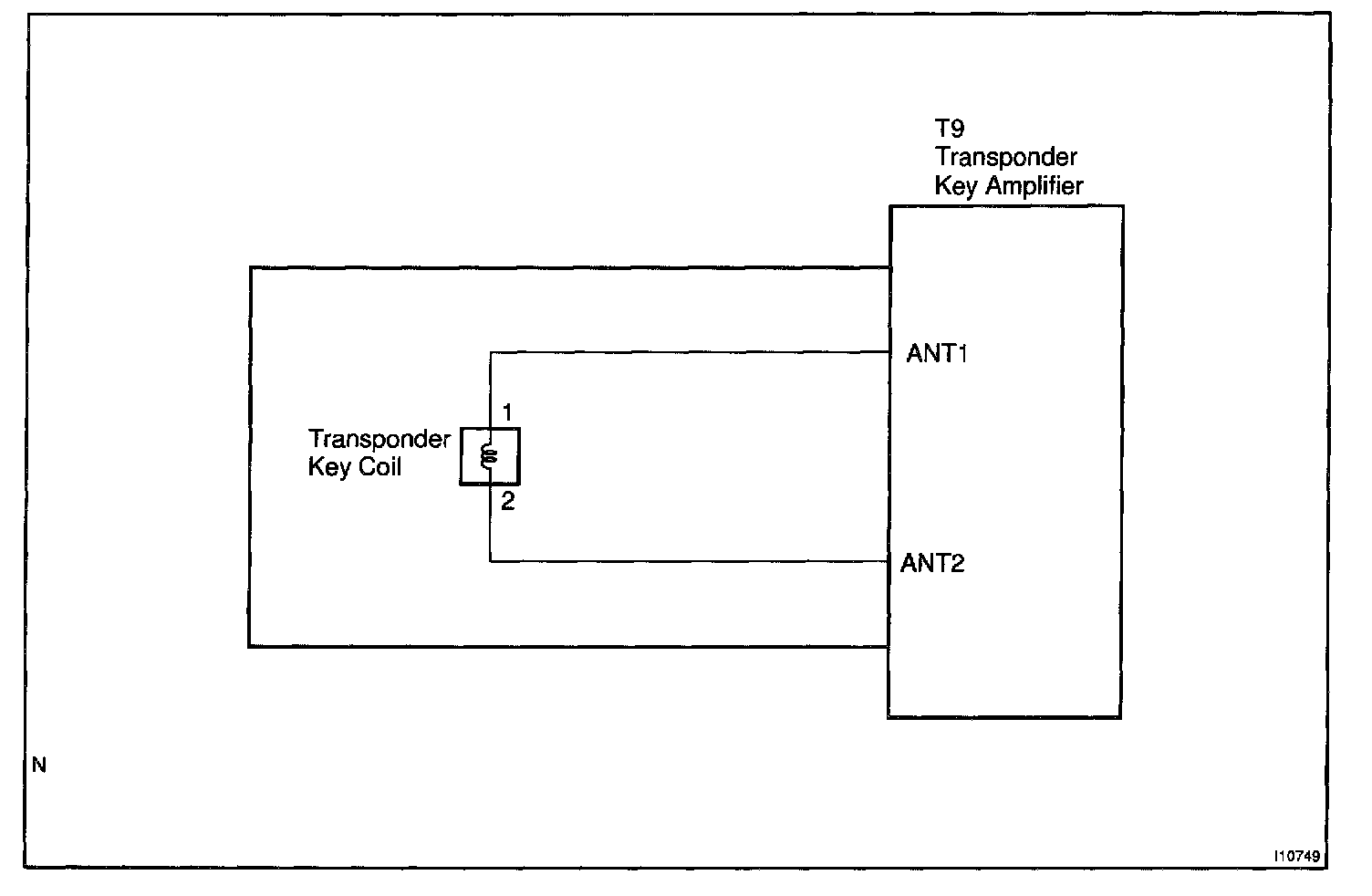

Wiring Diagram:

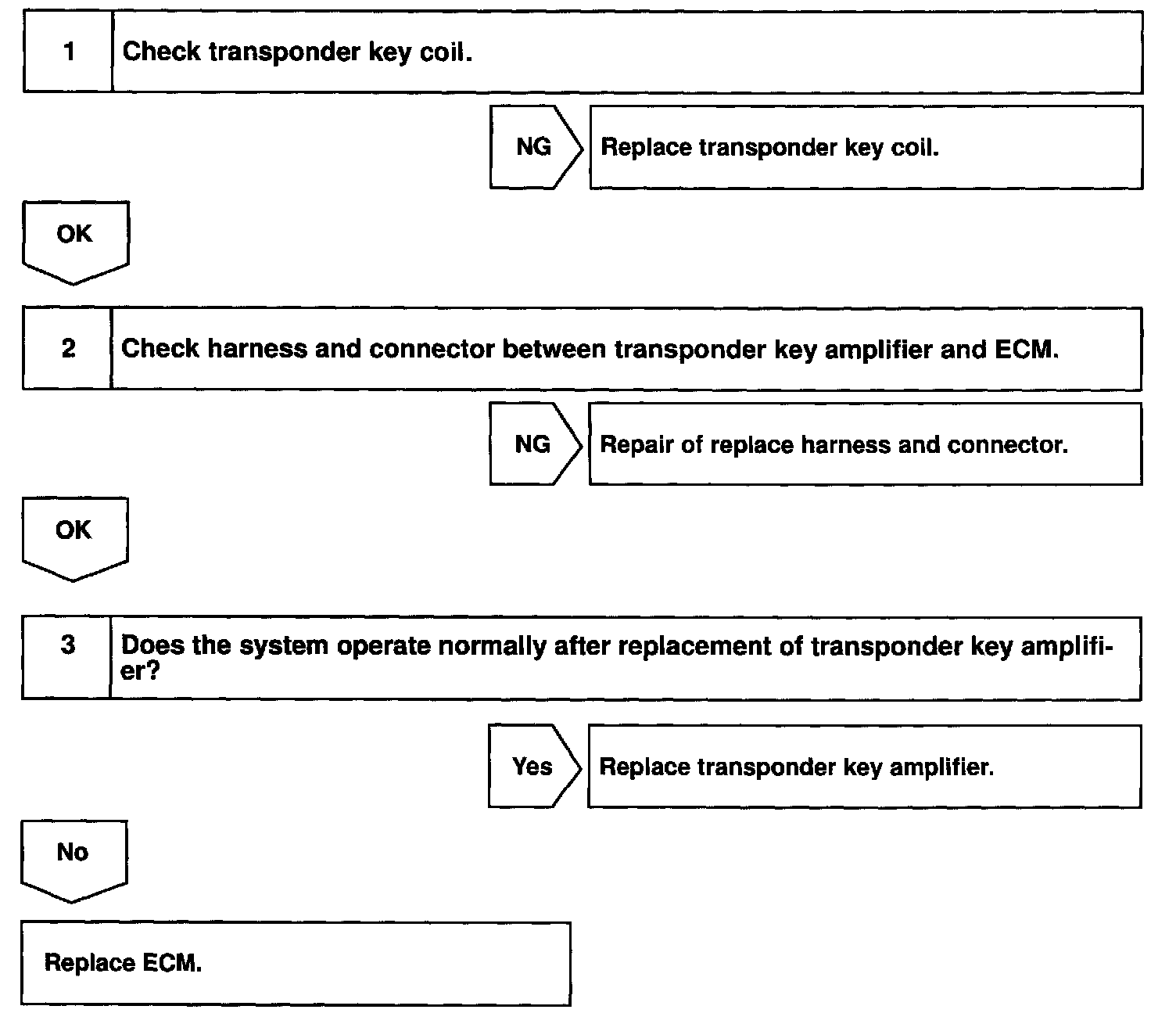

Steps 1 - 3:
INSPECTION PROCEDURE
