Engine Immobilizer System
>>
Power Source Circuit
Power Source Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the Transponder Key ECU

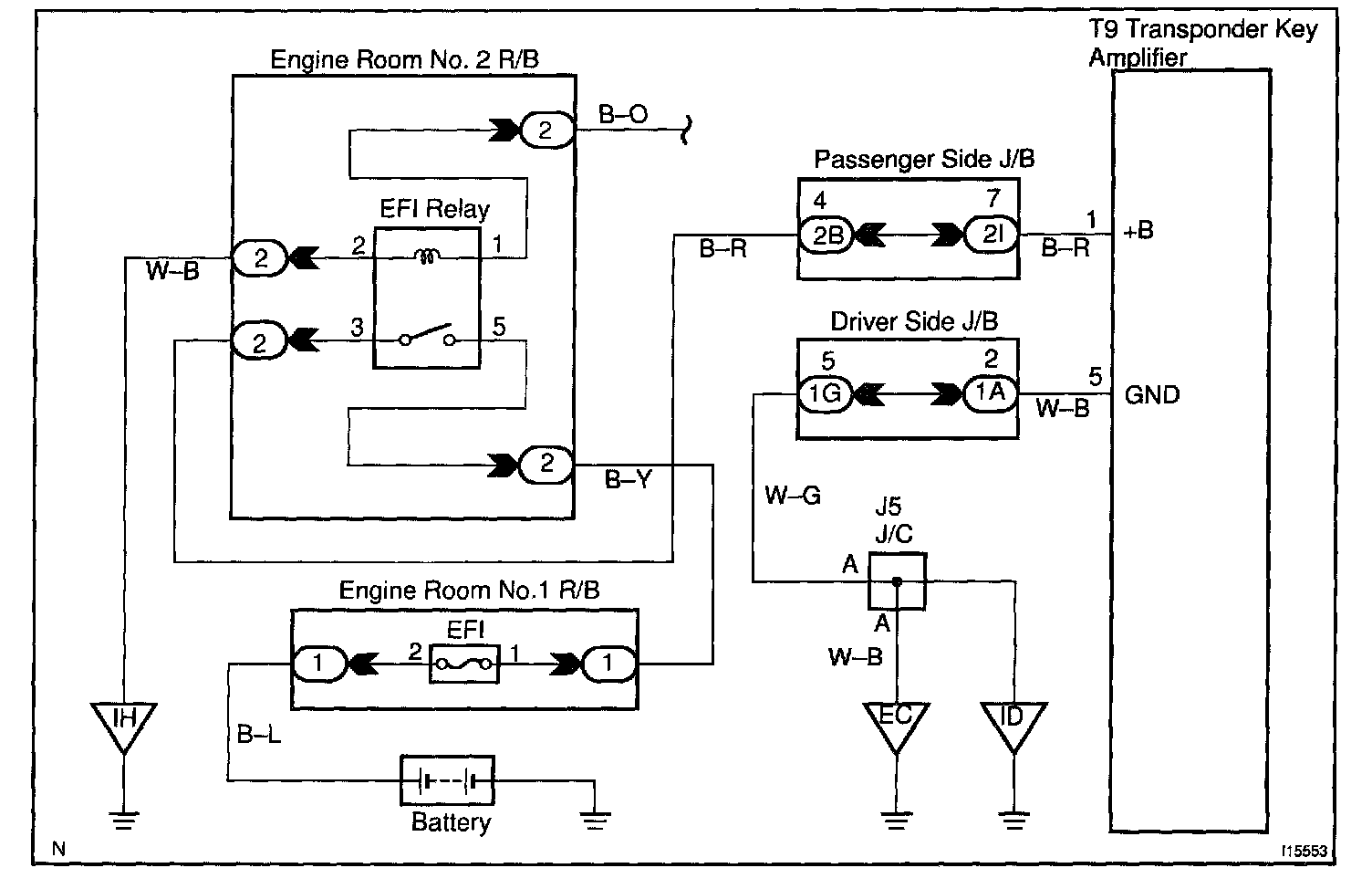

Wiring Diagram:

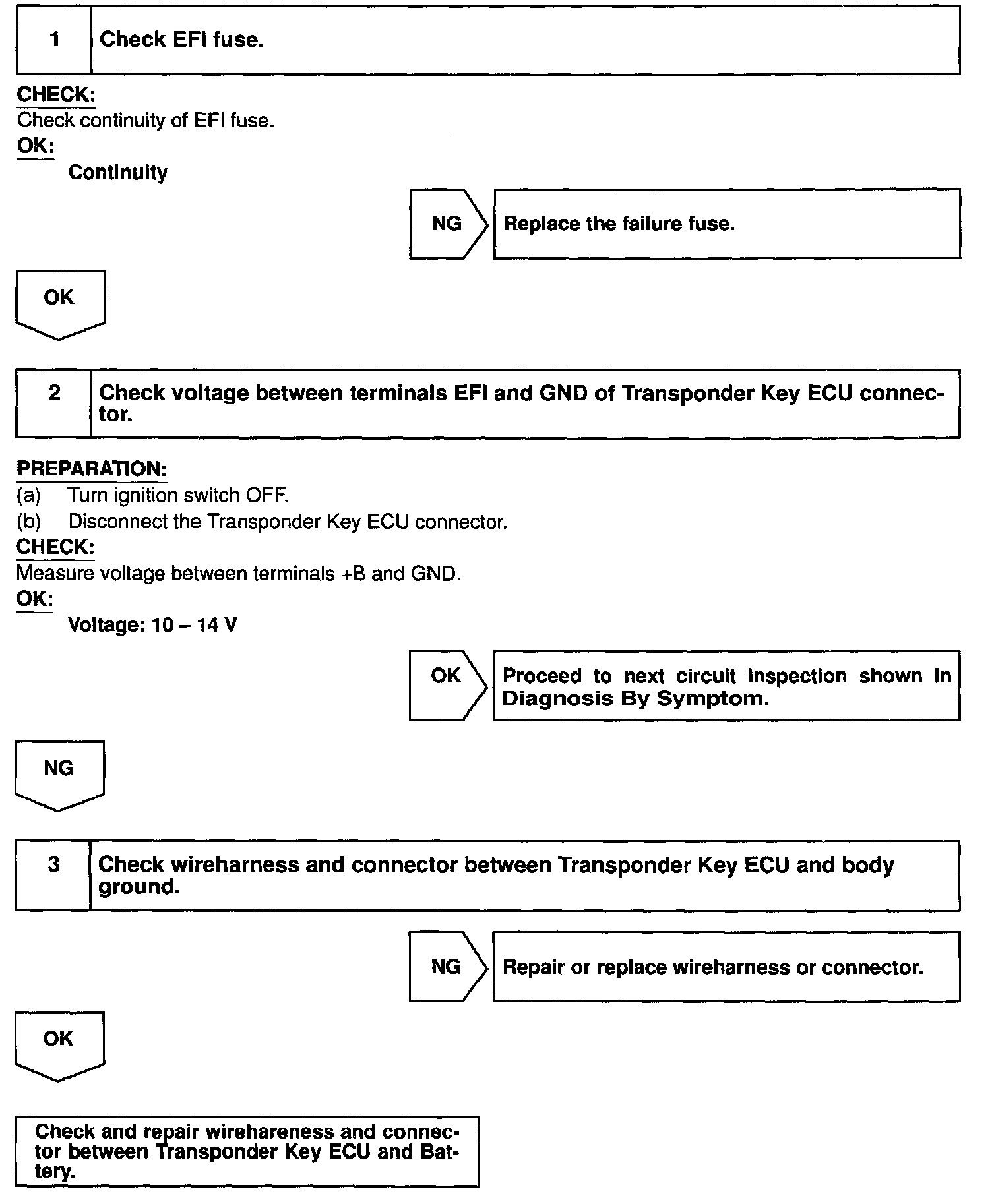

Steps 1 - 3:
INSPECTION PROCEDURE
