P1755

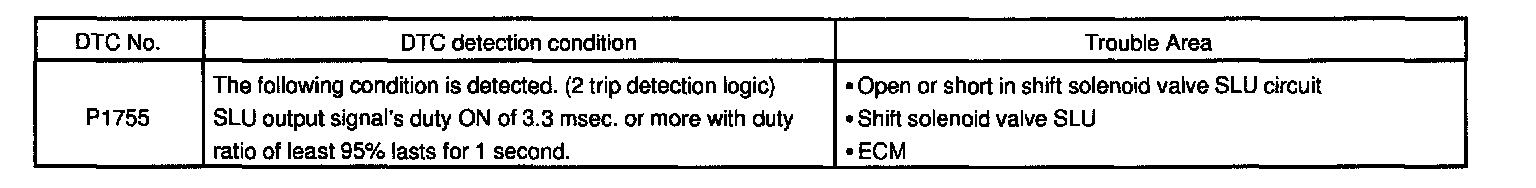

DTC Detection Condition:

CIRCUIT DESCRIPTION

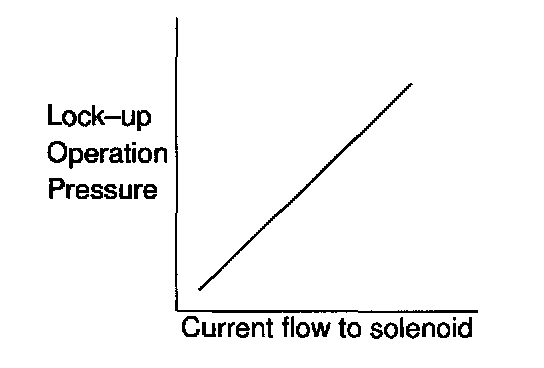

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.

Duty Ratio:

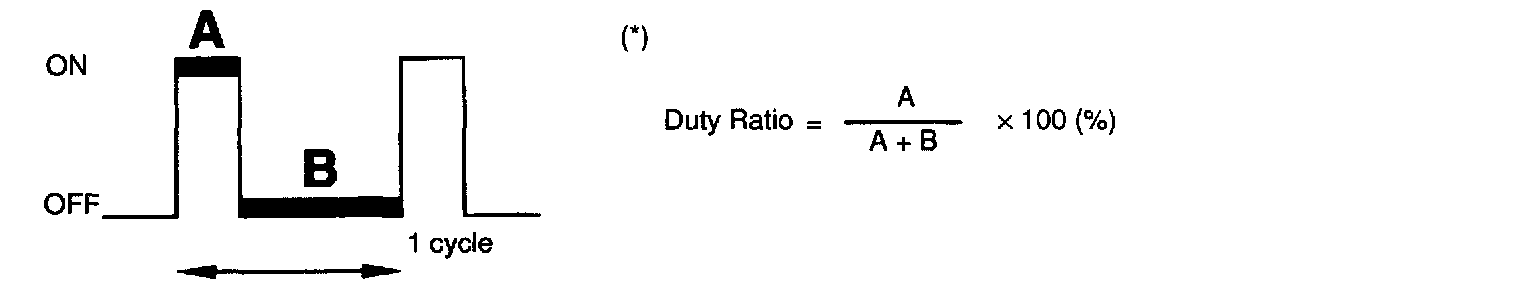

(*) Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle.
For example, if A is the period of continuity in one cycle, and B is the period of non-continuity

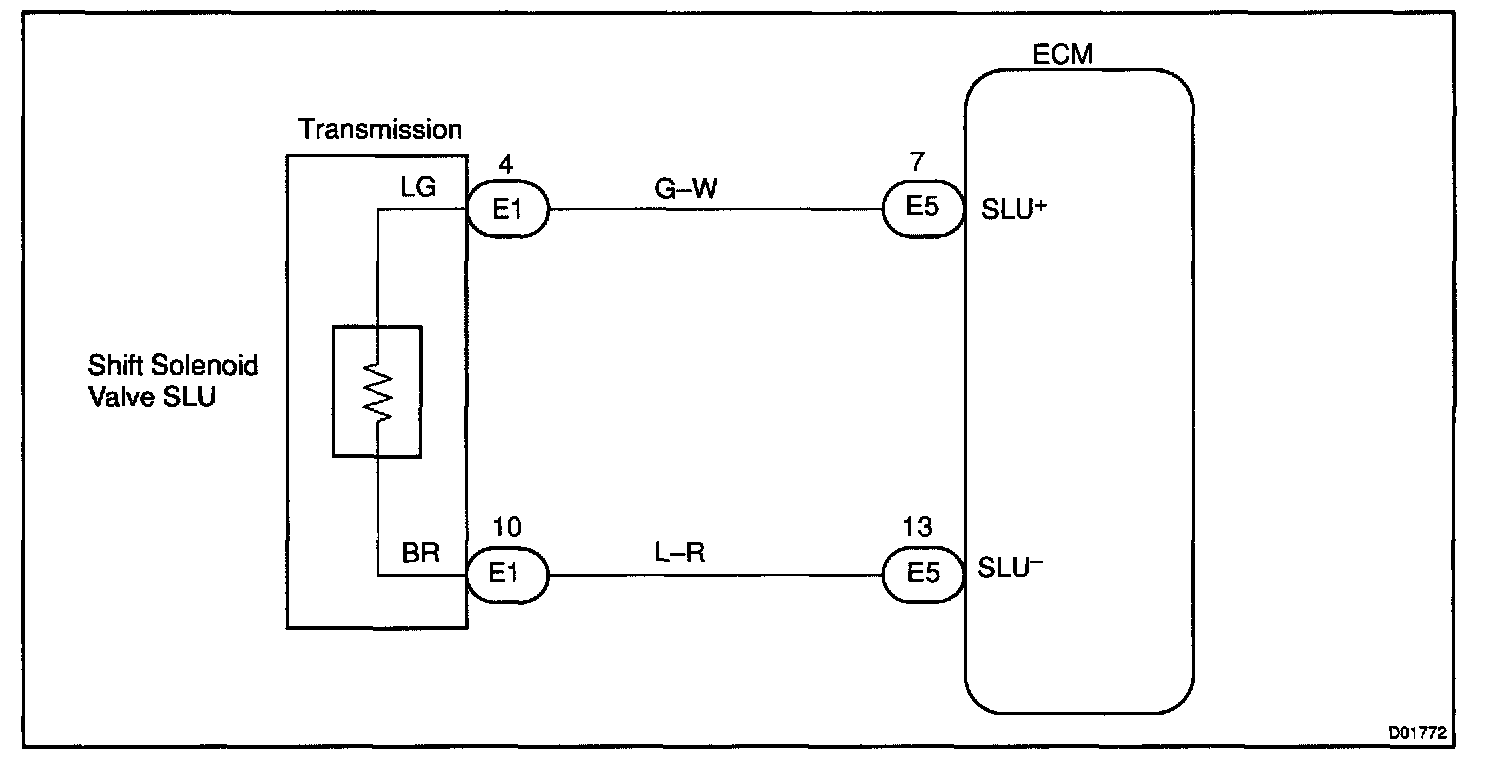

Wiring Diagram:

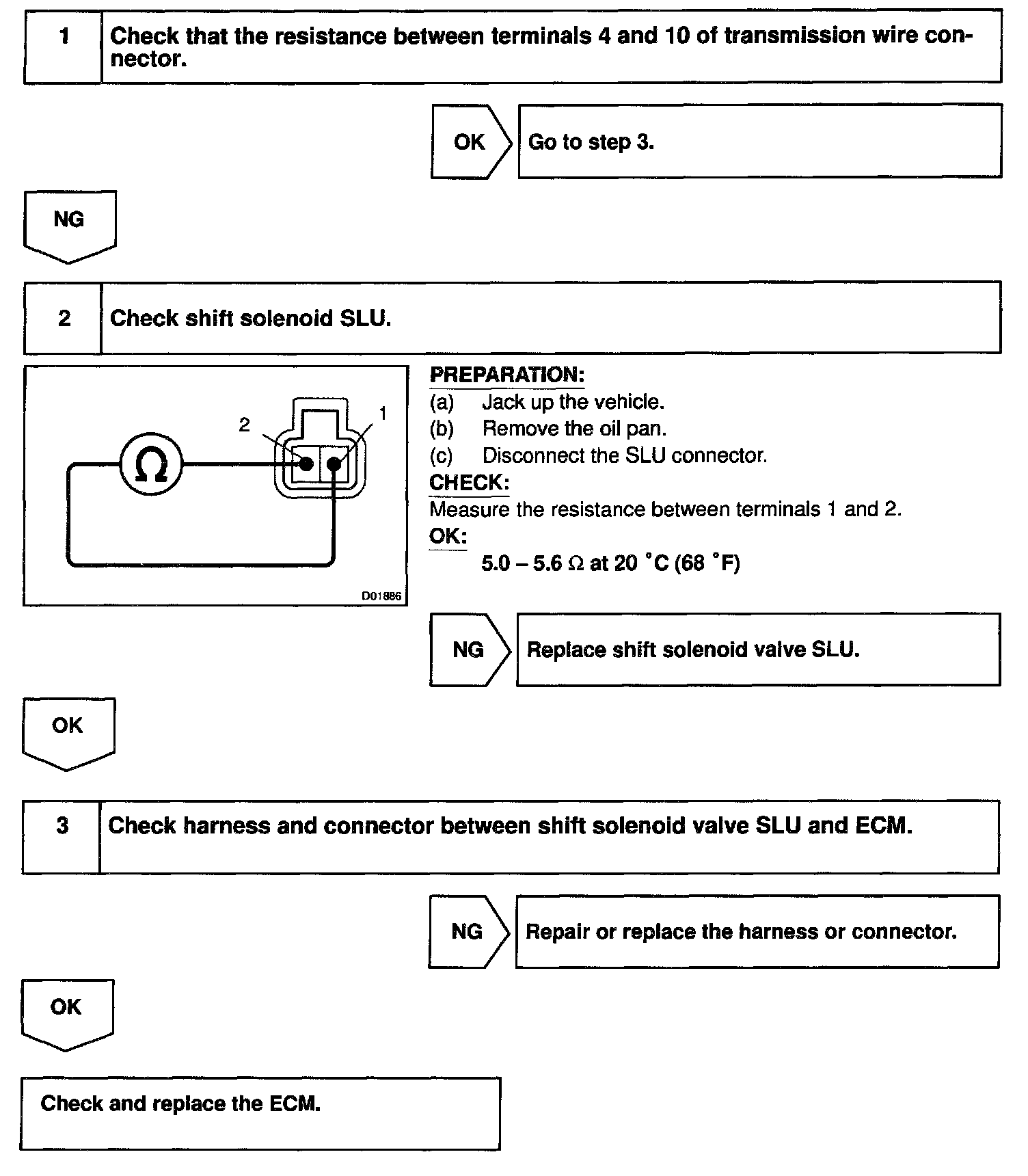

Steps 1 - 3:

INSPECTION PROCEDURE
