Air Conditioning System

B1400 - B1433:

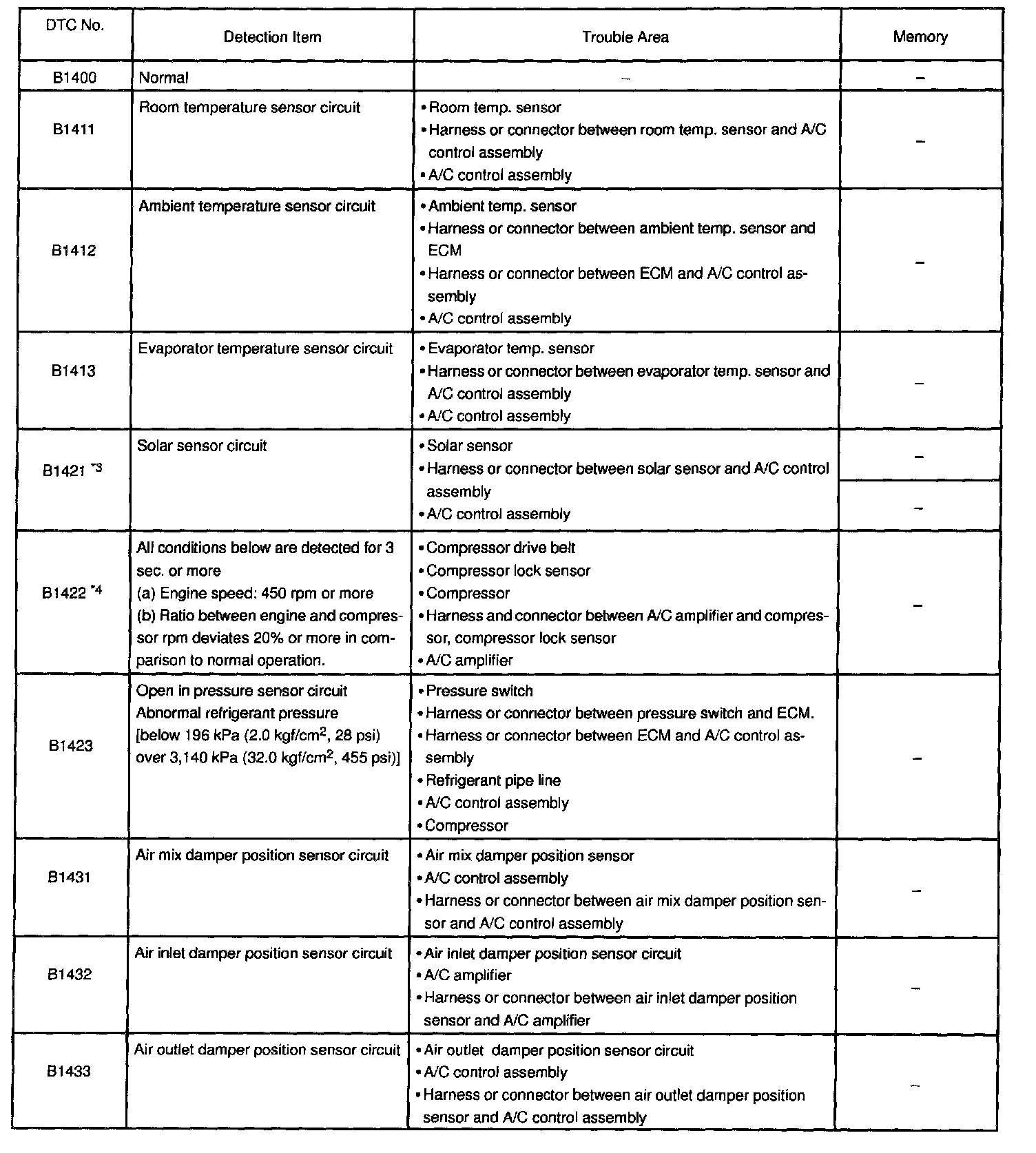

DIAGNOSTIC TROUBLE CODE CHART

If malfunction code is displayed during the DTC check, check the circuit listed for that code in the table (Proceed to that circuit.)

HINT:
-*1 If the room temperature is approx. -20 °C (-4 °F) or lower, DTC B1411 may be output even though the system is normal.
-*2 If the ambient temperature is approx. -50 °C (-58 °F) or lower, a DTC may be output even though the system is normal.
-*3 If the check is being performed in a dark place, DTC B1421 (solar sensor circuit abnormal) could be displayed.In this case, perform DTC check again while shining a light, such as an inspection light, on the solar sensor. If DTC B1421 is still displayed, there could be trouble in the solar sensor circuit.
-*4 Compressor lock (DTC B1422) is indicated only for a current malfunction. To confirm DTC B1422, perform the following steps.

1. With the engine ON, enter the DTC check mode.
