ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- Using SST 09843-18020 or 09843-18040, connect the terminals Tc and E1 of DLC1 or Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code.For details of each code, turn to respective "DTC No." in the DTC chart.

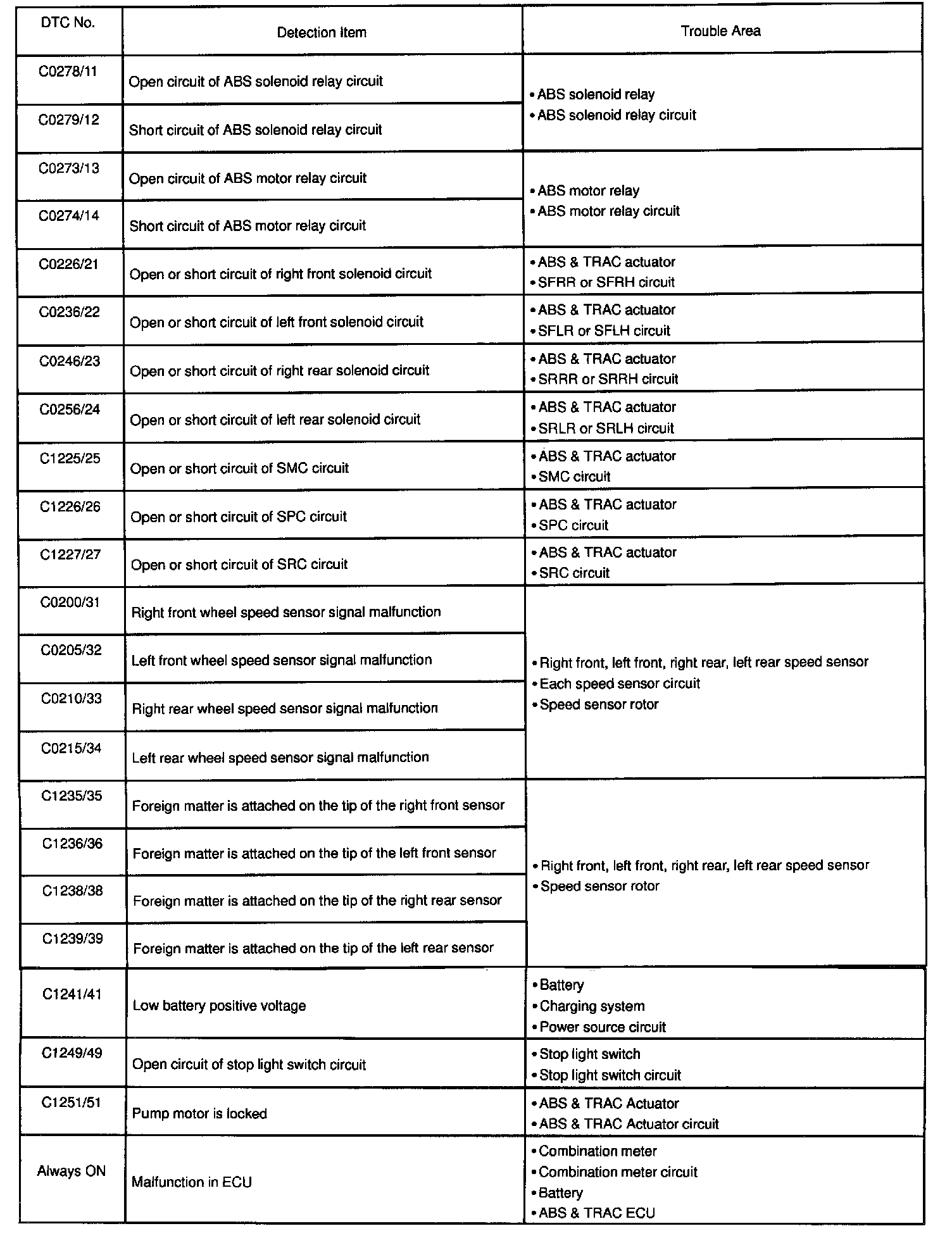

C0278 - C1251:

DTC chart of anti-lock brake system

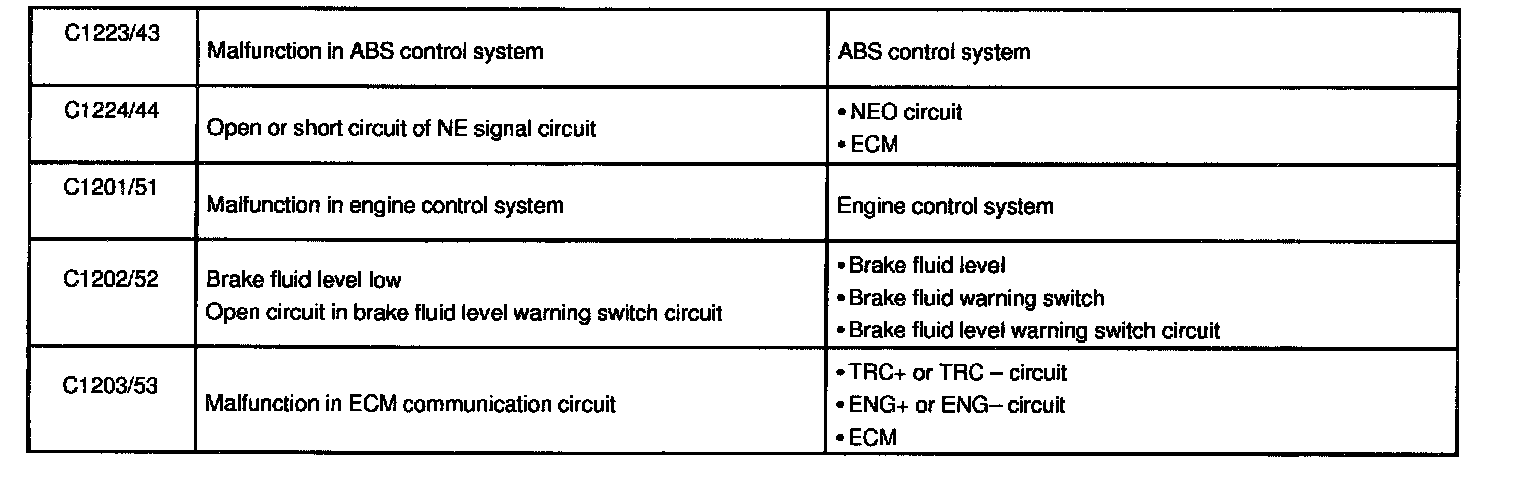

C1223 - C1203:

DTC chart of traction control system
