C0256

DTC Detecting Condition:

CIRCUIT DESCRIPTION
This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

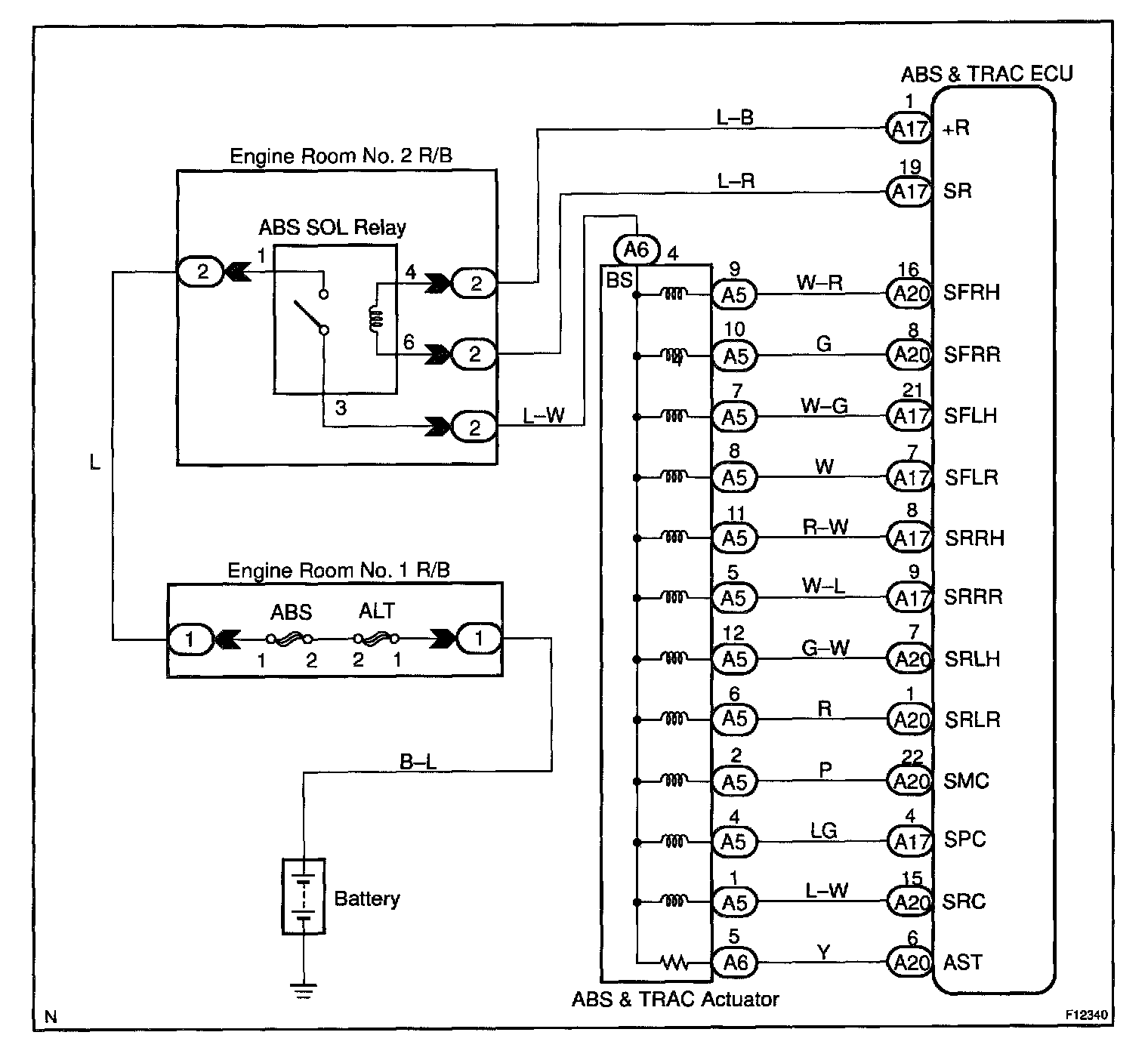

Wiring Diagram:

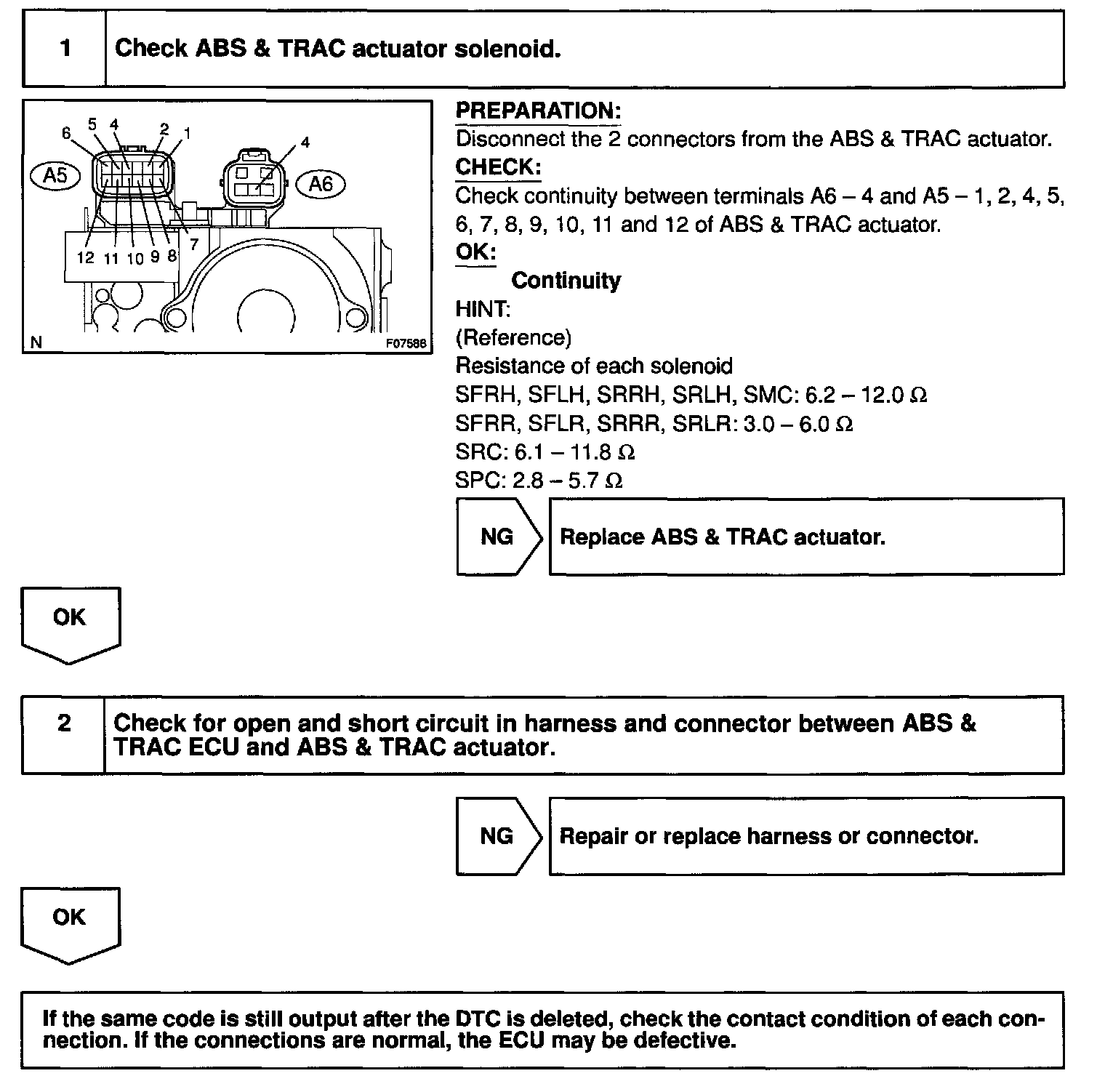

Steps 1 - 2:

INSPECTION PROCEDURE
