B2797

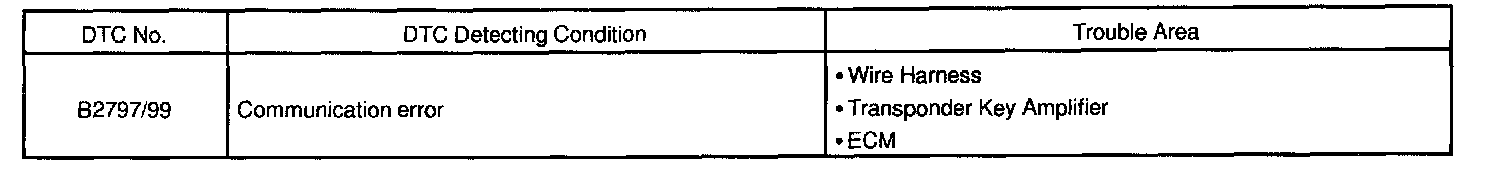

DTC Detecting Condition:

CIRCUIT DESCRIPTION
This code is detected when although the communication has been performed normally, an error occurs.
(Example.Some noise is included in communication line.)

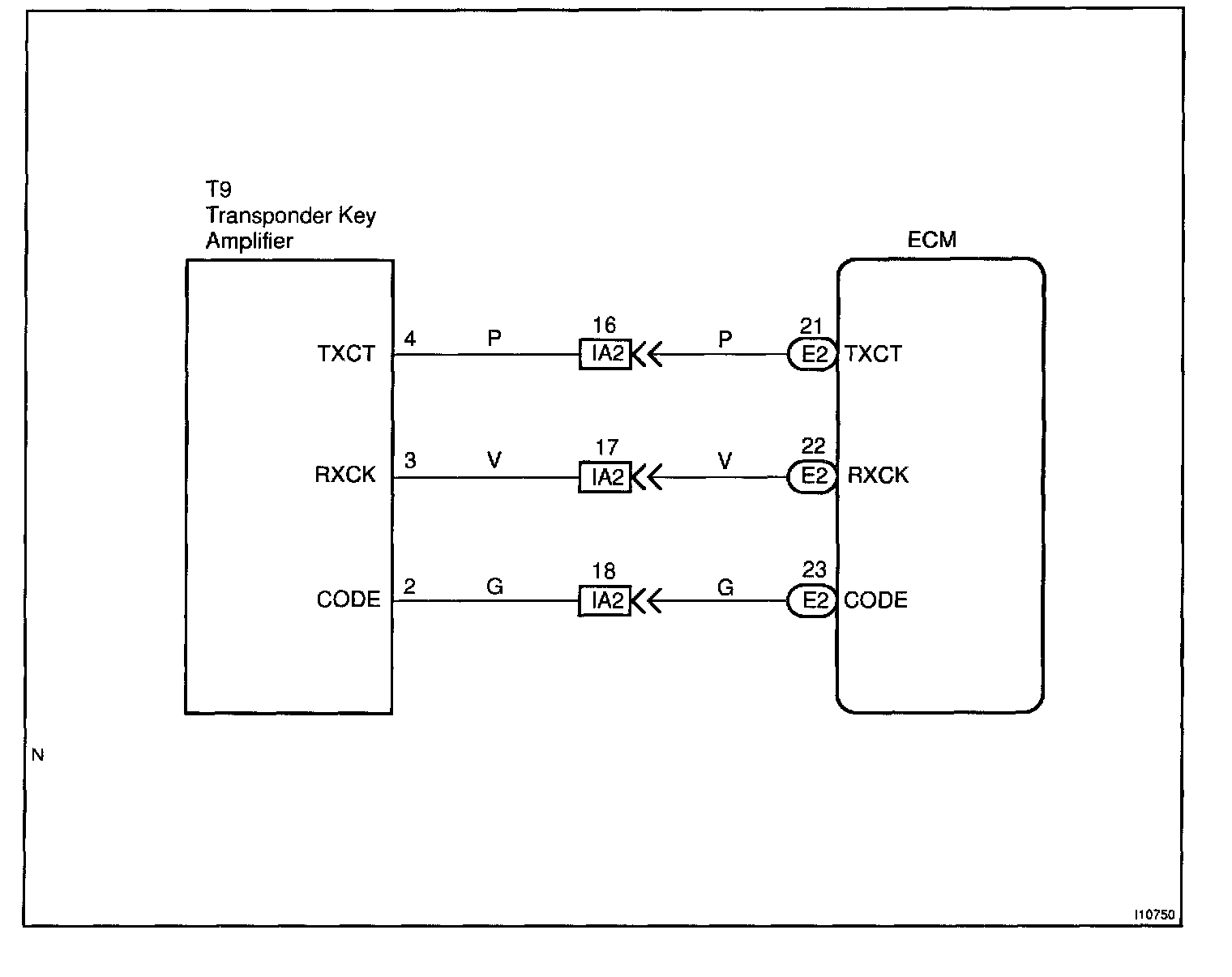

Wiring Diagram:

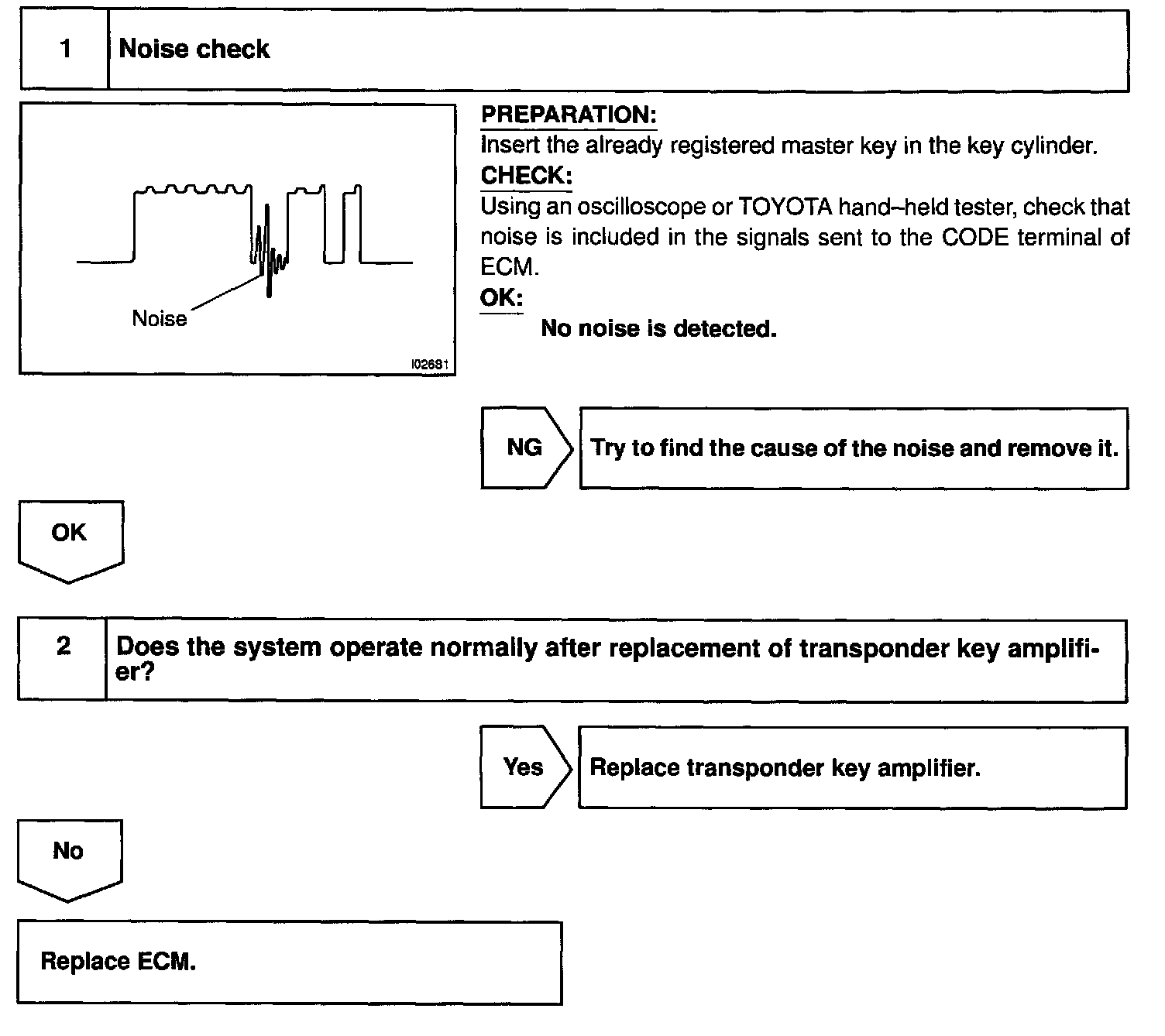

Steps 1 - 2:

INSPECTION PROCEDURE
