B1422

Detection Item:

CIRCUIT DESCRIPTION
This sensor sends 1 pulse per engine revolution to the ECM.
If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. And, the indicator flashes at about 1 second intervals.

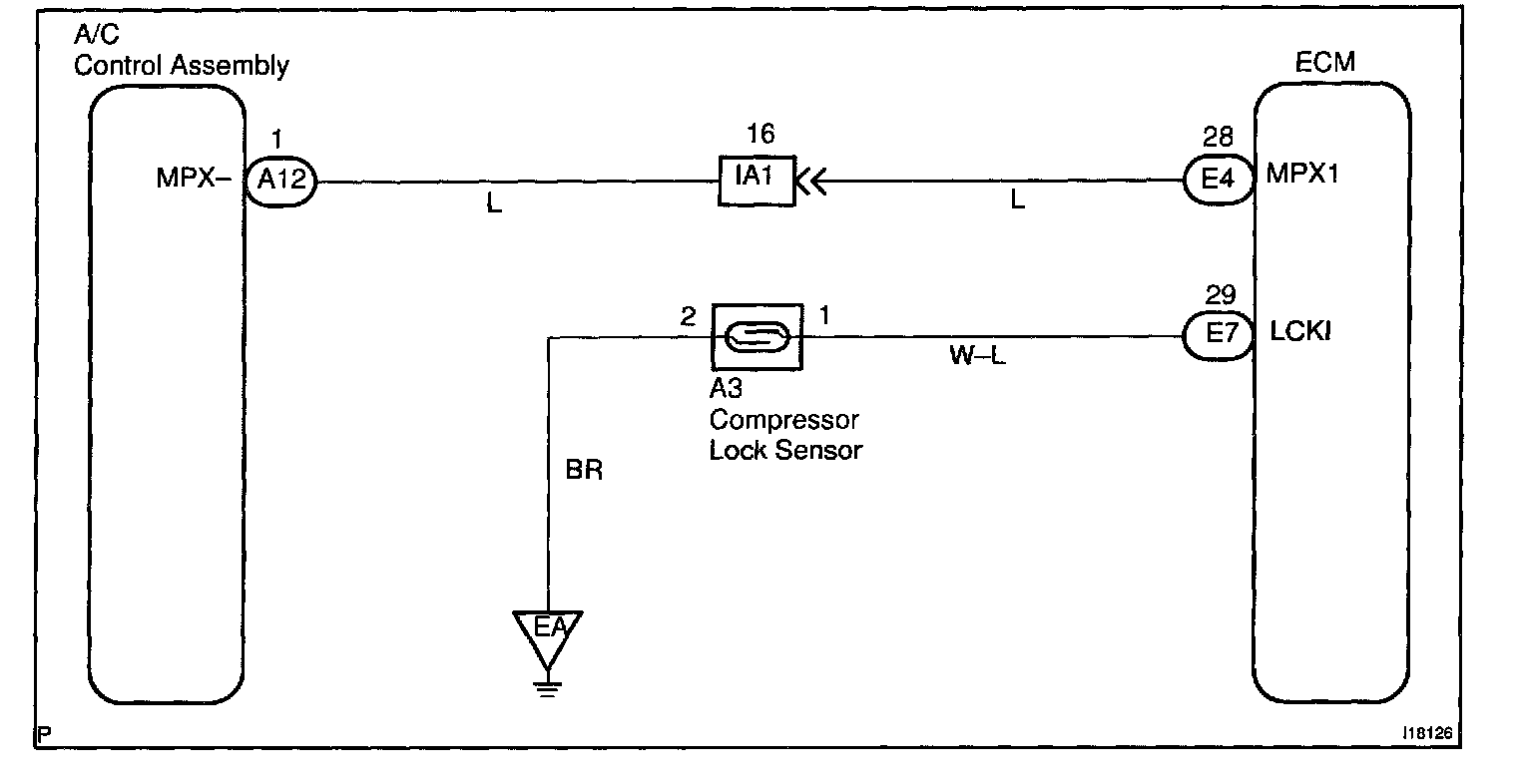

Wiring Diagram:

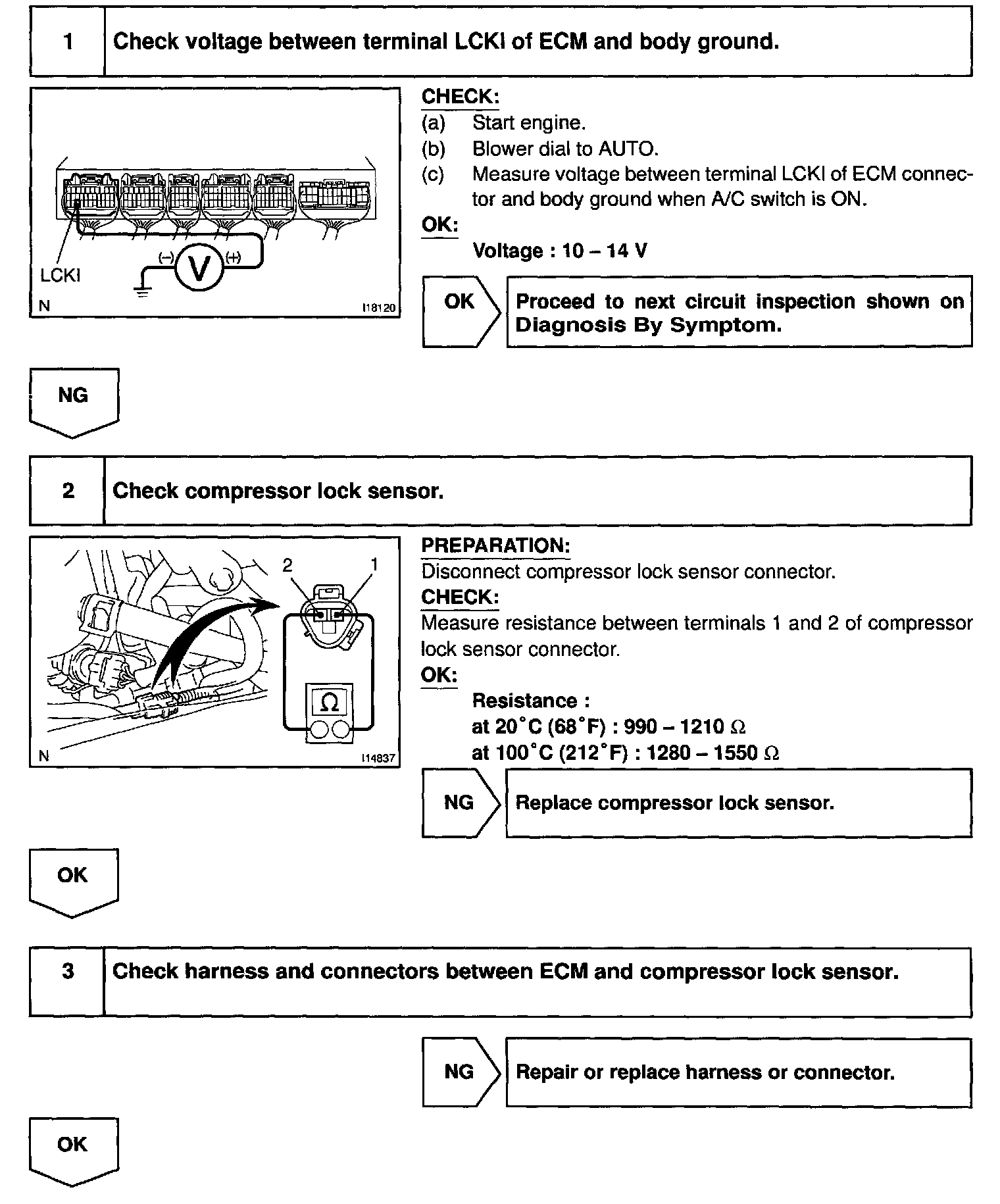

Steps 1 - 3:

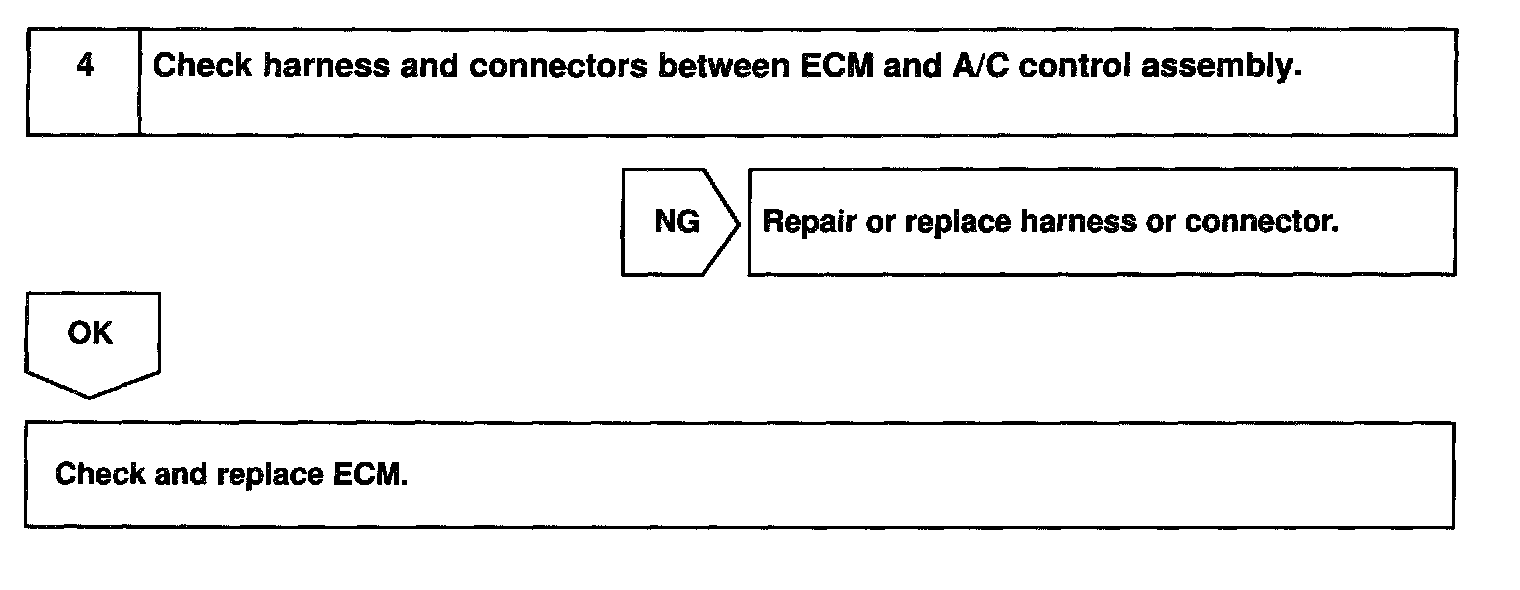

Step 4:

INSPECTION PROCEDURE
