B1241

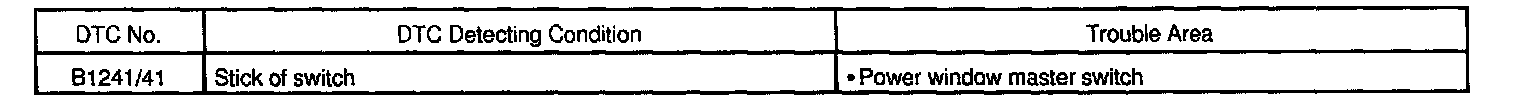

DTC Detecting Condition:

CIRCUIT DESCRIPTION

These DTC notify how switch works as follows;
If DTC is not output when operating switch, it means failure of switch contact. If DTC is output when not operating switch, it means stick of switch. When something wrong is found by this diagnosis, inspect each switch.
Then, replace the switch if there is a problem, or check the wire harness if there is no problem.

HINT: Please refer for switch inspection, and to each door system for wire harness inspection.
