Manufacturer Controlled Trouble Codes

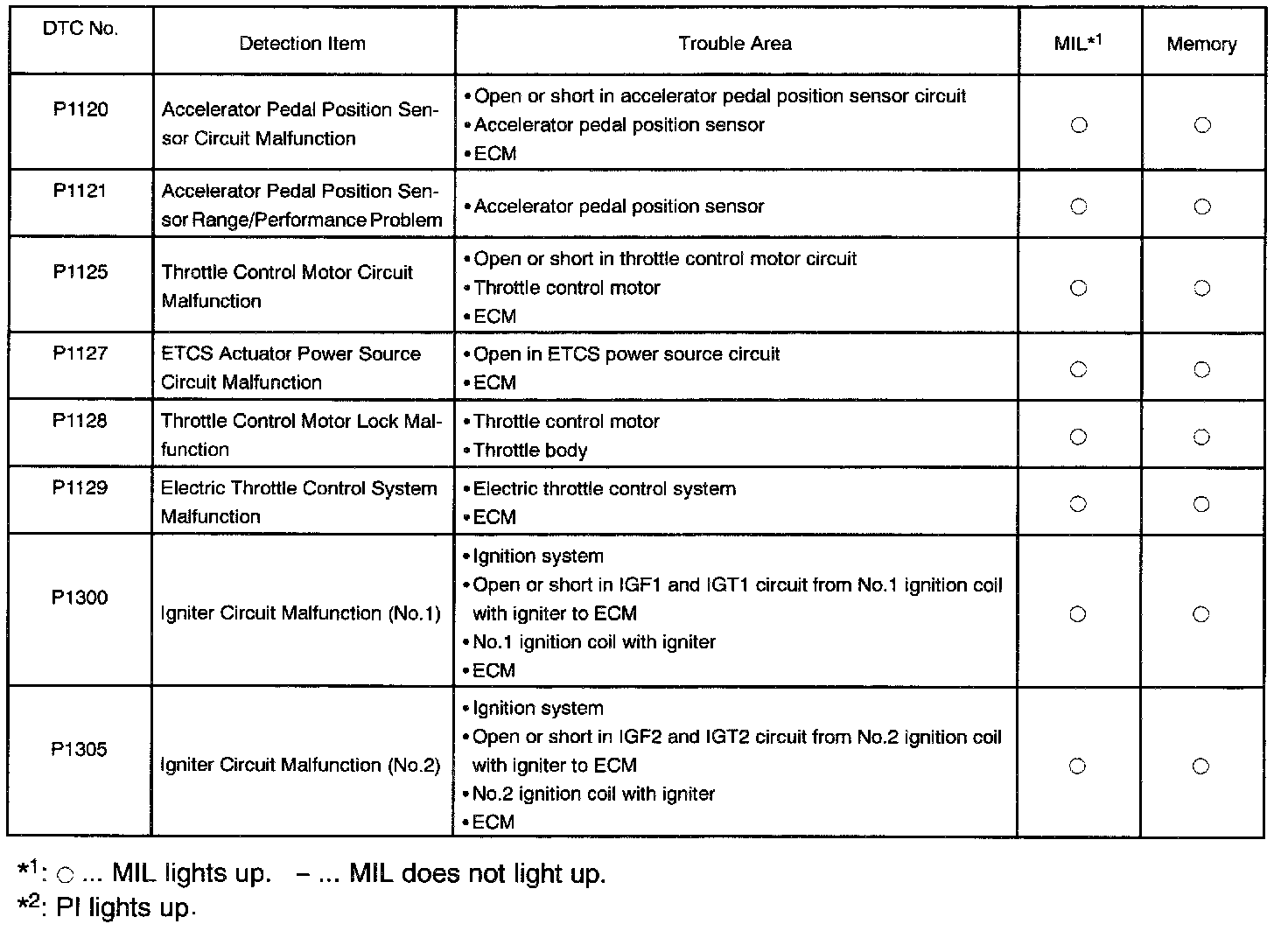

P1120 - P1305:

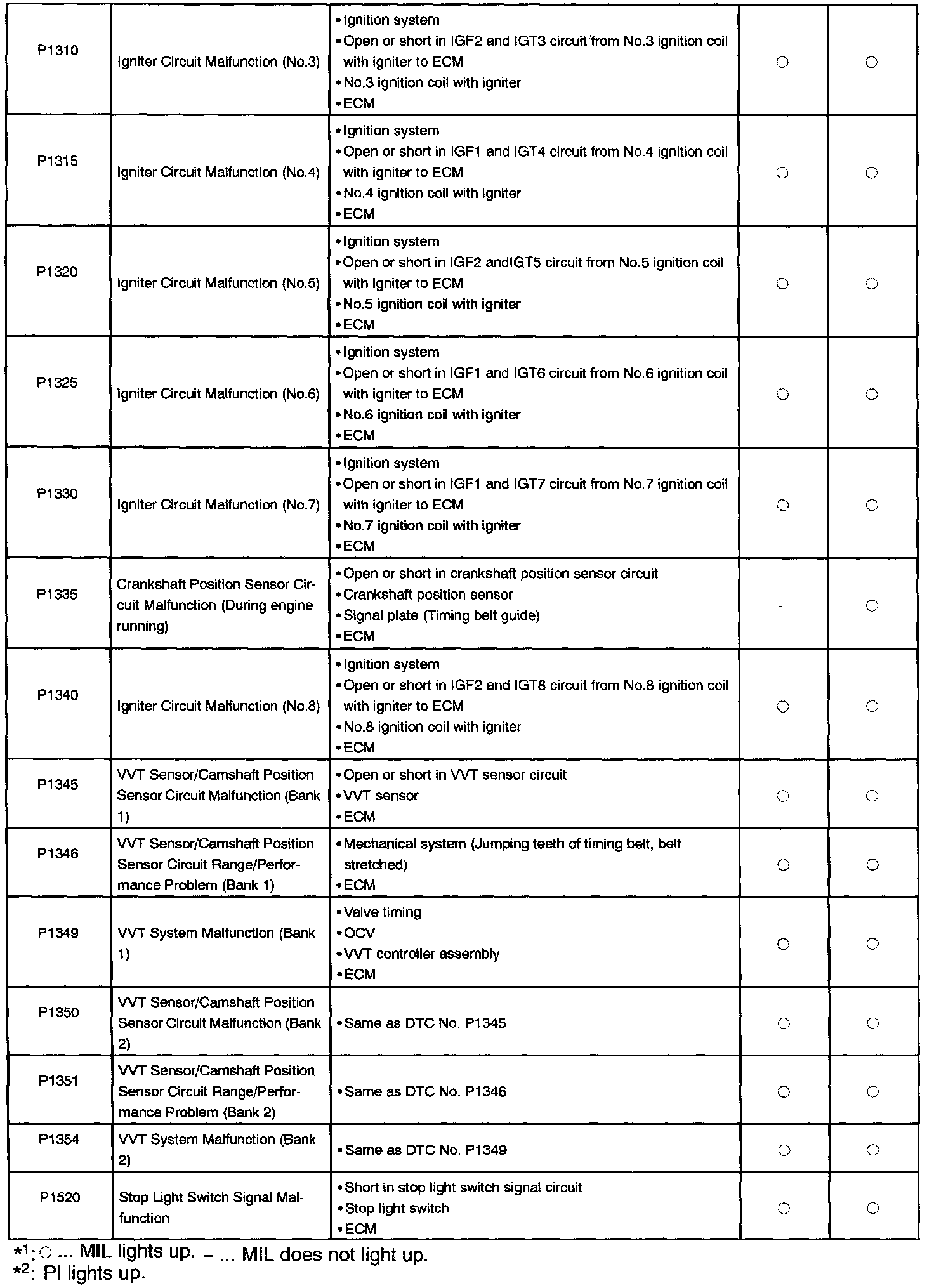

P1310 - P1520:

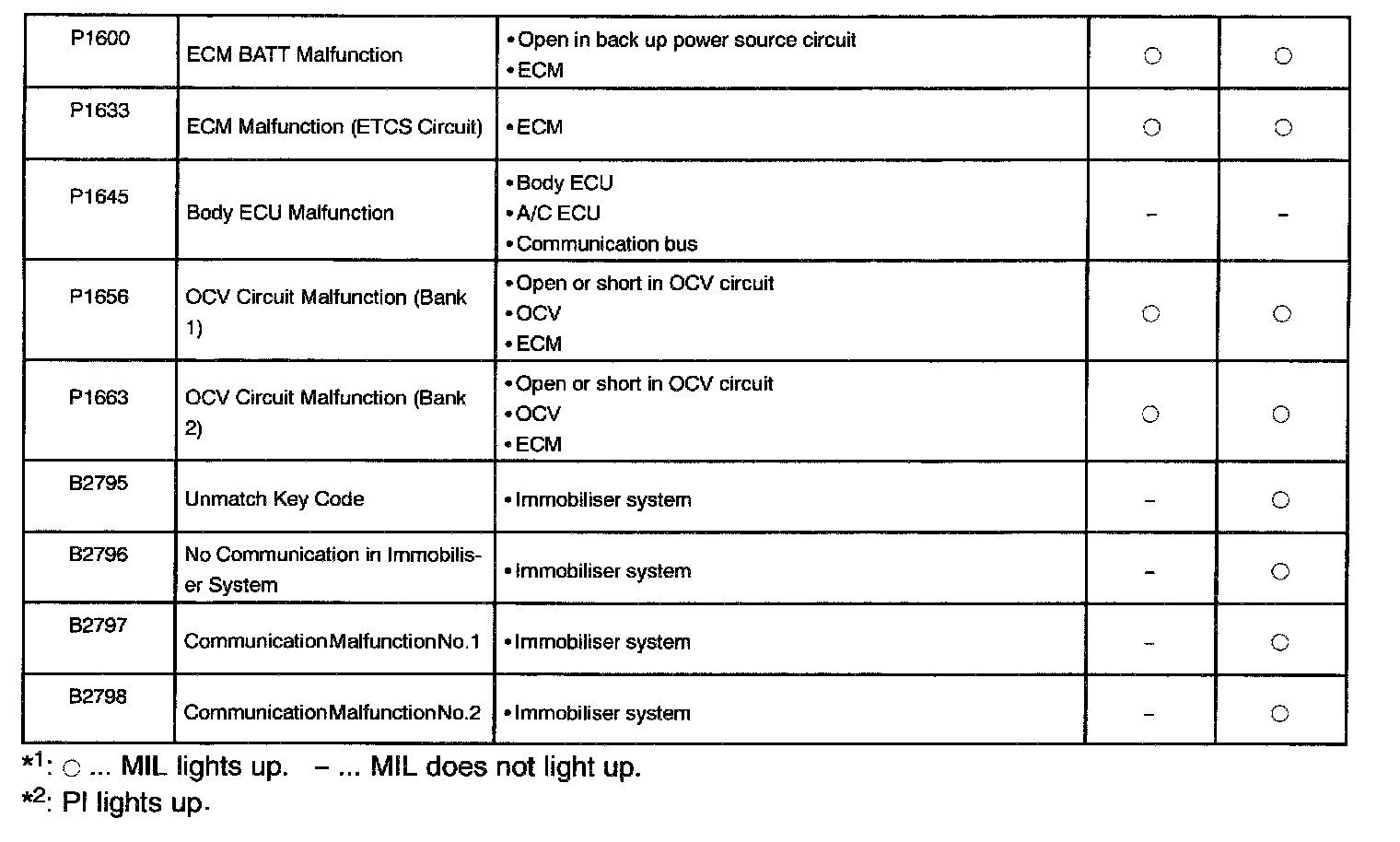

P1600 - B2798:

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table . For details of each code, turn to the respective "DTC No." under "Trouble Code Diagnostic Procedures". Testing and Inspection
