E-Shift Main Switch Circuit

CIRCUIT DESCRIPTION
When the shift lever is in the M position (with E-shift main switch for D and M pressed), "M" in the shift position indicator light will come on and when the shift lever is in the D position (with E-shift main switch for D and M released), "D" in the shift position indicator light will come on.

When the shift lever is in the L position (with E-shift main switch for 2 and L pressed), "L" in the shift position indicator light will come on and when the shift lever is in the 2 position (with E-shift main switch for 2 and L released), "2" in the shift position indicator light will come on.

When the shift lever is in 4 or M position, the ECM prohibits shifting to 5th.

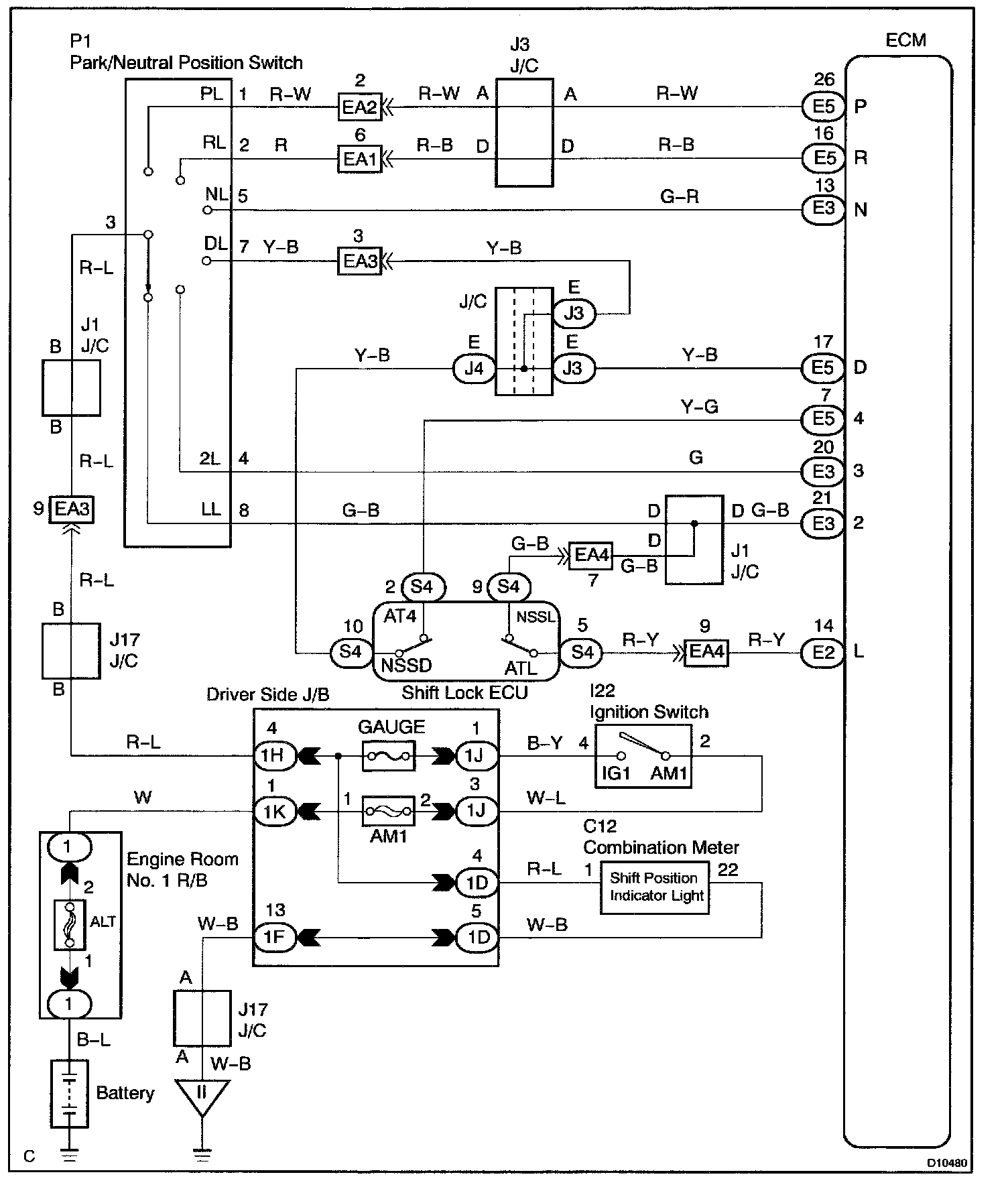

Wiring Diagram:

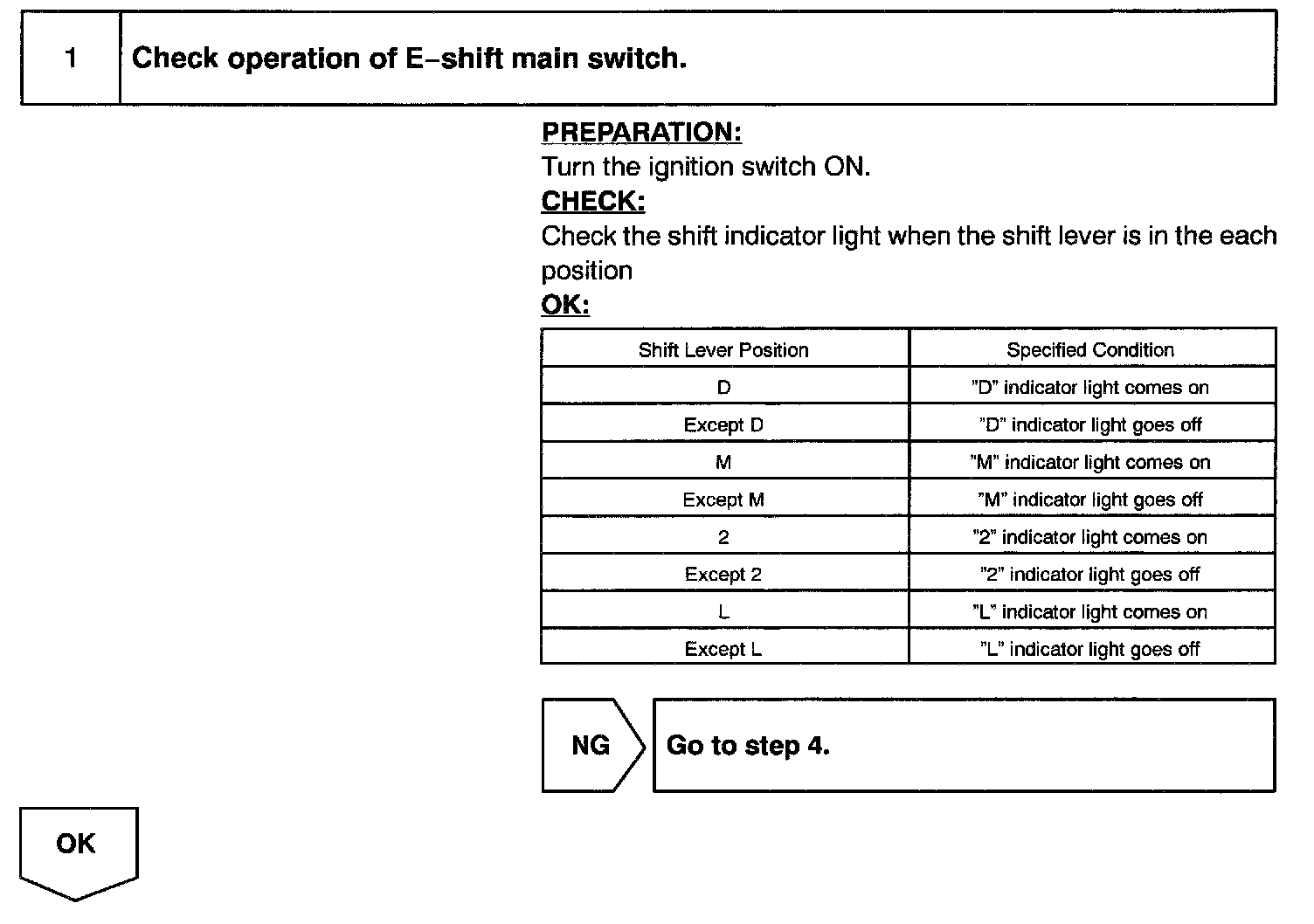

Step 1:

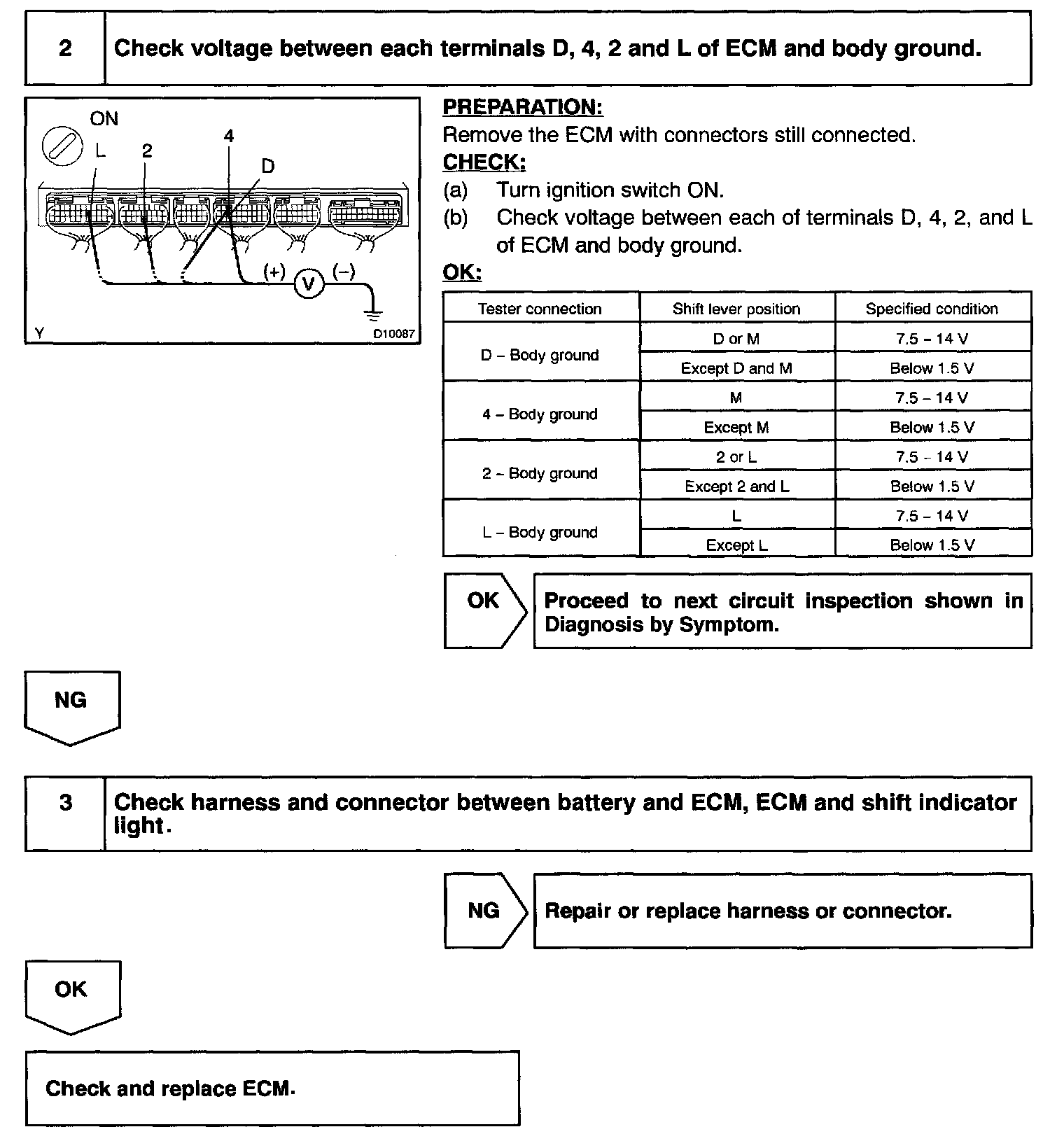

Steps 2 - 3:

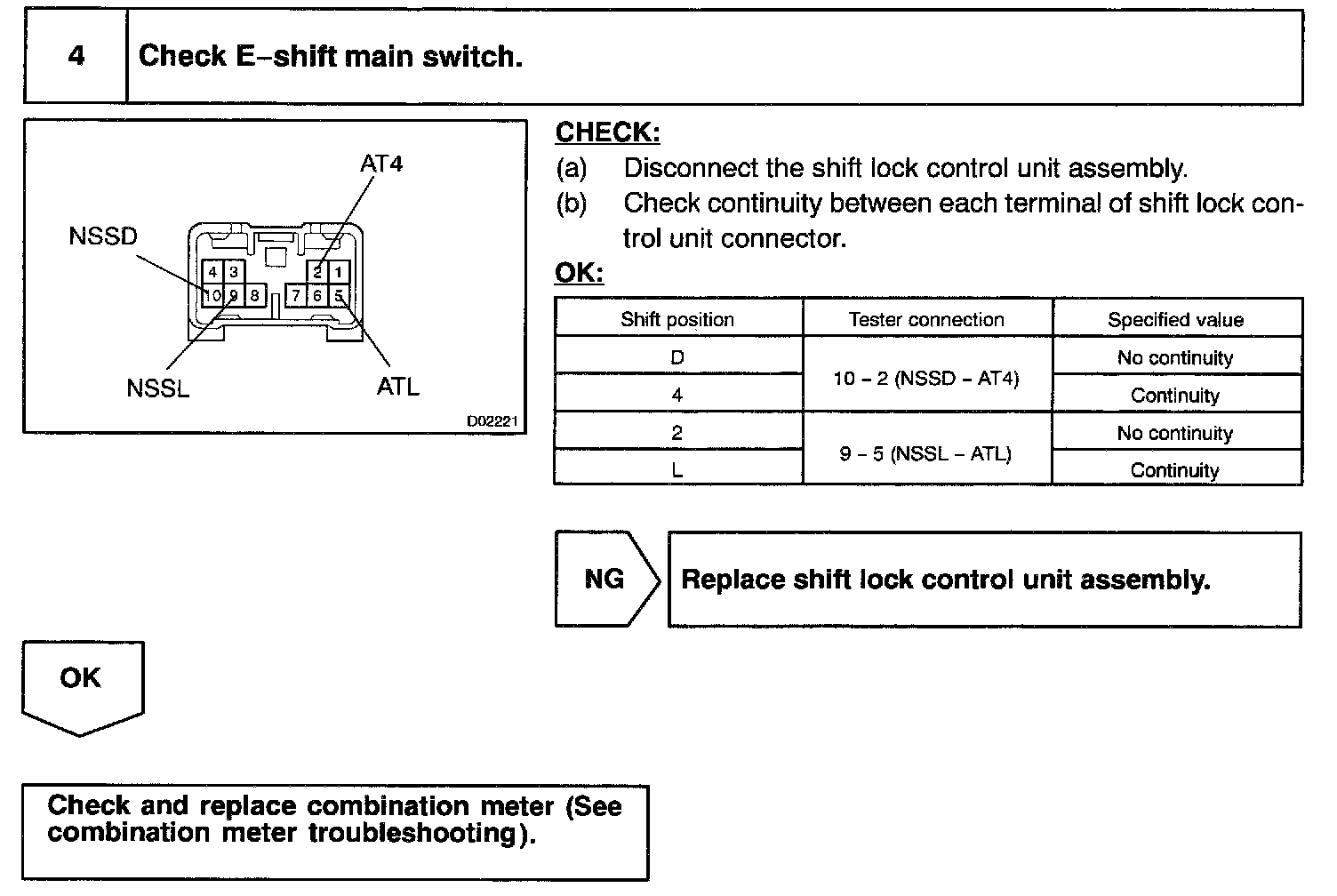

Step 4:

INSPECTION PROCEDURE
