Seals and Gaskets: Service and Repair
ON-VEHICLE REPAIR1. DRAIN ATF
2. REMOVE FRONT EXHAUST PIPE AND HEAT INSULATOR
3. REMOVE PROPELLER SHAFT
4. REMOVE TRANSMISSION OUTPUT FLANGE

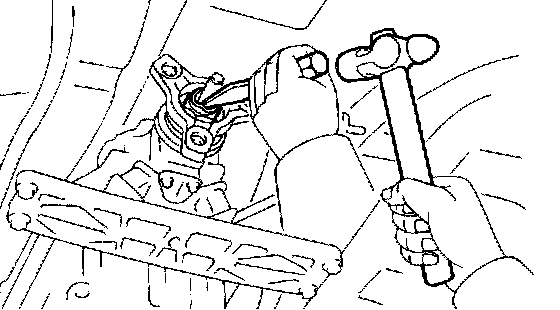

(a) Using a chisel and hammer, loosen the staked part of the nut.
HINT: Shift the shift lever to the P position.

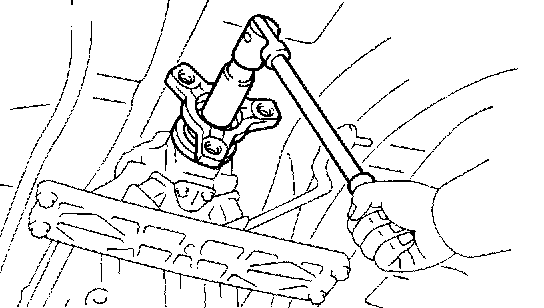

(b) Using a 30 mm deeper socket wrench, remove the nut.
(c) Tap the output flange with a plastic hammer to remove it.

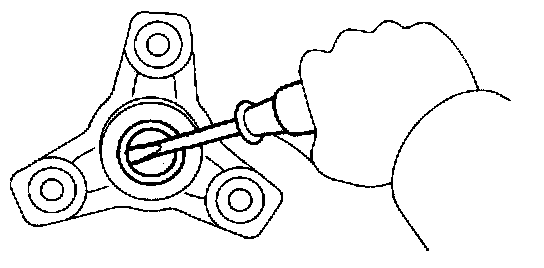

(d) Using a screwdriver, remove the oil seal from the output flange.
5. REMOVE EXTENSION HOUSING REAR OIL SEAL

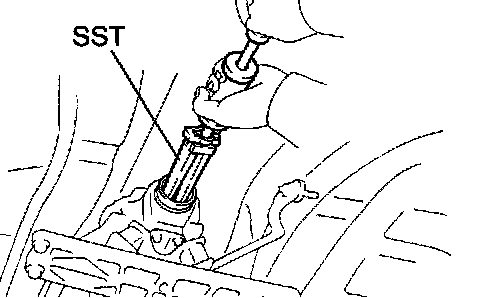

Using SST, remove the oil seal.
SST 09308-00010
6. INSTALL EXTENSION HOUSING REAR OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

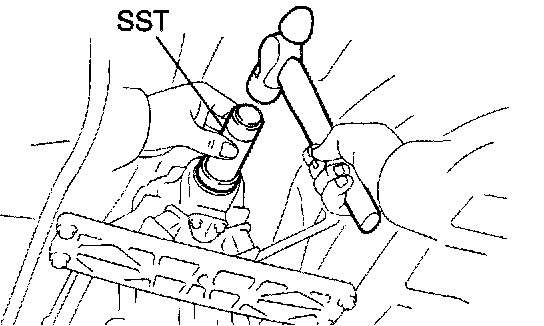

(b) Using SST and a hammer, drive in the oil seal with the lip facing downward.
SST 09309-37010
Oil seal depth from flat end: 2.0 mm (0.079 inch)
7. INSTALL TRANSMISSION OUTPUT FLANGE

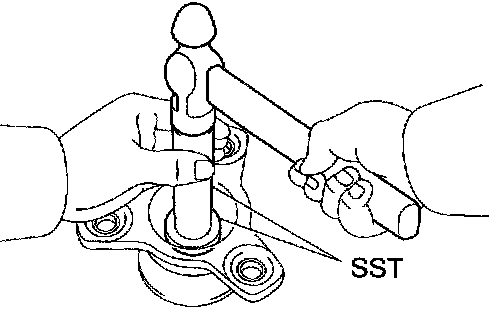

(a) Using SST and a hammer, drive in a new oil seal.
SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)
(b) Install the output flange
(c) Using a 30 mm deeper socket wrench, install and torque a new nut.
Torque: 126 Nm (1,280 kgf-cm, 93 ft. lbs.)
HINT: Shift the shift lever to P position
(d) Using a chisel and hammer, stake the nut.
8. INSTALL PROPELLER SHAFT
9. INSTALL FRONT EXHAUST PIPE AND HEAT INSULATOR
10. FILL AND CHECK FLUID LEVEL
