Ground Point Diagrams

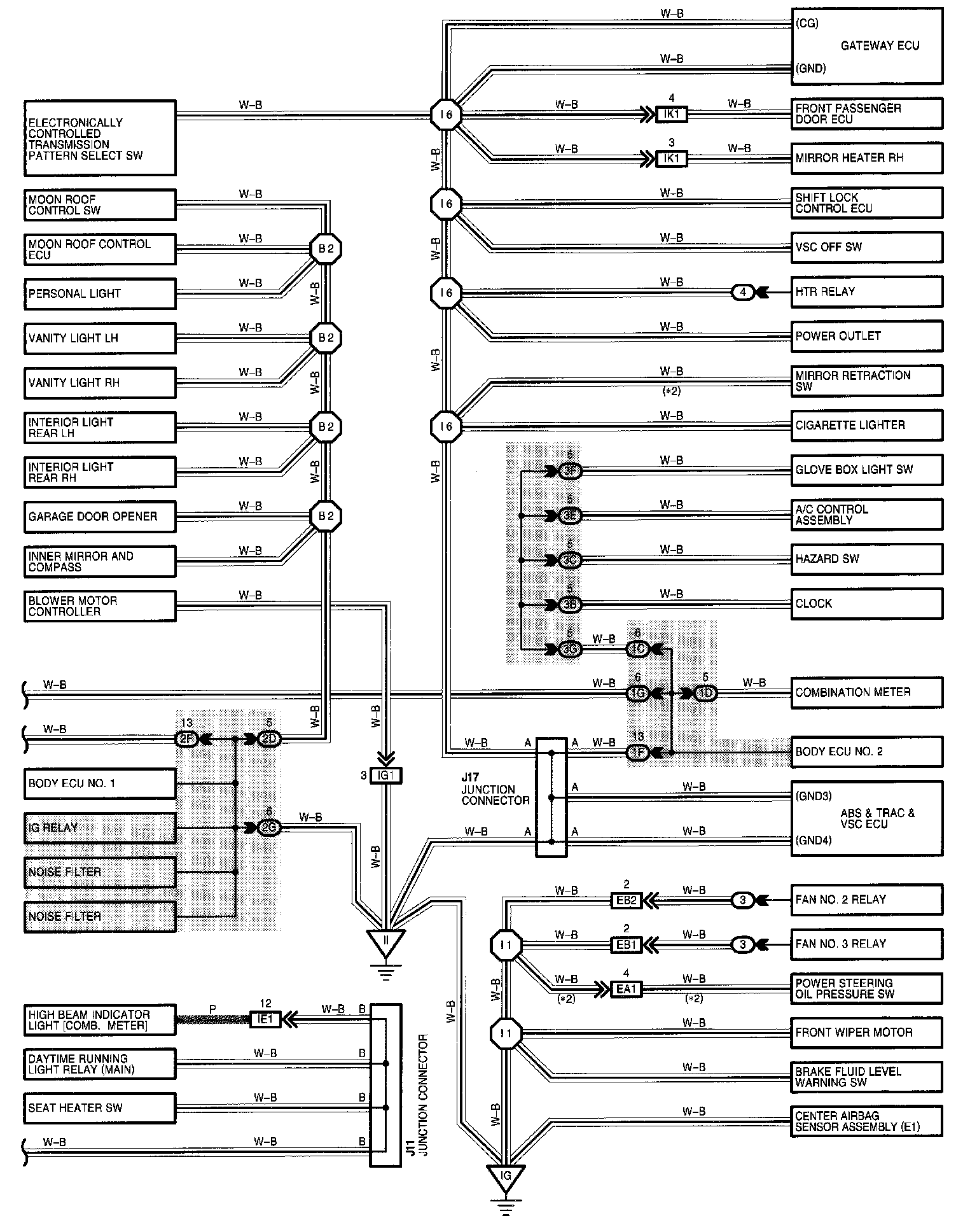

Ground Point (Part 1):

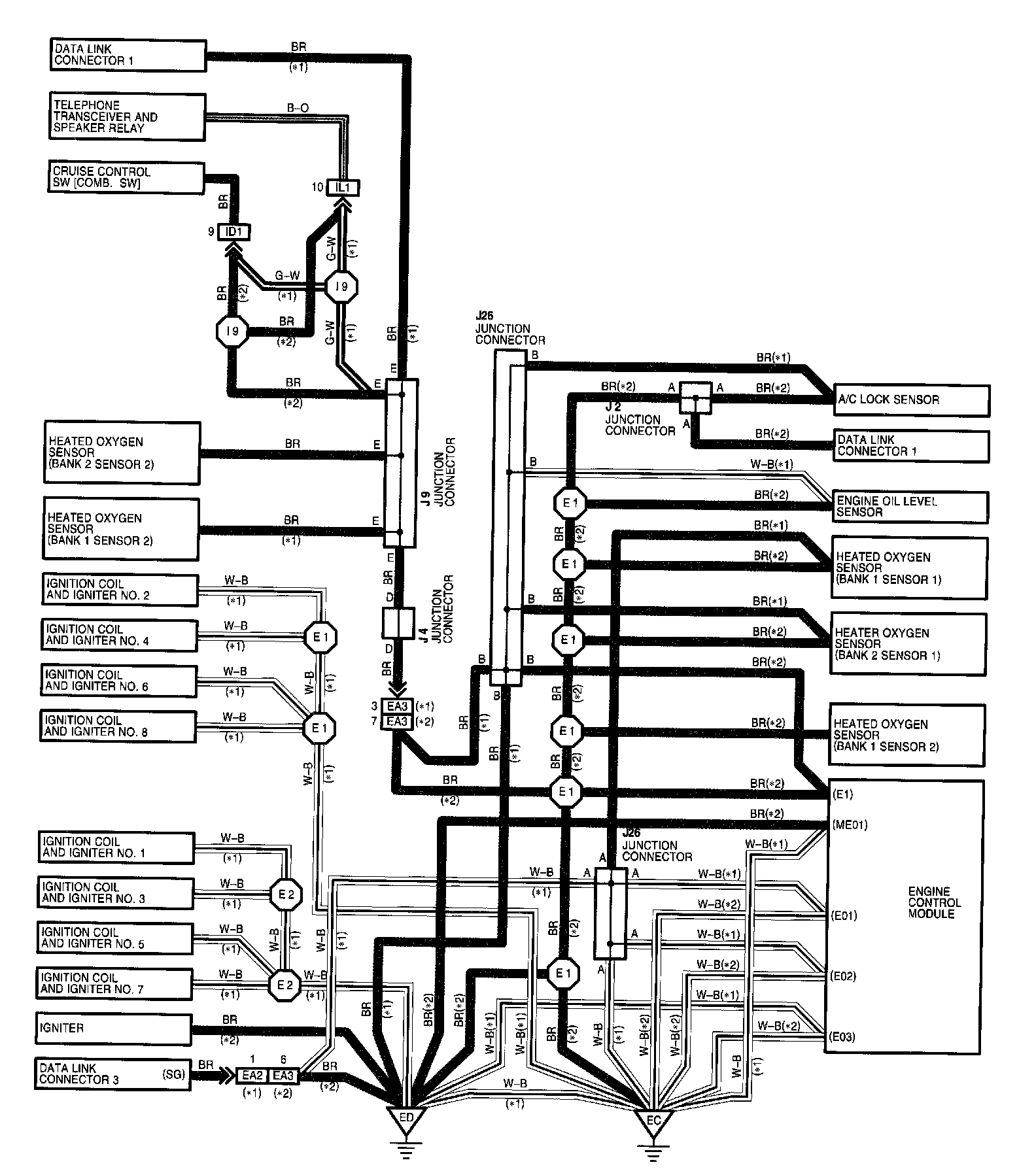

Ground Point (Part 2):

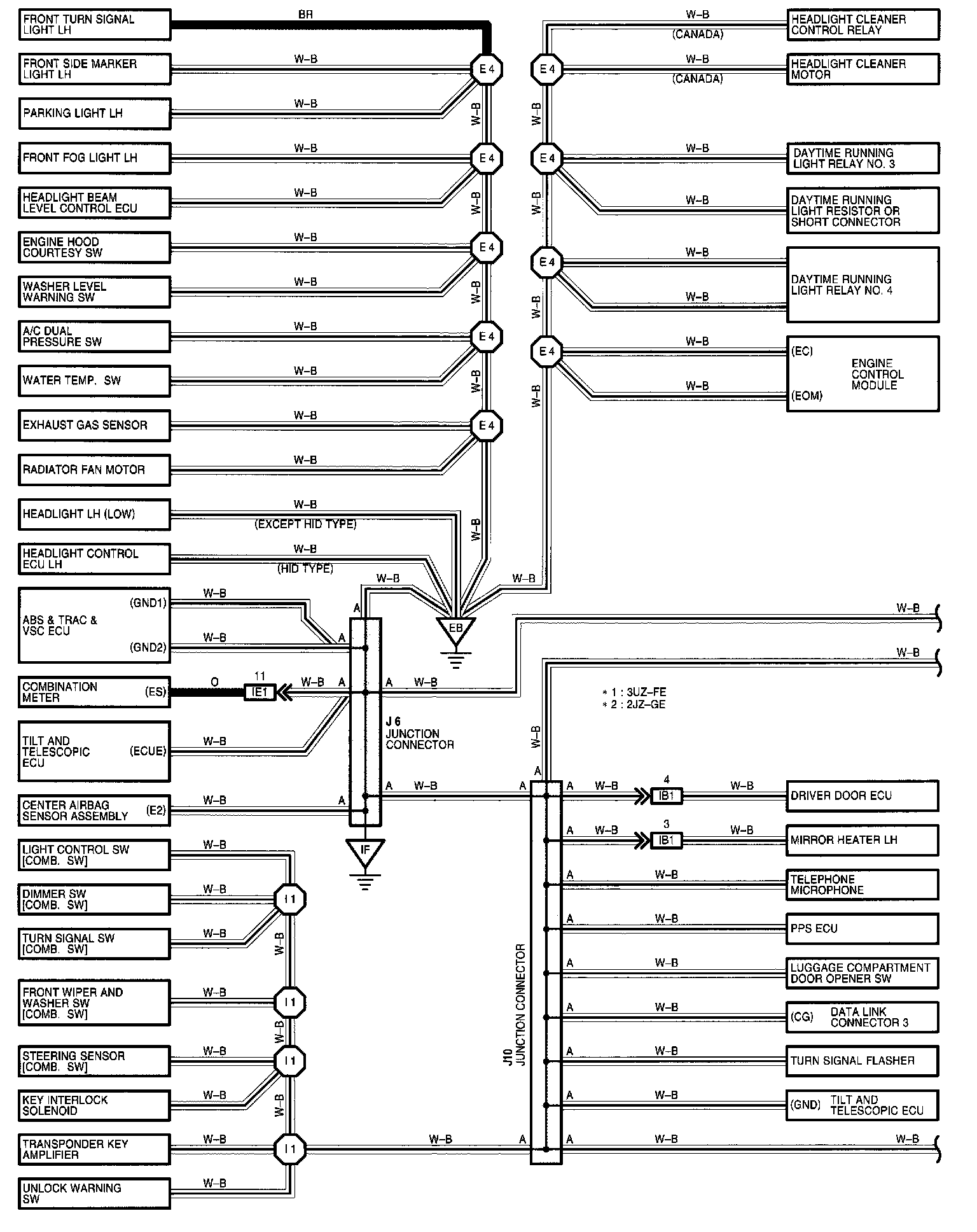

Ground Point (Part 3):

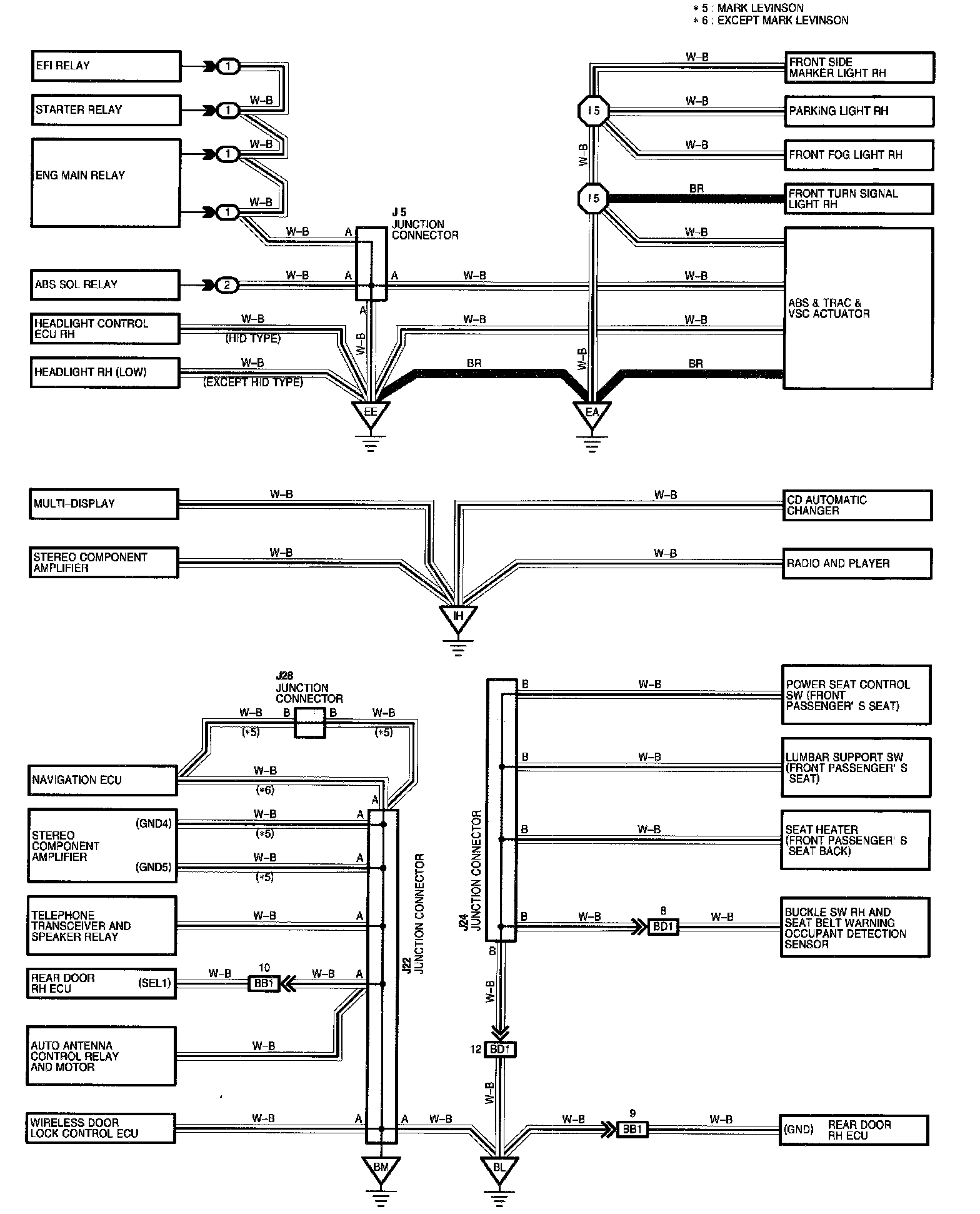

Ground Point (Part 4):

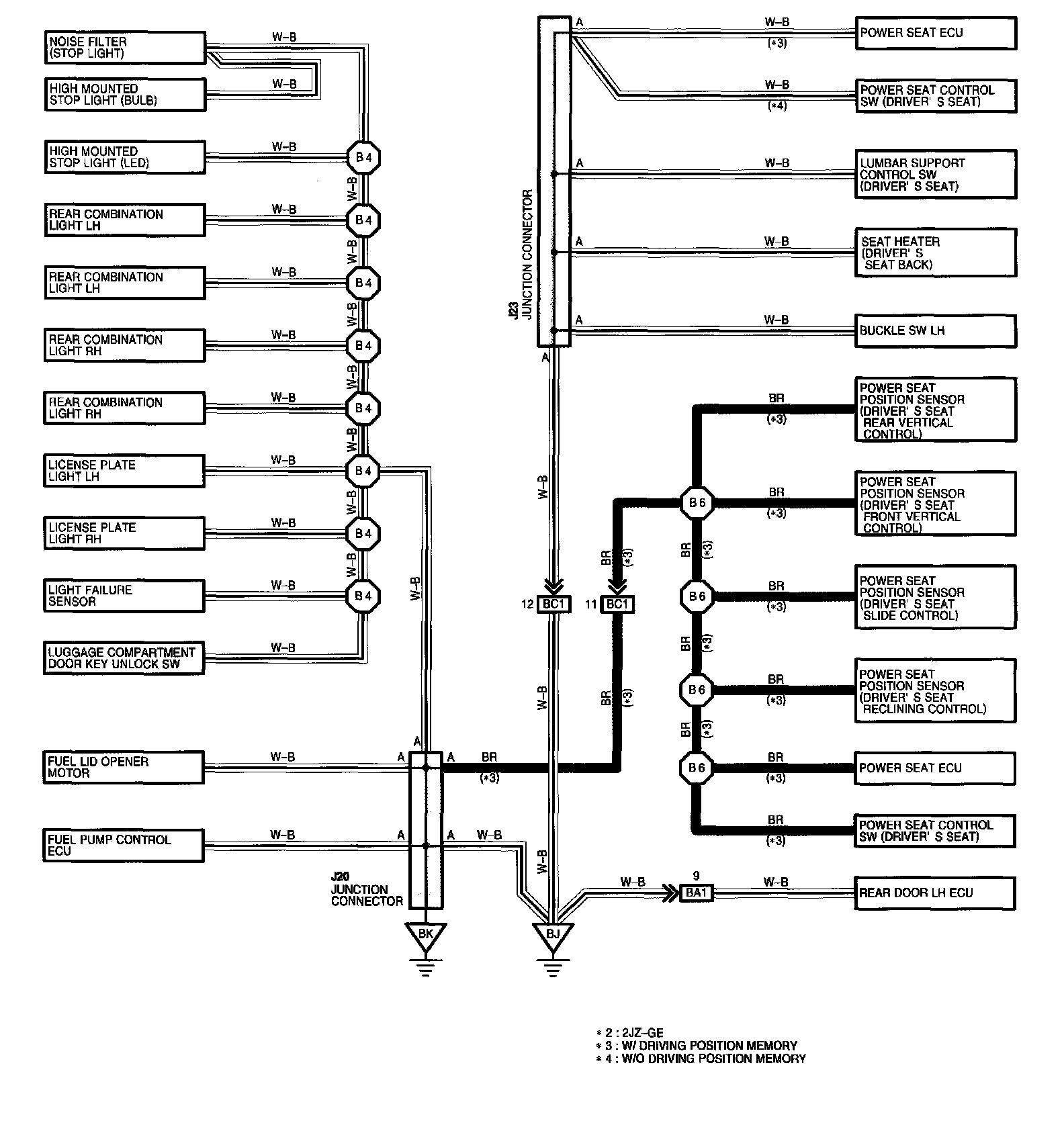

Ground Point (Part 5):
