Differential Technical Data

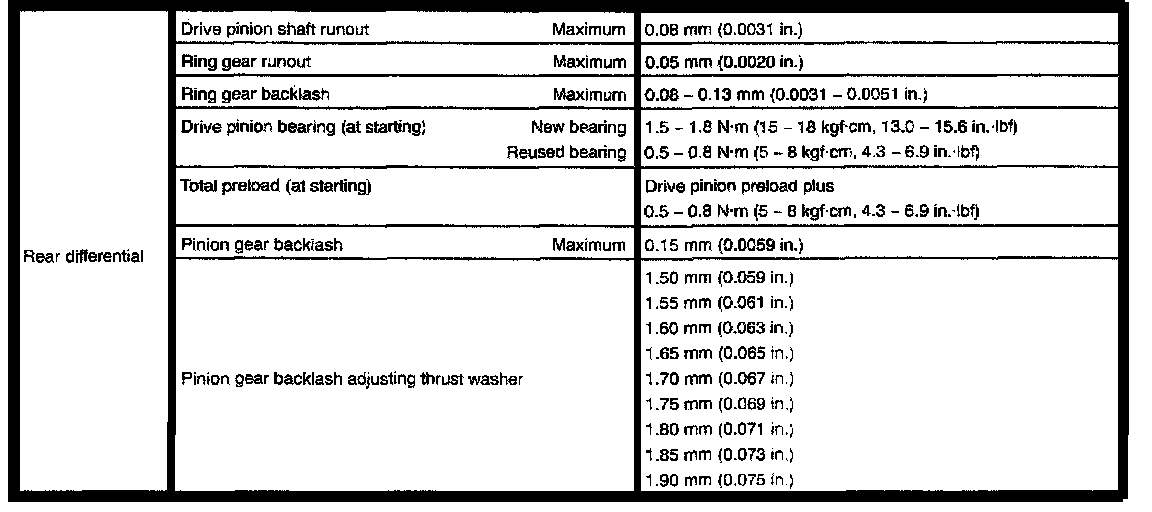

Rear Wheel Drive, Differential Clearances:





Rear Wheel Drive, Differential Ring Gear Backlash:

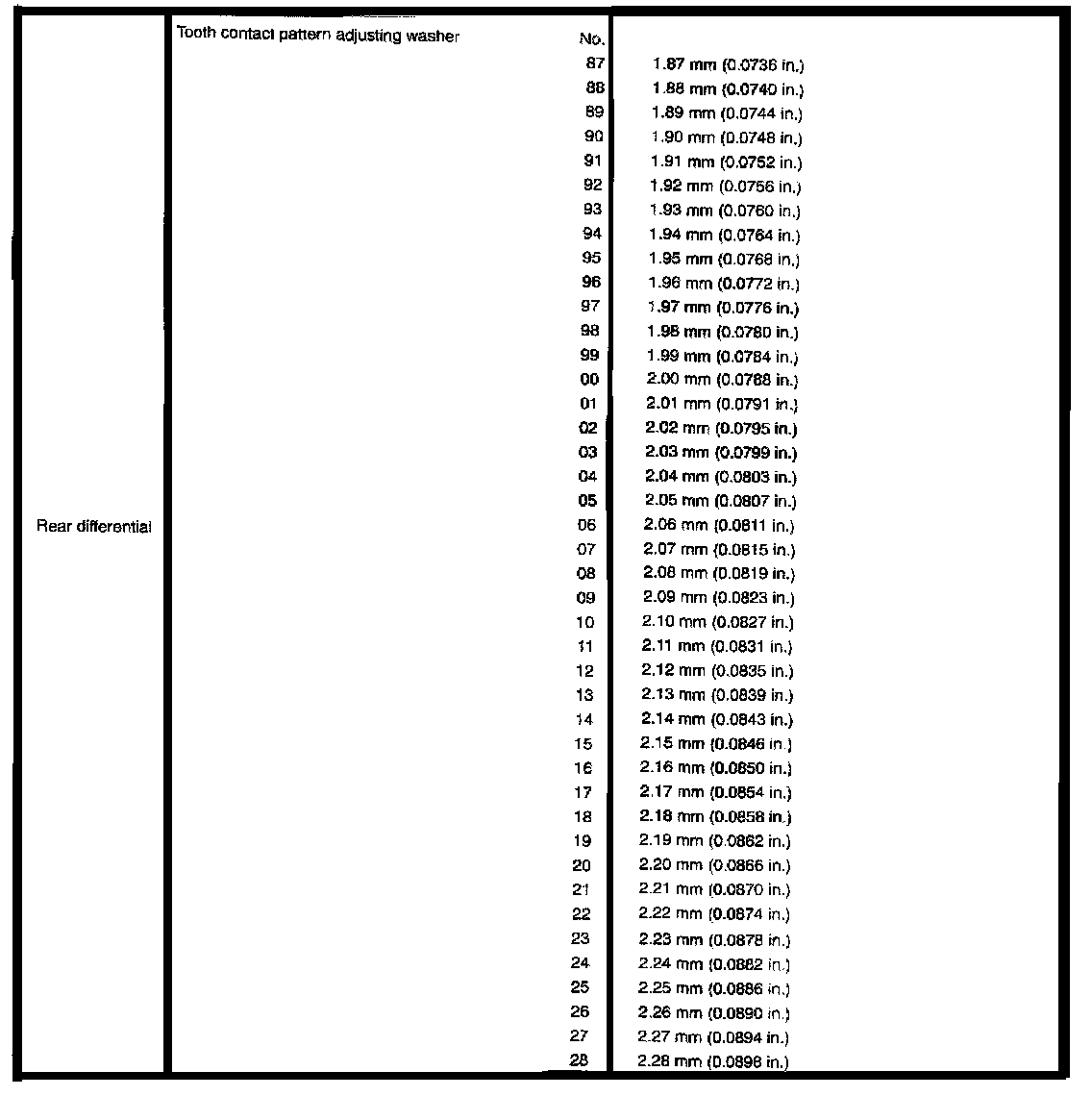

Rear Wheel Drive, Differential Tooth Pattern:
