Collision / Non-Collision Inspections

INSPECTION




1. PRETENSIONER IS NOT ACTIVATED
a. Perform a diagnostic system check.

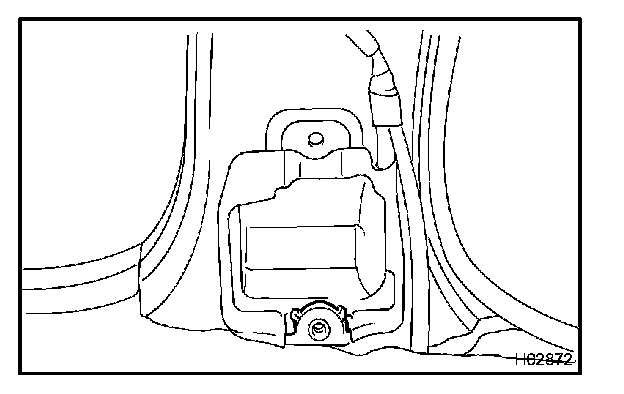

b. Perform a visual check which includes the following items with the front seat outer belt removed from the vehicle.

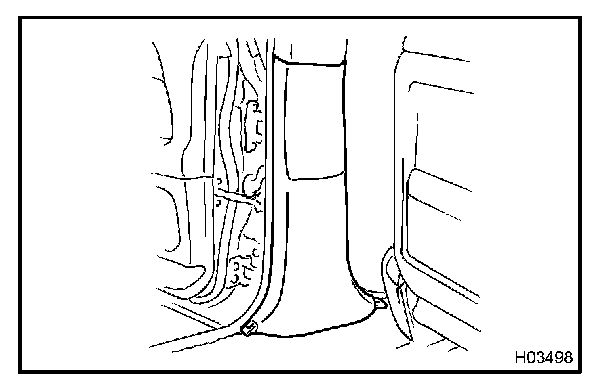

- Check for cuts and cracks in, or marked discoloration on the center pillar lower garnish.

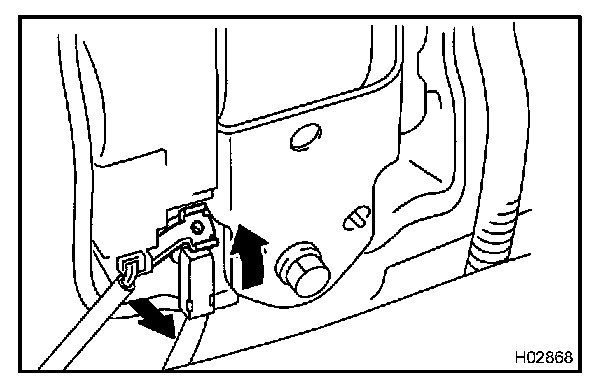

- Check for cuts and cracks in wire harnesses, and for chipping in connectors.
- Check for deformation of the center pillar.






CAUTION: For removal and installation of the front seat outer belt.

2. PRETENSIONER IS ACTIVATED
a. Perform a diagnostic system check.




b. Perform a visual check which includes the following items with the front seat outer belt removed from the vehicle.
- Check for deformation of the center pillar.
- Check for damage on the connector and wire harness.
