Pinout Values and Diagnostic Parameters

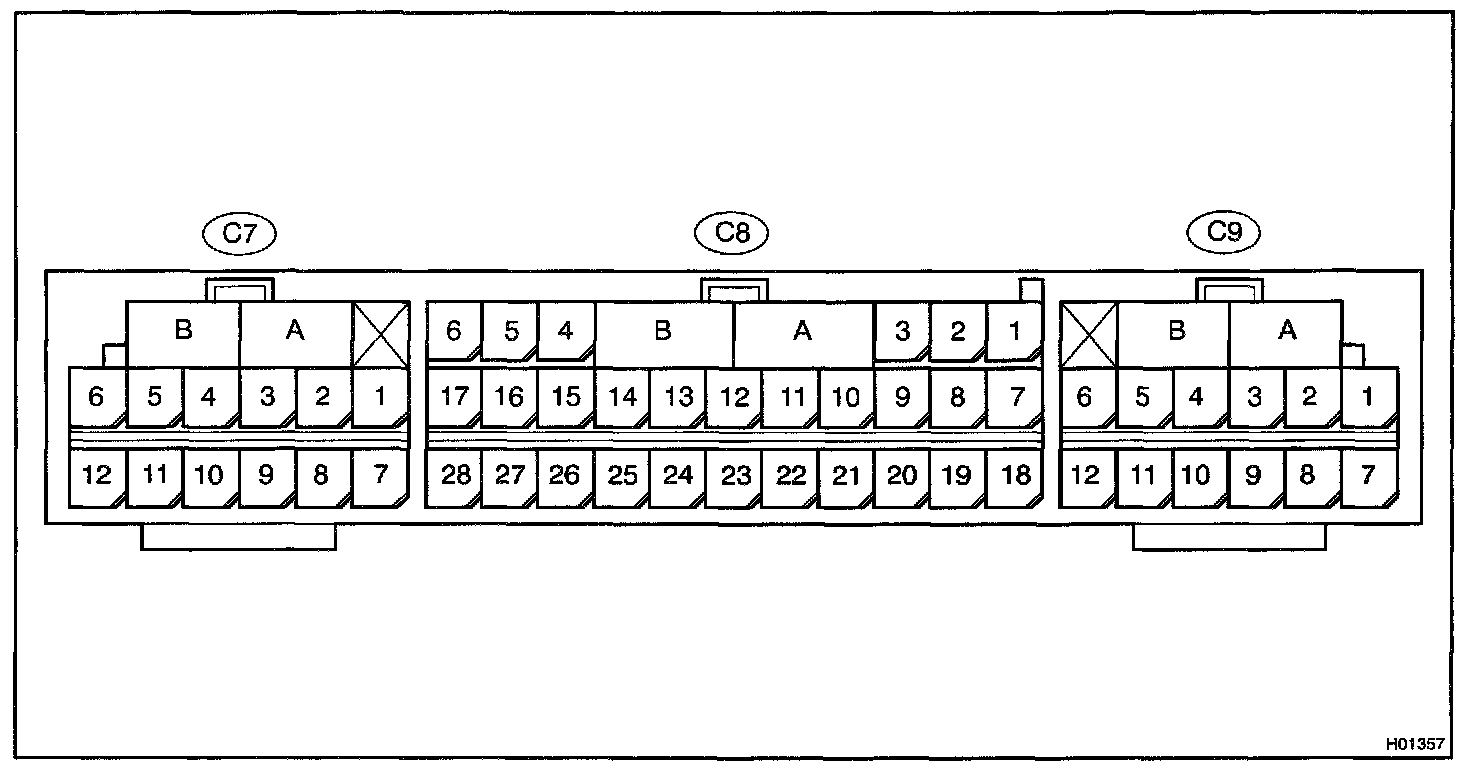

Terminals Of ECU - Connector View:

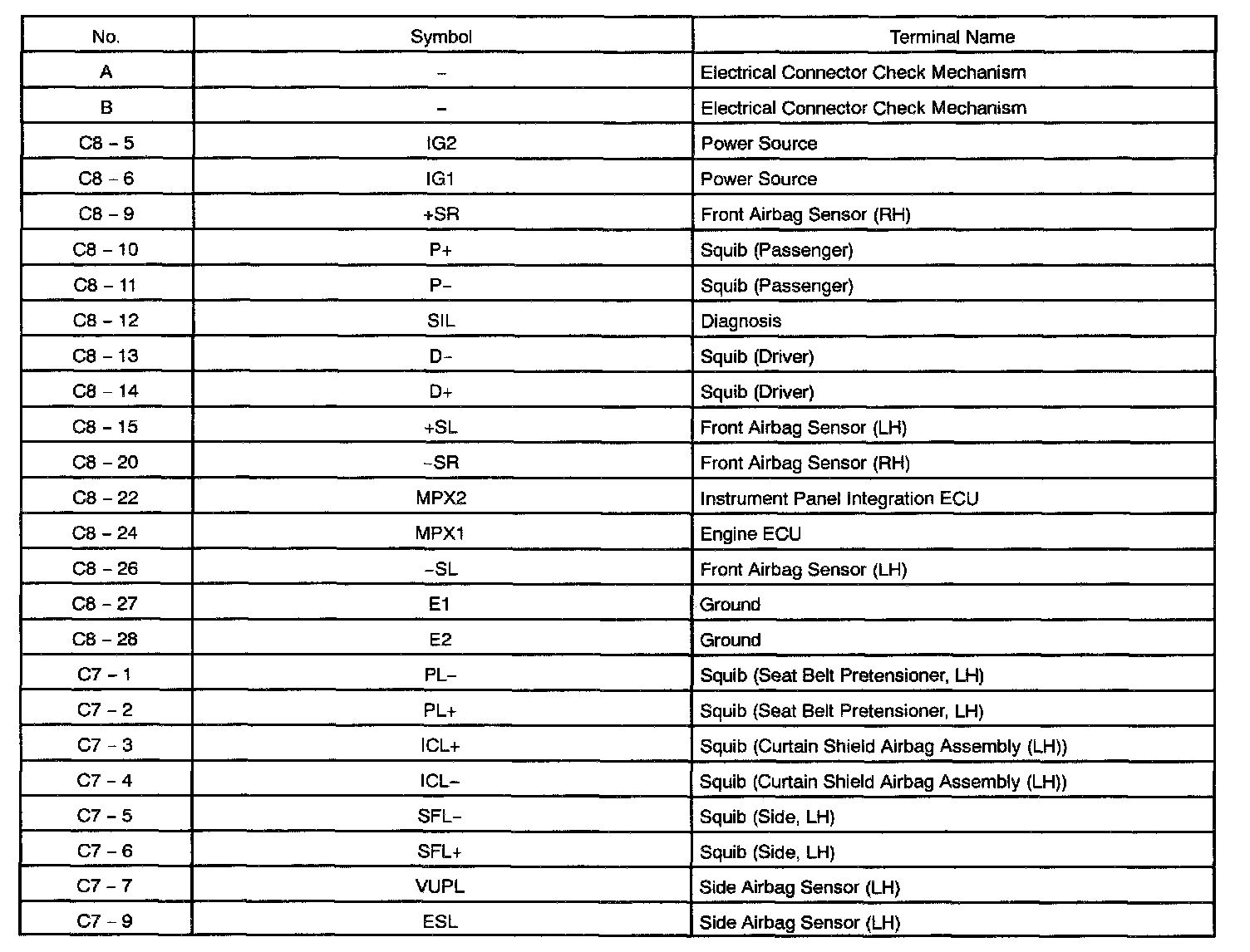

Terminals Of ECU - Connector Pin-outs (Part 1):
Terminals Of ECU - Connector Pin-outs (Part 2):
