Home >> Lexus >> 2001 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

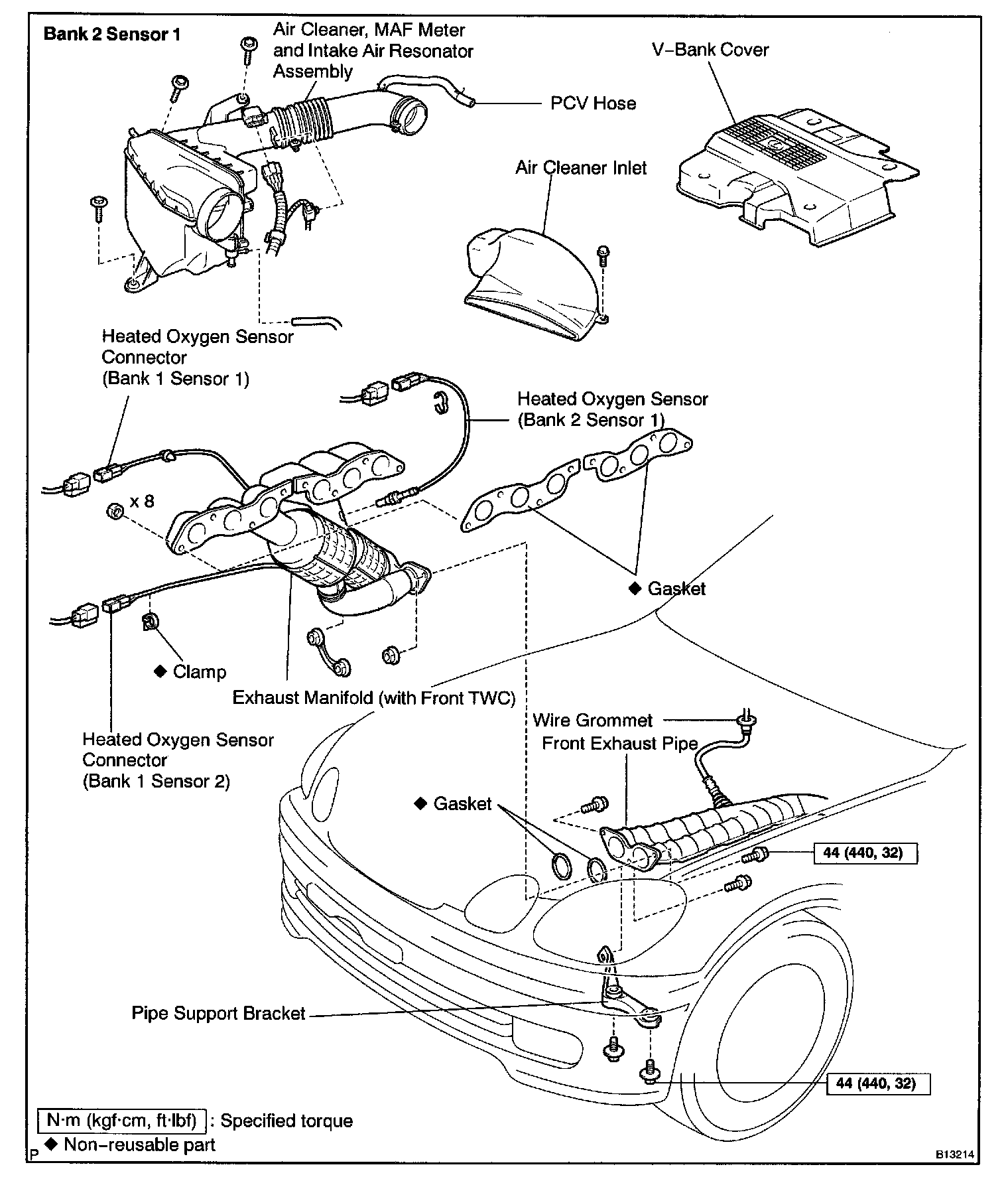

Heated Oxygen Sensor (Part 1):

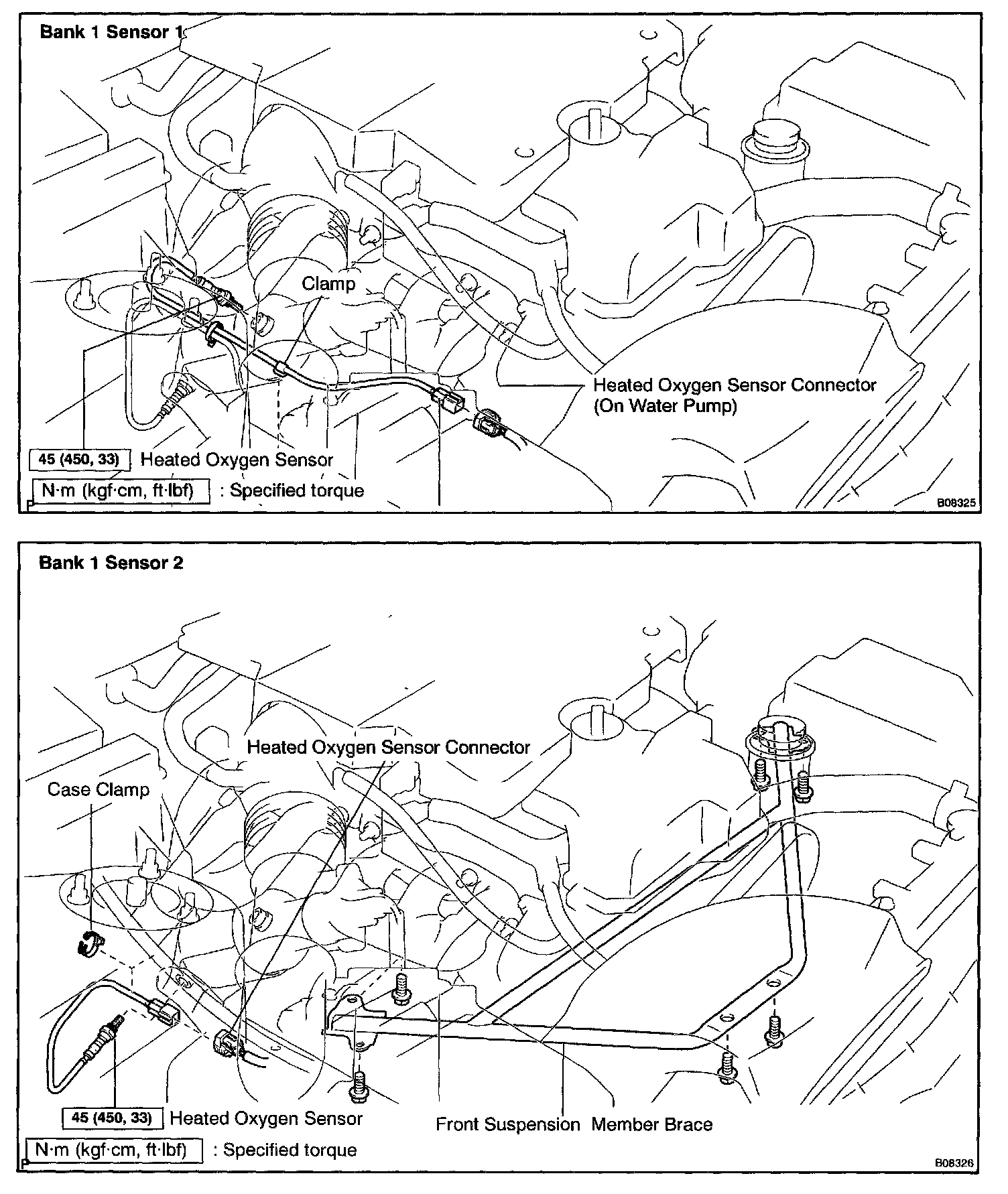

Heated Oxygen Sensor (Part 2):

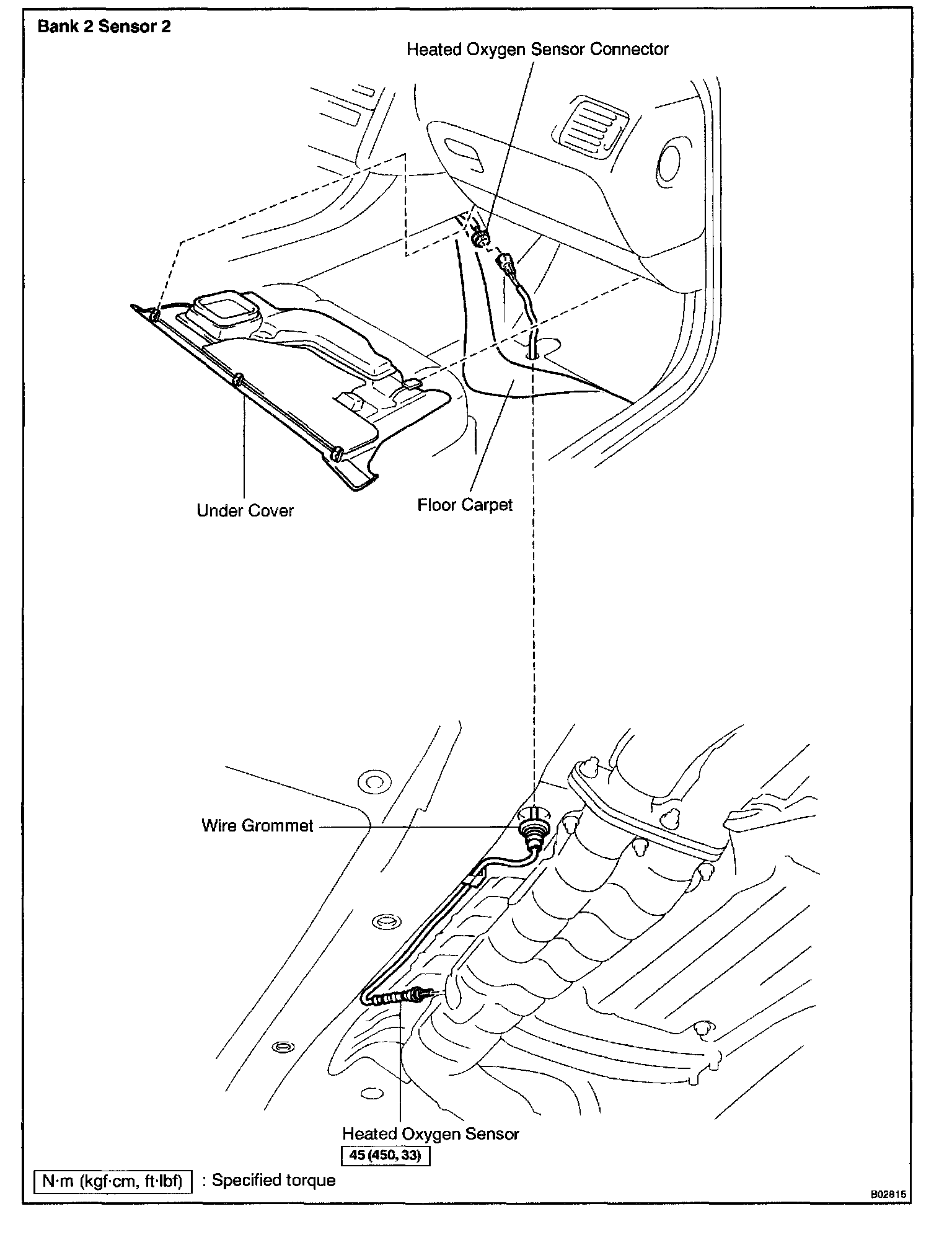

Heated Oxygen Sensor (Part 3):
