MIL Circuit

MIL Circuit Malfunction

CIRCUIT DESCRIPTION
If the ECM detects trouble, the MIL lights up. At this time, the ECM records a DTC in memory.

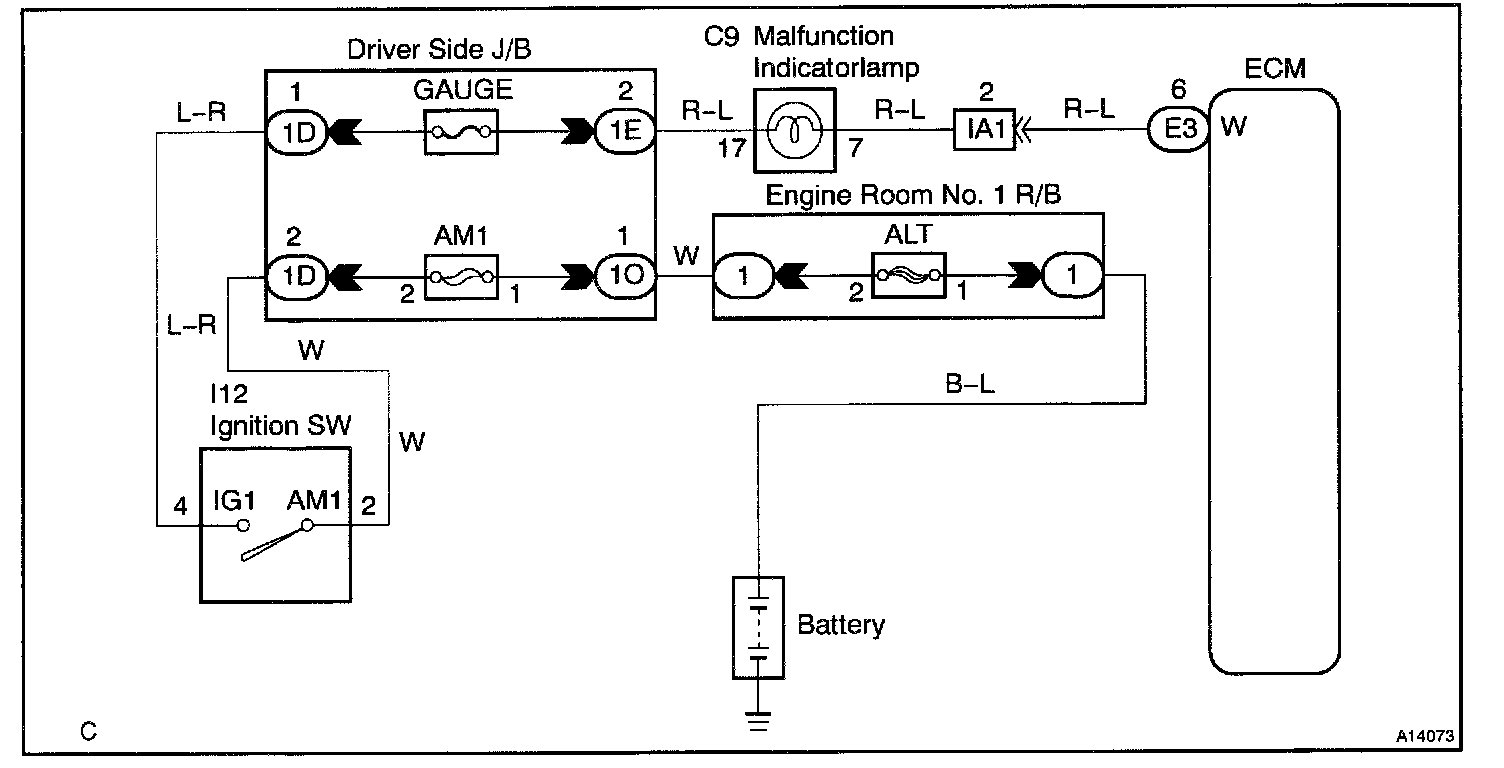

Wiring Diagram:

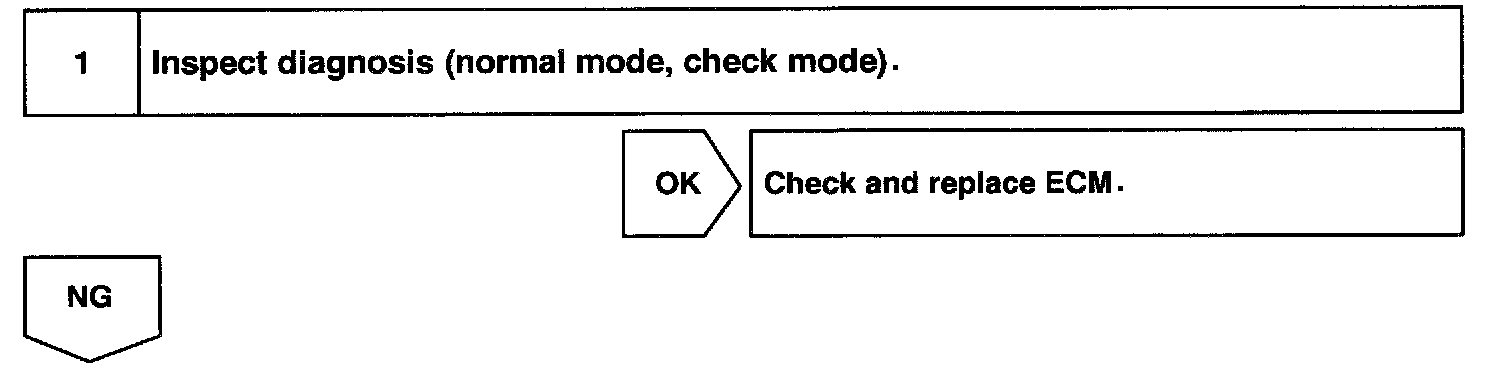

Step 1:

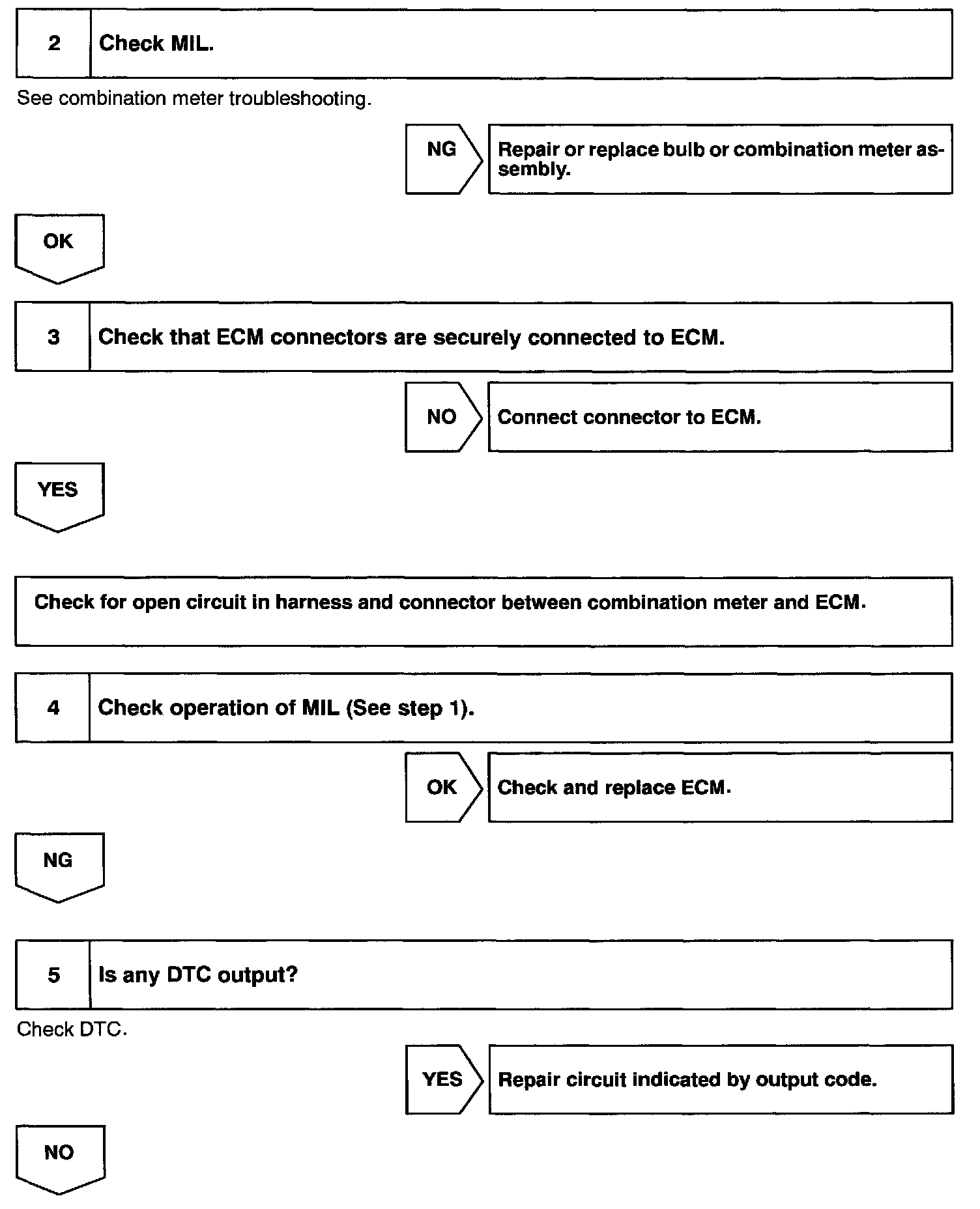

Steps 2 - 5:

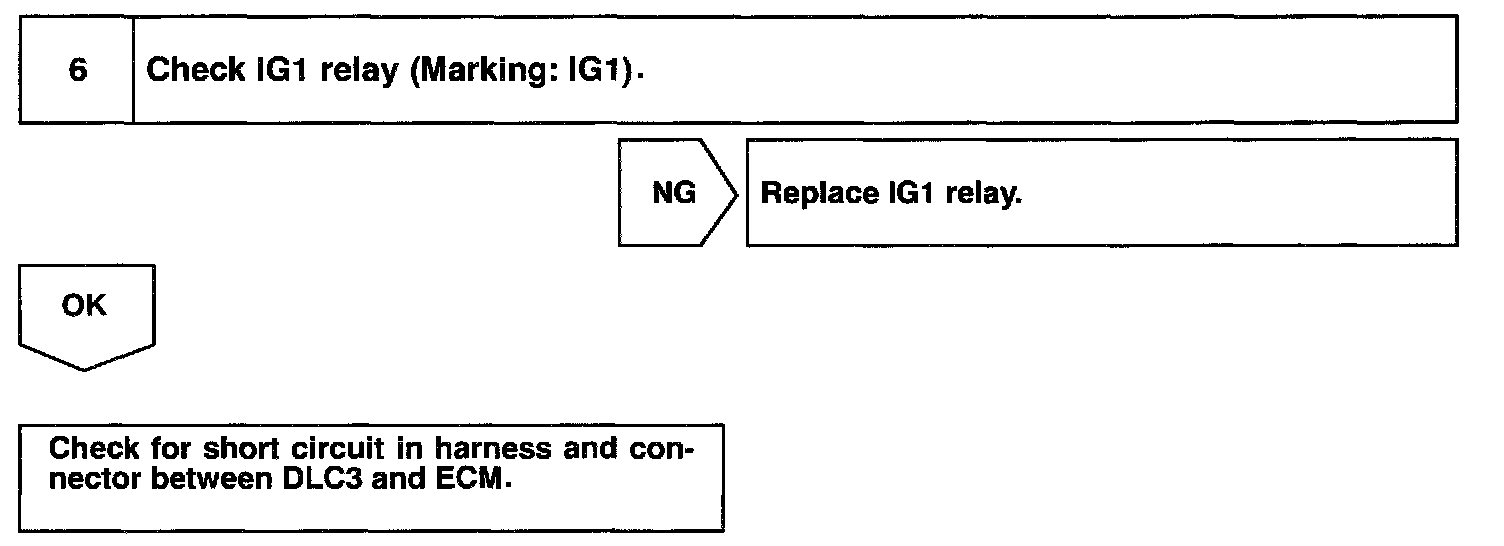

Step 6:

INSPECTION PROCEDURE

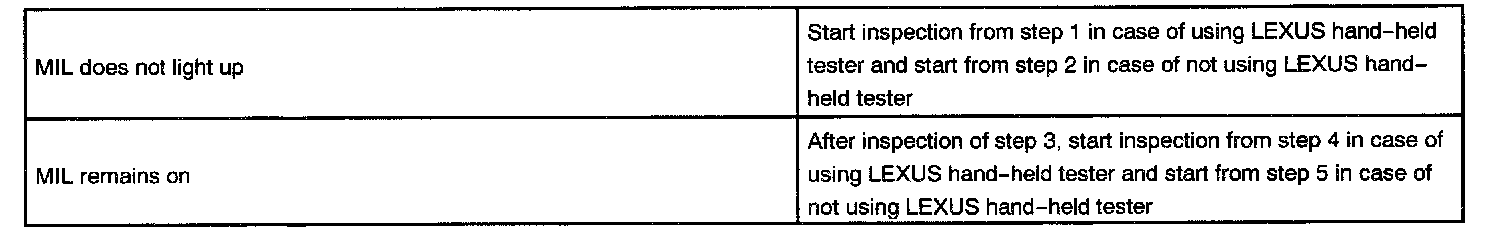

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
