Pinout Values and Diagnostic Parameters

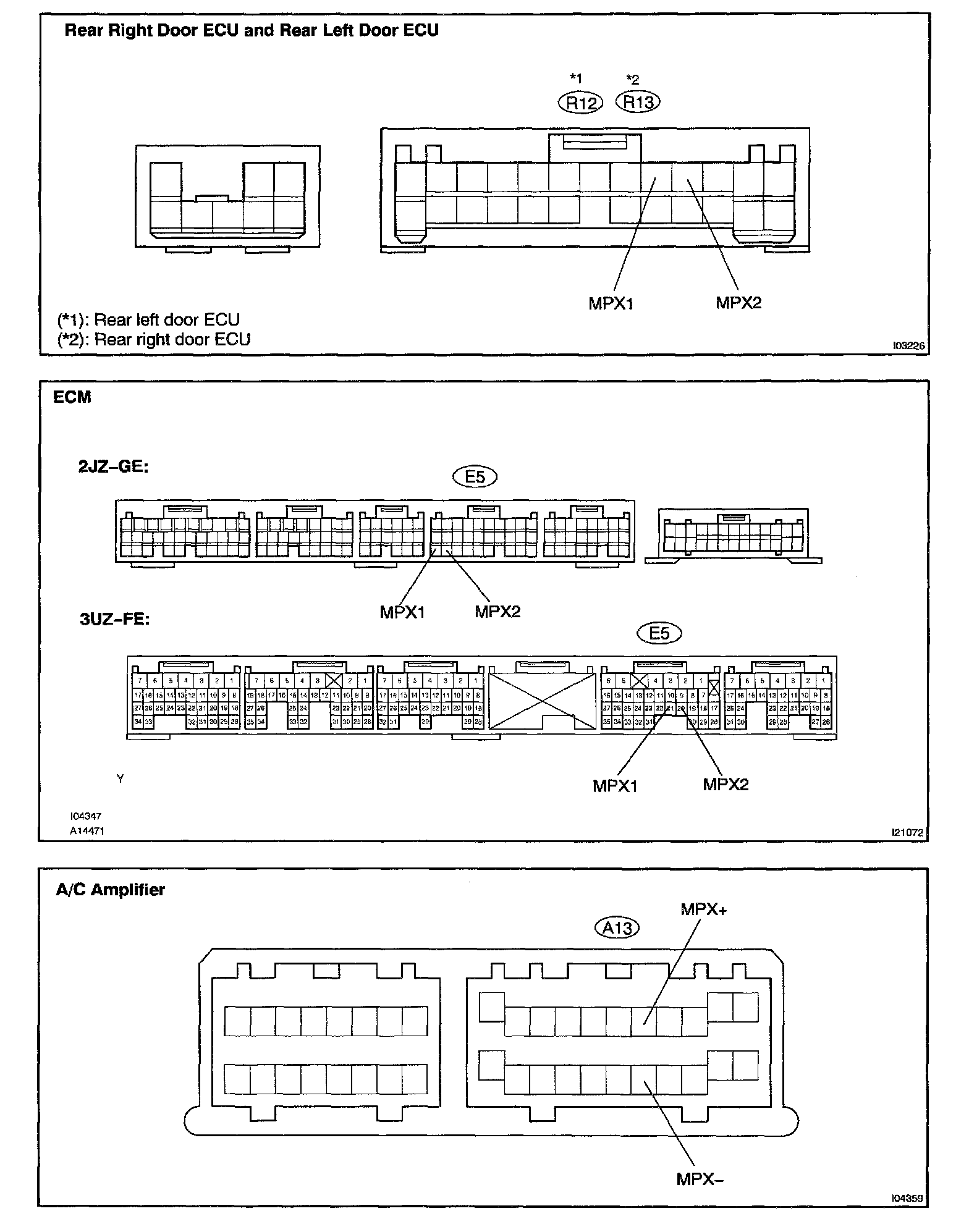

Terminals Of ECU (Part 1):

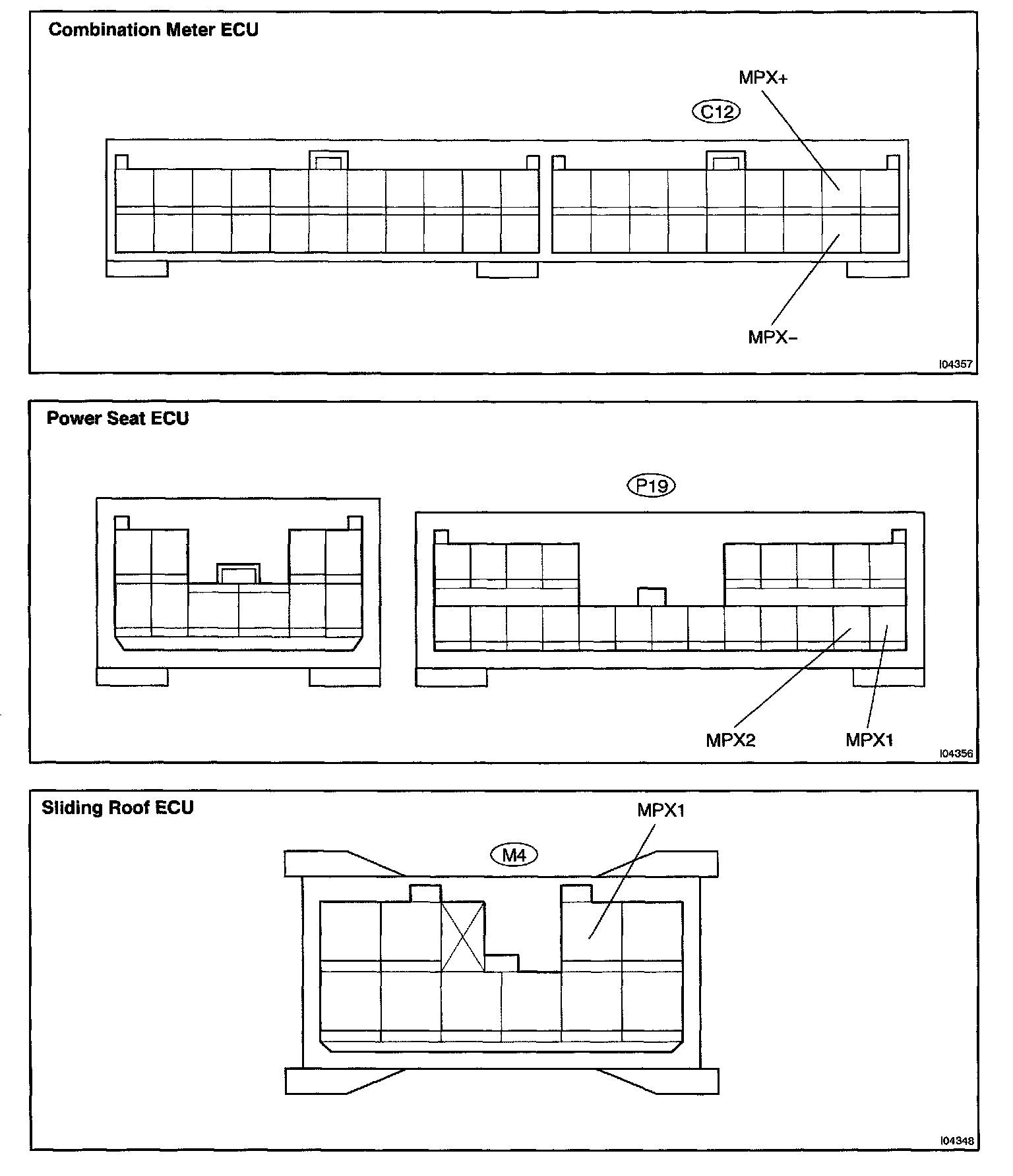

Terminals Of ECU (Part 2):

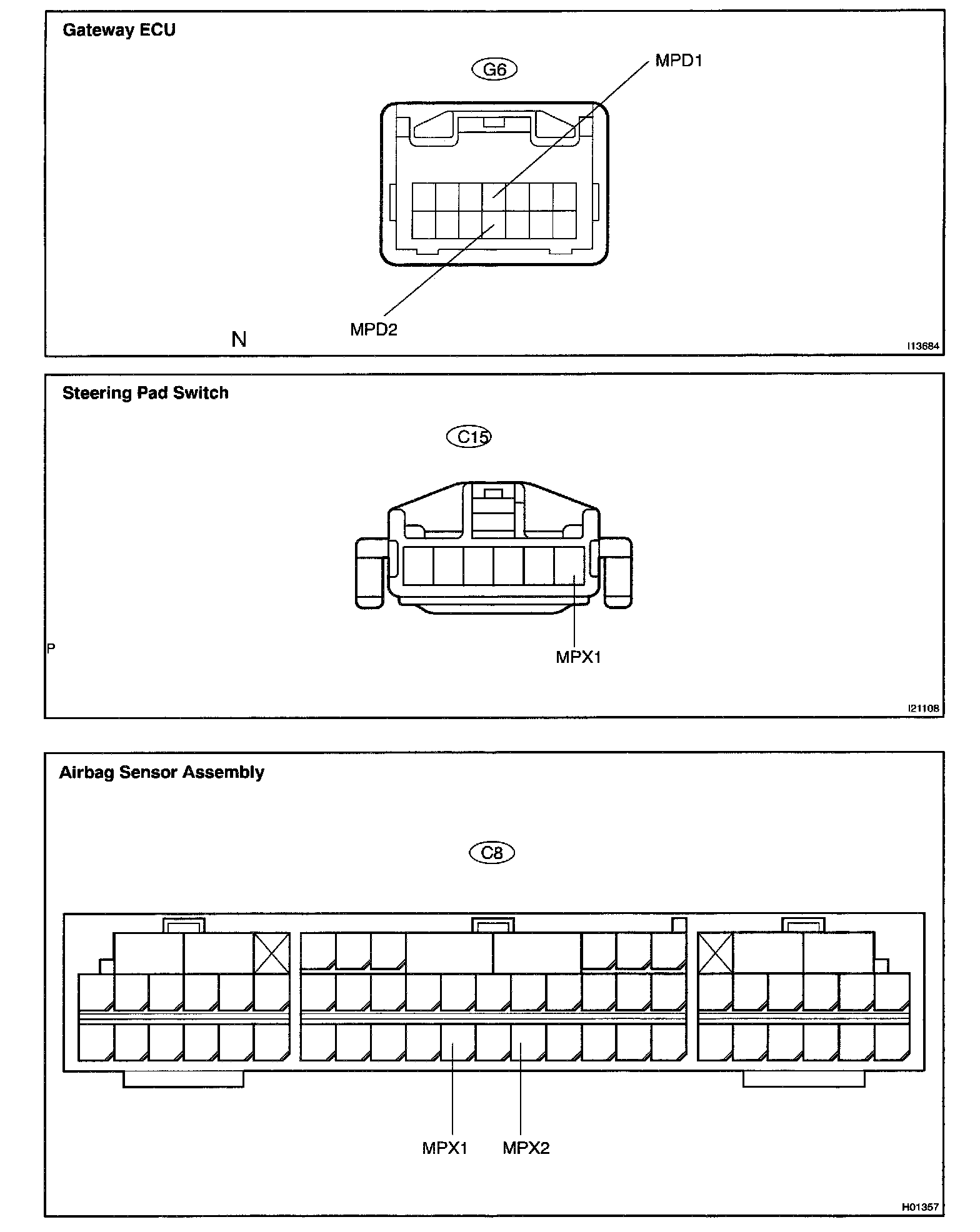

Terminals Of ECU (Part 3):

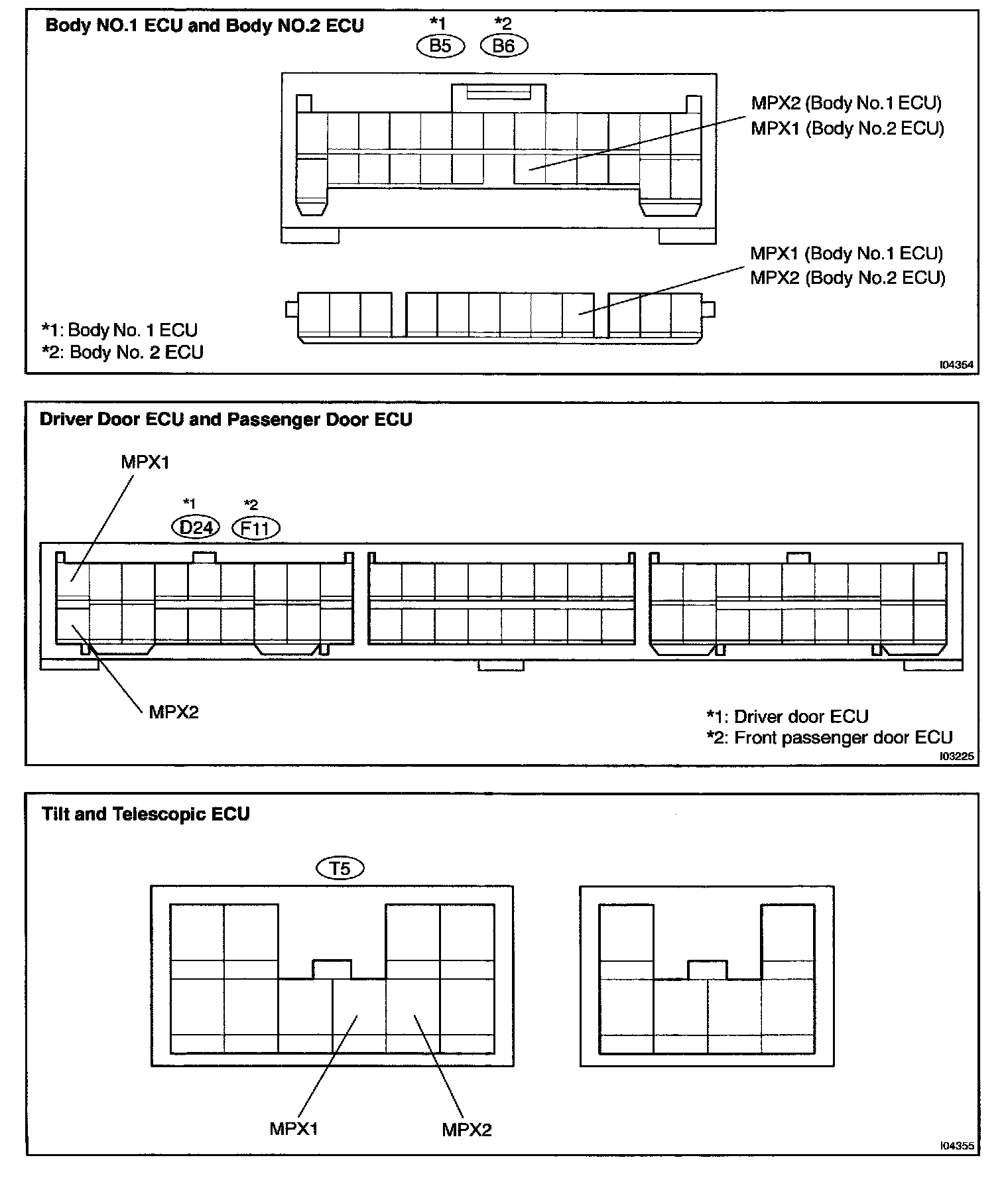

Terminals Of ECU (Part 4):
