Cabin Air Filter / Purifier: Service and Repair
AIR REFINER FILTERREMOVAL
1. REMOVE GLOVE COMPARTMENT DOOR

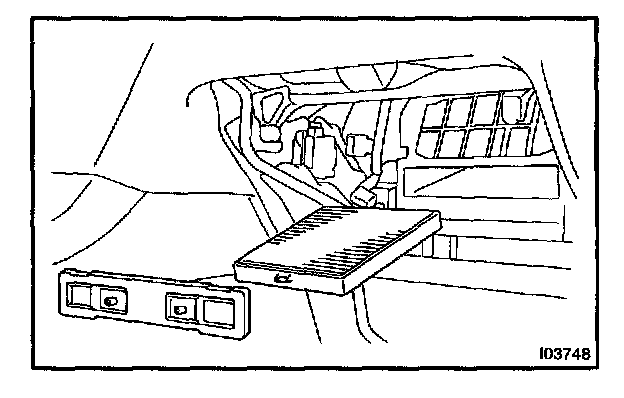

2. REMOVE AIR REFINER FILTER
a. Remove the cover.
b. Pull out the air refiner filter.
INSTALLATION
Installation is in the reverse order of removal.
