Symptom Related Diagnostic Procedures

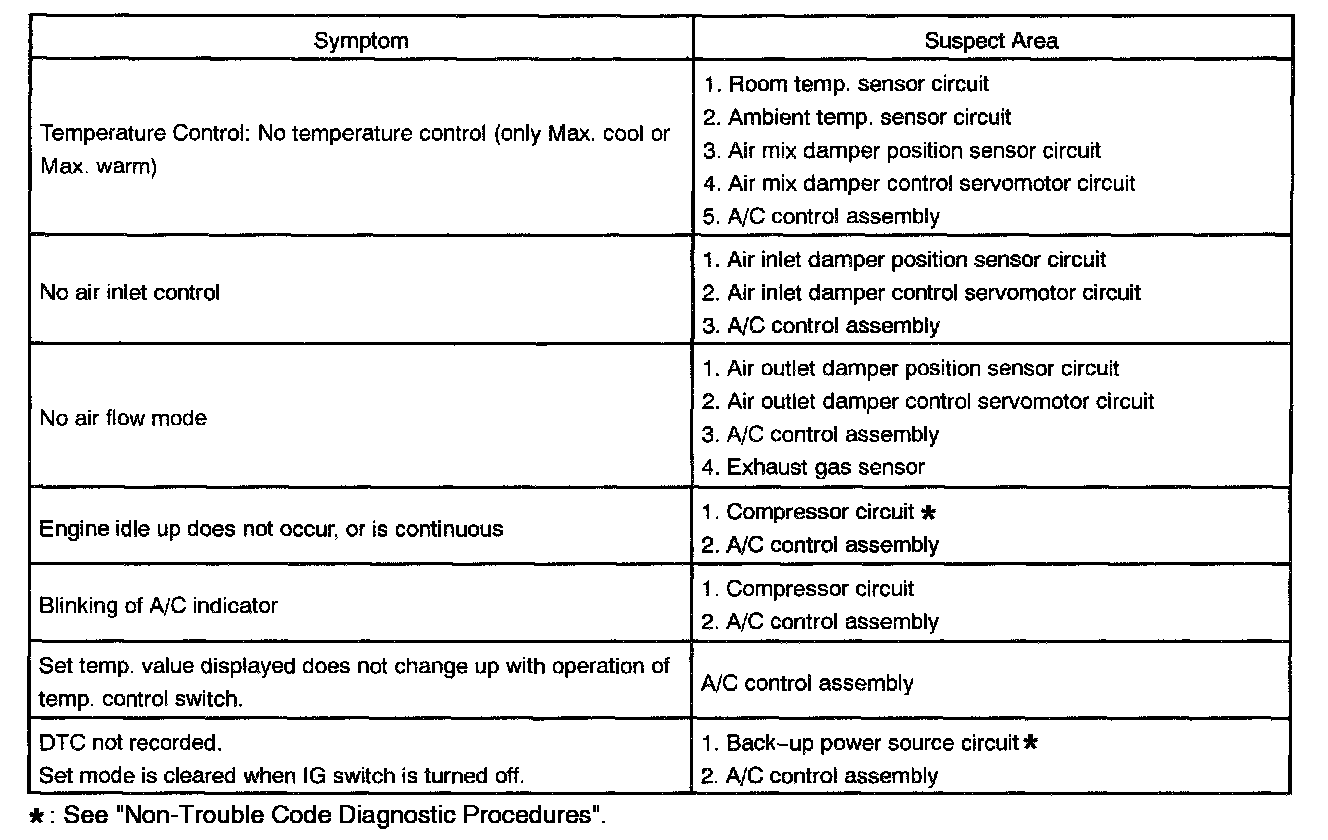

Problem Symptoms Table (Part 1):

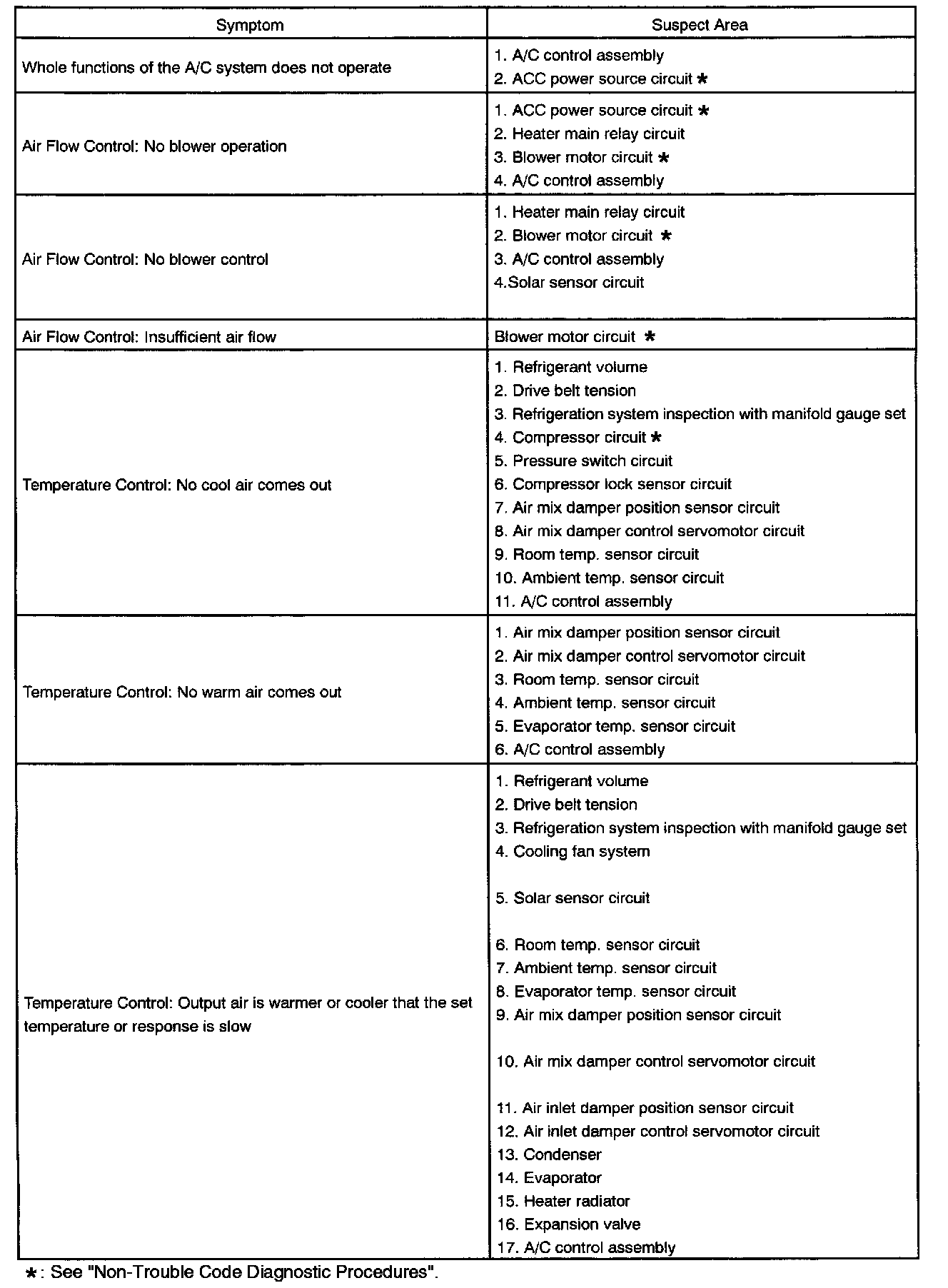

Problem Symptoms Table (Part 2):
