Back-Up Power Source Circuit

Back-Up Power Source Circuit

CIRCUIT DESCRIPTION
This is the backup poser source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.

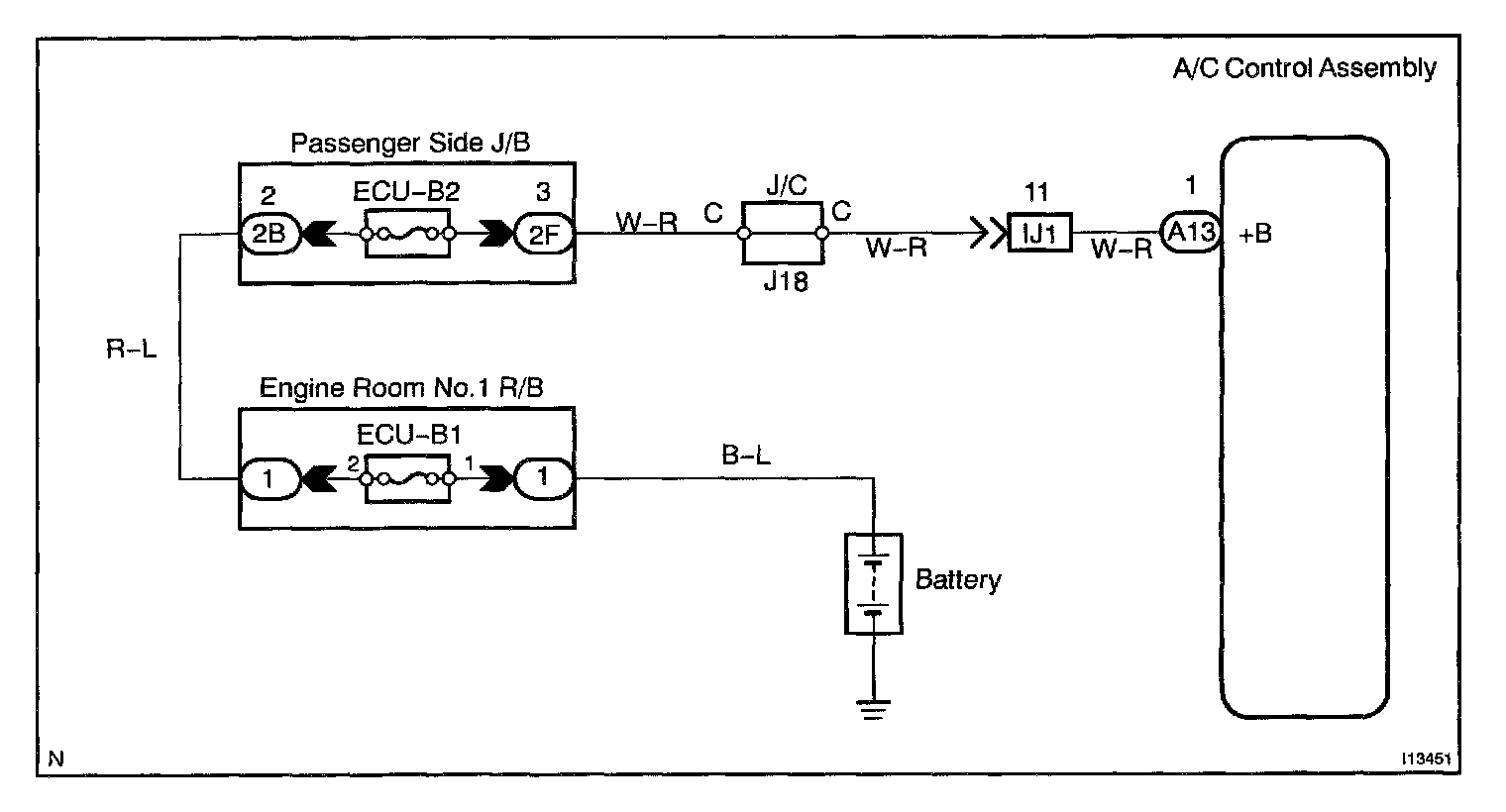

Wiring Diagram:

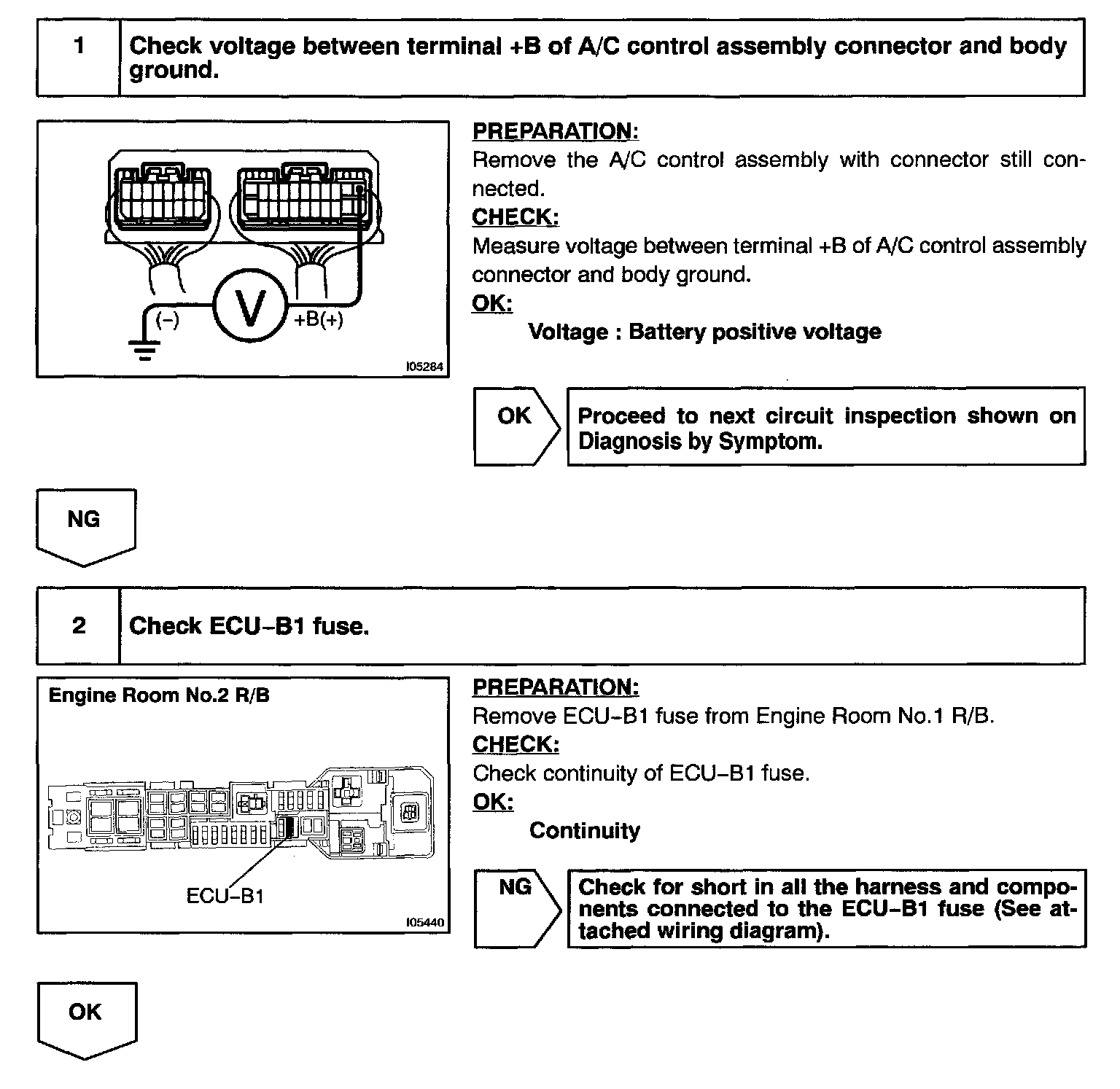

Steps 1 - 2:

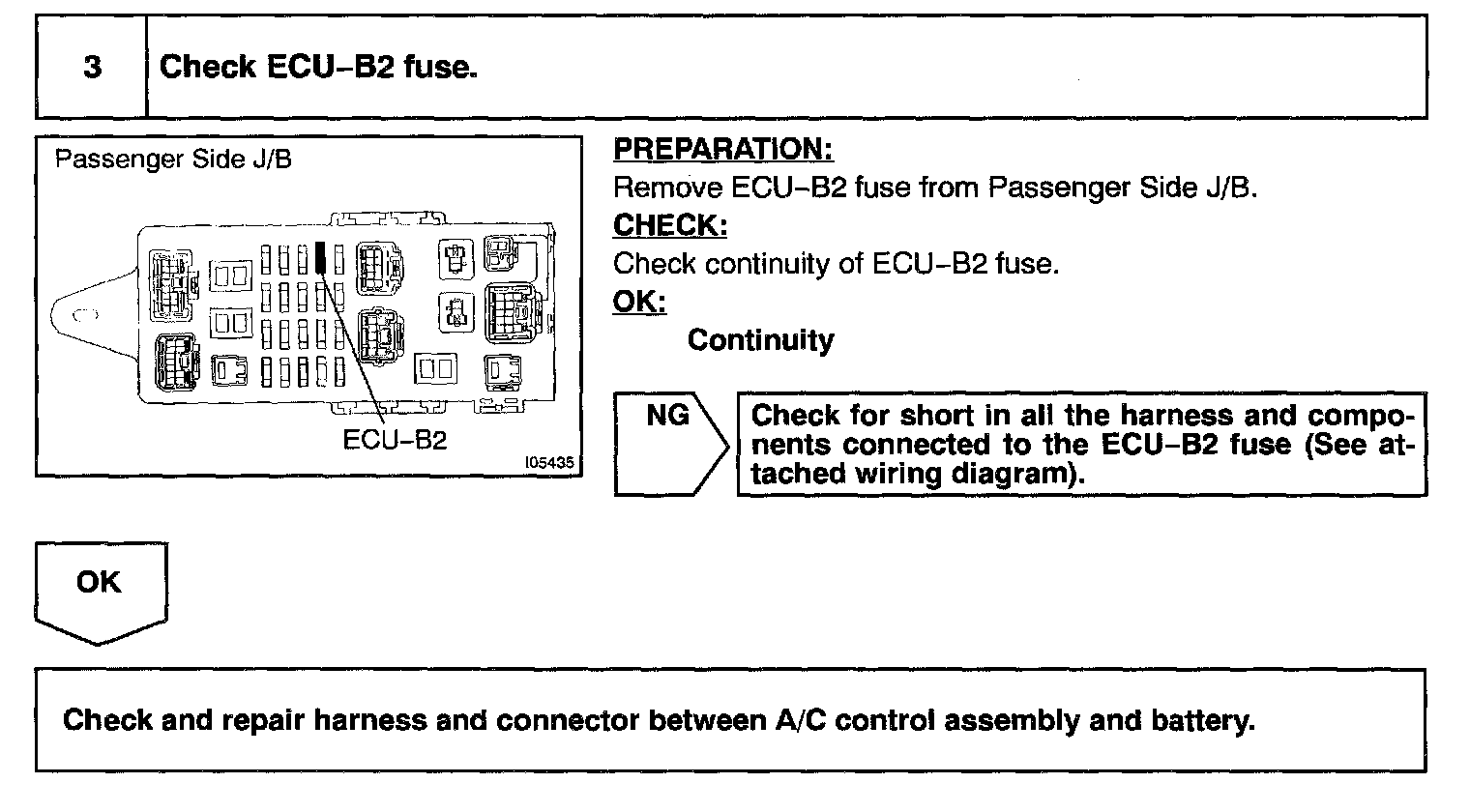

Step 3:




INSPECTION PROCEDURE
