ACC Power Source Circuit

ACC Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for A/C control assembly and servomotors, etc.

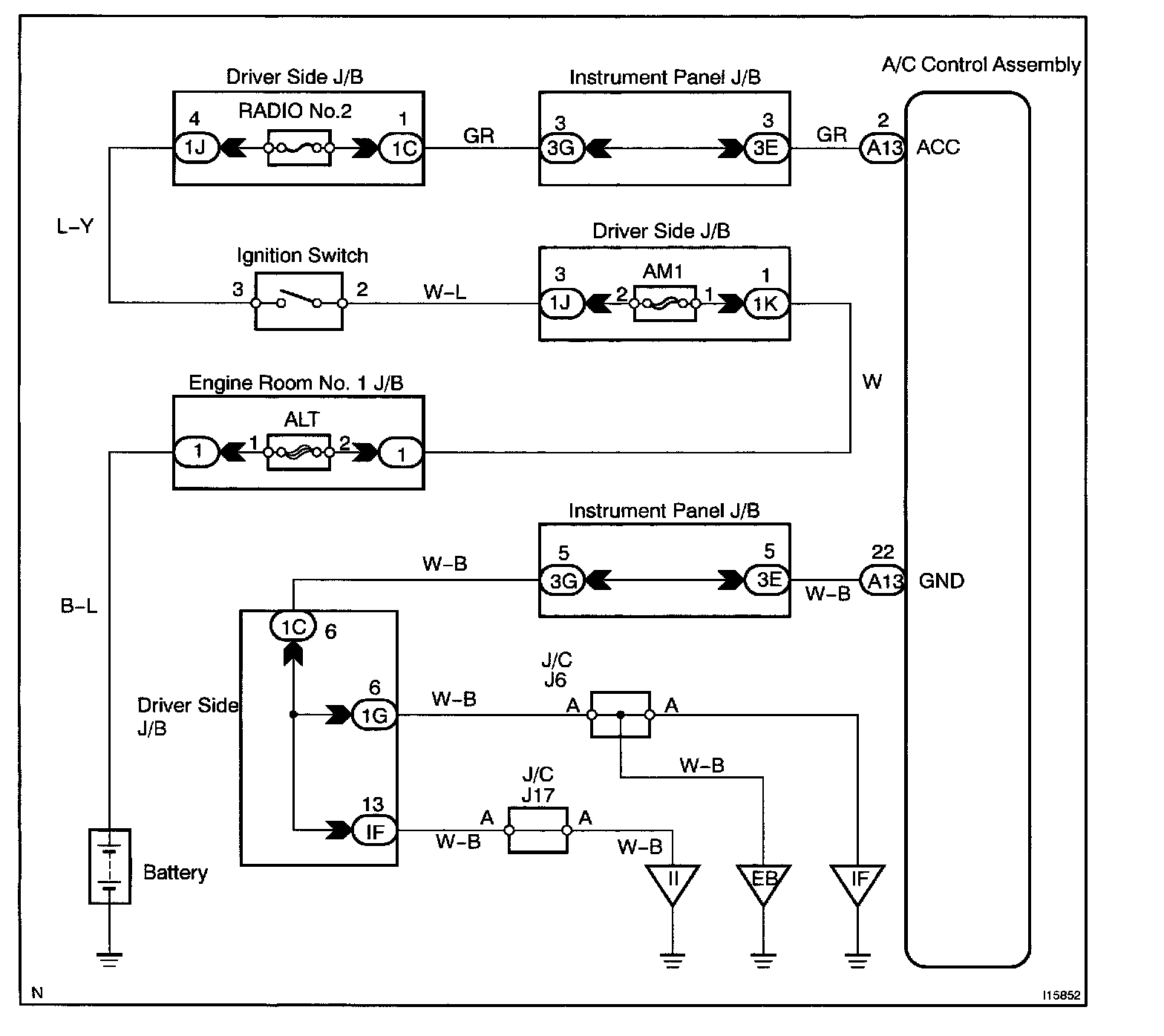

Wiring Diagram:

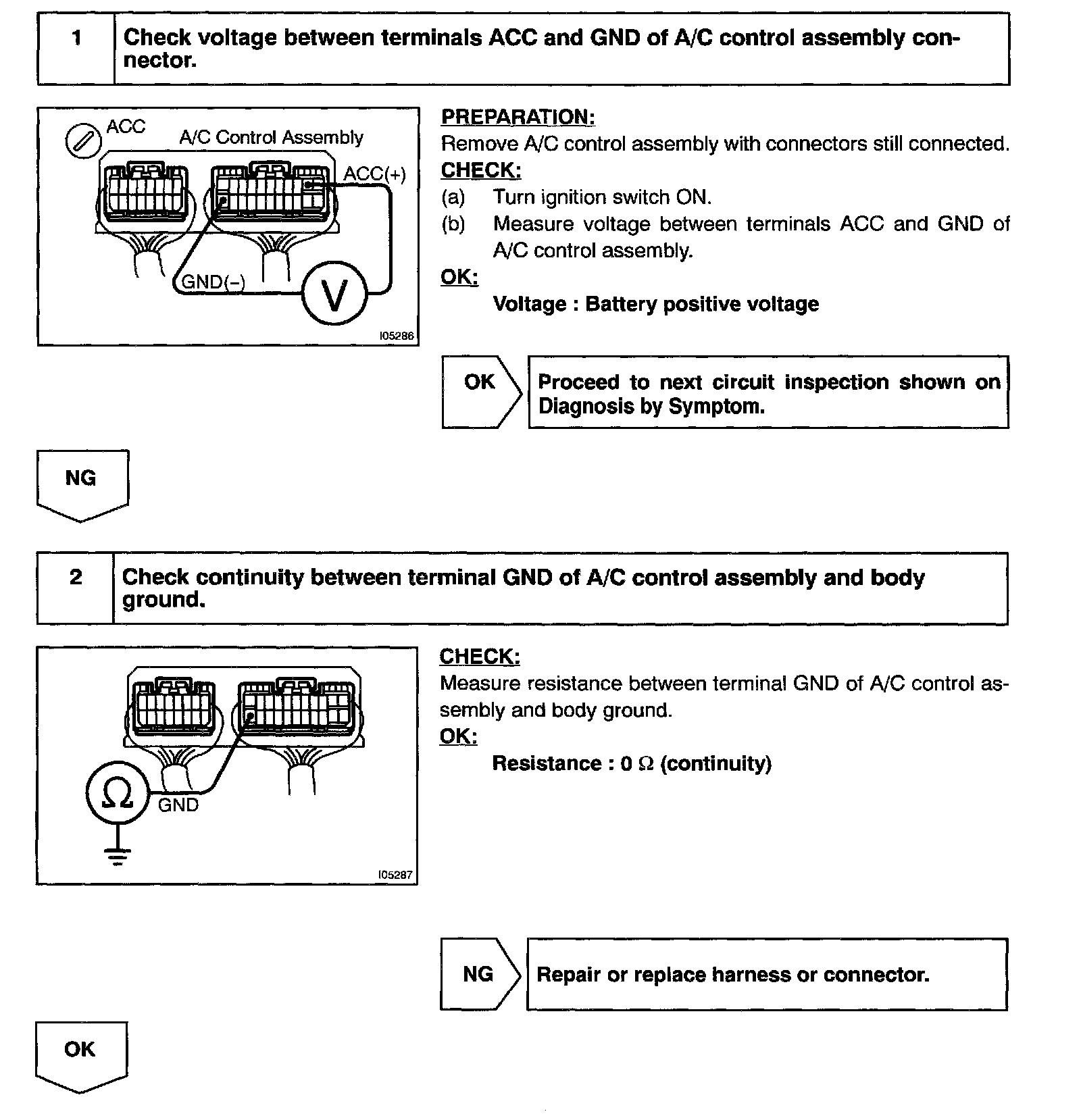

Steps 1 - 2:




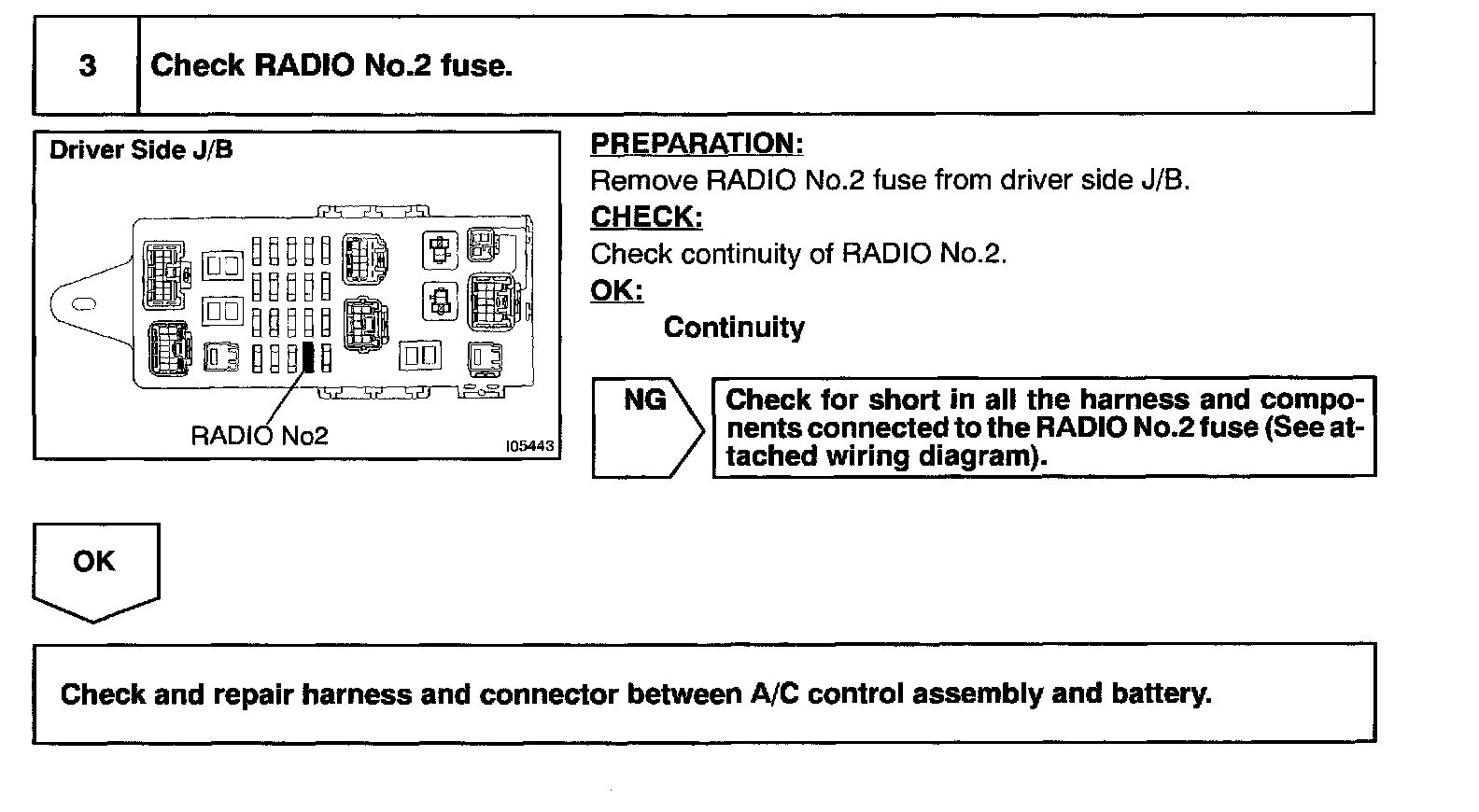

Step 3:




INSPECTION PROCEDURE
