Condenser Fan Motor Relay: Testing and Inspection
RELAYINSPECTION
INSPECT No.2 COOLING FAN RELAY (Marking: FAN NO.2) CONTINUITY
If continuity is not as specified, replace the relay.
INSPECT No.3 COOLING FAN RELAY (Marking: FAN NO.3) CONTINUITY
Check the relay in the same way as for "MAGNETIC CLUTCH RELAY".
1. MAGNETIC CLUTCH RELAY
a. Remove the magnetic clutch relay from engine room No.1 R/B.

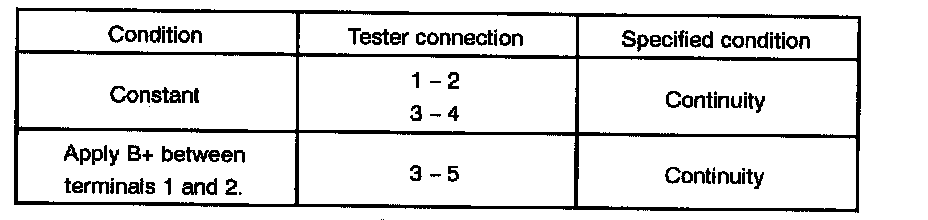

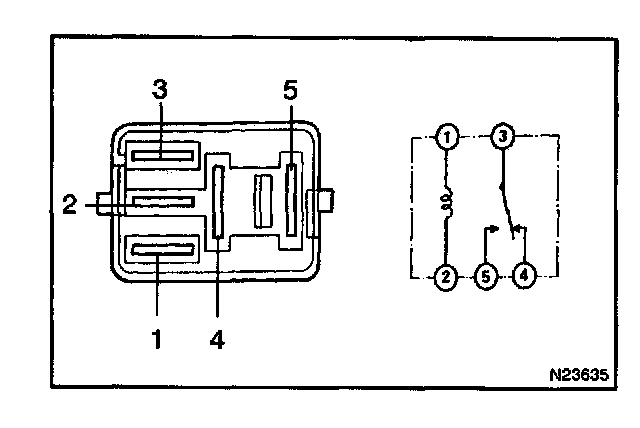

b. Inspect magnetic clutch relay continuity.
If continuity is not as specified, replace the relay.
2. COOLING FAN RELAY
a. Remove the cooling fan relay from fusible link block.
b. Inspect cooling fan relay continuity.
If continuity is not as specified, replace the relays.
